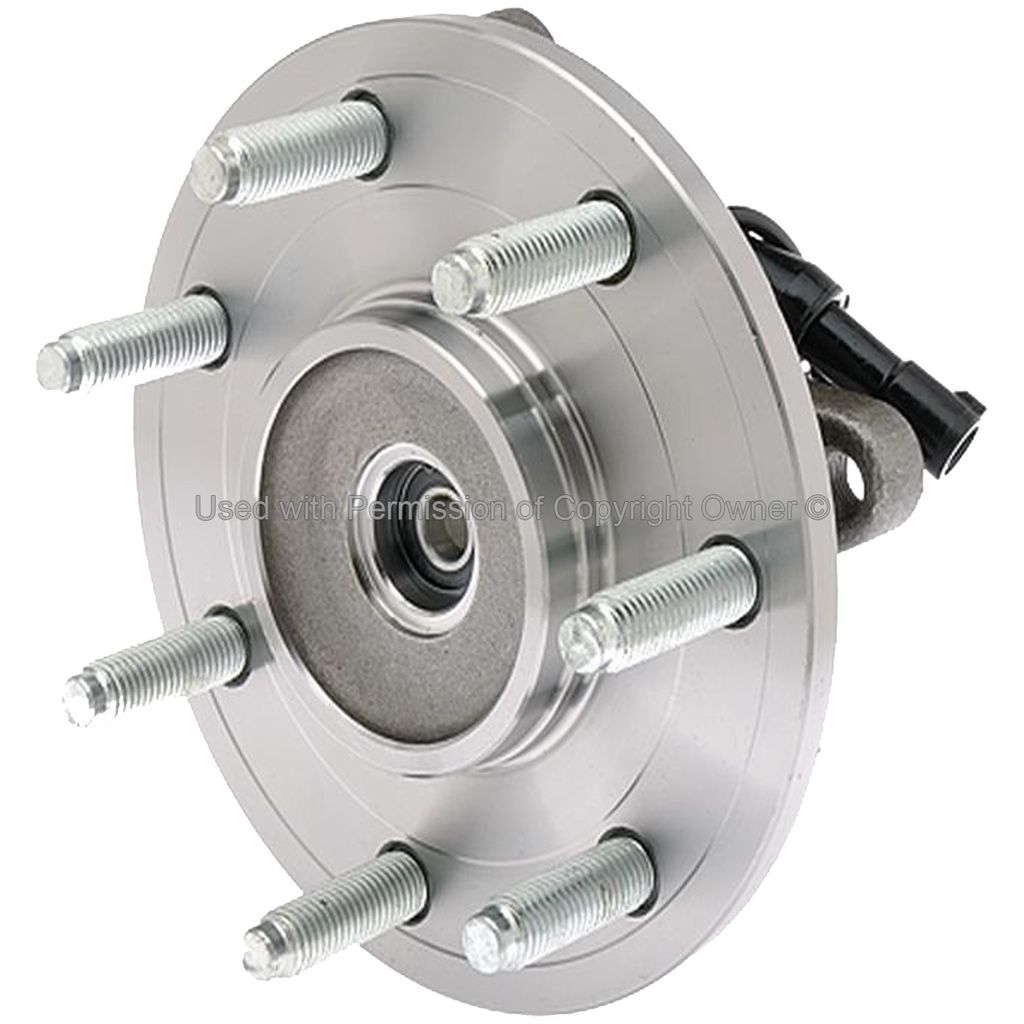

Quality-Built WH515080 - Wheel Bearing and Hub Assembly

Previous image
Quality-Built WH515080 - Wheel Bearing and Hub Assembly
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Quality-Built WH515080 - Wheel Bearing and Hub Assembly

Part No: WH515080
Only 1 left in Stock, Order Soon Arrives: Jul 14 - 20
  • $181.91 & FREE Shipping

Starting at $XX/mo with Affirm. Prequalify now

Quality-Built WH515080 - Wheel Bearing and Hub Assembly

FQTW-WH515080
Only 1 left in Stock, Order Soon Arrives: Jul 14 - 20
  • $181.91 & FREE Shipping

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific
  • Premium, high-carbon steel alloys improve load bearing capabilities and strength.
  • Induction hardened, micro-finished races improve bearing durability and load capacity.

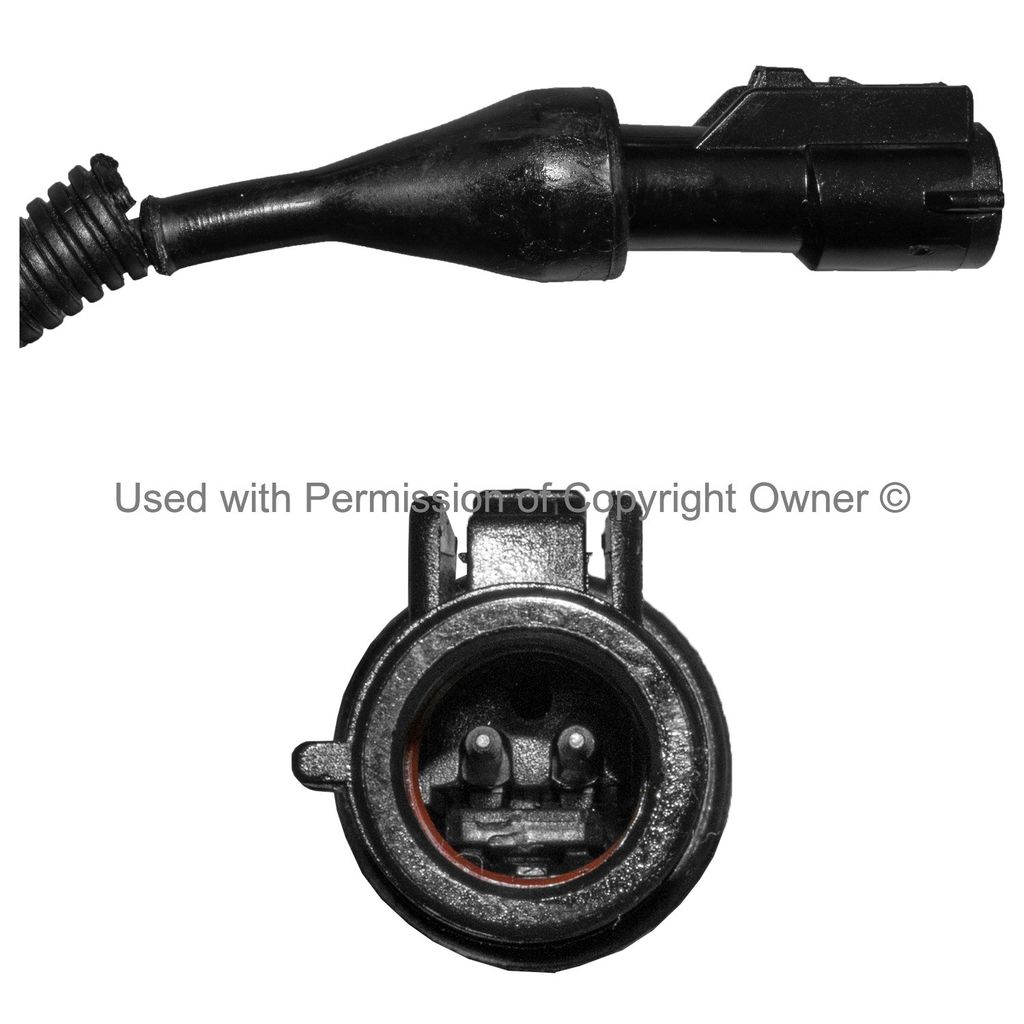

  • Application-specific ABS sensors included for perfect vehicle control system signaling.
  • Application-specific ABS sensors are seamlessly integrated for flawless communication
Check All Vehicles this Part Fits

Product details

 Description

Wheel Bearing and Hub Assembly
Quality-Built Wheel Hub Assemblies meet the demands of professional installers by offering an OE replacment part that is installation ready out of the box with everything included to get the job done and restore safe vehicle operation.

 Specifications

Package
Details
  • Anti Lock Brake Sensor Included
    Yes
  • Anti Lock Braking System Type
    Sensor
  • Bolt Circle Diameter
    149.86 mm
  • Flange Bolt Hole Diameter
    6.295 in
  • Flange Bolt Hole Quantity
    4
  • Flange Diameter
    7.479 in
  • Flange Diameter Inch
    7.479
  • Flange Included
    Yes
  • Flange Offset
    1.792 in
  • Flange Shape
    Square
  • Gasket or Seal Included
    Yes
  • Greaseable
    No
  • Hub Pilot Diameter Inch
    3.925
  • Material
    Steel
  • Product Condition
    New
  • Spline Quantity
    45
  • Stud Quantity
    7
  • Wheel Stud Size MM
    M14 x 2.0
  • Wheel Studs Included
    Yes
  • Wiring Harness Included
    No

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2008, Ford F-150 5.4, 330, V, 8 FX4, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2008, Ford F-150 5.4, 330, V, 8 Harley-Davidson Edition, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2008, Ford F-150 5.4, 330, V, 8 King Ranch, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2008, Ford F-150 5.4, 330, V, 8 Lariat, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2008, Ford F-150 5.4, 330, V, 8 Limited, AWD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2008, Ford F-150 4.6, 281, V, 8 STX, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2008, Ford F-150 4.2, 256, V, 6 STX, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2008, Ford F-150 5.4, 330, V, 8 THE 60TH ANNIVERSARY EDITION, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2008, Ford F-150 4.6, 281, V, 8 THE 60TH ANNIVERSARY EDITION, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2008, Ford F-150 5.4, 330, V, 8 XL, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2008, Ford F-150 4.6, 281, V, 8 XL, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2008, Ford F-150 4.2, 256, V, 6 XL, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2008, Ford F-150 5.4, 330, V, 8 XLT, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2008, Ford F-150 4.6, 281, V, 8 XLT, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2008, Ford F-150 4.2, 256, V, 6 XLT, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2008, Ford F-150 5.4, 330, V, 8 XTR, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2008, Ford F-150 4.6, 281, V, 8 XTR, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2008, Lincoln Mark LT 5.4, 330, V, 8 Base, AWD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 7 Wheel Studs, From 11/28/2004
2008, Lincoln Mark LT 5.4, 330, V, 8 Base, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 7 Wheel Studs, From 11/28/2004
2007, Ford F-150 5.4, 330, V, 8 FX4, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2007, Ford F-150 5.4, 330, V, 8 Harley-Davidson Edition, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2007, Ford F-150 5.4, 330, V, 8 King Ranch, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2007, Ford F-150 5.4, 330, V, 8 Lariat, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2007, Ford F-150 4.6, 281, V, 8 STX, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2007, Ford F-150 4.2, 256, V, 6 STX, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2007, Ford F-150 5.4, 330, V, 8 XL, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2007, Ford F-150 4.6, 281, V, 8 XL, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2007, Ford F-150 4.2, 256, V, 6 XL, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2007, Ford F-150 5.4, 330, V, 8 XLT, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2007, Ford F-150 4.6, 281, V, 8 XLT, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2007, Ford F-150 4.2, 256, V, 6 XLT, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2007, Lincoln Mark LT 5.4, 330, V, 8 Base, AWD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 7 Wheel Studs, From 11/28/2004
2007, Lincoln Mark LT 5.4, 330, V, 8 Base, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 7 Wheel Studs, From 11/28/2004
2006, Ford F-150 5.4, 330, V, 8 FX4, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2006, Ford F-150 5.4, 330, V, 8 Harley-Davidson Edition, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2006, Ford F-150 5.4, 330, V, 8 King Ranch, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2006, Ford F-150 5.4, 330, V, 8 Lariat, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2006, Ford F-150 4.6, 281, V, 8 STX, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2006, Ford F-150 4.2, 256, V, 6 STX, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2006, Ford F-150 5.4, 330, V, 8 XL, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2006, Ford F-150 4.6, 281, V, 8 XL, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2006, Ford F-150 4.2, 256, V, 6 XL, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2006, Ford F-150 5.4, 330, V, 8 XLT, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2006, Ford F-150 4.6, 281, V, 8 XLT, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2006, Ford F-150 4.2, 256, V, 6 XLT, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2006, Lincoln Mark LT 5.4, 330, V, 8 Base, AWD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 7 Wheel Studs, From 11/28/2004
2006, Lincoln Mark LT 5.4, 330, V, 8 Base, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 7 Wheel Studs, From 11/28/2004
2005, Ford F-150 5.4, 330, V, 8 FX4, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 7 Wheel Studs, From 11/28/2004
2005, Ford F-150 5.4, 330, V, 8 King Ranch, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 7 Wheel Studs, From 11/28/2004
2005, Ford F-150 5.4, 330, V, 8 Lariat, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 7 Wheel Studs, From 11/28/2004
2005, Ford F-150 4.6, 281, V, 8 STX, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 7 Wheel Studs, From 11/28/2004
2005, Ford F-150 4.2, 256, V, 6 STX, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 7 Wheel Studs, From 11/28/2004
2005, Ford F-150 5.4, 330, V, 8 XL, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 7 Wheel Studs, From 11/28/2004
2005, Ford F-150 4.6, 281, V, 8 XL, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 7 Wheel Studs, From 11/28/2004
2005, Ford F-150 4.2, 256, V, 6 XL, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 7 Wheel Studs, From 11/28/2004
2005, Ford F-150 5.4, 330, V, 8 XLT, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 7 Wheel Studs, From 11/28/2004
2005, Ford F-150 4.6, 281, V, 8 XLT, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 7 Wheel Studs, From 11/28/2004
2005, Ford F-150 4.2, 256, V, 6 XLT, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 7 Wheel Studs, From 11/28/2004
Items: 1–100 of 145
