Quality-Built WH515046 - Wheel Bearing and Hub Assembly

Previous image
Quality-Built WH515046 - Wheel Bearing and Hub Assembly
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

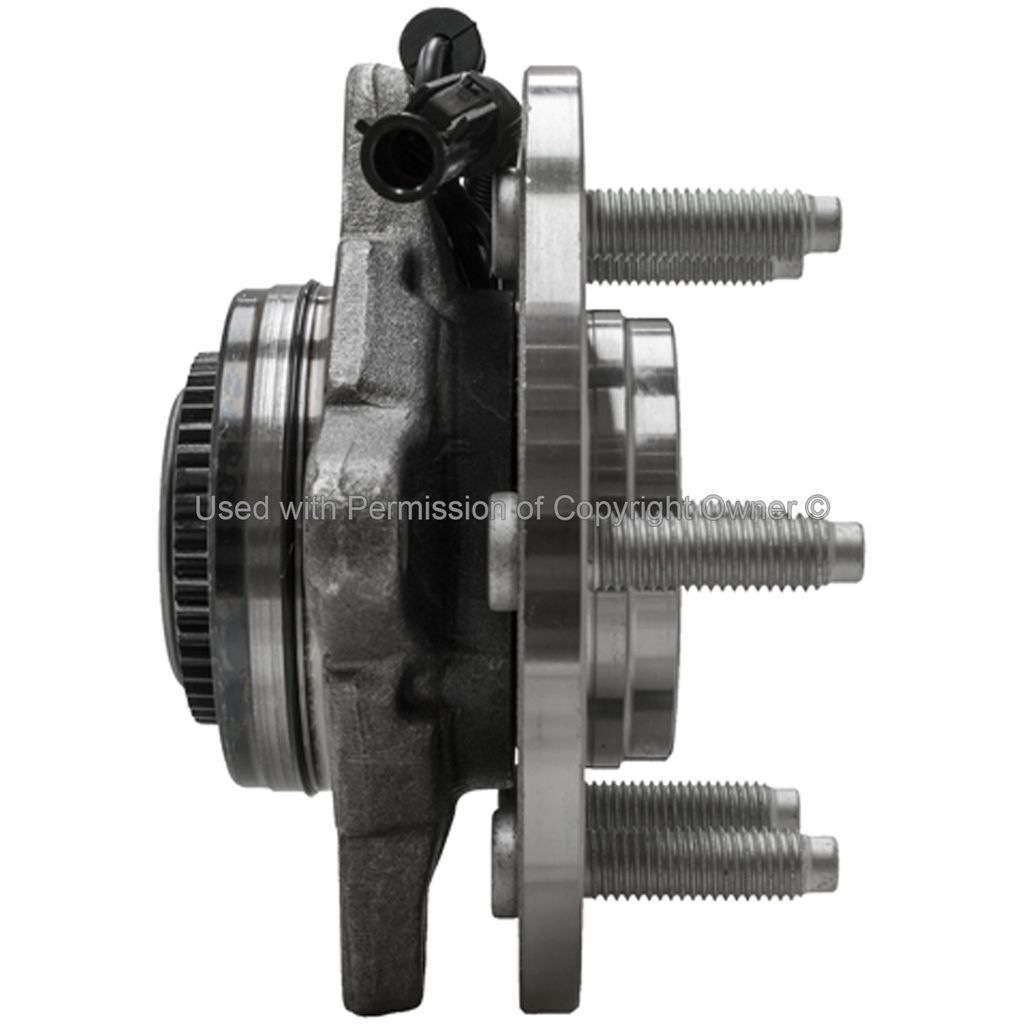

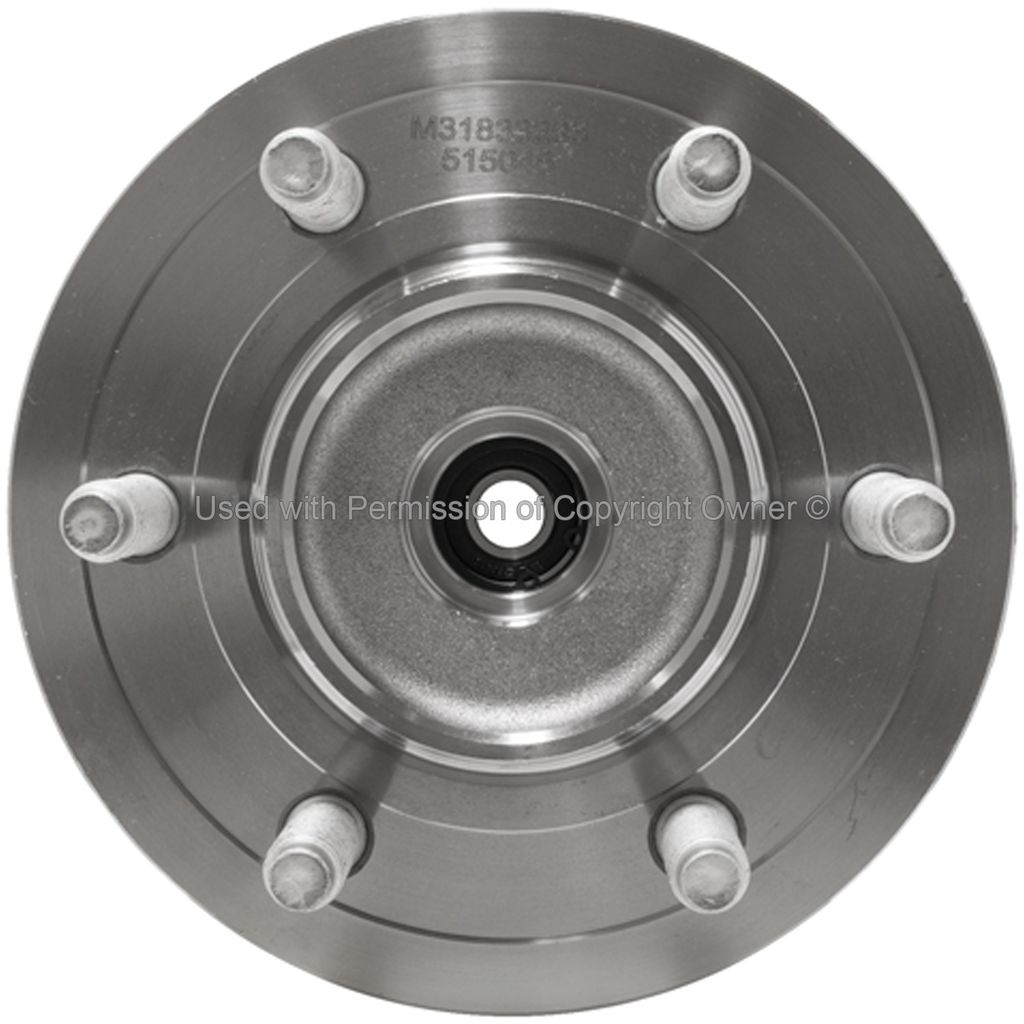

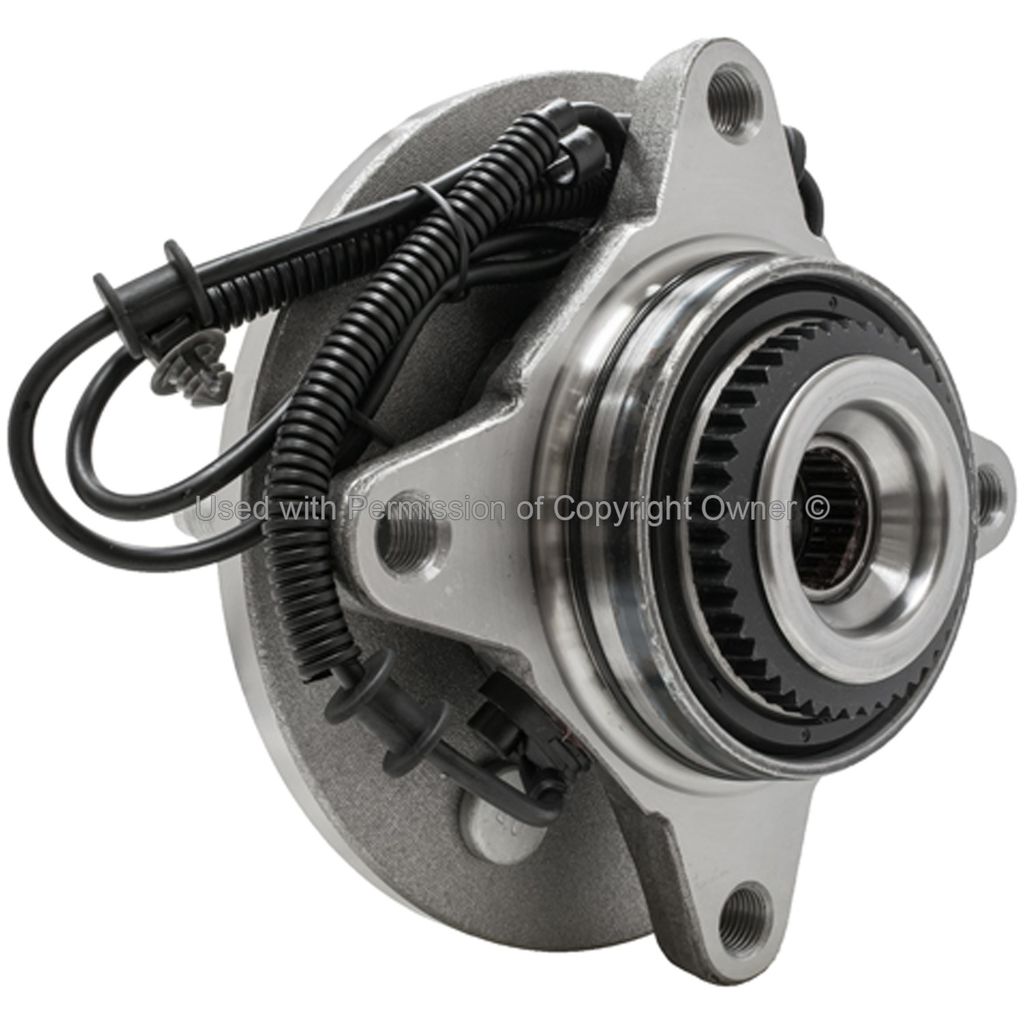

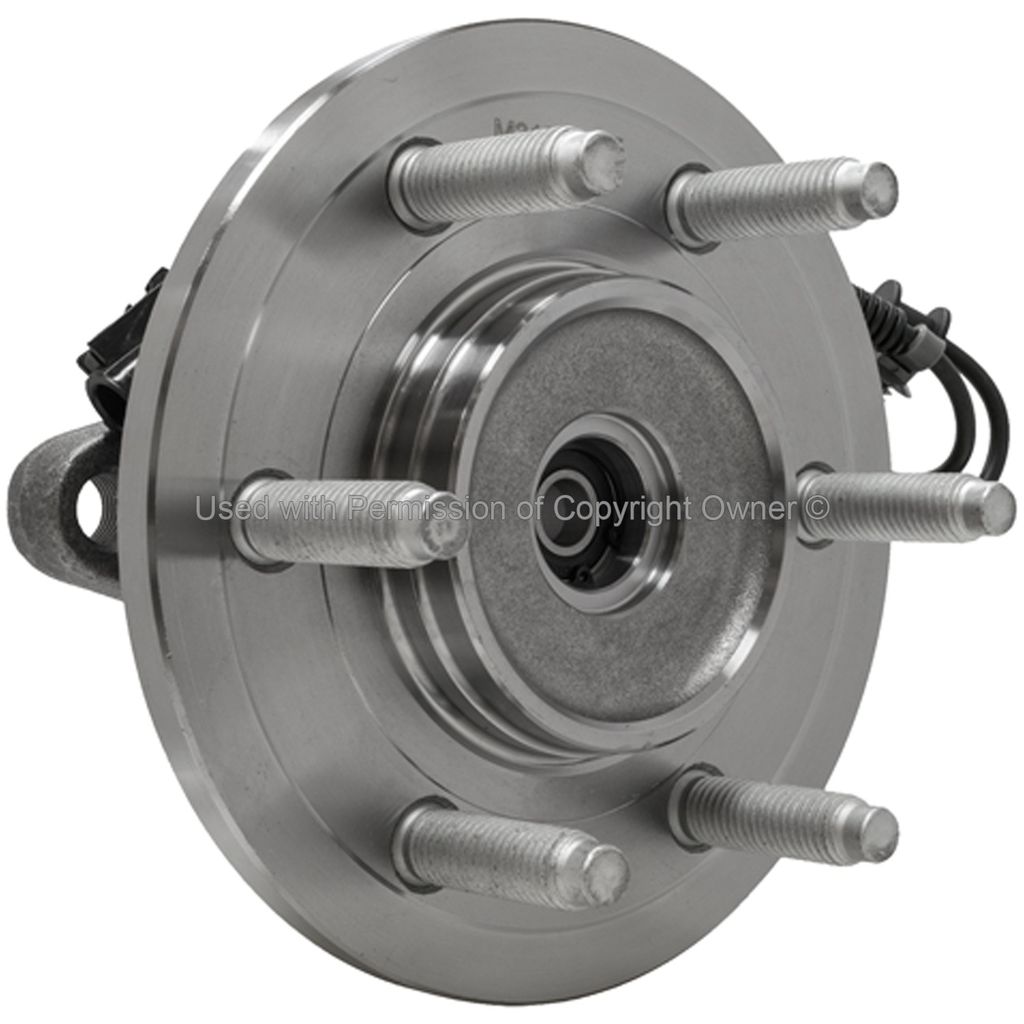

Quality-Built WH515046 - Wheel Bearing and Hub Assembly

Part No: WH515046
In Stock Arrives: Jul 14 - 20
  • $130.29 & FREE Shipping

Starting at $XX/mo with Affirm. Prequalify now

Quality-Built WH515046 - Wheel Bearing and Hub Assembly

FQTW-WH515046
In Stock Arrives: Jul 14 - 20
  • $130.29 & FREE Shipping

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific
  • Premium, high-carbon steel alloys improve load bearing capabilities and strength.
  • Application-specific ABS sensors included for perfect vehicle control system signaling.
  • Induction hardened, micro-finished races improve bearing durability and load capacity.
  • Application-specific ABS sensors are seamlessly integrated for flawless communication
Check All Vehicles this Part Fits

Product details

 Description

Wheel Bearing and Hub Assembly
Quality-Built Wheel Hub Assemblies meet the demands of professional installers by offering an OE replacment part that is installation ready out of the box with everything included to get the job done and restore safe vehicle operation.

 Specifications

Package
Details
  • Anti Lock Brake Sensor Included
    Yes
  • Anti Lock Braking System Type
    Sensor
  • Bolt Circle Diameter
    5.320 in
  • Flange Bolt Hole Diameter
    6.3 in
  • Flange Bolt Hole Quantity
    4
  • Flange Diameter
    7.205 in
  • Flange Diameter Inch
    7.205
  • Flange Included
    Yes
  • Flange Offset
    1.795 in
  • Flange Shape
    Modified Rectangle
  • Gasket or Seal Included
    Yes
  • Greaseable
    No
  • Hub Pilot Diameter Inch
    3.908
  • Material
    Steel
  • Product Condition
    New
  • Spline Quantity
    45
  • Stud Quantity
    6
  • Wheel Stud Size MM
    M14 x 2.0
  • Wheel Studs Included
    Yes
  • Wiring Harness Included
    No

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2005, Ford F-150 5.4, 330, V, 8 FX4, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 6 Wheel Studs, To 11/28/2004
2005, Ford F-150 5.4, 330, V, 8 King Ranch, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 6 Wheel Studs, To 11/28/2004
2005, Ford F-150 5.4, 330, V, 8 Lariat, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 6 Wheel Studs, To 11/28/2004
2005, Ford F-150 4.6, 281, V, 8 STX, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 6 Wheel Studs, To 11/28/2004
2005, Ford F-150 4.2, 256, V, 6 STX, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 6 Wheel Studs, To 11/28/2004
2005, Ford F-150 5.4, 330, V, 8 XL, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 6 Wheel Studs, To 11/28/2004
2005, Ford F-150 4.6, 281, V, 8 XL, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 6 Wheel Studs, To 11/28/2004
2005, Ford F-150 4.2, 256, V, 6 XL, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 6 Wheel Studs, To 11/28/2004
2005, Ford F-150 5.4, 330, V, 8 XLT, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 6 Wheel Studs, To 11/28/2004
2005, Ford F-150 4.6, 281, V, 8 XLT, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 6 Wheel Studs, To 11/28/2004
2005, Ford F-150 4.2, 256, V, 6 XLT, 4WD Front, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.;w/ 6 Wheel Studs, To 11/28/2004
2004, Ford F-150 5.4, 330, V, 8 FX4, 4WD Front, Qty - 2, Wheel Hub Assembly;w/ 6 Wheel Studs, To 11/28/2004, (Exc.Heavy Duty Payload Package);Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2004, Ford F-150 5.4, 330, V, 8 Lariat, 4WD Front, Qty - 2, Wheel Hub Assembly;w/ 6 Wheel Studs, To 11/28/2004, (Exc.Heavy Duty Payload Package);Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2004, Ford F-150 4.6, 281, V, 8 STX, 4WD Front, Qty - 2, Wheel Hub Assembly;w/ 6 Wheel Studs, To 11/28/2004, (Exc.Heavy Duty Payload Package);Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2004, Ford F-150 5.4, 330, V, 8 XL, 4WD Front, Qty - 2, Wheel Hub Assembly;w/ 6 Wheel Studs, To 11/28/2004, (Exc.Heavy Duty Payload Package);Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2004, Ford F-150 4.6, 281, V, 8 XL, 4WD Front, Qty - 2, Wheel Hub Assembly;w/ 6 Wheel Studs, To 11/28/2004, (Exc.Heavy Duty Payload Package);Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2004, Ford F-150 5.4, 330, V, 8 XLT, 4WD Front, Qty - 2, Wheel Hub Assembly;w/ 6 Wheel Studs, To 11/28/2004, (Exc.Heavy Duty Payload Package);Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
2004, Ford F-150 4.6, 281, V, 8 XLT, 4WD Front, Qty - 2, Wheel Hub Assembly;w/ 6 Wheel Studs, To 11/28/2004, (Exc.Heavy Duty Payload Package);Axle Nut Torque Spec: 20 ft-lbs / 27Nm, use new axle nut.
