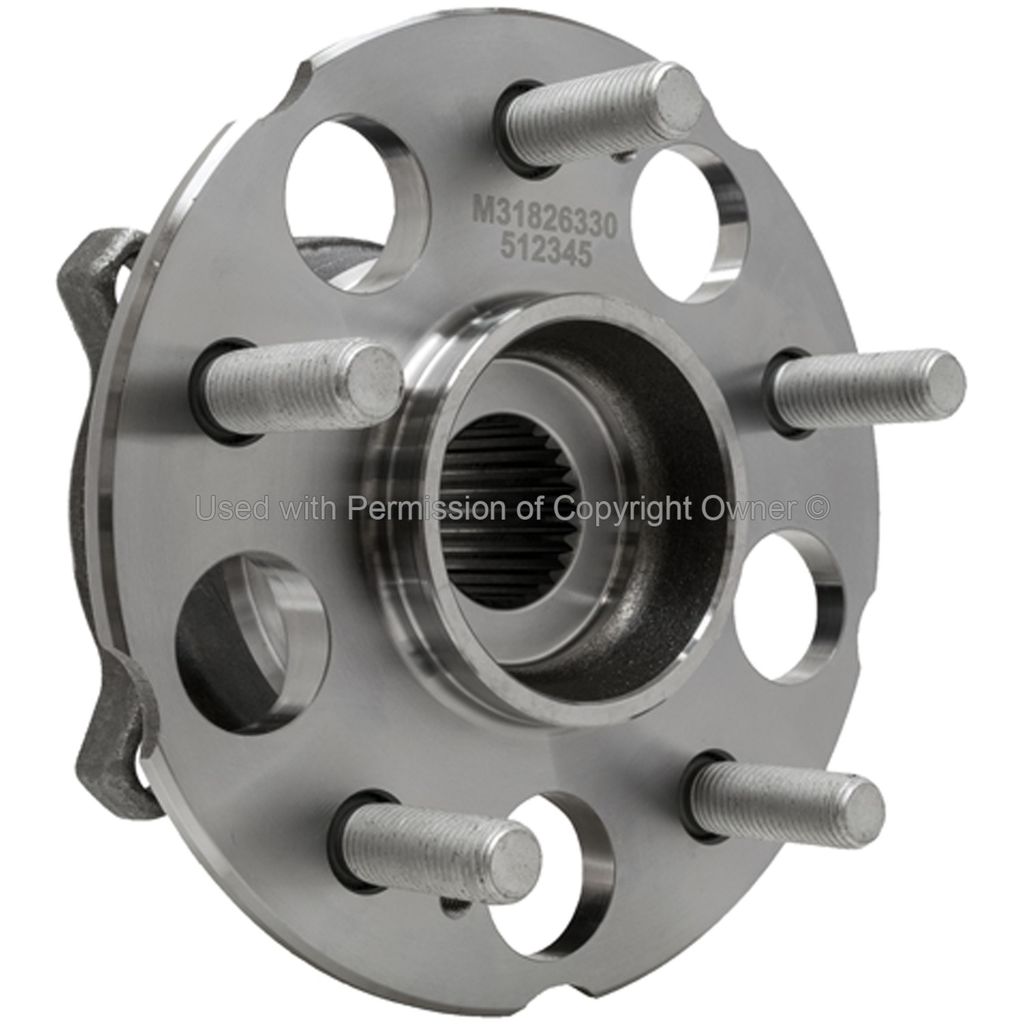

Quality-Built WH512345 - Wheel Bearing and Hub Assembly

Previous image
Quality-Built WH512345 - Wheel Bearing and Hub Assembly
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Quality-Built WH512345 - Wheel Bearing and Hub Assembly

Part No: WH512345
In Stock Arrives: Jun 15 - 19
  • $92.41

Starting at $XX/mo with Affirm. Prequalify now

Quality-Built WH512345 - Wheel Bearing and Hub Assembly

FQTW-WH512345
In Stock Arrives: Jun 15 - 19
  • $92.41

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific
  • Application-specific ABS sensors included for perfect vehicle control system signaling.
  • Premium, high-carbon steel alloys improve load bearing capabilities and strength.
  • Induction hardened, micro-finished races improve bearing durability and load capacity.
  • Application-specific ABS sensors are seamlessly integrated for flawless communication
Check All Vehicles this Part Fits

Product details

 Description

Wheel Bearing and Hub Assembly
Quality-Built Wheel Hub Assemblies meet the demands of professional installers by offering an OE replacment part that is installation ready out of the box with everything included to get the job done and restore safe vehicle operation.

 Specifications

Package
Details
  • Anti Lock Brake Sensor Included
    No
  • Anti Lock Braking System Type
    Encoder
  • Bolt Circle Diameter
    4.50 in
  • Flange Bolt Hole Diameter
    4.118 in
  • Flange Bolt Hole Quantity
    4
  • Flange Diameter
    5.974 in
  • Flange Diameter Inch
    5.974
  • Flange Included
    Yes
  • Flange Offset
    2.42 in
  • Flange Shape
    Square
  • Gasket or Seal Included
    Yes
  • Greaseable
    No
  • Hub Pilot Diameter Inch
    3.224
  • Material
    Steel
  • Product Condition
    New
  • Spline Quantity
    28
  • Stud Quantity
    5
  • Wheel Stud Size MM
    M12 x 1.5
  • Wheel Studs Included
    Yes
  • Wiring Harness Included
    No

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2018, Acura RDX 3.5, 3471, V, 6 Base, AWD Rear, Qty - 2, Wheel Hub Assembly
2017, Acura RDX 3.5, 3471, V, 6 Base, AWD Rear, Qty - 2, Wheel Hub Assembly
2016, Acura RDX 3.5, 3471, V, 6 Base, AWD Rear, Qty - 2, Wheel Hub Assembly
2013, Acura RDX 3.5, 3471, V, 6 Base, AWD Rear, Qty - 2, Wheel Hub Assembly
2012, Acura RDX 2.3, 2300, L, 4 Base, AWD Rear, Qty - 2, Wheel Hub Assembly
2012, Acura RDX 2.3, 2300, L, 4 SH-AWD, AWD Rear, Qty - 2, Wheel Hub Assembly
2011, Acura RDX 2.3, 2300, L, 4 Base, AWD Rear, Qty - 2, Wheel Hub Assembly
2011, Acura RDX 2.3, 2300, L, 4 SH-AWD, AWD Rear, Qty - 2, Wheel Hub Assembly
2011, Honda CR-V 2.4, 2354, 144, L, 4 EX, 4WD Rear, Qty - 2, Wheel Hub Assembly
2011, Honda CR-V 2.4, 2354, 144, L, 4 EX-L, 4WD Rear, Qty - 2, Wheel Hub Assembly
2011, Honda CR-V 2.4, 2354, 144, L, 4 LX, 4WD Rear, Qty - 2, Wheel Hub Assembly
2011, Honda CR-V 2.4, 2354, 144, L, 4 SE, 4WD Rear, Qty - 2, Wheel Hub Assembly
2010, Acura RDX 2.3, 2300, L, 4 Base, AWD Rear, Qty - 2, Wheel Hub Assembly
2010, Acura RDX 2.3, 2300, L, 4 SH-AWD, AWD Rear, Qty - 2, Wheel Hub Assembly
2010, Honda CR-V 2.4, 2354, 144, L, 4 EX, 4WD Rear, Qty - 2, Wheel Hub Assembly
2010, Honda CR-V 2.4, 2354, 144, L, 4 EX-L, 4WD Rear, Qty - 2, Wheel Hub Assembly
2010, Honda CR-V 2.4, 2354, 144, L, 4 LX, 4WD Rear, Qty - 2, Wheel Hub Assembly
2009, Acura RDX 2.3, 2300, L, 4 Base, AWD Rear, Qty - 2, Wheel Hub Assembly
2009, Honda CR-V 2.4, 2354, 144, L, 4 EX, 4WD Rear, Qty - 2, Wheel Hub Assembly
2009, Honda CR-V 2.4, 2354, 144, L, 4 EX-L, 4WD Rear, Qty - 2, Wheel Hub Assembly
2009, Honda CR-V 2.4, 2354, 144, L, 4 LX, 4WD Rear, Qty - 2, Wheel Hub Assembly
2008, Acura RDX 2.3, 2300, L, 4 Base, AWD Rear, Qty - 2, Wheel Hub Assembly
2008, Honda CR-V 2.4, 2354, 144, L, 4 EX, 4WD Rear, Qty - 2, Wheel Hub Assembly
2008, Honda CR-V 2.4, 2354, 144, L, 4 EX-L, 4WD Rear, Qty - 2, Wheel Hub Assembly
2008, Honda CR-V 2.4, 2354, 144, L, 4 LX, 4WD Rear, Qty - 2, Wheel Hub Assembly
2007, Acura RDX 2.3, 2300, L, 4 Base, AWD Rear, Qty - 2, Wheel Hub Assembly
2007, Honda CR-V 2.4, 2354, 144, L, 4 EX, 4WD Rear, Qty - 2, Wheel Hub Assembly
2007, Honda CR-V 2.4, 2354, 144, L, 4 EX-L, 4WD Rear, Qty - 2, Wheel Hub Assembly
2007, Honda CR-V 2.4, 2354, 144, L, 4 LX, 4WD Rear, Qty - 2, Wheel Hub Assembly

Fitment Notice

You have not selected a vehicle to verify this product will fit. You may be subject to return and restocking fees if you order the wrong part without confirming your vehicle first.
