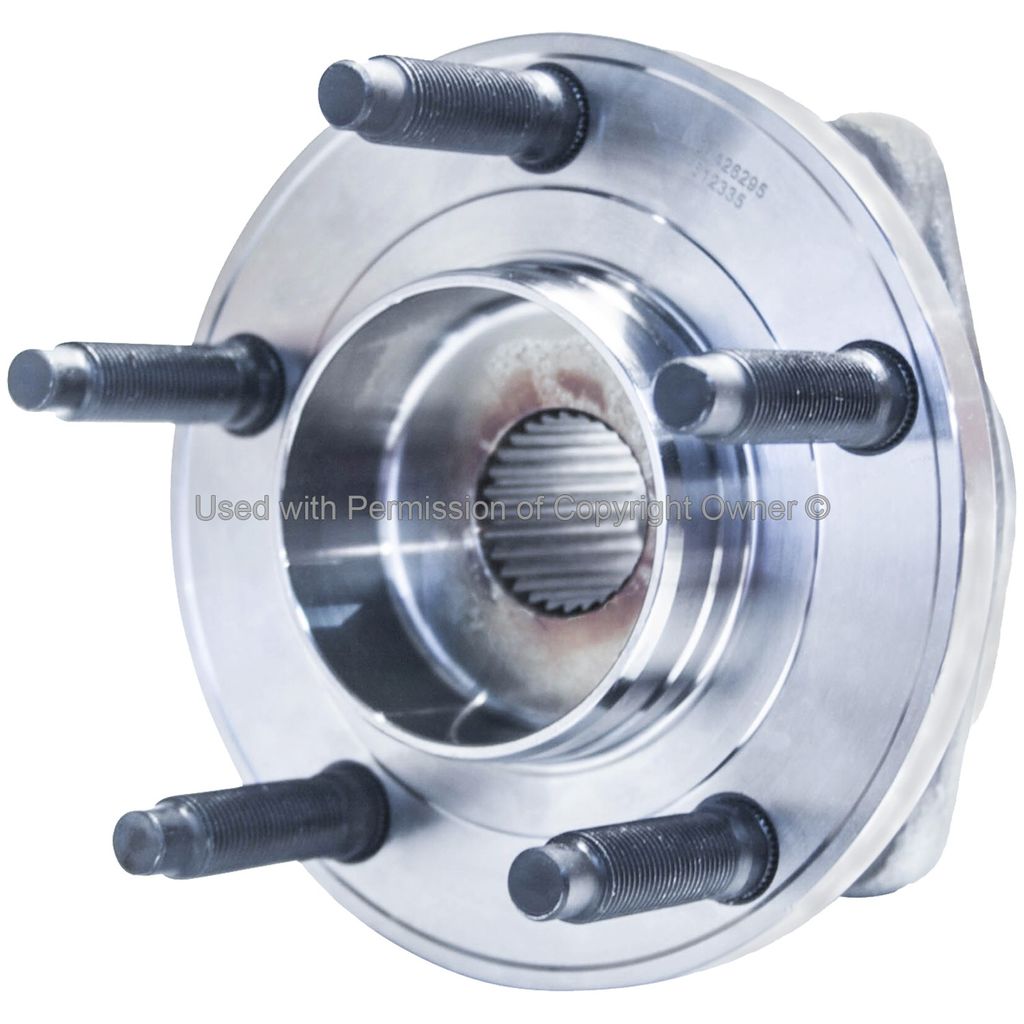

Quality-Built WH512335 - Wheel Bearing and Hub Assembly

Previous image
Quality-Built WH512335 - Wheel Bearing and Hub Assembly
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Quality-Built WH512335 - Wheel Bearing and Hub Assembly

Part No: WH512335
Only 4 left in Stock, Order Soon Arrives: Jun 12 - 18
  • $117.24 & FREE Shipping

Starting at $XX/mo with Affirm. Prequalify now

Quality-Built WH512335 - Wheel Bearing and Hub Assembly

FQTW-WH512335
Only 4 left in Stock, Order Soon Arrives: Jun 12 - 18
  • $117.24 & FREE Shipping

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific
  • Induction hardened, micro-finished races improve bearing durability and load capacity.
  • Premium, high-carbon steel alloys improve load bearing capabilities and strength.
  • Application-specific ABS sensors included for perfect vehicle control system signaling.
  • Application-specific ABS sensors are seamlessly integrated for flawless communication
Check All Vehicles this Part Fits

Product details

 Description

Wheel Bearing and Hub Assembly
Quality-Built Wheel Hub Assemblies meet the demands of professional installers by offering an OE replacment part that is installation ready out of the box with everything included to get the job done and restore safe vehicle operation.

 Specifications

Package
Details
  • Anti Lock Brake Sensor Included
    No
  • Bolt Circle Diameter
    4.50 in
  • Flange Bolt Hole Quantity
    4
  • Flange Diameter
    5.502 in
  • Flange Diameter Inch
    5.502
  • Flange Included
    Yes
  • Flange Offset
    2.483 in
  • Flange Shape
    Trapezoid
  • Gasket or Seal Included
    Yes
  • Greaseable
    No
  • Hub Pilot Diameter Inch
    3.07
  • Material
    Steel
  • Product Condition
    New
  • Spline Quantity
    28
  • Stud Quantity
    5
  • Wheel Studs Included
    Yes
  • Wiring Harness Included
    No

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2010, Ford Edge 3.5, 3496, 213, V, 6 Limited, AWD Rear, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: Inner nut - 203 ft-lbs / 275Nm, Outer nut: 129 ft-lbs / 175Nm.
2010, Ford Edge 3.5, 3496, 213, V, 6 SE, AWD Rear, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: Inner nut - 203 ft-lbs / 275Nm, Outer nut: 129 ft-lbs / 175Nm.
2010, Ford Edge 3.5, 3496, 213, V, 6 SEL, AWD Rear, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: Inner nut - 203 ft-lbs / 275Nm, Outer nut: 129 ft-lbs / 175Nm.
2010, Ford Edge 3.5, 3496, 213, V, 6 Sport, AWD Rear, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: Inner nut - 203 ft-lbs / 275Nm, Outer nut: 129 ft-lbs / 175Nm.
2010, Lincoln MKX 3.5, 3496, 213, V, 6 Base, AWD Rear, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: Inner nut - 203 ft-lbs / 275Nm, Outer nut: 129 ft-lbs / 175Nm.
2009, Ford Edge 3.5, 3496, 213, V, 6 Limited, AWD Rear, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: Inner nut - 203 ft-lbs / 275Nm, Outer nut: 129 ft-lbs / 175Nm.
2009, Ford Edge 3.5, 3496, 213, V, 6 SE, AWD Rear, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: Inner nut - 203 ft-lbs / 275Nm, Outer nut: 129 ft-lbs / 175Nm.
2009, Ford Edge 3.5, 3496, 213, V, 6 SEL, AWD Rear, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: Inner nut - 203 ft-lbs / 275Nm, Outer nut: 129 ft-lbs / 175Nm.
2009, Ford Edge 3.5, 3496, 213, V, 6 Sport, AWD Rear, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: Inner nut - 203 ft-lbs / 275Nm, Outer nut: 129 ft-lbs / 175Nm.
2009, Lincoln MKX 3.5, 3496, 213, V, 6 Base, AWD Rear, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: Inner nut - 203 ft-lbs / 275Nm, Outer nut: 129 ft-lbs / 175Nm.
2008, Ford Edge 3.5, 3496, 213, V, 6 Limited, AWD Rear, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: Inner nut - 203 ft-lbs / 275Nm, Outer nut: 129 ft-lbs / 175Nm.
2008, Ford Edge 3.5, 3496, 213, V, 6 SE, AWD Rear, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: Inner nut - 203 ft-lbs / 275Nm, Outer nut: 129 ft-lbs / 175Nm.
2008, Ford Edge 3.5, 3496, 213, V, 6 SEL, AWD Rear, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: Inner nut - 203 ft-lbs / 275Nm, Outer nut: 129 ft-lbs / 175Nm.
2008, Lincoln MKX 3.5, 3496, 213, V, 6 Base, AWD Rear, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: Inner nut - 203 ft-lbs / 275Nm, Outer nut: 129 ft-lbs / 175Nm.
2007, Ford Edge 3.5, 3496, 213, V, 6 SE, AWD Rear, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: Inner nut - 203 ft-lbs / 275Nm, Outer nut: 129 ft-lbs / 175Nm.
2007, Ford Edge 3.5, 3496, 213, V, 6 SEL, AWD Rear, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: Inner nut - 203 ft-lbs / 275Nm, Outer nut: 129 ft-lbs / 175Nm.
2007, Ford Edge 3.5, 3496, 213, V, 6 SEL Plus, AWD Rear, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: Inner nut - 203 ft-lbs / 275Nm, Outer nut: 129 ft-lbs / 175Nm.
2007, Lincoln MKX 3.5, 3496, 213, V, 6 Base, AWD Rear, Qty - 2, Wheel Hub Assembly;Axle Nut Torque Spec: Inner nut - 203 ft-lbs / 275Nm, Outer nut: 129 ft-lbs / 175Nm.

Fitment Notice

You have not selected a vehicle to verify this product will fit. You may be subject to return and restocking fees if you order the wrong part without confirming your vehicle first.
