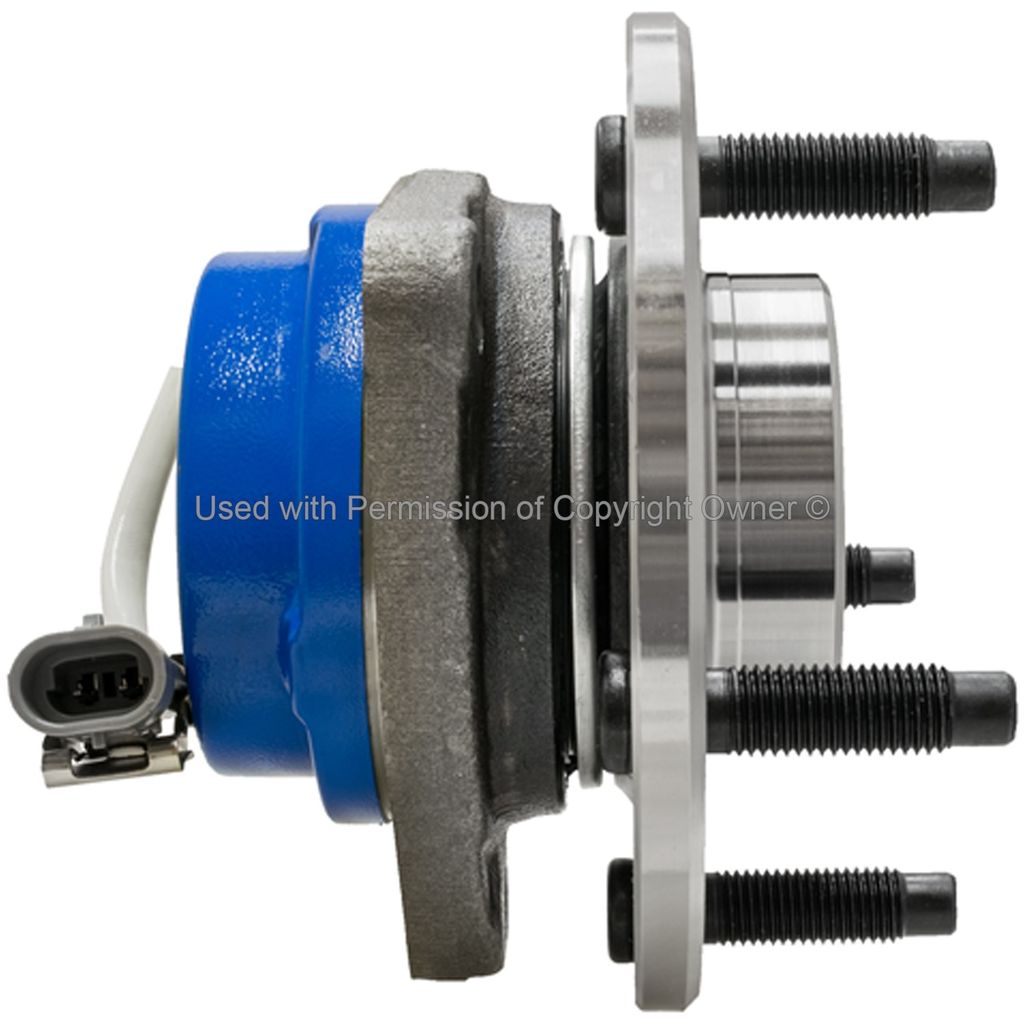

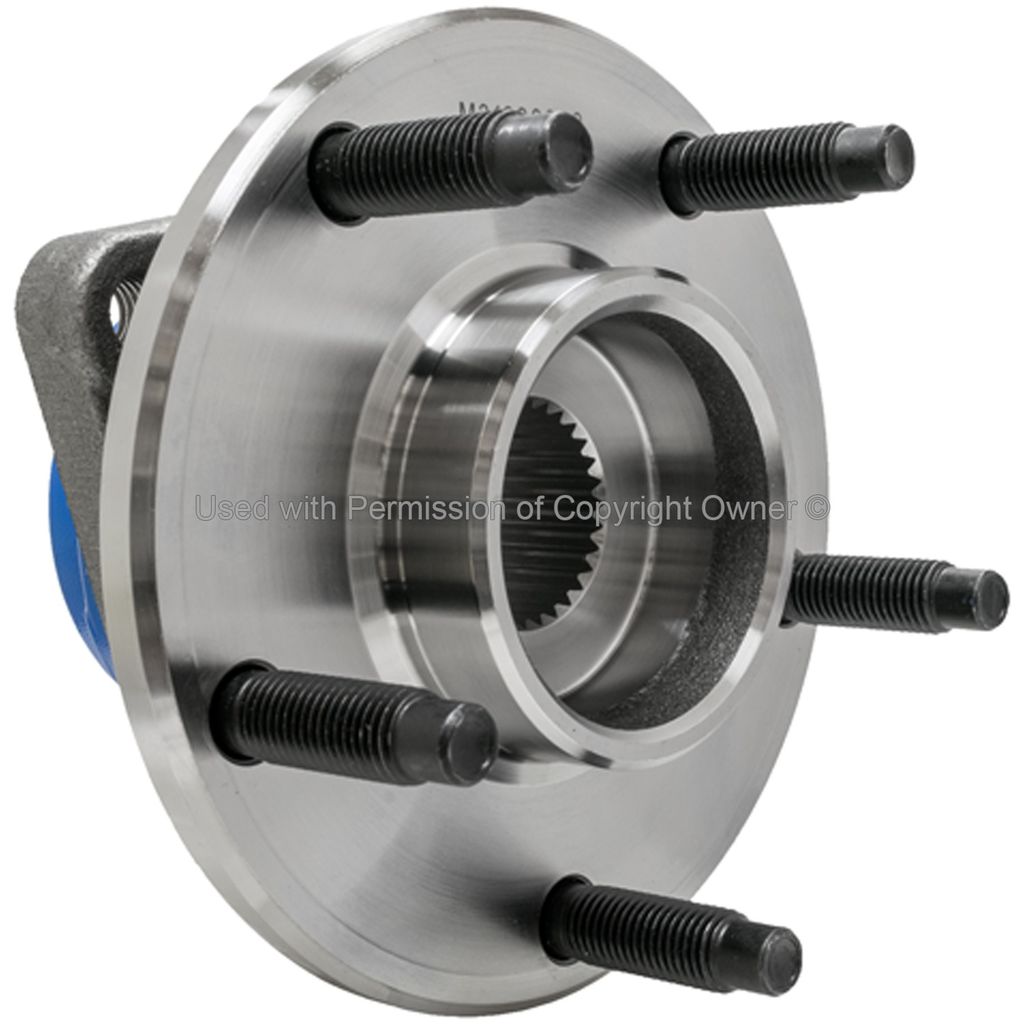

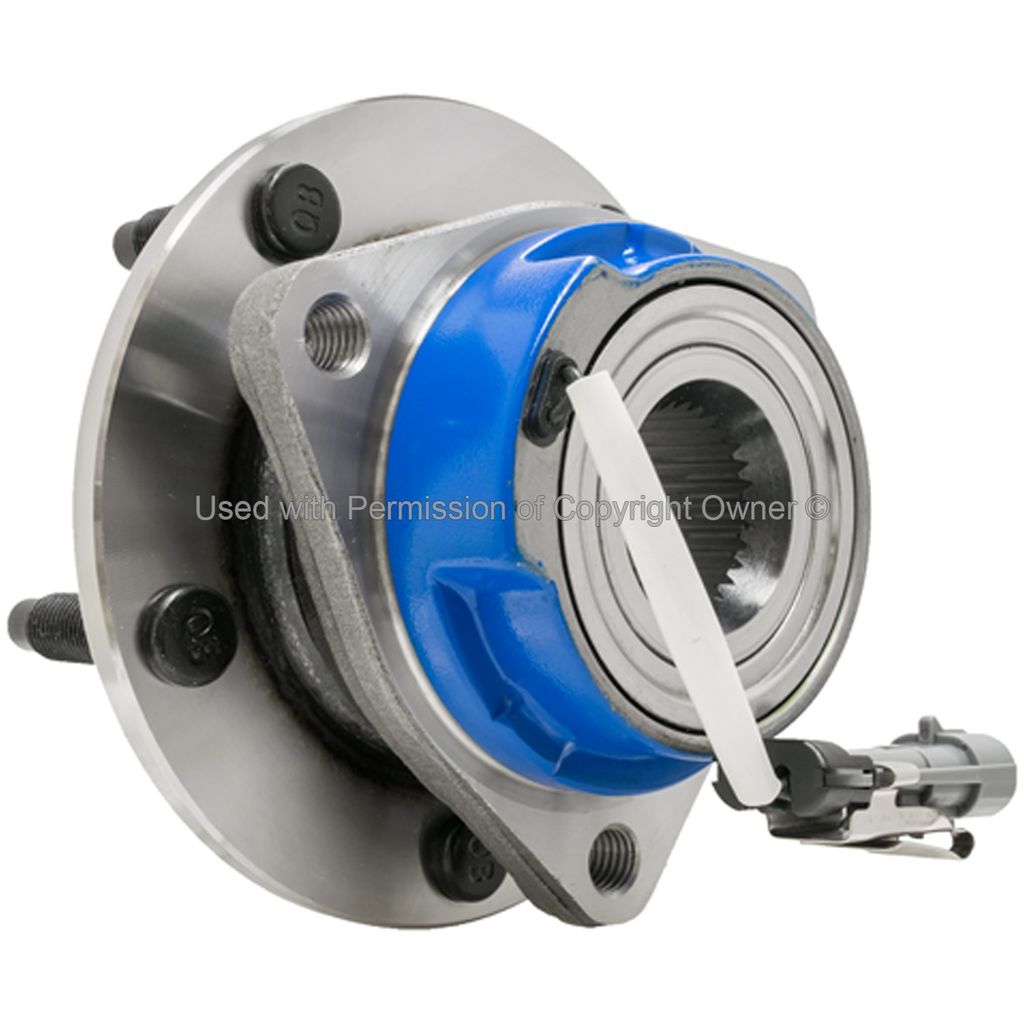

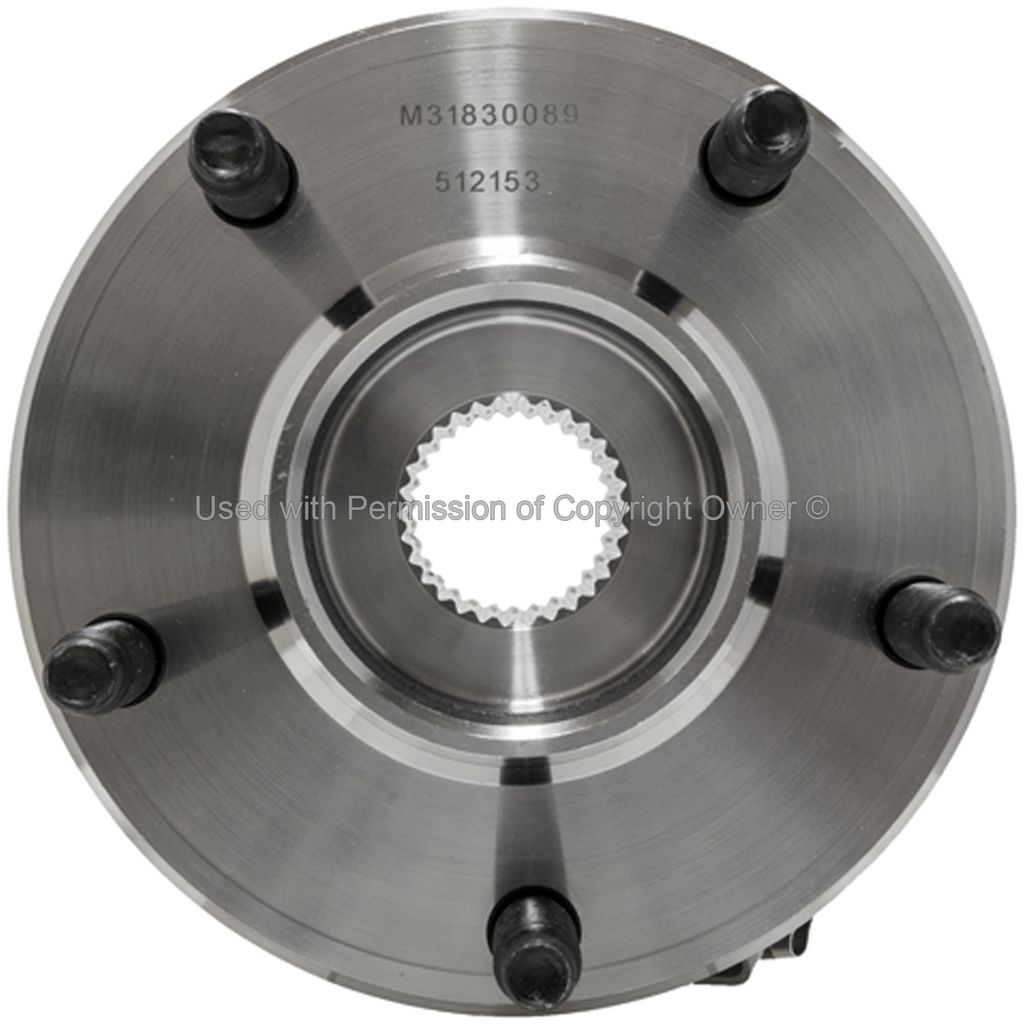

Quality-Built WH512153 - Wheel Bearing and Hub Assembly

Previous image
Quality-Built WH512153 - Wheel Bearing and Hub Assembly
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Quality-Built WH512153 - Wheel Bearing and Hub Assembly

Part No: WH512153
In Stock Arrives: Jun 5 - 11
  • $80.76

Starting at $XX/mo with Affirm. Prequalify now

Quality-Built WH512153 - Wheel Bearing and Hub Assembly

FQTW-WH512153
In Stock Arrives: Jun 5 - 11
  • $80.76

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific
  • Premium, high-carbon steel alloys improve load bearing capabilities and strength.
  • Induction hardened, micro-finished races improve bearing durability and load capacity.
  • Application-specific ABS sensors included for perfect vehicle control system signaling.
  • Application-specific ABS sensors are seamlessly integrated for flawless communication
Check All Vehicles this Part Fits

Product details

 Description

Wheel Bearing and Hub Assembly
Quality-Built Wheel Hub Assemblies meet the demands of professional installers by offering an OE replacment part that is installation ready out of the box with everything included to get the job done and restore safe vehicle operation.

 Specifications

Package
Details
  • Anti Lock Brake Sensor Included
    Yes
  • Anti Lock Braking System Type
    Sensor
  • Bolt Circle Diameter
    120.777 mm
  • Flange Bolt Hole Diameter
    4.563 in
  • Flange Bolt Hole Quantity
    3
  • Flange Diameter
    5.733 in
  • Flange Diameter Inch
    5.733
  • Flange Included
    Yes
  • Flange Offset
    1.652 in
  • Flange Shape
    Modified Triangle
  • Gasket or Seal Included
    Yes
  • Greaseable
    No
  • Hub Pilot Diameter Inch
    3.57
  • Material
    Steel
  • Product Condition
    New
  • Spline Quantity
    30
  • Stud Quantity
    5
  • Wheel Stud Size MM
    M12 x 1.5
  • Wheel Studs Included
    Yes
  • Wiring Harness Included
    No

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2008, Cadillac XLR 4.6, 281, V, 8 Base Rear, Qty - 2, Wheel Hub Assembly
2008, Cadillac XLR 4.6, 281, V, 8 Platinum Rear, Qty - 2, Wheel Hub Assembly
2008, Cadillac XLR 4.4, 4371, 267, V, 8 V Rear, Qty - 2, Wheel Hub Assembly
2008, Chevrolet Corvette 7.0, 7011, 427, V, 8 427 Limited Edition Z06 Rear, Qty - 2, Wheel Hub Assembly
2008, Chevrolet Corvette 6.2, 6162, 376, V, 8 Base Rear, Qty - 2, Wheel Hub Assembly
2008, Chevrolet Corvette 7.0, 7011, 427, V, 8 Z06 Rear, Qty - 2, Wheel Hub Assembly
2007, Cadillac XLR 4.6, 281, V, 8 Base Rear, Qty - 2, Wheel Hub Assembly
2007, Cadillac XLR 4.4, 4371, 267, V, 8 V Rear, Qty - 2, Wheel Hub Assembly
2007, Chevrolet Corvette 6.0, 5967, 364, V, 8 Base Rear, Qty - 2, Wheel Hub Assembly
2007, Chevrolet Corvette 7.0, 7011, 427, V, 8 Z06 Rear, Qty - 2, Wheel Hub Assembly
2006, Cadillac XLR 4.6, 281, V, 8 Base Rear, Qty - 2, Wheel Hub Assembly
2006, Cadillac XLR 4.4, 4371, 267, V, 8 V Rear, Qty - 2, Wheel Hub Assembly
2006, Chevrolet Corvette 6.0, 5967, 364, V, 8 Base Rear, Qty - 2, Wheel Hub Assembly
2006, Chevrolet Corvette 7.0, 7011, 427, V, 8 Z06 Rear, Qty - 2, Wheel Hub Assembly
2005, Cadillac XLR 4.6, 281, V, 8 Base Rear, Qty - 2, Wheel Hub Assembly
2005, Chevrolet Corvette 6.0, 5967, 364, V, 8 Base Rear, Qty - 2, Wheel Hub Assembly
2004, Cadillac XLR 4.6, 281, V, 8 Base Rear, Qty - 2, Wheel Hub Assembly
2004, Chevrolet Corvette 5.7, 350, V, 8 Base Rear, Qty - 2, Wheel Hub Assembly
2004, Chevrolet Corvette 5.7, 350, V, 8 Z06 Rear, Qty - 2, Wheel Hub Assembly
2003, Chevrolet Corvette 5.7, 350, V, 8 50th Anniversary Edition Rear, Qty - 2, Wheel Hub Assembly
2003, Chevrolet Corvette 5.7, 350, V, 8 50th Anniversary Edition Pace Car Rear, Qty - 2, Wheel Hub Assembly
2003, Chevrolet Corvette 5.7, 350, V, 8 Base Rear, Qty - 2, Wheel Hub Assembly
2003, Chevrolet Corvette 5.7, 350, V, 8 Z06 Rear, Qty - 2, Wheel Hub Assembly
2002, Chevrolet Corvette 5.7, 350, V, 8 Base Rear, Qty - 2, Wheel Hub Assembly
2002, Chevrolet Corvette 5.7, 350, V, 8 Z06 Rear, Qty - 2, Wheel Hub Assembly
2001, Chevrolet Corvette 5.7, 350, V, 8 Base Rear, Qty - 2, Wheel Hub Assembly
2001, Chevrolet Corvette 5.7, 350, V, 8 Z06 Rear, Qty - 2, Wheel Hub Assembly
2000, Chevrolet Corvette 5.7, 350, V, 8 Base Rear, Qty - 2, Wheel Hub Assembly
1999, Chevrolet Corvette 5.7, 350, V, 8 Base Rear, Qty - 2, Wheel Hub Assembly
1998, Chevrolet Corvette 5.7, 350, V, 8 Base Rear, Qty - 2, Wheel Hub Assembly
1998, Chevrolet Corvette 5.7, 350, V, 8 Indianapolis 500 Pace Car Rear, Qty - 2, Wheel Hub Assembly
1997, Chevrolet Corvette 5.7, 350, V, 8 Base Rear, Qty - 2, Wheel Hub Assembly

Fitment Notice

You have not selected a vehicle to verify this product will fit. You may be subject to return and restocking fees if you order the wrong part without confirming your vehicle first.
