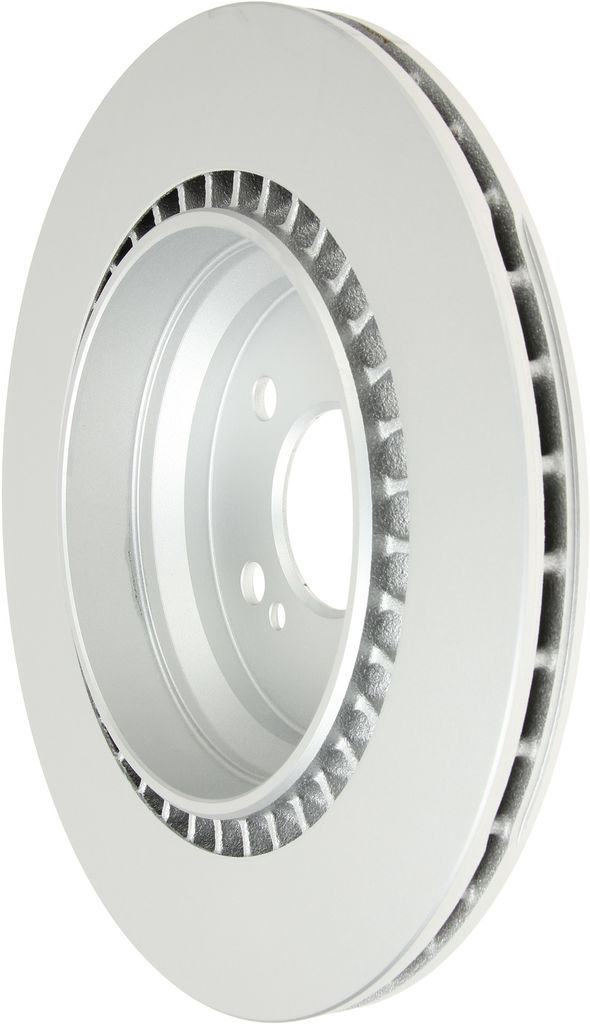

Pagid 355122042 - Disc Brake Rotor, Internally Vented, Diameter: 315.0 mm, Thickness 22.0 mm, 315 mm

Previous image

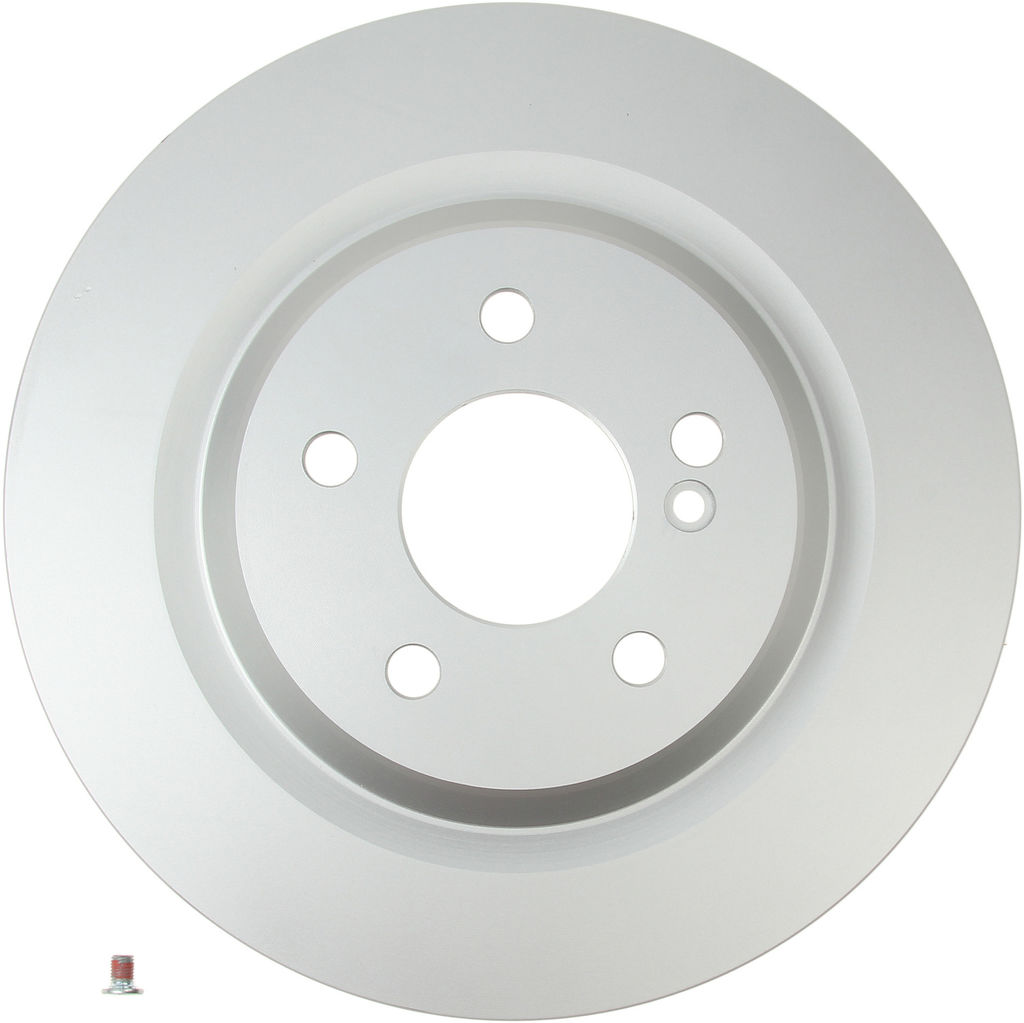

Pagid 355122042 - Disc Brake Rotor, Internally Vented, Diameter: 315.0 mm, Thickness 22.0 mm
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Pagid 355122042 - Disc Brake Rotor, Internally Vented, Diameter: 315.0 mm, Thickness 22.0 mm, 315 mm

Part No: 355122042
In Stock Arrives: Jun 5 - 11
  • $60.26

Starting at $XX/mo with Affirm. Prequalify now

Pagid 355122042 - Disc Brake Rotor, Internally Vented, Diameter: 315.0 mm, Thickness 22.0 mm, 315 mm

FMXC-355122042
In Stock Arrives: Jun 5 - 11
  • $60.26

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific

Specs and ratings

Stopping Power:




Noise Level:




Performance Over Stock:




  • Not oiled, no degreasing from preservative oil before fitting, saving time and money in the workshop
  • Full range is 100% high carbon (GG15 & GG20)
  • Less fading and quiet braking
  • Fixing screws are always included if required
  • Increased carbon content for increased heat conductivity and better mechanical properties
  • Full range is 100% fully coated with premium zinc rust protection
  • Manufactured according to European OE specifications (AM1 & AM2)
Check All Vehicles this Part Fits

Product details

 Description

Disc Brake Rotor
DISC BRAKE ROTOR

 Specifications

Package
  • Brand
    Pagid,  Pagid Brake Rotors
  • Part Number
    355122042
  • UPC
    4082300572247
  • Height
    2.76 in
  • Width
    13.78 in
  • Length
    14.37 in
  • Weight
    16.938 lbs
Attributes
  • Driving Qualifiers
    Normal Commute, Performance Street
  • Rotor Style
    Smooth-Plain
  • Stopping Power
    3 / 5
  • Noise Level
    2 / 5
  • Performance Over Stock
    0 - Basic Commute, 2 - Performance/Commuter, 3 - Street Performance
Details
  • Part Name
    Disc Brake Rotor
  • ABS Tone Ring Included
    No
  • Assy/Disassy by Qualified Personnel Required!
    .
  • Balancing Type
    Mill Balancing
  • Bearings Included
    No
  • Bolt Hole Circle Ø [in]
    4.41
  • Bolt Hole Circle Ø [mm]
    112
  • Brake Disc Thickness [in]
    0.87
  • Brake Disc Thickness [mm]
    22
  • Brake Disc Type
    Internally Vented
  • Center Hole Diameter
    112.0
  • Centering Diameter [in]
    2.64
  • Centering Diameter [mm]
    67
  • Color
    Silver
  • Construction
    Full Cast
  • Directional or Non-Directional Brake Surface
    Non-Directional
  • Disc Finish
    coated
  • Discard Thickness
    19.40 mm
  • Grade Type
    Standard Replacement
  • Hat Finish
    coated
  • Height [mm]
    58.9
  • Hole Arrangement/Number
    05/06
  • Inner diameter [mm]
    180.1
  • Inside Diameter
    67.0
  • Machining
    High-Carbon
  • Material
    gray cast iron
  • Minimum thickness [mm]
    19.4
  • Mounting Bolt Hole Circle Diameter
    112.00 mm
  • Mounting Bolt Hole Quantity
    6
  • Nominal Thickness
    22.00 mm
  • Number of bolts/screws
    1
  • Outer Diameter [in]
    12.40
  • Outer diameter [mm]
    315
  • Outside Diameter
    315.00 mm
  • Overall Height
    59.10 mm
  • Rust Resistant Coating
    Yes
  • Solid Or Vented Type Rotor
    Vented
  • Supplementary Article/Info 2
    without Wheel Hub
  • Surface
    Coated
  • Surface Type
    Smooth
  • Technical Information Number
    50339PRO_HC_NA
  • Wheel Bolt Bore Diameter [mm]
    15.2
  • Wheel Bolt Bore Ø [mm]
    15.2
Manufacturer description
  • Manufacturer Label
    Integral One-Piece Design

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2002, Mercedes-Benz CL55 AMG Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2002, Mercedes-Benz CL600 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2002, Mercedes-Benz S55 AMG Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2002, Mercedes-Benz S600 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2001, Mercedes-Benz CL55 AMG Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2001, Mercedes-Benz CL600 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2001, Mercedes-Benz S55 AMG Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2001, Mercedes-Benz S600 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
