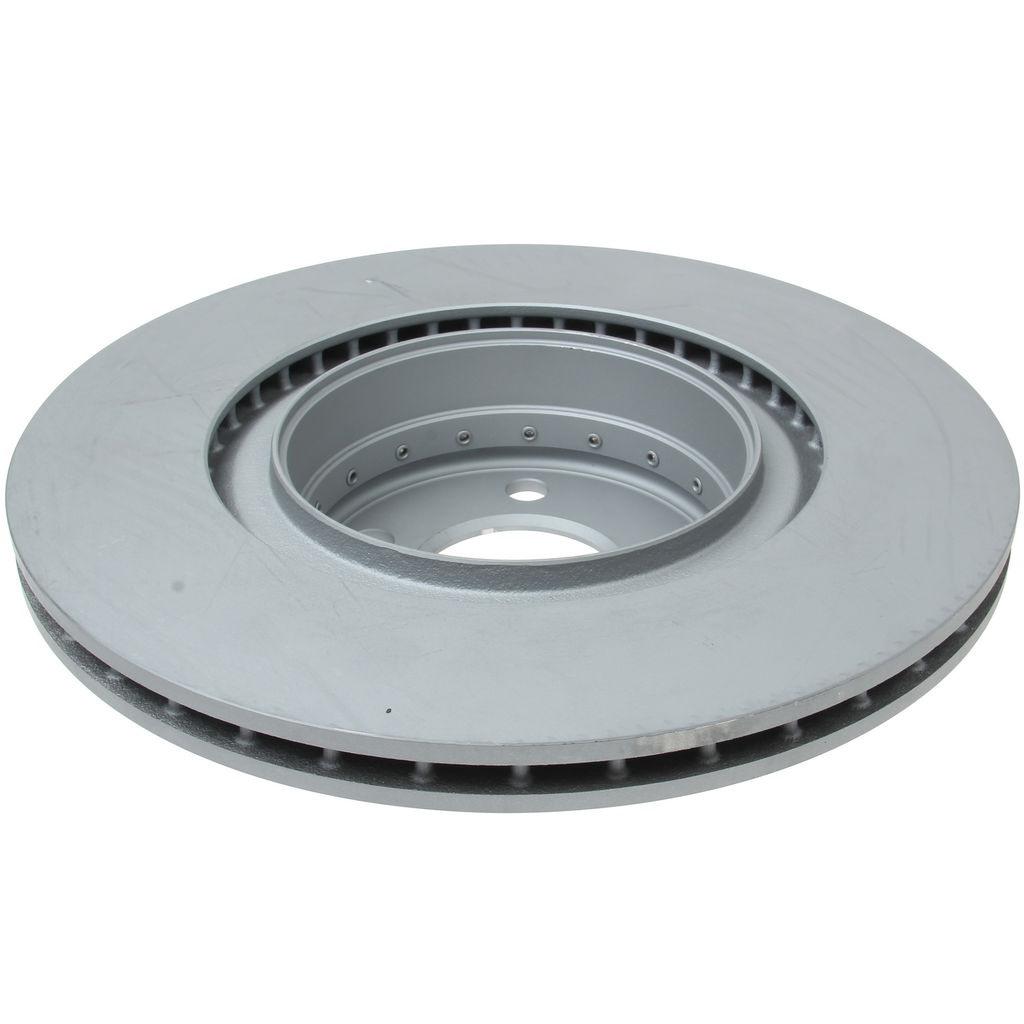

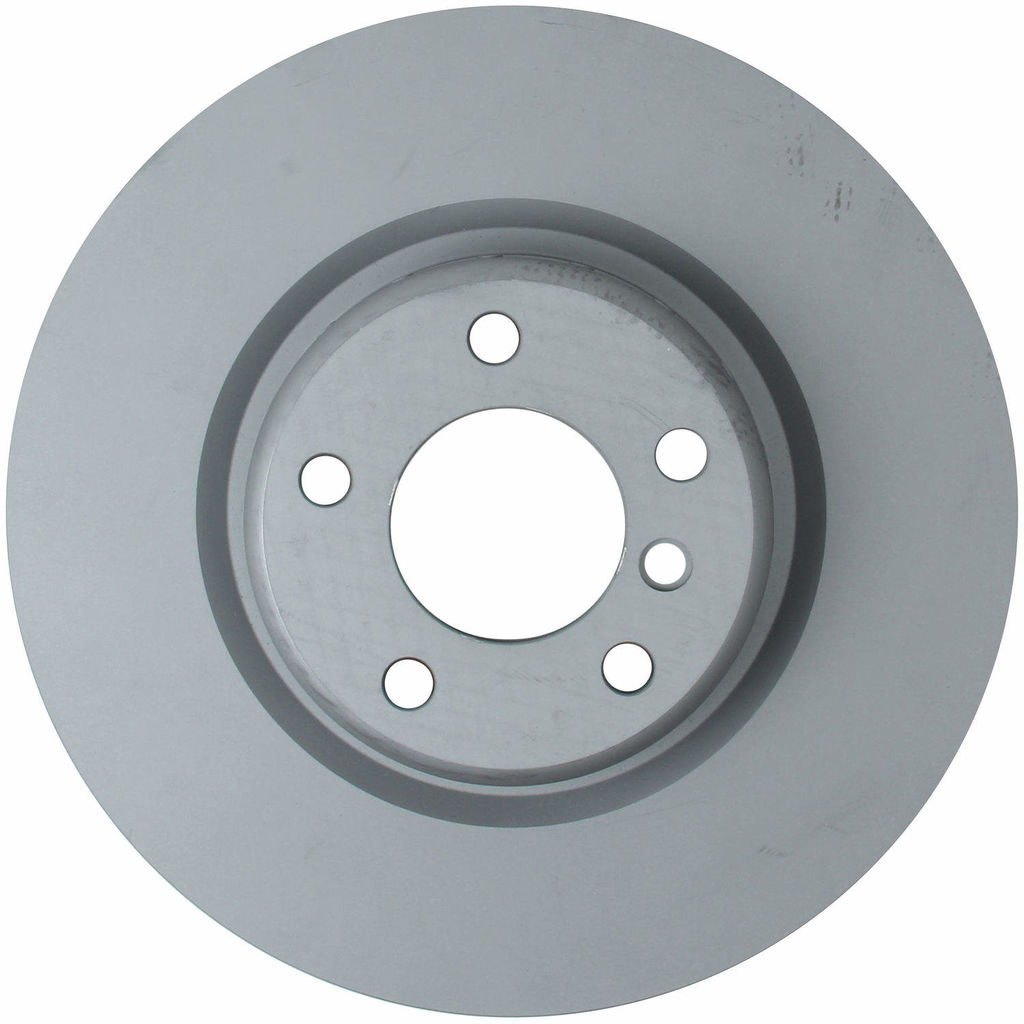

Pagid 355120801 - Disc Brake Rotor, Internally Vented, Diameter: 345 mm, Thickness 24.0 mm, 345 mm

Previous image
Pagid 355120801 - Disc Brake Rotor, Internally Vented, Diameter: 345 mm, Thickness 24.0 mm
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Pagid 355120801 - Disc Brake Rotor, Internally Vented, Diameter: 345 mm, Thickness 24.0 mm, 345 mm

Part No: 355120801
In Stock Arrives: Jun 30 - Jul 7
  • $166.93 & FREE Shipping

Starting at $XX/mo with Affirm. Prequalify now

Pagid 355120801 - Disc Brake Rotor, Internally Vented, Diameter: 345 mm, Thickness 24.0 mm, 345 mm

FMXC-355120801
In Stock Arrives: Jun 30 - Jul 7
  • $166.93 & FREE Shipping

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific

Specs and ratings

Stopping Power:




Noise Level:




Performance Over Stock:




  • Better handling, driving comfort and less load on suspension parts through reduction of unsprung masses
  • Reduced braking noise
  • Less fading and quiet braking
  • Increased fuel efficiency through weight reduction by up to 20%
  • Fixing screws are always included if required
  • Increased carbon content for increased heat conductivity and better mechanical properties
  • Manufactured according to European OE specifications (AM1 & AM2)
Check All Vehicles this Part Fits

Product details

 Description

Disc Brake Rotor
348mm Two Piece High Carbon Coated Rotor

 Specifications

Package
Attributes
  • Recommended Use
    OE Replacement
  • Rotor Style
    Smooth-Plain
  • Rotor Coating
    Coated
  • Rotor Material
    High Carbon
  • Stopping Power
    3 / 5
  • Noise Level
    1 / 5
  • Performance Over Stock
    0 - Basic Commute
Details
  • Part Name
    Disc Brake Rotor
  • ABS Tone Ring Included
    No
  • Assy/Disassy by Qualified Personnel Required!
    .
  • Balancing Type
    Mill Balancing
  • Bearings Included
    No
  • Bolt Hole Circle Ø [in]
    4.72
  • Bolt Hole Circle Ø [mm]
    120
  • Brake Disc Thickness [in]
    0.94
  • Brake Disc Thickness [mm]
    24
  • Brake Disc Type
    Internally Vented
  • Brake Surface Finish
    Slotted
  • Center Hole Diameter
    120.0
  • Centering Diameter [in]
    2.95
  • Centering Diameter [mm]
    75
  • Construction
    Composite
  • Directional or Non-Directional Brake Surface
    Non-Directional
  • Disc Finish
    coated
  • Discard Thickness
    22.40 mm
  • Grade Type
    Standard Replacement
  • Hat Finish
    coated
  • Height [mm]
    66.1
  • Hole Arrangement/Number
    05/06
  • Inner diameter [mm]
    160.8
  • Inside Diameter
    75.0
  • Machining
    High-Carbon
  • Material
    Gray Cast Iron & Aluminium Hat
  • Minimum thickness [mm]
    22.4
  • Mounting Bolt Hole Circle Diameter
    120.00 mm
  • Mounting Bolt Hole Quantity
    6
  • Nominal Thickness
    24.00 mm
  • Number of bolts/screws
    2
  • Outer Diameter [in]
    13.58
  • Outer diameter [mm]
    345
  • Outside Diameter
    345.00 mm
  • Overall Height
    66.10 mm
  • Rust Resistant Coating
    Yes
  • Solid Or Vented Type Rotor
    Vented
  • Supplementary Article/Info 2
    without Wheel Hub
  • Surface
    Coated
  • Surface Type
    Smooth
  • Technical Information Number
    65143PRO_HC
  • Wheel Bolt Bore Diameter [mm]
    16.5
  • Wheel Bolt Bore Ø [mm]
    16.5
Manufacturer description
  • Manufacturer Label
    OE Style Composite Two-Piece Design with Aluminium Hat

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2021, BMW 230i Base Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2021, BMW 230i xDrive Base Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2021, BMW M240i Base Rear, Qty - 2, Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2021, BMW M240i xDrive Base Rear, Qty - 2, Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2020, BMW 230i Base Rear, Qty - 2, For Blue Painted Caliper;To 03/2020;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2020, BMW 230i Base Rear, Qty - 2, For Blue Painted Caliper;From 03/2020;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2020, BMW 230i xDrive Base Rear, Qty - 2, For Blue Painted Caliper;To 03/2020;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2020, BMW 230i xDrive Base Rear, Qty - 2, For Blue Painted Caliper;From 03/2020;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2020, BMW M240i Base Rear, Qty - 2, To 03/2020;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2020, BMW M240i Base Rear, Qty - 2, From 03/2020;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2020, BMW M240i xDrive Base Rear, Qty - 2, Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2019, BMW 230i Base Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2019, BMW 230i xDrive Base Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2019, BMW M240i Base Rear, Qty - 2, Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2019, BMW M240i xDrive Base Rear, Qty - 2, Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2018, BMW 230i Base Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2018, BMW 230i xDrive Base Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2018, BMW 320i Base Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2018, BMW M240i Base Rear, Qty - 2, Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2018, BMW M240i xDrive Base Rear, Qty - 2, Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2017, BMW 230i Base Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2017, BMW 230i xDrive Base Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2017, BMW 320i 2.0, 1997, 122, L, 4 Base Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2017, BMW M240i Base Rear, Qty - 2, Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2017, BMW M240i xDrive Base Rear, Qty - 2, Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2016, BMW 228i 2.0, 1997, 122, L, 4 Base, N26B20A Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2016, BMW 228i 2.0, 1997, 122, L, 4 Base, N20B20A Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2016, BMW 228i xDrive 2.0, 1997, 122, L, 4 Base, N26B20A Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2016, BMW 228i xDrive 2.0, 1997, 122, L, 4 Base, N20B20A Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2016, BMW 320i Base Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2016, BMW M235i Base Rear, Qty - 2, Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2016, BMW M235i xDrive Base Rear, Qty - 2, Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2015, BMW 228i 2.0, 1997, 122, L, 4 Base, N26B20A Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2015, BMW 228i 2.0, 1997, 122, L, 4 Base, N20B20A Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2015, BMW 228i xDrive 2.0, 1997, 122, L, 4 Base, N26B20A Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2015, BMW 228i xDrive 2.0, 1997, 122, L, 4 Base, N20B20A Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2015, BMW 328i 2.0, 1997, 122, L, 4 Base, N26B20A Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2015, BMW 328i 2.0, 1997, 122, L, 4 Base, N20B20A Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2015, BMW 428i 2.0, 1997, 122, L, 4 Base, Coupe, N26B20A Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2015, BMW 428i 2.0, 1997, 122, L, 4 Base, N20B20A Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2015, BMW M235i Base Rear, Qty - 2, Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2015, BMW M235i xDrive Base Rear, Qty - 2, Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2014, BMW 228i 2.0, 1997, 122, L, 4 Base, N26B20A Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2014, BMW 228i 2.0, 1997, 122, L, 4 Base, N20B20A Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2014, BMW 328i 2.0, 1997, 122, L, 4 Base, N26B20A Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2014, BMW 328i 2.0, 1997, 122, L, 4 Base, N20B20A Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2014, BMW 428i 2.0, 1997, 122, L, 4 Base, Coupe, N26B20A Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2014, BMW 428i 2.0, 1997, 122, L, 4 Base, N20B20A Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2014, BMW 428i xDrive 2.0, 1997, 122, L, 4 Base, Convertible, N20B20A Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2014, BMW M235i Base Rear, Qty - 2, Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2013, BMW 328i 2.0, 1997, 122, L, 4 Base, N26B20A, FI Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2013, BMW 328i 2.0, 1997, 122, L, 4 Base, N20B20A, FI Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2012, BMW 328i 2.0, 1997, 122, L, 4 Base, N26B20A, FI Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
2012, BMW 328i 2.0, 1997, 122, L, 4 Base, N20B20A, FI Rear, Qty - 2, For Blue Painted Caliper;Aluminum Hat, High Carbon Friction Ring, Fully Coated;Designed and Engineered in Germany;High Carbon Friction Ring - Fully Coated
