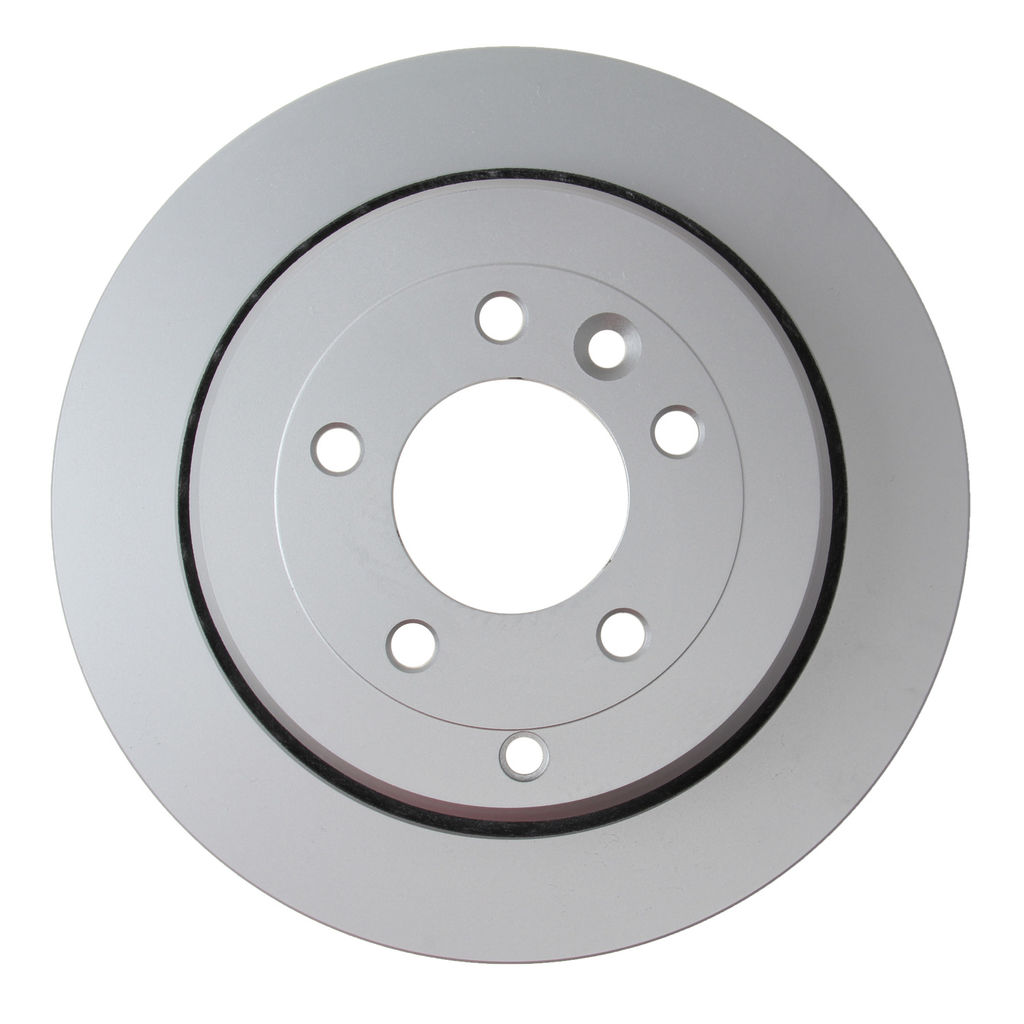

Pagid 355118772 - Disc Brake Rotor, Externally Vented, Diameter: 325 mm, Thickness 20.0 mm, 325 mm

Previous image
Pagid 355118772 - Disc Brake Rotor, Externally Vented, Diameter: 325 mm, Thickness 20.0 mm
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Pagid 355118772 - Disc Brake Rotor, Externally Vented, Diameter: 325 mm, Thickness 20.0 mm, 325 mm

Part No: 355118772
Not in Stock

Please call 888-257-7149 to check future availability

  • $68.49

Starting at $XX/mo with Affirm. Prequalify now

Pagid 355118772 - Disc Brake Rotor, Externally Vented, Diameter: 325 mm, Thickness 20.0 mm, 325 mm

FMXC-355118772
Not in Stock

Please call 888-257-7149 to check future availability

  • $68.49

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific

Specs and ratings

Stopping Power:




Noise Level:




Performance Over Stock:




  • Reduced braking noise
  • Full range is 100% high carbon (GG15 & GG20)
  • Less fading and quiet braking
  • Fixing screws are always included if required
  • Increased carbon content for increased heat conductivity and better mechanical properties
  • Manufactured according to European OE specifications (AM1 & AM2)
  • Not oiled, no degreasing from preservative oil before fitting, saving time and money in the workshop
Check All Vehicles this Part Fits

Product details

 Description

Disc Brake Rotor
DISC BRAKE ROTOR

 Specifications

Package
  • Brand
    Pagid,  Pagid Brake Rotors
  • Part Number
    355118772
  • UPC
    4082300573893
  • Height
    2.76 in
  • Width
    13.78 in
  • Length
    14.37 in
  • Weight
    17.685 lbs
Attributes
  • Driving Qualifiers
    Normal Commute, Performance Street
  • Rotor Style
    Smooth-Plain
  • Stopping Power
    3 / 5
  • Noise Level
    2 / 5
  • Performance Over Stock
    0 - Basic Commute, 2 - Performance/Commuter, 3 - Street Performance
Details
  • Part Name
    Disc Brake Rotor
  • ABS Tone Ring Included
    No
  • Assy/Disassy by Qualified Personnel Required!
    .
  • Balancing Type
    Mill Balancing
  • Bearings Included
    No
  • Bolt Hole Circle Ø [in]
    4.72
  • Bolt Hole Circle Ø [mm]
    120
  • Brake Disc Thickness [in]
    0.79
  • Brake Disc Thickness [mm]
    20
  • Brake Disc Type
    Externally Vented
  • Center Hole Diameter
    120.0
  • Centering Diameter [in]
    3.11
  • Centering Diameter [mm]
    79
  • Color
    Silver
  • Construction
    Full Cast
  • Directional or Non-Directional Brake Surface
    Non-Directional
  • Disc Finish
    coated
  • Discard Thickness
    17.00 mm
  • Grade Type
    Standard Replacement
  • Hat Finish
    coated
  • Height [in]
    2.32
  • Height [mm]
    59
  • Hole Arrangement/Number
    05/07
  • Inside Diameter
    79.0
  • Machining
    High-Carbon
  • Material
    gray cast iron
  • Minimum thickness [in]
    0.67
  • Minimum thickness [mm]
    17
  • Mounting Bolt Hole Circle Diameter
    120.00 mm
  • Mounting Bolt Hole Quantity
    7
  • Nominal Thickness
    20.00 mm
  • Outer Diameter [in]
    12.80
  • Outer diameter [mm]
    325
  • Outside Diameter
    325.00 mm
  • Overall Height
    59.00 mm
  • Rust Resistant Coating
    Yes
  • Solid Or Vented Type Rotor
    Vented
  • Supplementary Article/Info 2
    without Wheel Hub
  • Surface
    Coated
  • Surface Type
    Smooth
  • Technical Information Number
    54476PRO_HC_NA
Manufacturer description
  • Manufacturer Label
    Integral One-Piece Design

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2007, Land Rover LR3 4.0, 245, V, 6 SE Rear, SET;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2006, Land Rover LR3 Base Rear, SET;To Chassis/VIN 6A393141;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2006, Land Rover LR3 Base Rear, SET;From Chassis/VIN 6A393140;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2005, Land Rover LR3 4.0, 245, V, 6 SE Rear, SET;From Chassis/VIN 5A341769;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2005, Land Rover LR3 4.0, 245, V, 6 SE Rear, SET;To Chassis/VIN 5A341770;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
