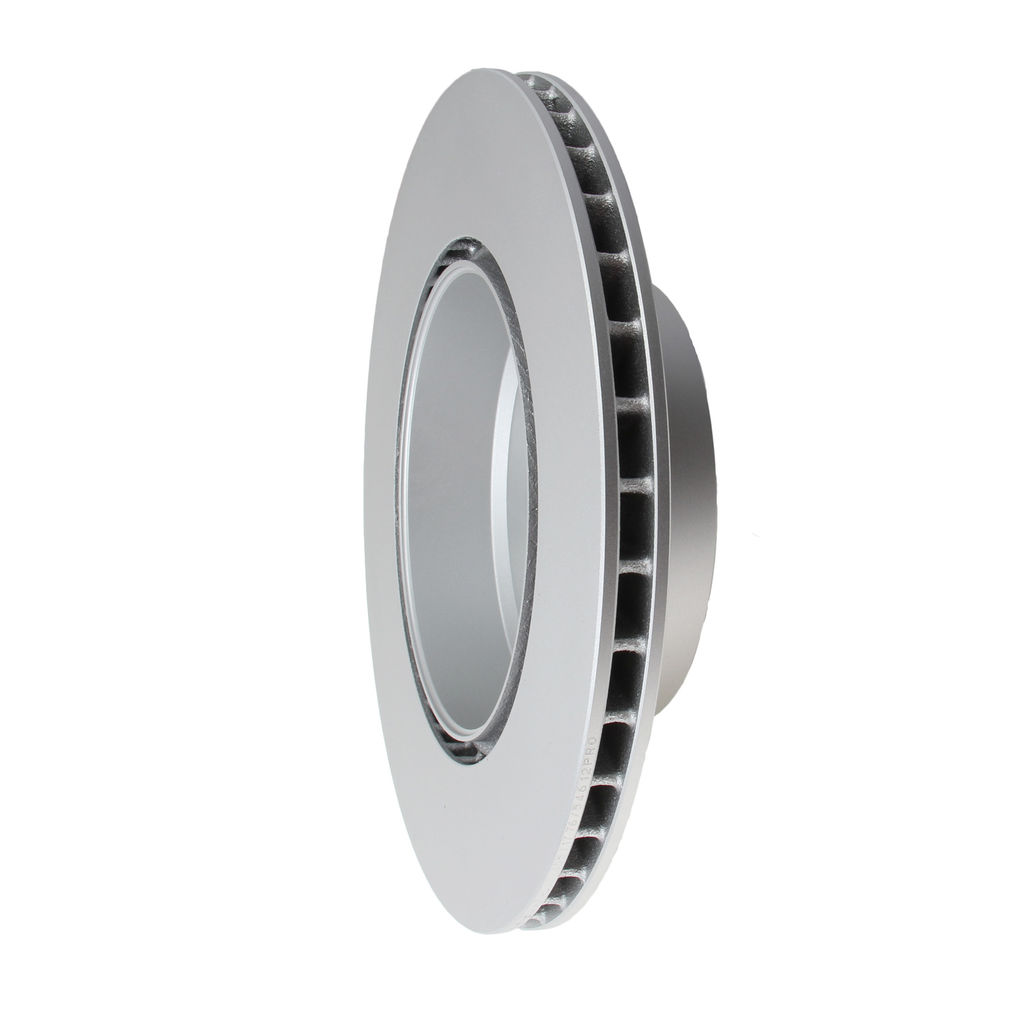

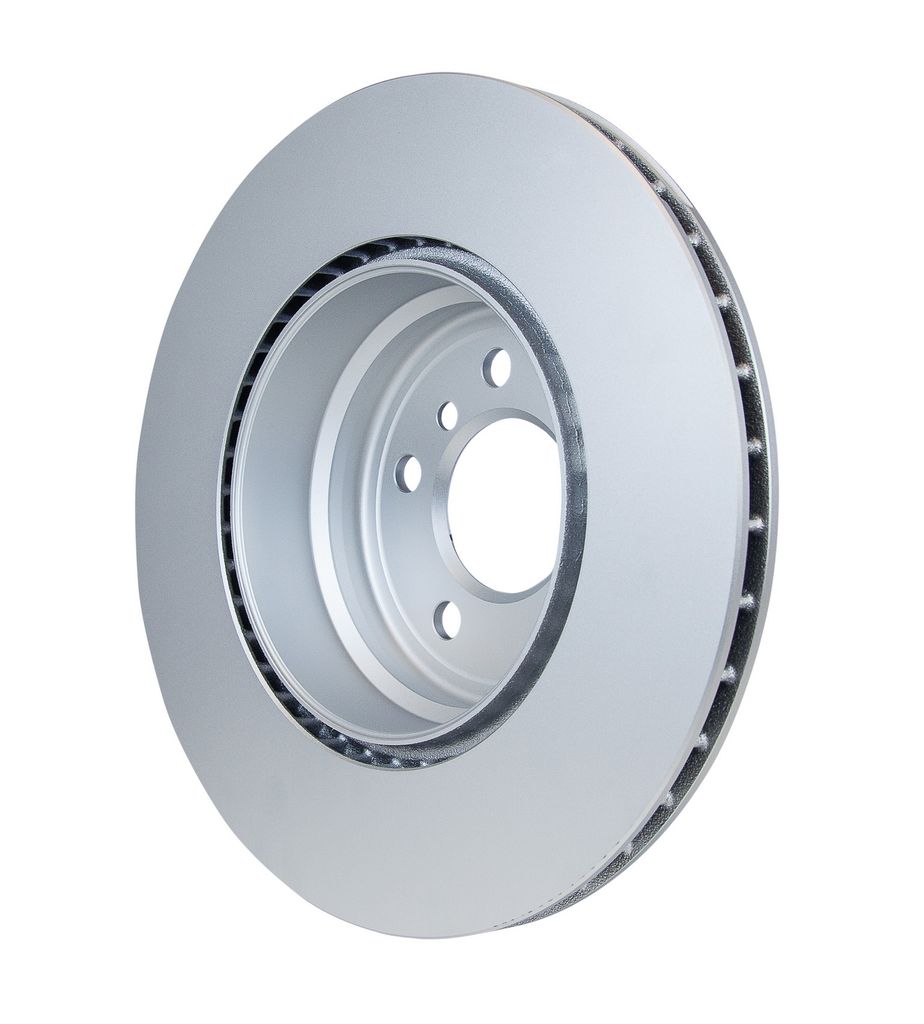

Pagid 355117762 - Disc Brake Rotor, Internally Vented, Diameter: 345 mm, Thickness 24.0 mm, 345 mm

Previous image
Pagid 355117762 - Disc Brake Rotor, Internally Vented, Diameter: 345 mm, Thickness 24.0 mm
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Pagid 355117762 - Disc Brake Rotor, Internally Vented, Diameter: 345 mm, Thickness 24.0 mm, 345 mm

Part No: 355117762
In Stock Arrives: Jul 21 - 27
  • $89.47

Starting at $XX/mo with Affirm. Prequalify now

Pagid 355117762 - Disc Brake Rotor, Internally Vented, Diameter: 345 mm, Thickness 24.0 mm, 345 mm

FMXC-355117762
In Stock Arrives: Jul 21 - 27
  • $89.47

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific

Specs and ratings

Stopping Power:




Noise Level:




Performance Over Stock:




  • Reduced braking noise
  • Less fading and quiet braking
  • Fixing screws are always included if required
  • Higher driving comfort with reduced machining tolerances
  • Increased carbon content for increased heat conductivity and better mechanical properties
  • Manufactured according to European OE specifications (AM1 & AM2)
  • Improved aesthetics and appearance of brake discs, especially when used with aluminum rims
Check All Vehicles this Part Fits

Product details

 Description

Disc Brake Rotor
DISC BRAKE ROTOR

 Specifications

Package
  • Brand
    Pagid,  Pagid Brake Rotors
  • Part Number
    355117762
  • UPC
    4082300574210
  • Height
    3.74 in
  • Width
    14.76 in
  • Length
    15.35 in
  • Weight
    22.734 lbs
Attributes
  • Driving Qualifiers
    Normal Commute, Performance Street
  • Rotor Style
    Smooth-Plain
  • Stopping Power
    3 / 5
  • Noise Level
    2 / 5
  • Performance Over Stock
    0 - Basic Commute, 2 - Performance/Commuter, 3 - Street Performance
Details
  • Part Name
    Disc Brake Rotor
  • ABS Tone Ring Included
    No
  • Assy/Disassy by Qualified Personnel Required!
    .
  • Balancing Type
    Mill Balancing
  • Bearings Included
    No
  • Bolt Hole Circle Ø [in]
    4.72
  • Bolt Hole Circle Ø [mm]
    120
  • Brake Disc Thickness [in]
    0.94
  • Brake Disc Thickness [mm]
    24
  • Brake Disc Type
    Internally Vented
  • Center Hole Diameter
    120.0
  • Centering Diameter [in]
    2.95
  • Centering Diameter [mm]
    75
  • Color
    Silver
  • Construction
    Full Cast
  • Directional or Non-Directional Brake Surface
    Non-Directional
  • Disc Finish
    coated
  • Discard Thickness
    22.40 mm
  • Grade Type
    Standard Replacement
  • Hat Finish
    coated
  • Height [mm]
    78.1
  • Hole Arrangement/Number
    05/06
  • Inner diameter [mm]
    171.2
  • Inside Diameter
    75.0
  • Machining
    High-Carbon
  • Material
    gray cast iron
  • Minimum thickness [mm]
    22.4
  • Mounting Bolt Hole Circle Diameter
    120.00 mm
  • Mounting Bolt Hole Quantity
    6
  • Nominal Thickness
    24.00 mm
  • Number of bolts/screws
    1
  • Outer Diameter [in]
    13.58
  • Outer diameter [mm]
    345
  • Outside Diameter
    345.00 mm
  • Overall Height
    78.10 mm
  • Rust Resistant Coating
    Yes
  • Solid Or Vented Type Rotor
    Vented
  • Supplementary Article/Info 2
    without Wheel Hub
  • Surface
    Coated
  • Surface Type
    Smooth
  • Technical Information Number
    54612PRO_HC_NA
  • Wheel Bolt Bore Diameter [mm]
    16.6
  • Wheel Bolt Bore Ø [mm]
    16.6
Manufacturer description
  • Manufacturer Label
    Integral One-Piece Design

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2019, BMW X6 xDrive50i Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2018, BMW X5 xDrive50i Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2018, BMW X6 xDrive50i Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2017, BMW X5 xDrive50i Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2017, BMW X6 xDrive50i Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2016, BMW X5 xDrive50i Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2016, BMW X6 xDrive50i Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2015, BMW X5 xDrive50i Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2015, BMW X6 xDrive50i Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2014, BMW X5 4.4, 4395, V, 8 xDrive50i Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2014, BMW X6 4.4, 4395, V, 8 xDrive50i Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2013, BMW X5 4.4, 4395, V, 8 xDrive50i, N63B44A Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2013, BMW X6 4.4, 4395, V, 8 xDrive50i Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2012, BMW X5 4.4, 4395, V, 8 xDrive50i Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2012, BMW X6 4.4, 4395, V, 8 xDrive50i Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2011, BMW X5 xDrive50i Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2011, BMW X6 ActiveHybrid Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2011, BMW X6 4.4, 4395, V, 8 xDrive50i Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2010, BMW X5 xDrive48i Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2010, BMW X6 ActiveHybrid Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2010, BMW X6 xDrive50i Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2009, BMW X5 xDrive35d Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2009, BMW X5 xDrive48i Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2009, BMW X6 xDrive35i Rear, Qty - 2, To 10/2008;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2009, BMW X6 xDrive50i Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2008, BMW X5 4.8i Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2008, BMW X6 xDrive35i Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2008, BMW X6 xDrive50i Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2007, BMW X5 4.8i Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
