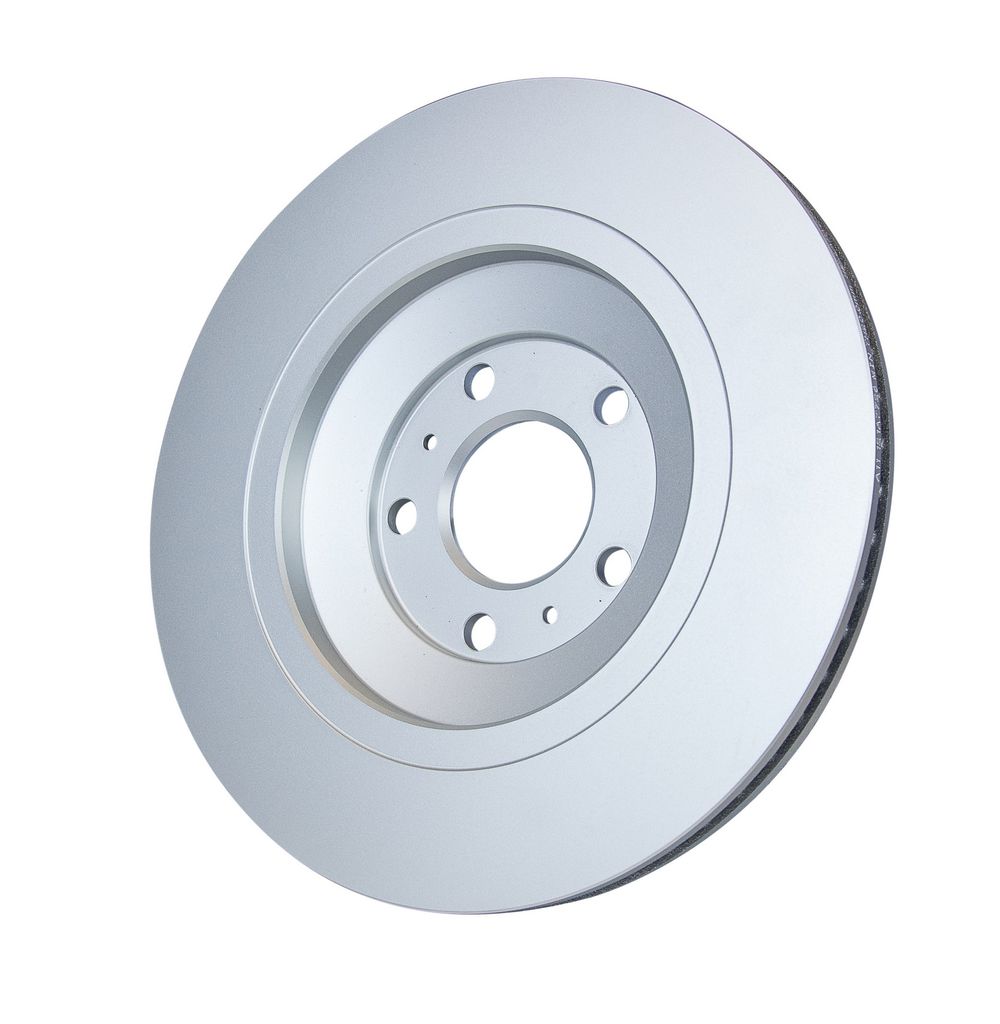

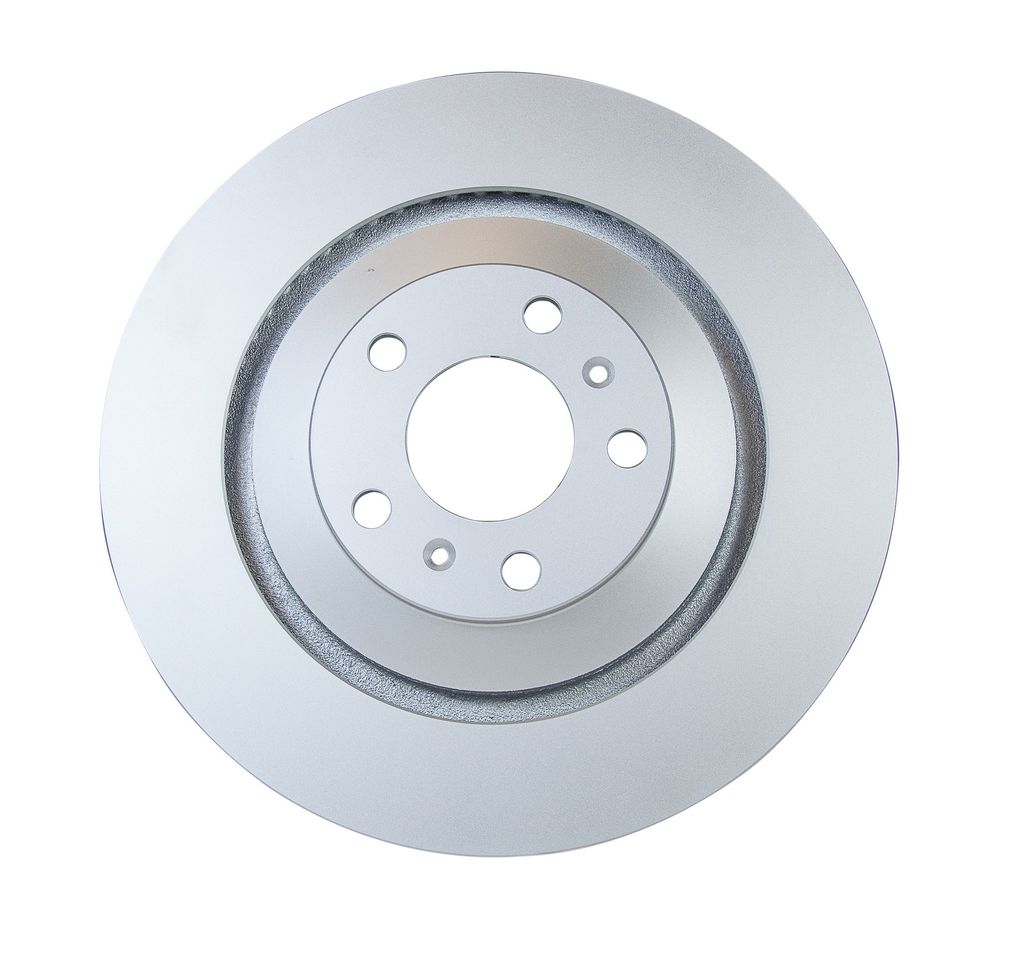

Pagid 355115462 - Disc Brake Rotor, Externally Vented, Diameter: 335 mm, Thickness 22.0 mm, 335 mm

Previous image
Pagid 355115462 - Disc Brake Rotor, Externally Vented, Diameter: 335 mm, Thickness 22.0 mm
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Pagid 355115462 - Disc Brake Rotor, Externally Vented, Diameter: 335 mm, Thickness 22.0 mm, 335 mm

Part No: 355115462
In Stock Arrives: Jun 29 - Jul 3
  • $92.80

Starting at $XX/mo with Affirm. Prequalify now

Pagid 355115462 - Disc Brake Rotor, Externally Vented, Diameter: 335 mm, Thickness 22.0 mm, 335 mm

FMXC-355115462
In Stock Arrives: Jun 29 - Jul 3
  • $92.80

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific

Specs and ratings

Stopping Power:




Noise Level:




Performance Over Stock:




  • Less fading and quiet braking
  • Reduced braking noise
  • Higher driving comfort with reduced machining tolerances
  • Fixing screws are always included if required
  • Manufactured according to European OE specifications (AM1 & AM2)
  • Increased carbon content for increased heat conductivity and better mechanical properties
  • Not oiled, no degreasing from preservative oil before fitting, saving time and money in the workshop
Check All Vehicles this Part Fits

Product details

 Description

Disc Brake Rotor
DISC BRAKE ROTOR

 Specifications

Package
  • Brand
    Pagid,  Pagid Brake Rotors
  • Part Number
    355115462
  • UPC
    4082300574456
  • Height
    2.76 in
  • Width
    13.78 in
  • Length
    14.37 in
  • Weight
    18.259 lbs
Attributes
  • Driving Qualifiers
    Normal Commute, Performance Street
  • Rotor Style
    Smooth-Plain
  • Stopping Power
    3 / 5
  • Noise Level
    2 / 5
  • Performance Over Stock
    0 - Basic Commute, 2 - Performance/Commuter, 3 - Street Performance
Details
  • Part Name
    Disc Brake Rotor
  • ABS Tone Ring Included
    No
  • Assy/Disassy by Qualified Personnel Required!
    .
  • Balancing Type
    Mill Balancing
  • Bearings Included
    No
  • Bolt Hole Circle Ø [in]
    4.41
  • Bolt Hole Circle Ø [mm]
    112
  • Brake Disc Thickness [in]
    0.87
  • Brake Disc Thickness [mm]
    22
  • Brake Disc Type
    Externally Vented
  • Center Hole Diameter
    112.0
  • Centering Diameter [in]
    2.68
  • Centering Diameter [mm]
    68
  • Color
    Silver
  • Construction
    Full Cast
  • Directional or Non-Directional Brake Surface
    Non-Directional
  • Disc Finish
    coated
  • Discard Thickness
    20.00 mm
  • Grade Type
    Standard Replacement
  • Hat Finish
    coated
  • Height [mm]
    42.4
  • Hole Arrangement/Number
    05/07
  • Inside Diameter
    68.0
  • Machining
    High-Carbon
  • Material
    gray cast iron
  • Minimum thickness [in]
    0.79
  • Minimum thickness [mm]
    20
  • Mounting Bolt Hole Circle Diameter
    112.00 mm
  • Mounting Bolt Hole Quantity
    7
  • Nominal Thickness
    22.00 mm
  • Number of bolts/screws
    2
  • Outer Diameter [in]
    13.19
  • Outer diameter [mm]
    335
  • Outside Diameter
    335.00 mm
  • Overall Height
    42.40 mm
  • Rust Resistant Coating
    Yes
  • Solid Or Vented Type Rotor
    Vented
  • Supplementary Article/Info 2
    without Wheel Studs
  • Surface
    Coated
  • Surface Type
    Smooth
  • Technical Information Number
    54770PRO_HC_NA
Manufacturer description
  • Manufacturer Label
    Integral One-Piece Design

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2009, Audi A8 Quattro Base Rear, Qty - 2, High Carbon, Fully Coated;335mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2009, Audi A8 Quattro 6.0, 5998, 366, W, 12 L Rear, Qty - 2, High Carbon, Fully Coated;335mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2009, Audi A8 Quattro 4.2, 4163, V, 8 L Rear, Qty - 2, High Carbon, Fully Coated;335mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2009, Audi S8 Base Rear, Qty - 2, High Carbon, Fully Coated;335mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2008, Audi A8 Quattro Base Rear, Qty - 2, High Carbon, Fully Coated;335mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2008, Audi A8 Quattro 6.0, 5998, 366, W, 12 L Rear, Qty - 2, High Carbon, Fully Coated;335mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2008, Audi A8 Quattro 4.2, 4163, V, 8 L Rear, Qty - 2, High Carbon, Fully Coated;335mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2008, Audi S8 Base Rear, Qty - 2, High Carbon, Fully Coated;335mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2007, Audi A8 Quattro Base Rear, Qty - 2, High Carbon, Fully Coated;335mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2007, Audi A8 Quattro 6.0, 5998, 366, W, 12 L Rear, Qty - 2, High Carbon, Fully Coated;335mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2007, Audi A8 Quattro 4.2, 4163, V, 8 L Rear, Qty - 2, High Carbon, Fully Coated;335mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2007, Audi S8 Base Rear, Qty - 2, High Carbon, Fully Coated;335mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2006, Audi A8 Quattro Base Rear, Qty - 2, High Carbon, Fully Coated;335mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2006, Audi A8 Quattro 6.0, 5998, 366, W, 12 L Rear, Qty - 2, High Carbon, Fully Coated;335mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2006, Audi A8 Quattro 4.2, 4172, V, 8 L Rear, Qty - 2, High Carbon, Fully Coated;335mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2005, Audi A8 Quattro Base Rear, Qty - 2, High Carbon, Fully Coated;335mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2005, Audi A8 Quattro 6.0, 5998, 366, W, 12 L Rear, Qty - 2, High Carbon, Fully Coated;335mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2005, Audi A8 Quattro 4.2, 4172, V, 8 L Rear, Qty - 2, High Carbon, Fully Coated;335mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
