Pagid 355113232 - Disc Brake Rotor, Externally Vented, Diameter: 330 mm, Thickness 22.0 mm, 330 mm

Previous image

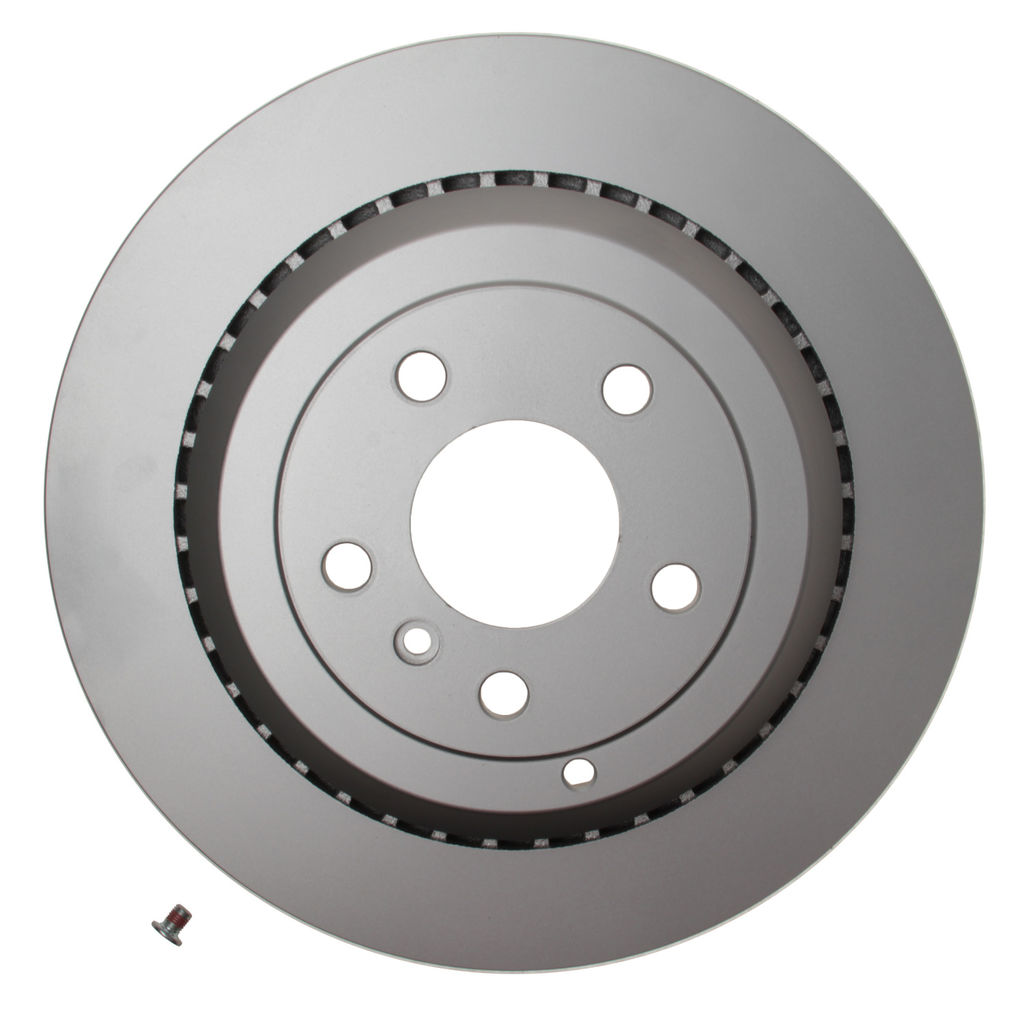

Pagid 355113232 - Disc Brake Rotor, Externally Vented, Diameter: 330 mm, Thickness 22.0 mm
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Pagid 355113232 - Disc Brake Rotor, Externally Vented, Diameter: 330 mm, Thickness 22.0 mm, 330 mm

Part No: 355113232
In Stock Arrives: Jul 22 - 28
  • $95.58

Starting at $XX/mo with Affirm. Prequalify now

Pagid 355113232 - Disc Brake Rotor, Externally Vented, Diameter: 330 mm, Thickness 22.0 mm, 330 mm

FMXC-355113232
In Stock Arrives: Jul 22 - 28
  • $95.58

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific

Specs and ratings

Stopping Power:




Noise Level:




Performance Over Stock:




  • Less fading and quiet braking
  • Higher driving comfort with reduced machining tolerances
  • Reduced braking noise
  • Fixing screws are always included if required
  • Increased carbon content for increased heat conductivity and better mechanical properties
  • Not oiled, no degreasing from preservative oil before fitting, saving time and money in the workshop
  • Manufactured according to European OE specifications (AM1 & AM2)
Check All Vehicles this Part Fits

Product details

 Description

Disc Brake Rotor
DISC BRAKE ROTOR

 Specifications

Package
  • Brand
    Pagid,  Pagid Brake Rotors
  • Part Number
    355113232
  • UPC
    4082300573961
  • Height
    4.33 in
  • Width
    13.78 in
  • Length
    14.37 in
  • Weight
    19.264 lbs
Attributes
  • Driving Qualifiers
    Normal Commute, Performance Street
  • Rotor Style
    Smooth-Plain
  • Stopping Power
    3 / 5
  • Noise Level
    2 / 5
  • Performance Over Stock
    0 - Basic Commute, 2 - Performance/Commuter, 3 - Street Performance
Details
  • Part Name
    Disc Brake Rotor
  • ABS Tone Ring Included
    No
  • Assy/Disassy by Qualified Personnel Required!
    .
  • Balancing Type
    Mill Balancing
  • Bearings Included
    No
  • Bolt Hole Circle Ø [in]
    4.41
  • Bolt Hole Circle Ø [mm]
    112
  • Brake Disc Thickness [in]
    0.87
  • Brake Disc Thickness [mm]
    22
  • Brake Disc Type
    Externally Vented
  • Center Hole Diameter
    112.0
  • Centering Diameter [in]
    2.64
  • Centering Diameter [mm]
    67
  • Color
    Silver
  • Construction
    Full Cast
  • Directional or Non-Directional Brake Surface
    Non-Directional
  • Disc Finish
    coated
  • Discard Thickness
    19.40 mm
  • Grade Type
    Standard Replacement
  • Hat Finish
    coated
  • Height [mm]
    62.8
  • Hole Arrangement/Number
    05/07
  • Inside Diameter
    67.0
  • Machining
    High-Carbon
  • Material
    gray cast iron
  • Minimum thickness [mm]
    19.4
  • Mounting Bolt Hole Circle Diameter
    112.00 mm
  • Mounting Bolt Hole Quantity
    7
  • Nominal Thickness
    22.00 mm
  • Number of bolts/screws
    1
  • Outer Diameter [in]
    12.99
  • Outer diameter [mm]
    330
  • Outside Diameter
    330.00 mm
  • Overall Height
    62.80 mm
  • Rust Resistant Coating
    Yes
  • Solid Or Vented Type Rotor
    Vented
  • Supplementary Article/Info 2
    without Wheel Hub
  • Surface
    Coated
  • Surface Type
    Smooth
  • Technical Information Number
    54509PRO_HC_NA
Manufacturer description
  • Manufacturer Label
    Integral One-Piece Design

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2012, Mercedes-Benz GL350 Bluetec 4Matic Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2012, Mercedes-Benz GL450 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2012, Mercedes-Benz GL550 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2012, Mercedes-Benz R350 4Matic Rear, Qty - 2, 7 Passenger Seating;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2012, Mercedes-Benz R350 Bluetec 4Matic Rear, Qty - 2, 7 Passenger Seating;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2011, Mercedes-Benz GL350 Bluetec 4Matic Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2011, Mercedes-Benz GL450 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2011, Mercedes-Benz GL550 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2011, Mercedes-Benz ML550 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2011, Mercedes-Benz R350 4Matic Rear, Qty - 2, 7 Passenger Seating;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2011, Mercedes-Benz R350 Bluetec 4Matic Rear, Qty - 2, 7 Passenger Seating;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2010, Mercedes-Benz GL350 Bluetec 4Matic Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2010, Mercedes-Benz GL450 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2010, Mercedes-Benz GL550 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2010, Mercedes-Benz ML550 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2010, Mercedes-Benz R350 4Matic Rear, Qty - 2, 7 Passenger Seating;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2010, Mercedes-Benz R350 Bluetec 4Matic Rear, Qty - 2, 7 Passenger Seating;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2009, Mercedes-Benz GL320 Bluetec 4Matic Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2009, Mercedes-Benz GL450 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2009, Mercedes-Benz GL550 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2009, Mercedes-Benz ML550 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2009, Mercedes-Benz R320 Bluetec Rear, Qty - 2, 7 Passenger Seating;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2009, Mercedes-Benz R350 4Matic Rear, Qty - 2, 7 Passenger Seating;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2009, Mercedes-Benz R350 Base Rear, Qty - 2, 7 Passenger Seating;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2008, Mercedes-Benz GL320 CDI Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2008, Mercedes-Benz GL450 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2008, Mercedes-Benz GL550 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2008, Mercedes-Benz ML550 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2008, Mercedes-Benz R320 CDI Rear, Qty - 2, 7 Passenger Seating;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2008, Mercedes-Benz R350 4Matic Rear, Qty - 2, 7 Passenger Seating;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2008, Mercedes-Benz R350 Base Rear, Qty - 2, 7 Passenger Seating;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2007, Mercedes-Benz GL320 CDI Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2007, Mercedes-Benz GL450 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2007, Mercedes-Benz R320 CDI Rear, Qty - 2, 7 Passenger Seating;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2007, Mercedes-Benz R350 4Matic Rear, Qty - 2, 7 Passenger Seating;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2007, Mercedes-Benz R500 5.0, 4973, V, 8 Base Rear, Qty - 2, 7 Passenger Seating;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2006, Mercedes-Benz R350 4Matic Rear, Qty - 2, 7 Passenger Seating;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2006, Mercedes-Benz R500 Base Rear, Qty - 2, 7 Passenger Seating;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
