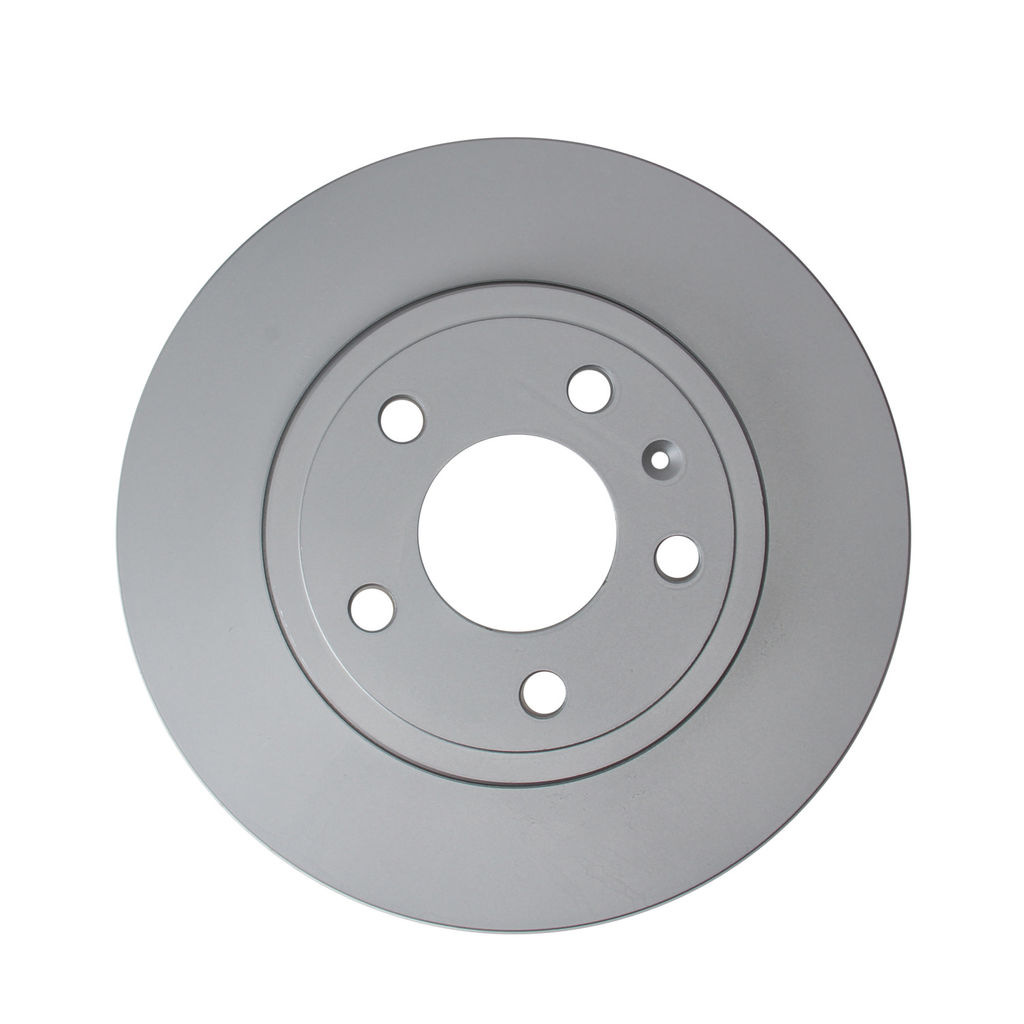

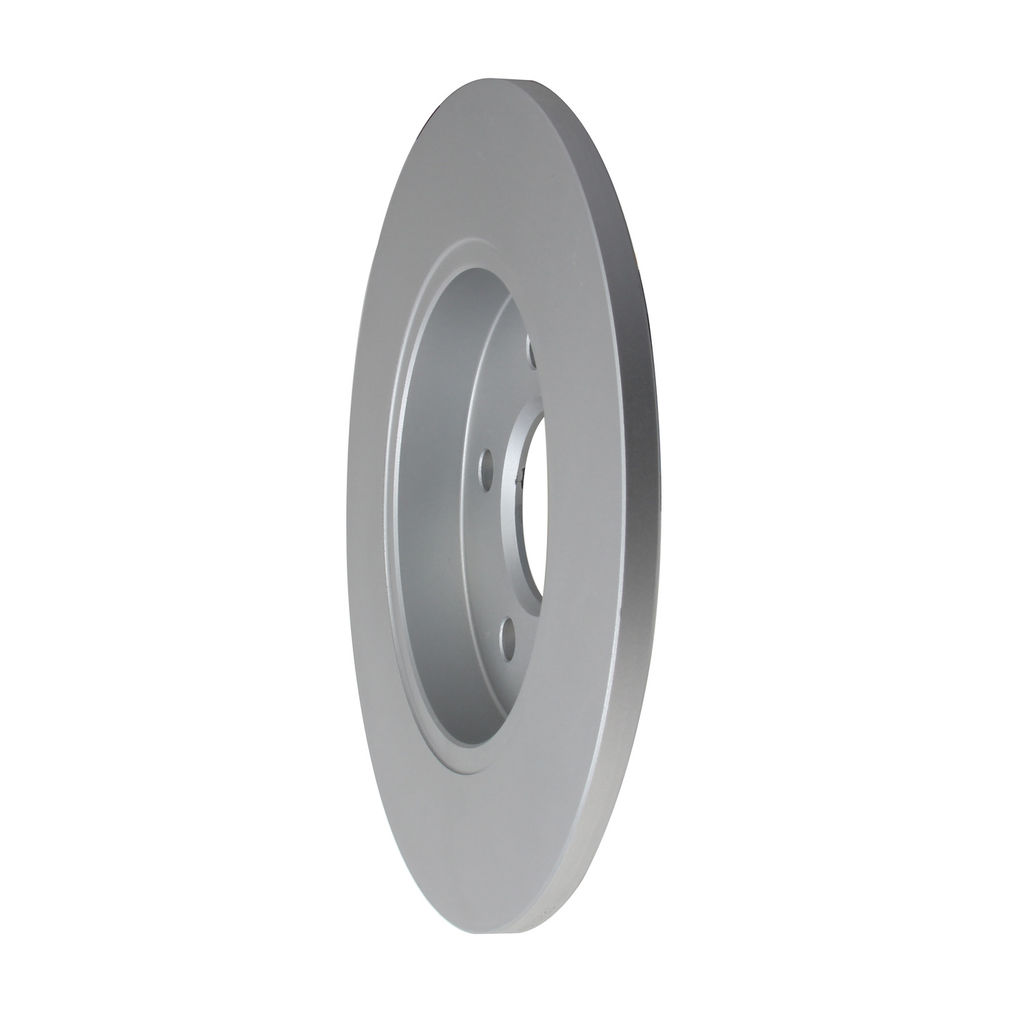

Pagid 355111812 - Disc Brake Rotor, Solid, Diameter: 288 mm, Thickness 12.0 mm, 288 mm

Previous image
Pagid 355111812 - Disc Brake Rotor, Solid, Diameter: 288 mm, Thickness 12.0 mm
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Pagid 355111812 - Disc Brake Rotor, Solid, Diameter: 288 mm, Thickness 12.0 mm, 288 mm

Part No: 355111812
In Stock Arrives: Jul 21 - 27
  • $59.44

Starting at $XX/mo with Affirm. Prequalify now

Pagid 355111812 - Disc Brake Rotor, Solid, Diameter: 288 mm, Thickness 12.0 mm, 288 mm

FMXC-355111812
In Stock Arrives: Jul 21 - 27
  • $59.44

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific

Specs and ratings

Stopping Power:




Noise Level:




Performance Over Stock:




  • Increased carbon content for increased heat conductivity and better mechanical properties
  • Improved aesthetics and appearance of brake discs, especially when used with aluminum rims
  • Full range is 100% fully coated with premium zinc rust protection
  • Not oiled, no degreasing from preservative oil before fitting, saving time and money in the workshop
  • Manufactured according to European OE specifications (AM1 & AM2)
  • Fixing screws are always included if required
  • Full range is 100% high carbon (GG15 & GG20)
Check All Vehicles this Part Fits

Product details

 Description

Disc Brake Rotor
DISC BRAKE ROTOR

 Specifications

Package
  • Brand
    Pagid,  Pagid Brake Rotors
  • Part Number
    355111812
  • UPC
    4082300573701
  • Height
    3.15 in
  • Width
    12.4 in
  • Length
    12.99 in
  • Weight
    12.103 lbs
Attributes
  • Driving Qualifiers
    Normal Commute, Performance Street
  • Rotor Style
    Smooth-Plain
  • Stopping Power
    3 / 5
  • Noise Level
    2 / 5
  • Performance Over Stock
    0 - Basic Commute, 2 - Performance/Commuter, 3 - Street Performance
Details
  • Part Name
    Disc Brake Rotor
  • ABS Tone Ring Included
    No
  • Assy/Disassy by Qualified Personnel Required!
    .
  • Balancing Type
    Mill Balancing
  • Bearings Included
    No
  • Bolt Hole Circle Ø [in]
    4.41
  • Bolt Hole Circle Ø [mm]
    112
  • Brake Disc Thickness [in]
    0.47
  • Brake Disc Thickness [mm]
    12
  • Brake Disc Type
    Solid
  • Center Hole Diameter
    112.0
  • Centering Diameter [in]
    2.68
  • Centering Diameter [mm]
    68
  • Color
    Silver
  • Construction
    Full Cast
  • Directional or Non-Directional Brake Surface
    Non-Directional
  • Disc Finish
    coated
  • Discard Thickness
    10.00 mm
  • Grade Type
    Standard Replacement
  • Hat Finish
    coated
  • Height [mm]
    35.8
  • Hole Arrangement/Number
    05/06
  • Inner Diameter [in]
    6.38
  • Inner diameter [mm]
    162
  • Inside Diameter
    68.0
  • Machining
    High-Carbon
  • Material
    gray cast iron
  • Minimum thickness [in]
    0.39
  • Minimum thickness [mm]
    10
  • Mounting Bolt Hole Circle Diameter
    112.00 mm
  • Mounting Bolt Hole Quantity
    6
  • Nominal Thickness
    12.00 mm
  • Outer Diameter [in]
    11.34
  • Outer diameter [mm]
    288
  • Outside Diameter
    288.00 mm
  • Overall Height
    35.80 mm
  • Rust Resistant Coating
    Yes
  • Solid Or Vented Type Rotor
    Solid
  • Supplementary Article/Info 2
    without Wheel Studs
  • Surface
    Coated
  • Surface Type
    Smooth
  • Technical Information Number
    54370PRO_HC_NA
  • Wheel Bolt Bore Diameter [mm]
    15.3
  • Wheel Bolt Bore Ø [mm]
    15.3
Manufacturer description
  • Manufacturer Label
    Integral One-Piece Design

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2009, Audi A4 Cabriolet Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2009, Audi A4 Quattro 3.2, 3123, V, 6 Cabriolet Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2009, Audi A4 Quattro 2.0, 1984, 121, L, 4 Cabriolet Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2008, Audi A4 3.2, 3123, V, 6 Base Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2008, Audi A4 2.0, 1984, 121, L, 4 Base Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2008, Audi A4 Cabriolet Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2008, Audi A4 Quattro 3.2, 3123, V, 6 Avant Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2008, Audi A4 Quattro 2.0, 1984, 121, L, 4 Avant Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2008, Audi A4 Quattro 3.2, 3123, V, 6 Base Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2008, Audi A4 Quattro 2.0, 1984, 121, L, 4 Base Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2008, Audi A4 Quattro 3.2, 3123, V, 6 Cabriolet Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2008, Audi A4 Quattro 2.0, 1984, 121, L, 4 Cabriolet Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2007, Audi A4 3.2, 3123, V, 6 Base Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2007, Audi A4 2.0, 1984, 121, L, 4 Base Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2007, Audi A4 Cabriolet Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2007, Audi A4 Quattro 3.2, 3123, V, 6 Avant Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2007, Audi A4 Quattro 2.0, 1984, 121, L, 4 Avant Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2007, Audi A4 Quattro 3.2, 3123, V, 6 Base Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2007, Audi A4 Quattro 2.0, 1984, 121, L, 4 Base Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2007, Audi A4 Quattro 3.2, 3123, V, 6 Cabriolet Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2007, Audi A4 Quattro 2.0, 1984, 121, L, 4 Cabriolet Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2006, Audi A4 3.2, 3123, V, 6 Base Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2006, Audi A4 2.0, 1984, 121, L, 4 Base Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2006, Audi A4 Quattro 3.2, 3123, V, 6 Avant Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2006, Audi A4 Quattro 2.0, 1984, 121, L, 4 Avant Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2006, Audi A4 Quattro 3.2, 3123, V, 6 Base Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2006, Audi A4 Quattro 2.0, 1984, 121, L, 4 Base Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2005, Audi A4 2.0, 1984, 121, L, 4 Base Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2005, Audi A4 Quattro 3.2, 3123, V, 6 Avant Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2005, Audi A4 Quattro 2.0, 1984, 121, L, 4 Avant Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2005, Audi A4 Quattro 3.2, 3123, V, 6 Base Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2005, Audi A4 Quattro 2.0, 1984, 121, L, 4 Base Rear, Qty - 2, High Carbon, Fully Coated;288mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
