Pagid 355105472 - Disc Brake Rotor, Solid, Diameter: 260 mm, Thickness 10.0 mm, 260 mm

Previous image
Pagid 355105472 - Disc Brake Rotor, Solid, Diameter: 260 mm, Thickness 10.0 mm
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Pagid 355105472 - Disc Brake Rotor, Solid, Diameter: 260 mm, Thickness 10.0 mm, 260 mm

Part No: 355105472
Not in Stock

Please call 888-257-7149 to check future availability

  • $46.32

Pagid 355105472 - Disc Brake Rotor, Solid, Diameter: 260 mm, Thickness 10.0 mm, 260 mm

FMXC-355105472
Not in Stock

Please call 888-257-7149 to check future availability

  • $46.32
Vehicle Specific

Specs and ratings

Stopping Power:




Noise Level:




Performance Over Stock:




  • Reduced braking noise
  • Fixing screws are always included if required
  • Less fading and quiet braking
  • Higher driving comfort with reduced machining tolerances
  • Increased carbon content for increased heat conductivity and better mechanical properties
  • Manufactured according to European OE specifications (AM1 & AM2)
  • Improved aesthetics and appearance of brake discs, especially when used with aluminum rims
Check All Vehicles this Part Fits

Product details

 Description

Disc Brake Rotor
Disc Brake Rotor

 Specifications

Package
  • Brand
    Pagid,  Pagid Brake Rotors
  • Part Number
    355105472
  • UPC
    4082300691726
  • Height
    2.76 in
  • Width
    11.02 in
  • Length
    11.61 in
  • Weight
    8.157 lbs
Attributes
  • Driving Qualifiers
    Normal Commute, Performance Street
  • Rotor Style
    Smooth-Plain
  • Stopping Power
    3 / 5
  • Noise Level
    2 / 5
  • Performance Over Stock
    0 - Basic Commute, 2 - Performance/Commuter, 3 - Street Performance
Details
  • Part Name
    Disc Brake Rotor
  • ABS Tone Ring Included
    No
  • Assy/Disassy by Qualified Personnel Required!
    .
  • Balancing Type
    Mill Balancing
  • Bearings Included
    No

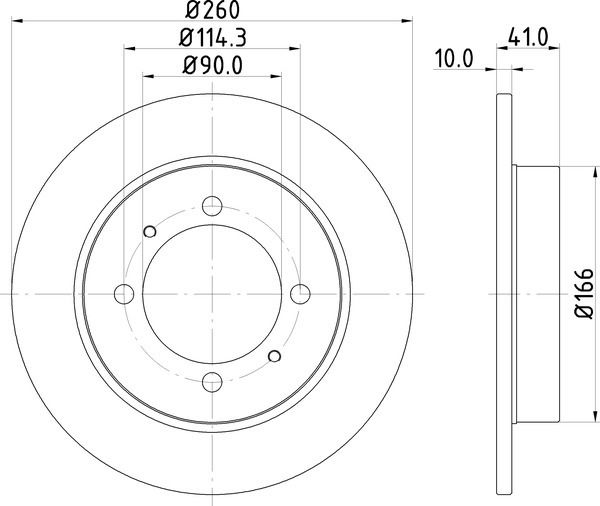

  • Bolt Hole Circle Ø [mm]
    114.3
  • Brake Disc Thickness [in]
    0.39
  • Brake Disc Thickness [mm]
    10
  • Brake Disc Type
    Solid
  • Center Hole Diameter
    114.3
  • Centering Diameter [in]
    3.54
  • Centering Diameter [mm]
    90
  • Construction
    Full Cast
  • Directional or Non-Directional Brake Surface
    Non-Directional
  • Disc Finish
    coated
  • Discard Thickness
    8.40 mm
  • Grade Type
    Standard Replacement
  • Hat Finish
    coated
  • Height [in]
    1.61
  • Height [mm]
    41
  • Hole Arrangement/Number
    04/06
  • Inner Diameter [in]
    6.06
  • Inner diameter [mm]
    154
  • Inside Diameter
    90.0
  • Machining
    High-Carbon
  • Material
    gray cast iron
  • Minimum thickness [mm]
    8.4
  • Mounting Bolt Hole Circle Diameter
    114.30 mm
  • Mounting Bolt Hole Quantity
    6
  • Nominal Thickness
    10.00 mm
  • Outer Diameter [in]
    10.24
  • Outer diameter [mm]
    260
  • Outside Diameter
    260.00 mm
  • Overall Height
    41.00 mm
  • Rust Resistant Coating
    Yes
  • Solid Or Vented Type Rotor
    Solid
  • Supplementary Article/Info 2
    without Wheel Hub
  • Surface
    Coated
  • Surface Type
    Smooth
  • Technical Information Number
    54024PRO_HC_NA
  • Wheel Bolt Bore Diameter [mm]
    12.6
  • Wheel Bolt Bore Ø [mm]
    12.6
Manufacturer description
  • Manufacturer Label
    Integral One-Piece Design

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2004, Volvo S40 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2004, Volvo S40 Base Rear, Qty - 2, Designed and Engineered in Germany;High Carbon - Fully Coated
2004, Volvo S40 LSE Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2004, Volvo S40 LSE Rear, Qty - 2, Designed and Engineered in Germany;High Carbon - Fully Coated
2004, Volvo V40 Base Rear, Qty - 2, Designed and Engineered in Germany;High Carbon - Fully Coated
2004, Volvo V40 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2004, Volvo V40 LSE Rear, Qty - 2, Designed and Engineered in Germany;High Carbon - Fully Coated
2004, Volvo V40 LSE Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2003, Volvo S40 1.9, 1948, L, 4 Base, B4204T4 Rear, Qty - 2, Designed and Engineered in Germany;High Carbon - Fully Coated
2003, Volvo S40 1.9, 1948, L, 4 Base, B4204T4 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2003, Volvo S40 1.9, 1948, L, 4 Base, B4204T3 Rear, Qty - 2, Designed and Engineered in Germany;High Carbon - Fully Coated
2003, Volvo S40 1.9, 1948, L, 4 Base, B4204T3 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2003, Volvo V40 1.9, 1948, L, 4 Base, B4204T4 Rear, Qty - 2, Designed and Engineered in Germany;High Carbon - Fully Coated
2003, Volvo V40 1.9, 1948, L, 4 Base, B4204T4 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2003, Volvo V40 1.9, 1948, L, 4 Base, B4204T3 Rear, Qty - 2, Designed and Engineered in Germany;High Carbon - Fully Coated
2003, Volvo V40 1.9, 1948, L, 4 Base, B4204T3 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2002, Volvo S40 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2002, Volvo S40 Base Rear, Qty - 2, Designed and Engineered in Germany;High Carbon - Fully Coated
2002, Volvo V40 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2002, Volvo V40 Base Rear, Qty - 2, Designed and Engineered in Germany;High Carbon - Fully Coated
2001, Volvo S40 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2001, Volvo S40 Base Rear, Qty - 2, Designed and Engineered in Germany;High Carbon - Fully Coated
2001, Volvo V40 Base Rear, Qty - 2, Designed and Engineered in Germany;High Carbon - Fully Coated
2001, Volvo V40 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo S40 1.9, 1948, L, 4 Base, B4204T2 Rear, Qty - 2, Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo S40 1.9, 1948, L, 4 Base, B4204T2 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo S40 1.9, 1948, L, 4 Base, B4204T Rear, Qty - 2, Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo S40 1.9, 1948, L, 4 Base, B4204T Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo V40 1.9, 1948, L, 4 Base, B4204T2 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo V40 1.9, 1948, L, 4 Base, B4204T2 Rear, Qty - 2, Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo V40 1.9, 1948, L, 4 Base, B4204T Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo V40 1.9, 1948, L, 4 Base, B4204T Rear, Qty - 2, Designed and Engineered in Germany;High Carbon - Fully Coated
