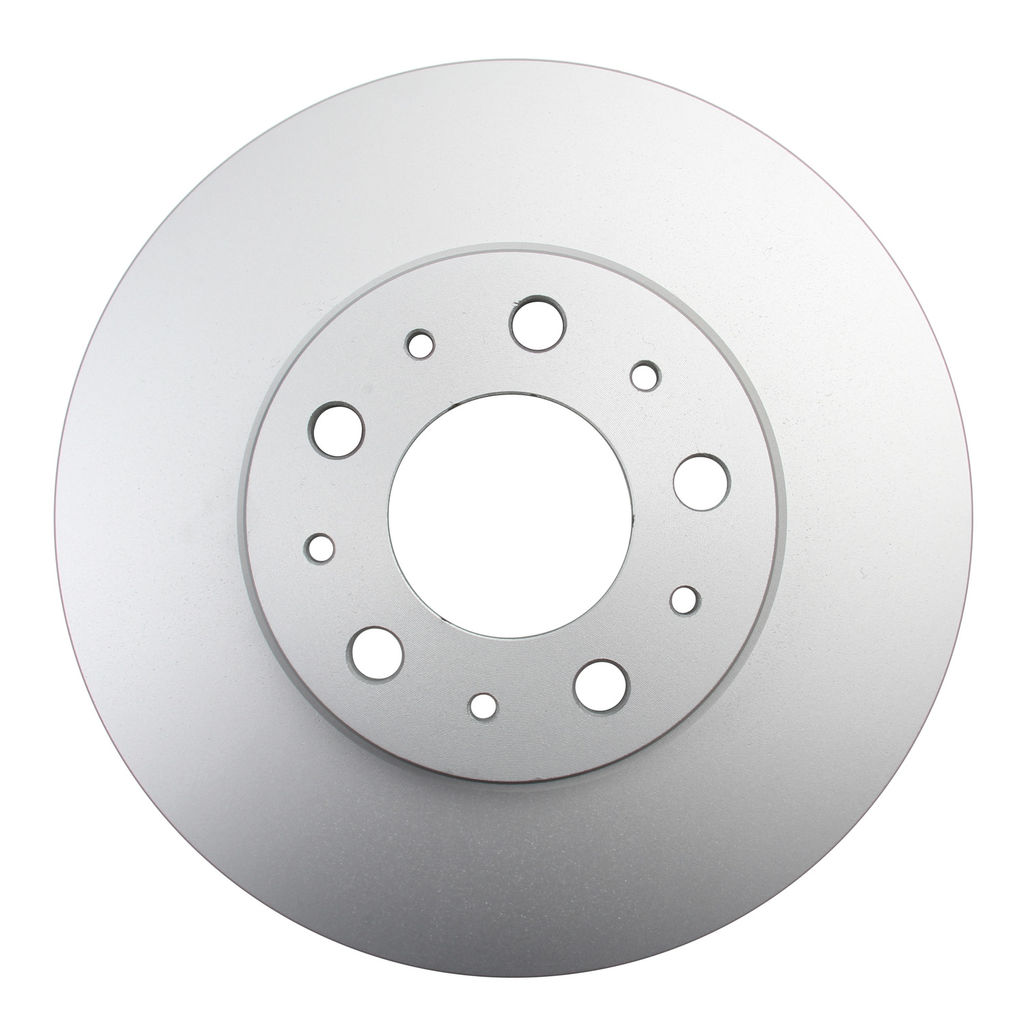

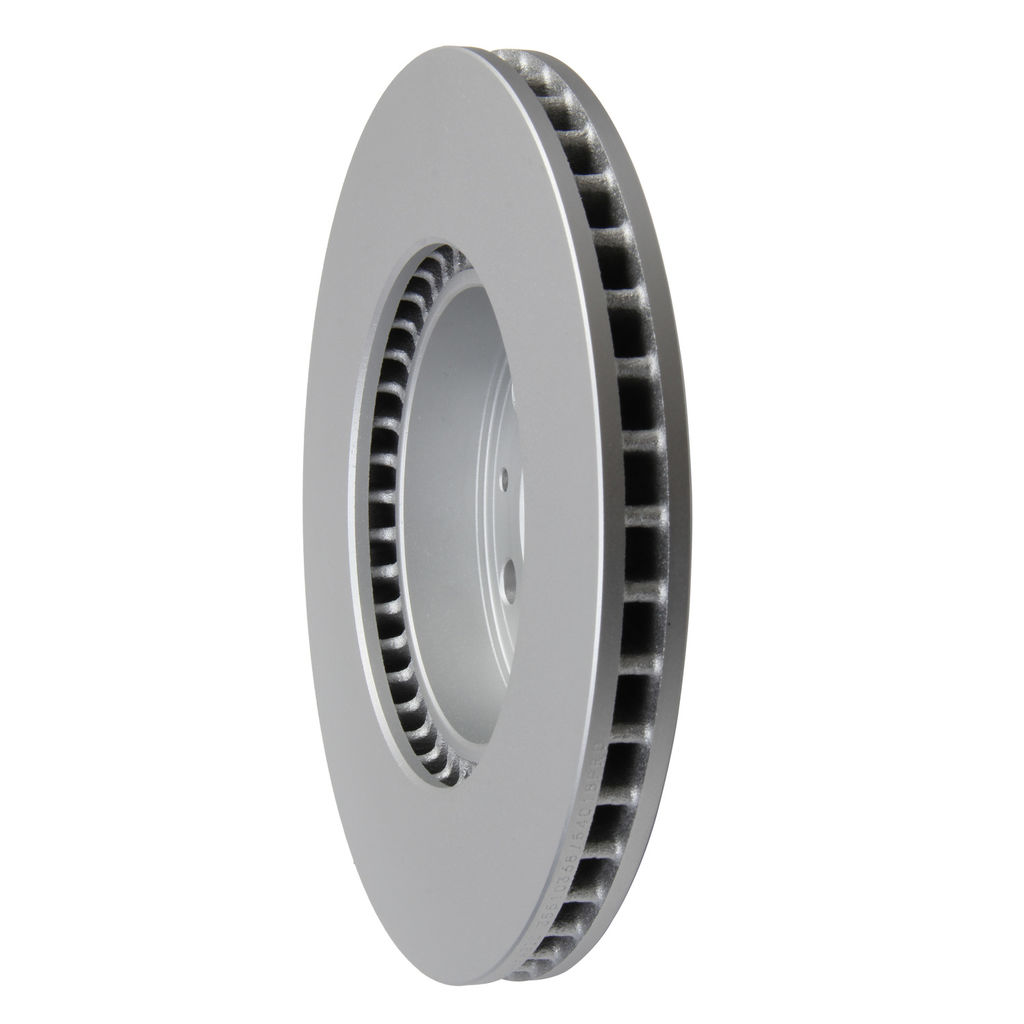

Pagid 355103682 - Disc Brake Rotor, Internally Vented, Diameter: 280 mm, Thickness 26.0 mm, 280 mm

Previous image
Pagid 355103682 - Disc Brake Rotor, Internally Vented, Diameter: 280 mm, Thickness 26.0 mm
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Pagid 355103682 - Disc Brake Rotor, Internally Vented, Diameter: 280 mm, Thickness 26.0 mm, 280 mm

Part No: 355103682
Not in Stock

Please call 888-257-7149 to check future availability

  • $71.34

Starting at $XX/mo with Affirm. Prequalify now

Pagid 355103682 - Disc Brake Rotor, Internally Vented, Diameter: 280 mm, Thickness 26.0 mm, 280 mm

FMXC-355103682
Not in Stock

Please call 888-257-7149 to check future availability

  • $71.34

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific

Specs and ratings

Stopping Power:




Noise Level:




Performance Over Stock:




  • Higher driving comfort with reduced machining tolerances
  • Reduced braking noise
  • Less fading and quiet braking
  • Fixing screws are always included if required
  • Increased carbon content for increased heat conductivity and better mechanical properties
  • Not oiled, no degreasing from preservative oil before fitting, saving time and money in the workshop
  • Full range is 100% high carbon (GG15 & GG20)
Check All Vehicles this Part Fits

Product details

 Description

Disc Brake Rotor
DISC BRAKE ROTOR

 Specifications

Package
  • Brand
    Pagid,  Pagid Brake Rotors
  • Part Number
    355103682
  • UPC
    4082300573114
  • Height
    3.15 in
  • Width
    12.4 in
  • Length
    12.99 in
  • Weight
    15.432 lbs
Attributes
  • Driving Qualifiers
    Normal Commute, Performance Street
  • Rotor Style
    Smooth-Plain
  • Stopping Power
    3 / 5
  • Noise Level
    2 / 5
  • Performance Over Stock
    0 - Basic Commute, 2 - Performance/Commuter, 3 - Street Performance
Details
  • Part Name
    Disc Brake Rotor
  • ABS Tone Ring Included
    No
  • Assy/Disassy by Qualified Personnel Required!
    .
  • Balancing Type
    Mill Balancing
  • Bearings Included
    No
  • Bolt Hole Circle Ø [in]
    4.25
  • Bolt Hole Circle Ø [mm]
    108
  • Brake Disc Thickness [in]
    1.02
  • Brake Disc Thickness [mm]
    26
  • Brake Disc Type
    Internally Vented
  • Center Hole Diameter
    108.0
  • Centering Diameter [in]
    2.68
  • Centering Diameter [mm]
    68
  • Color
    Silver
  • Construction
    Full Cast
  • Directional or Non-Directional Brake Surface
    Non-Directional
  • Disc Finish
    coated
  • Discard Thickness
    23.00 mm
  • Grade Type
    Standard Replacement
  • Hat Finish
    coated
  • Height [mm]
    50.3
  • Hole Arrangement/Number
    05/10
  • Inner diameter [mm]
    139.2
  • Inside Diameter
    68.0
  • Machining
    High-Carbon
  • Material
    gray cast iron
  • Minimum thickness [in]
    0.91
  • Minimum thickness [mm]
    23
  • Mounting Bolt Hole Circle Diameter
    108.00 mm
  • Mounting Bolt Hole Quantity
    10
  • Nominal Thickness
    26.00 mm
  • Outer Diameter [in]
    11.02
  • Outer diameter [mm]
    280
  • Outside Diameter
    280.00 mm
  • Overall Height
    50.30 mm
  • Rust Resistant Coating
    Yes
  • Solid Or Vented Type Rotor
    Vented
  • Supplementary Article/Info 2
    without Wheel Studs
  • Surface
    Coated
  • Surface Type
    Smooth
  • Technical Information Number
    54018PRO_HC_NA
  • Wheel Bolt Bore Diameter [mm]
    14.7
  • Wheel Bolt Bore Ø [mm]
    14.7
Manufacturer description
  • Manufacturer Label
    Integral One-Piece Design

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2000, Volvo S70 AWD Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo S70 AWD Front, Qty - 2, 15" Wheels;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo S70 Base Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo S70 Base Front, Qty - 2, 15" Wheels;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo S70 GLT Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo S70 GLT Front, Qty - 2, 15" Wheels;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo S70 GLT SE Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo S70 GLT SE Front, Qty - 2, 15" Wheels;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo S70 T5 Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo S70 T5 Front, Qty - 2, 15" Wheels;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo V70 Base Front, Qty - 2, 15" Wheels;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo V70 GLT Front, Qty - 2, 15" Wheels;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo V70 2.4, 2435, L, 5 GLT, B5244T, 56, FI Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo V70 GLT SE Front, Qty - 2, 15" Wheels;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo V70 2.4, 2435, L, 5 GLT SE, B5244T, 56, FI Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo V70 R AWD Front, Qty - 2, 15" Wheels;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo V70 2.3, 2319, L, 5 R AWD, B5234T3, 53, FI Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo V70 T5 Front, Qty - 2, 15" Wheels;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo V70 2.3, 2319, L, 5 T5, B5234T3, 53, FI Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo V70 2.4, 2435, L, 5 X/C AWD, B5244T, 56, FI Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo V70 2.4, 2435, L, 5 X/C AWD, B5244T, 56, FI Front, Qty - 2, 15" Wheels;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo V70 X/C AWD SE Front, Qty - 2, 15" Wheels;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volvo V70 2.4, 2435, L, 5 X/C AWD SE, B5244T, 56, FI Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volvo S70 AWD Front, Qty - 2, 15" Wheels;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volvo S70 2.4, 2435, L, 5 AWD, B5254T, 56, FI Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volvo S70 Base Front, Qty - 2, 15" Wheels;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volvo S70 2.4, 2435, L, 5 Base, B5254S, 55, FI Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volvo S70 2.4, 2435, L, 5 GLT, B5254T, 56, FI Front, Qty - 2, 15" Wheels;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volvo S70 2.4, 2435, L, 5 GLT, B5254T, 56, FI Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volvo S70 T5 Front, Qty - 2, 15" Wheels;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volvo S70 2.3, 2319, L, 5 T5, B5234T3, 53, FI Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volvo V70 AWD Front, Qty - 2, 15" Wheels;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volvo V70 2.4, 2435, L, 5 AWD, B5254T, 56, FI Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volvo V70 Base Front, Qty - 2, 15" Wheels;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volvo V70 2.4, 2435, L, 5 Base, B5254S, 55, FI Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volvo V70 2.4, 2435, L, 5 GLT, B5254T, 56, FI Front, Qty - 2, 15" Wheels;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volvo V70 2.4, 2435, L, 5 GLT, B5254T, 56, FI Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volvo V70 R AWD Front, Qty - 2, 15" Wheels;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volvo V70 2.3, 2319, L, 5 R AWD, B5234T8, 62, FI Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volvo V70 T5 Front, Qty - 2, 15" Wheels;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volvo V70 2.3, 2319, L, 5 T5, B5234T3, 53, FI Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volvo V70 X/C AWD Front, Qty - 2, 15" Wheels;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volvo V70 2.4, 2435, L, 5 X/C AWD, B5254T, 56, FI Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1998, Volvo S70 Base Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1998, Volvo S70 GLT Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1998, Volvo S70 T5 Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1998, Volvo S90 Base Front, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1998, Volvo V70 AWD Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1998, Volvo V70 Base Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1998, Volvo V70 GLT Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1998, Volvo V70 R Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1998, Volvo V70 T5 Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1998, Volvo V70 X/C AWD Front, Qty - 2, 15" Wheels;High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1998, Volvo V90 Base Front, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1997, Volvo 850 Base Front, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1997, Volvo 850 GLT Front, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1997, Volvo 850 R Front, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1997, Volvo 850 T-5 Front, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1997, Volvo S90 Base Front, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1997, Volvo V90 Base Front, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1996, Volvo 850 Base Front, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1996, Volvo 850 GLT Front, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1996, Volvo 850 R Front, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1996, Volvo 850 Turbo Front, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1995, Volvo 850 Base Front, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1995, Volvo 850 GLT Front, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1995, Volvo 850 T-5R Front, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1995, Volvo 850 Turbo Front, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1994, Volvo 850 Base Front, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1994, Volvo 850 GLT Front, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1994, Volvo 850 Turbo Front, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1993, Volvo 850 GLT Front, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
