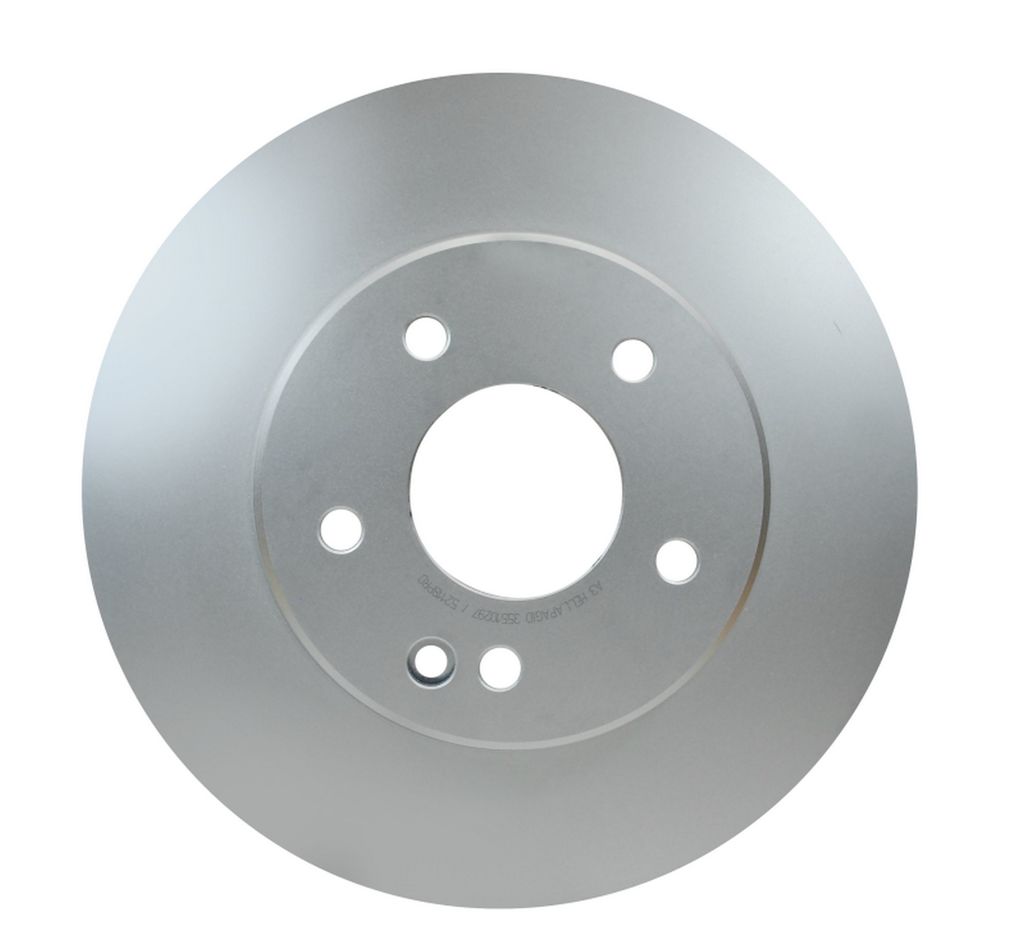

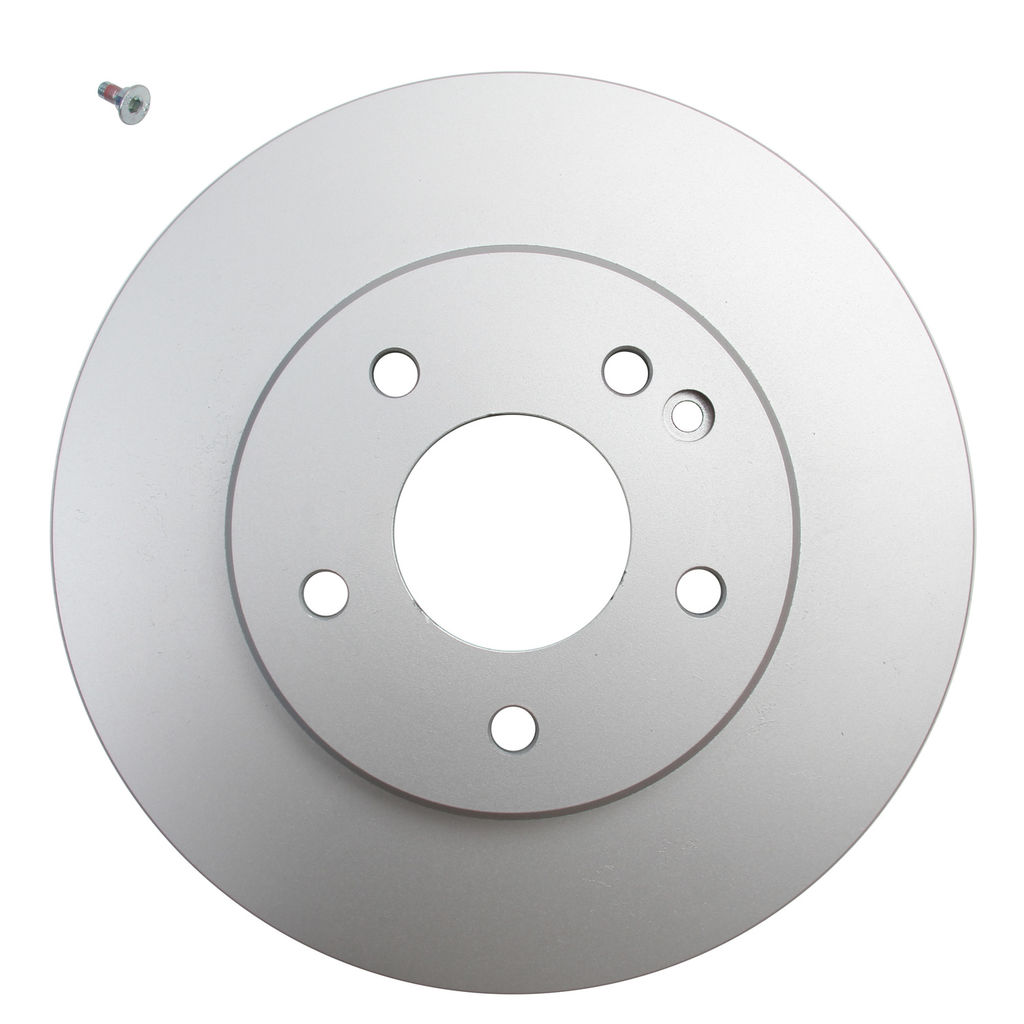

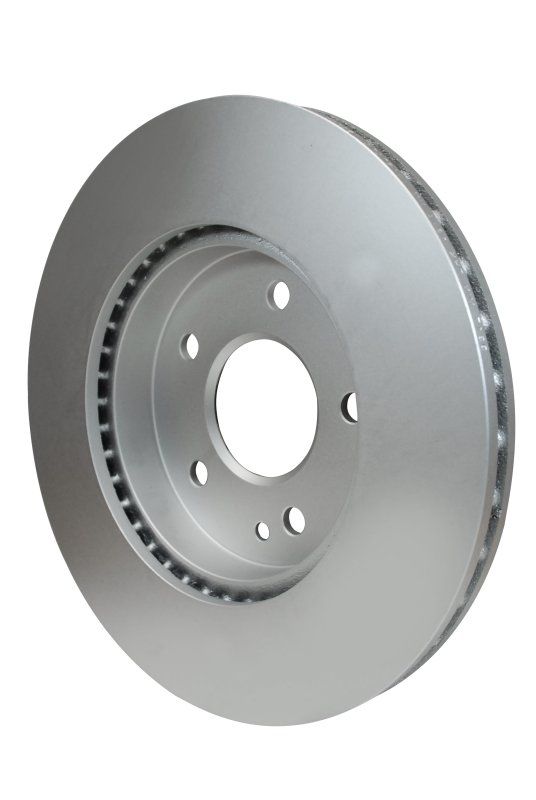

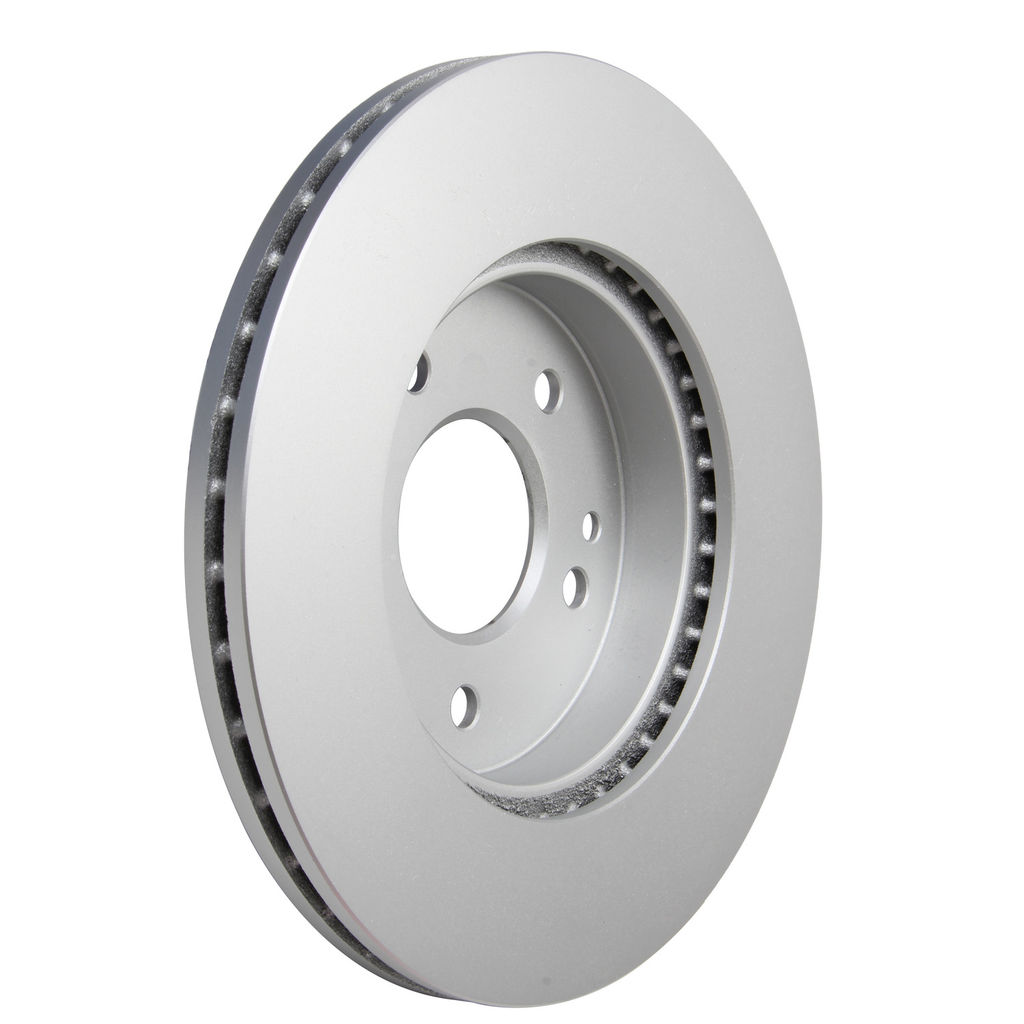

Pagid 355102972 - Disc Brake Rotor, Internally Vented, Diameter: 284 mm, Thickness 22.0 mm, 284 mm

Previous image
Pagid 355102972 - Disc Brake Rotor, Internally Vented, Diameter: 284 mm, Thickness 22.0 mm
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Pagid 355102972 - Disc Brake Rotor, Internally Vented, Diameter: 284 mm, Thickness 22.0 mm, 284 mm

Part No: 355102972
In Stock Arrives: Jul 22 - 28
  • $64.70

Starting at $XX/mo with Affirm. Prequalify now

Pagid 355102972 - Disc Brake Rotor, Internally Vented, Diameter: 284 mm, Thickness 22.0 mm, 284 mm

FMXC-355102972
In Stock Arrives: Jul 22 - 28
  • $64.70

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific

Specs and ratings

Stopping Power:




Noise Level:




Performance Over Stock:




  • Increased carbon content for increased heat conductivity and better mechanical properties
  • Full range is 100% high carbon (GG15 & GG20)
  • Reduced braking noise
  • Less fading and quiet braking
  • Fixing screws are always included if required
  • Not oiled, no degreasing from preservative oil before fitting, saving time and money in the workshop
  • Improved aesthetics and appearance of brake discs, especially when used with aluminum rims
Check All Vehicles this Part Fits

Product details

 Description

Disc Brake Rotor
DISC BRAKE ROTOR

 Specifications

Package
  • Brand
    Pagid,  Pagid Brake Rotors
  • Part Number
    355102972
  • UPC
    4082300572599
  • Height
    3.15 in
  • Width
    12.4 in
  • Length
    12.99 in
  • Weight
    13.426 lbs
Attributes
  • Driving Qualifiers
    Normal Commute, Performance Street
  • Rotor Style
    Smooth-Plain
  • Stopping Power
    3 / 5
  • Noise Level
    2 / 5
  • Performance Over Stock
    0 - Basic Commute, 2 - Performance/Commuter, 3 - Street Performance
Details
  • Part Name
    Disc Brake Rotor
  • ABS Tone Ring Included
    No
  • Assy/Disassy by Qualified Personnel Required!
    .
  • Balancing Type
    Mill Balancing
  • Bearings Included
    No
  • Bolt Hole Circle Ø [in]
    4.41
  • Bolt Hole Circle Ø [mm]
    112
  • Brake Disc Thickness [in]
    0.87
  • Brake Disc Thickness [mm]
    22
  • Brake Disc Type
    Internally Vented
  • Center Hole Diameter
    112.0
  • Centering Diameter [in]
    2.64
  • Centering Diameter [mm]
    67
  • Color
    Silver
  • Construction
    Full Cast
  • Directional or Non-Directional Brake Surface
    Non-Directional
  • Disc Finish
    coated
  • Discard Thickness
    19.40 mm
  • Grade Type
    Standard Replacement
  • Hat Finish
    coated
  • Height [mm]
    43.5
  • Hole Arrangement/Number
    05/06
  • Inner diameter [mm]
    154.7
  • Inside Diameter
    67.0
  • Machining
    High-Carbon
  • Material
    gray cast iron
  • Minimum thickness [mm]
    19.4
  • Mounting Bolt Hole Circle Diameter
    112.00 mm
  • Mounting Bolt Hole Quantity
    6
  • Nominal Thickness
    22.00 mm
  • Number of bolts/screws
    1
  • Outer Diameter [in]
    11.18
  • Outer diameter [mm]
    284
  • Outside Diameter
    284.00 mm
  • Overall Height
    43.50 mm
  • Rust Resistant Coating
    Yes
  • Solid Or Vented Type Rotor
    Vented
  • Supplementary Article/Info 2
    without Wheel Studs
  • Surface
    Coated
  • Surface Type
    Smooth
  • Technical Information Number
    52118PRO_HC_NA
  • Wheel Bolt Bore Diameter [mm]
    12.8
  • Wheel Bolt Bore Ø [mm]
    12.8
Manufacturer description
  • Manufacturer Label
    Integral One-Piece Design

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
1997, Mercedes-Benz C230 Base Front, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1996, Mercedes-Benz C220 Base Front, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1995, Mercedes-Benz C220 Base Front, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1995, Mercedes-Benz C280 Base Front, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1994, Mercedes-Benz C220 Base Front, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1994, Mercedes-Benz C280 Base Front, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
