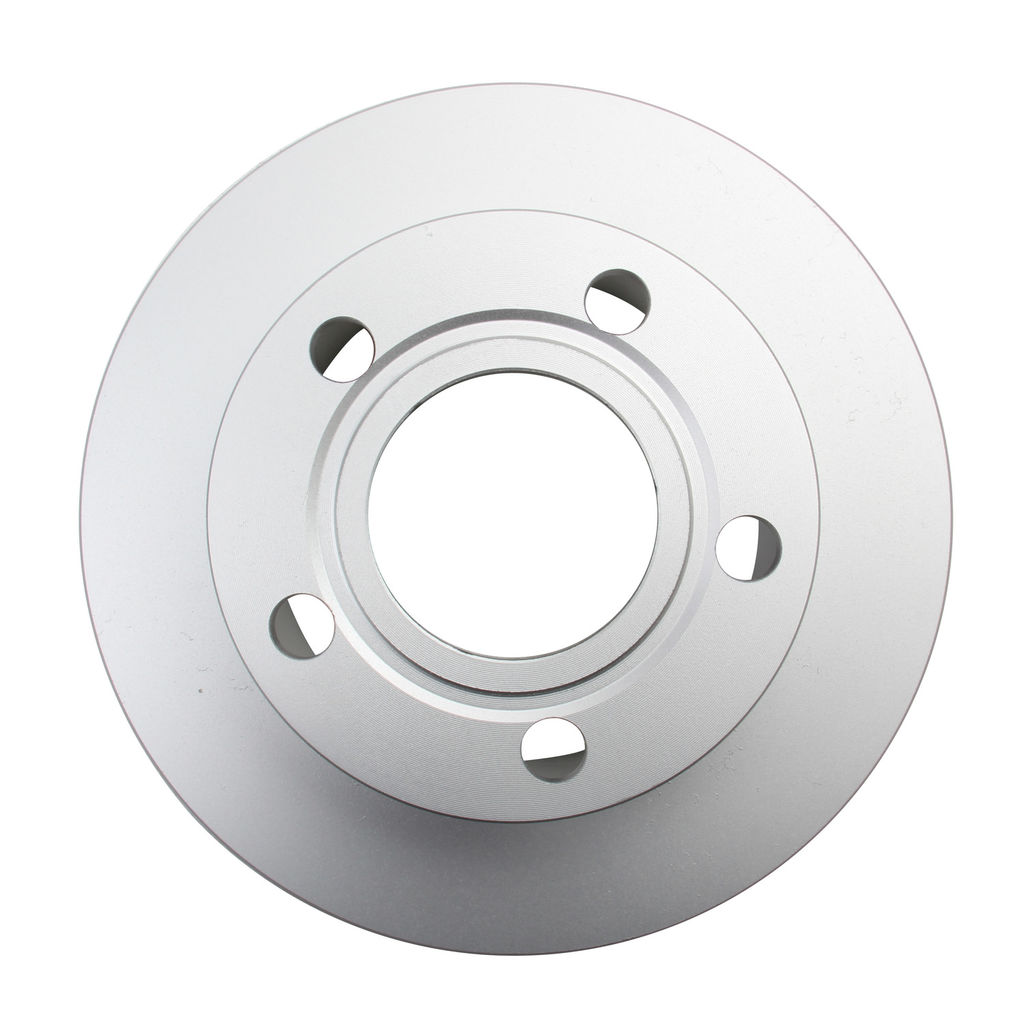

Pagid 355102802 - Disc Brake Rotor, Solid, Diameter: 245 mm, Thickness 10.0 mm, 245 mm

Previous image
Pagid 355102802 - Disc Brake Rotor, Solid, Diameter: 245 mm, Thickness 10.0 mm
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Pagid 355102802 - Disc Brake Rotor, Solid, Diameter: 245 mm, Thickness 10.0 mm, 245 mm

Part No: 355102802
In Stock Arrives: Jun 5 - 11
  • $48.70

Pagid 355102802 - Disc Brake Rotor, Solid, Diameter: 245 mm, Thickness 10.0 mm, 245 mm

FMXC-355102802
In Stock Arrives: Jun 5 - 11
  • $48.70
Vehicle Specific

Specs and ratings

Stopping Power:




Noise Level:




Performance Over Stock:




  • Higher driving comfort with reduced machining tolerances
  • Reduced braking noise
  • Full range is 100% high carbon (GG15 & GG20)
  • Manufactured according to European OE specifications (AM1 & AM2)
  • Increased carbon content for increased heat conductivity and better mechanical properties
  • Full range is 100% fully coated with premium zinc rust protection
  • Not oiled, no degreasing from preservative oil before fitting, saving time and money in the workshop
Check All Vehicles this Part Fits

Product details

 Description

Disc Brake Rotor
DISC BRAKE ROTOR

 Specifications

Package
  • Brand
    Pagid,  Pagid Brake Rotors
  • Part Number
    355102802
  • UPC
    4082300572872
  • Height
    3.35 in
  • Width
    11.02 in
  • Length
    11.61 in
  • Weight
    8.995 lbs
Attributes
  • Driving Qualifiers
    Normal Commute, Performance Street
  • Rotor Style
    Smooth-Plain
  • Stopping Power
    3 / 5
  • Noise Level
    2 / 5
  • Performance Over Stock
    0 - Basic Commute, 2 - Performance/Commuter, 3 - Street Performance
Details
  • Part Name
    Disc Brake Rotor
  • ABS Tone Ring Included
    No
  • Assy/Disassy by Qualified Personnel Required!
    .
  • Balancing Type
    Mill Balancing
  • Bearings Included
    No
  • Bolt Hole Circle Ø [in]
    4.41
  • Bolt Hole Circle Ø [mm]
    112
  • Brake Disc Thickness [in]
    0.39
  • Brake Disc Thickness [mm]
    10
  • Brake Disc Type
    Solid
  • Center Hole Diameter
    112.0
  • Centering Diameter [in]
    2.68
  • Centering Diameter [mm]
    68
  • Color
    Silver
  • Construction
    Full Cast
  • Directional or Non-Directional Brake Surface
    Non-Directional
  • Disc Finish
    coated
  • Discard Thickness
    8.00 mm
  • Grade Type
    Standard Replacement
  • Hat Finish
    coated
  • Height [mm]
    63.7
  • Hole Arrangement/Number
    05/05
  • Inner Diameter [in]
    5.35
  • Inner diameter [mm]
    136
  • Inside Diameter
    68.0
  • Machining
    High-Carbon
  • Material
    gray cast iron
  • Minimum thickness [in]
    0.31
  • Minimum thickness [mm]
    8
  • Mounting Bolt Hole Circle Diameter
    112.00 mm
  • Mounting Bolt Hole Quantity
    5
  • Nominal Thickness
    10.00 mm
  • Outer Diameter [in]
    9.65
  • Outer diameter [mm]
    245
  • Outside Diameter
    245.00 mm
  • Overall Height
    63.70 mm
  • Rust Resistant Coating
    Yes
  • Solid Or Vented Type Rotor
    Solid
  • Supplementary Article/Info 2
    without Wheel Studs
  • Surface
    Coated
  • Surface Type
    Smooth
  • Technical Information Number
    53924PRO_HC_NA
  • Wheel Bolt Bore Diameter [mm]
    15.2
  • Wheel Bolt Bore Ø [mm]
    15.2
Manufacturer description
  • Manufacturer Label
    Integral One-Piece Design

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2005, Volkswagen Passat GL TDI Rear, Qty - 2, High Carbon, Fully Coated;245mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2005, Volkswagen Passat 2.8, 2771, V, 6 GLS Rear, Qty - 2, High Carbon, Fully Coated;245mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2005, Volkswagen Passat GLS TDI Rear, Qty - 2, High Carbon, Fully Coated;245mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2005, Volkswagen Passat GLX Rear, Qty - 2, High Carbon, Fully Coated;245mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2004, Audi A6 Base Rear, Qty - 2, High Carbon, Fully Coated;245mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2004, Volkswagen Passat 2.8, 2771, V, 6 GL Rear, Qty - 2, High Carbon, Fully Coated;245mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2004, Volkswagen Passat 1.8, 1781, L, 4 GL Rear, Qty - 2, High Carbon, Fully Coated;245mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2004, Volkswagen Passat GL TDI Rear, Qty - 2, High Carbon, Fully Coated;245mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2004, Volkswagen Passat 2.8, 2771, V, 6 GLS Rear, Qty - 2, High Carbon, Fully Coated;245mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2004, Volkswagen Passat 1.8, 1781, L, 4 GLS Rear, Qty - 2, High Carbon, Fully Coated;245mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2004, Volkswagen Passat GLS TDI Rear, Qty - 2, High Carbon, Fully Coated;245mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2004, Volkswagen Passat GLX Rear, Qty - 2, High Carbon, Fully Coated;245mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2003, Audi A6 Base Rear, Qty - 2, High Carbon, Fully Coated;245mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2003, Volkswagen Passat 2.8, 2771, V, 6 GL Rear, Qty - 2, High Carbon, Fully Coated;245mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2003, Volkswagen Passat 1.8, 1781, L, 4 GL Rear, Qty - 2, High Carbon, Fully Coated;245mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2003, Volkswagen Passat 2.8, 2771, V, 6 GLS Rear, Qty - 2, High Carbon, Fully Coated;245mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2003, Volkswagen Passat 1.8, 1781, L, 4 GLS Rear, Qty - 2, High Carbon, Fully Coated;245mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2003, Volkswagen Passat GLX Rear, Qty - 2, High Carbon, Fully Coated;245mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2002, Audi A6 3.0, 2976, V, 6 Base Rear, Qty - 2, High Carbon, Fully Coated;245mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2002, Volkswagen Passat 2.8, 2771, V, 6 GLS Rear, Qty - 2, High Carbon, Fully Coated;245mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2002, Volkswagen Passat 1.8, 1781, L, 4 GLS Rear, Qty - 2, High Carbon, Fully Coated;245mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2002, Volkswagen Passat GLX Rear, Qty - 2, High Carbon, Fully Coated;245mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2001, Audi A6 Base Rear, Qty - 2, High Carbon, Fully Coated;245mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2001, Volkswagen Passat 2.8, 2771, V, 6 GLS Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2001, Volkswagen Passat GLX Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Audi A6 Base Rear, Qty - 2, High Carbon, Fully Coated;245mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volkswagen Passat 2.8, 2771, V, 6 GLS Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volkswagen Passat 1.8, 1781, L, 4 GLS, AUG, FI Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volkswagen Passat 1.8, 1781, L, 4 GLS, ATW, FI Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volkswagen Passat 2.8, 2771, V, 6 GLX, FWD, ATQ, H Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
2000, Volkswagen Passat 2.8, 2771, V, 6 GLX, AHA, D Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Audi A6 Base Rear, Qty - 2, High Carbon, Fully Coated;245mm Dia.;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volkswagen Passat 2.8, 2771, V, 6 GLS, D Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volkswagen Passat 2.8, 2771, V, 6 GLS, A Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volkswagen Passat 2.8, 2771, V, 6 GLS Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volkswagen Passat 1.8, 1781, L, 4 GLS Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volkswagen Passat 2.8, 2771, V, 6 GLX, D Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volkswagen Passat 2.8, 2771, V, 6 GLX, A Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1999, Volkswagen Passat 2.8, 2771, V, 6 GLX Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1998, Audi A6 2.8, 2771, V, 6 Base, A Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1998, Volkswagen Passat 2.8, 2771, V, 6 GLS, D Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1998, Volkswagen Passat 2.8, 2771, V, 6 GLS Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1998, Volkswagen Passat 1.8, 1781, L, 4 GLS Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1998, Volkswagen Passat GLX Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1997, Audi A6 2.8, 2771, V, 6 Avant, C Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1997, Audi A6 2.8, 2771, V, 6 Avant, A Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1997, Audi A6 2.8, 2771, V, 6 Base, C Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1997, Audi A6 2.8, 2771, V, 6 Base, A Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1997, Audi A6 Quattro 2.8, 2771, V, 6 Avant, C Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1997, Audi A6 Quattro 2.8, 2771, V, 6 Avant, A Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1997, Audi A6 Quattro 2.8, 2771, V, 6 Base, C Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1997, Audi A6 Quattro 2.8, 2771, V, 6 Base, A Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1996, Audi A6 2.8, 2771, V, 6 Avant, C Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1996, Audi A6 2.8, 2771, V, 6 Avant, A Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1996, Audi A6 2.8, 2771, V, 6 Base, C Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1996, Audi A6 2.8, 2771, V, 6 Base, A Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1996, Audi A6 Quattro 2.8, 2771, V, 6 Avant, C Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1996, Audi A6 Quattro 2.8, 2771, V, 6 Avant, A Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1996, Audi A6 Quattro 2.8, 2771, V, 6 Base, C Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1996, Audi A6 Quattro 2.8, 2771, V, 6 Base, A Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1995, Audi A6 2.8, 2771, V, 6 Avant, AFC, C Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1995, Audi A6 2.8, 2771, V, 6 Avant, AAH, B Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1995, Audi A6 2.8, 2771, V, 6 Avant, AFC, A Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1995, Audi A6 2.8, 2771, V, 6 Base, AFC, C Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1995, Audi A6 2.8, 2771, V, 6 Base, AAH, B Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1995, Audi A6 2.8, 2771, V, 6 Base, AFC, A Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1995, Audi A6 Quattro Avant Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1995, Audi A6 Quattro Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1994, Audi 100 2.8, 2771, V, 6 CS, K Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1994, Audi 100 2.8, 2771, V, 6 CS, J Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1994, Audi 100 2.8, 2771, V, 6 S, K Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1994, Audi 100 2.8, 2771, V, 6 S, J Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1994, Audi 100 Quattro CS Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1993, Audi 100 2.8, 2771, V, 6 Base, K Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1993, Audi 100 2.8, 2771, V, 6 Base, J Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1993, Audi 100 2.8, 2771, V, 6 CS, K Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1993, Audi 100 2.8, 2771, V, 6 CS, J Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1993, Audi 100 2.8, 2771, V, 6 S, K Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1993, Audi 100 2.8, 2771, V, 6 S, J Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1993, Audi 100 Quattro 2.8, 2771, V, 6 CS, K Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1993, Audi 100 Quattro 2.8, 2771, V, 6 CS, J Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1992, Audi 100 2.8, 2771, V, 6 Base, K Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1992, Audi 100 2.8, 2771, V, 6 Base, J Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1992, Audi 100 2.8, 2771, V, 6 CS, K Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1992, Audi 100 2.8, 2771, V, 6 CS, J Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1992, Audi 100 2.8, 2771, V, 6 S, K Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1992, Audi 100 2.8, 2771, V, 6 S, J Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1992, Audi 100 Quattro 2.8, 2771, V, 6 CS, K Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1992, Audi 100 Quattro 2.8, 2771, V, 6 CS, J Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
Items: 1–100 of 178
