Pagid 355100962 - Disc Brake Rotor, Solid, Diameter: 258 mm, Thickness 8.9 mm, 258 mm

Previous image

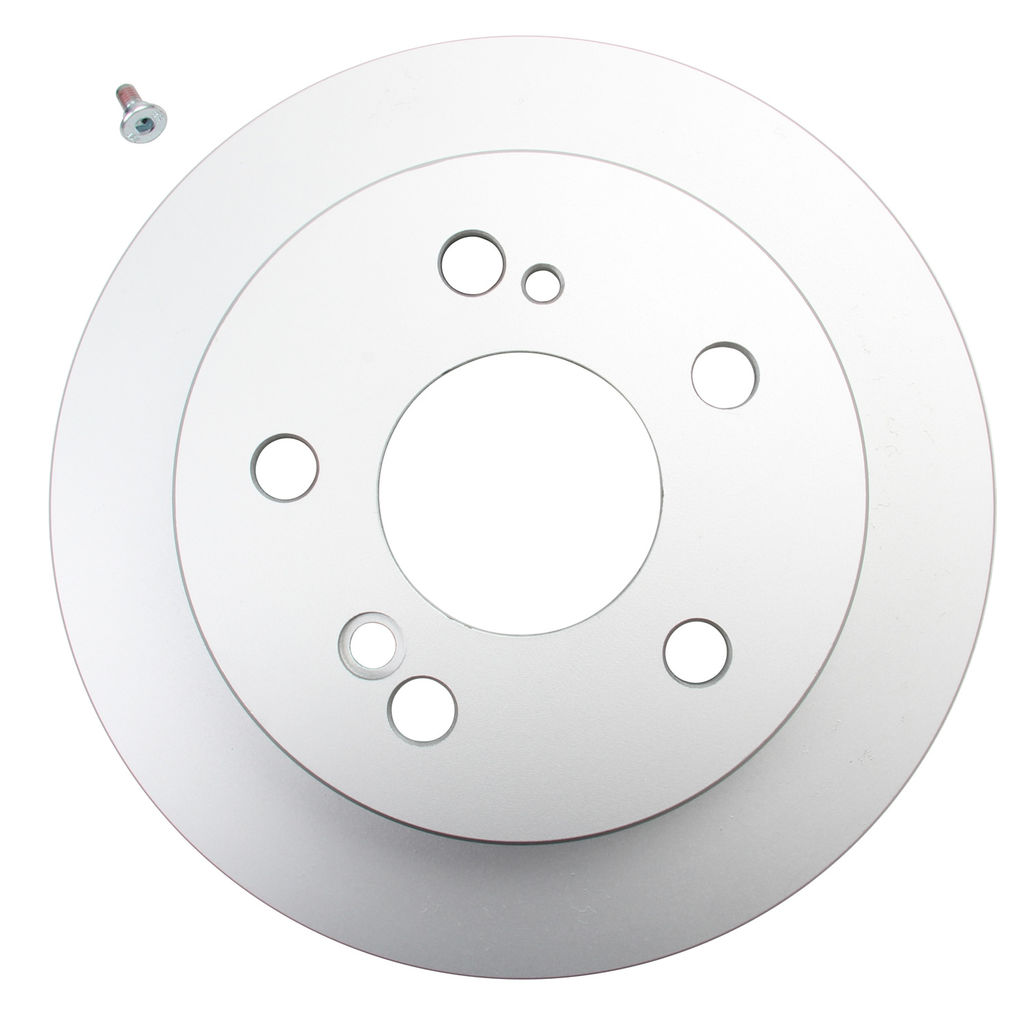

Pagid 355100962 - Disc Brake Rotor, Solid, Diameter: 258 mm, Thickness 8.9 mm
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Pagid 355100962 - Disc Brake Rotor, Solid, Diameter: 258 mm, Thickness 8.9 mm, 258 mm

Part No: 355100962
In Stock Arrives: Jun 5 - 11
  • $41.71

Pagid 355100962 - Disc Brake Rotor, Solid, Diameter: 258 mm, Thickness 8.9 mm, 258 mm

FMXC-355100962
In Stock Arrives: Jun 5 - 11
  • $41.71
Vehicle Specific

Specs and ratings

Stopping Power:




Noise Level:




Performance Over Stock:




  • Higher driving comfort with reduced machining tolerances
  • Full range is 100% high carbon (GG15 & GG20)
  • Fixing screws are always included if required
  • Reduced braking noise
  • Increased carbon content for increased heat conductivity and better mechanical properties
  • Improved aesthetics and appearance of brake discs, especially when used with aluminum rims
  • Not oiled, no degreasing from preservative oil before fitting, saving time and money in the workshop
Check All Vehicles this Part Fits

Product details

 Description

Disc Brake Rotor
DISC BRAKE ROTOR

 Specifications

Package
  • Brand
    Pagid,  Pagid Brake Rotors
  • Part Number
    355100962
  • UPC
    4082300572537
  • Height
    2.76 in
  • Width
    11.02 in
  • Length
    11.61 in
  • Weight
    8.124 lbs
Attributes
  • Driving Qualifiers
    Normal Commute, Performance Street
  • Rotor Style
    Smooth-Plain
  • Stopping Power
    3 / 5
  • Noise Level
    2 / 5
  • Performance Over Stock
    0 - Basic Commute, 2 - Performance/Commuter, 3 - Street Performance
Details
  • Part Name
    Disc Brake Rotor
  • ABS Tone Ring Included
    No
  • Assy/Disassy by Qualified Personnel Required!
    .
  • Balancing Type
    Mill Balancing
  • Bearings Included
    No
  • Bolt Hole Circle Ø [in]
    4.41
  • Bolt Hole Circle Ø [mm]
    112
  • Brake Disc Thickness [mm]
    8.9
  • Brake Disc Type
    Solid
  • Center Hole Diameter
    112.0
  • Centering Diameter [in]
    2.64
  • Centering Diameter [mm]
    67
  • Color
    Silver
  • Construction
    Full Cast
  • Directional or Non-Directional Brake Surface
    Non-Directional
  • Disc Finish
    coated
  • Discard Thickness
    7.30 mm
  • Grade Type
    Standard Replacement
  • Hat Finish
    coated
  • Height [mm]
    55.3
  • Hole Arrangement/Number
    05/07
  • Inner diameter [mm]
    164.1
  • Inside Diameter
    67.0
  • Machining
    High-Carbon
  • Material
    gray cast iron
  • Minimum thickness [mm]
    7.3
  • Mounting Bolt Hole Circle Diameter
    112.00 mm
  • Mounting Bolt Hole Quantity
    7
  • Nominal Thickness
    8.90 mm
  • Number of bolts/screws
    1
  • Outer Diameter [in]
    10.16
  • Outer diameter [mm]
    258
  • Outside Diameter
    258.00 mm
  • Overall Height
    55.30 mm
  • Rust Resistant Coating
    Yes
  • Solid Or Vented Type Rotor
    Solid
  • Supplementary Article/Info 2
    without Wheel Studs
  • Surface
    Coated
  • Surface Type
    Smooth
  • Technical Information Number
    52105PRO_HC_NA
  • Wheel Bolt Bore Diameter [in]
    0.59
  • Wheel Bolt Bore Diameter [mm]
    15
  • Wheel Bolt Bore Ø [in]
    0.59
  • Wheel Bolt Bore Ø [mm]
    15
Manufacturer description
  • Manufacturer Label
    Integral One-Piece Design

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
1995, Mercedes-Benz E300 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1993, Mercedes-Benz 190E 2.3 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1993, Mercedes-Benz 190E 2.6 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1993, Mercedes-Benz 300D 2.5 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1993, Mercedes-Benz 300E 2.8 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1993, Mercedes-Benz 300E 4Matic Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1992, Mercedes-Benz 190E 2.3 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1992, Mercedes-Benz 190E 2.6 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1992, Mercedes-Benz 300D 2.5 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1992, Mercedes-Benz 300E 2.6 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1992, Mercedes-Benz 300E 4Matic Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1992, Mercedes-Benz 300E Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1991, Mercedes-Benz 190E 2.3 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1991, Mercedes-Benz 190E 2.6 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1991, Mercedes-Benz 300D 2.5 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1991, Mercedes-Benz 300E 2.6 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1991, Mercedes-Benz 300E 4Matic Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1991, Mercedes-Benz 300E Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1990, Mercedes-Benz 190E 2.6 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1990, Mercedes-Benz 300D 2.5 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1990, Mercedes-Benz 300E 2.6 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1990, Mercedes-Benz 300E 4Matic Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1990, Mercedes-Benz 300E Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1989, Mercedes-Benz 190D 2.5 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1989, Mercedes-Benz 190E 2.6 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1989, Mercedes-Benz 260E Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1989, Mercedes-Benz 300CE 3.0, 2962, L, 6 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1989, Mercedes-Benz 300E Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1988, Mercedes-Benz 190D 2.5 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1988, Mercedes-Benz 190E 2.3 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1988, Mercedes-Benz 190E 2.6 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1988, Mercedes-Benz 260E Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1988, Mercedes-Benz 300CE 3.0, 2962, L, 6 Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1988, Mercedes-Benz 300E Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1987, Mercedes-Benz 190D 2.5 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1987, Mercedes-Benz 190D 2.5 Turbo Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1987, Mercedes-Benz 190E 2.3 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1987, Mercedes-Benz 190E 2.3-16 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1987, Mercedes-Benz 190E 2.6 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1987, Mercedes-Benz 260E Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1987, Mercedes-Benz 300D Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1987, Mercedes-Benz 300E Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1986, Mercedes-Benz 190D 2.5 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1986, Mercedes-Benz 190E 2.3 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1986, Mercedes-Benz 190E 2.3-16 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1986, Mercedes-Benz 300E Base Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1985, Mercedes-Benz 190D 2.2 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
1985, Mercedes-Benz 190E 2.3 Rear, Qty - 2, High Carbon, Fully Coated;Designed and Engineered in Germany;High Carbon - Fully Coated
