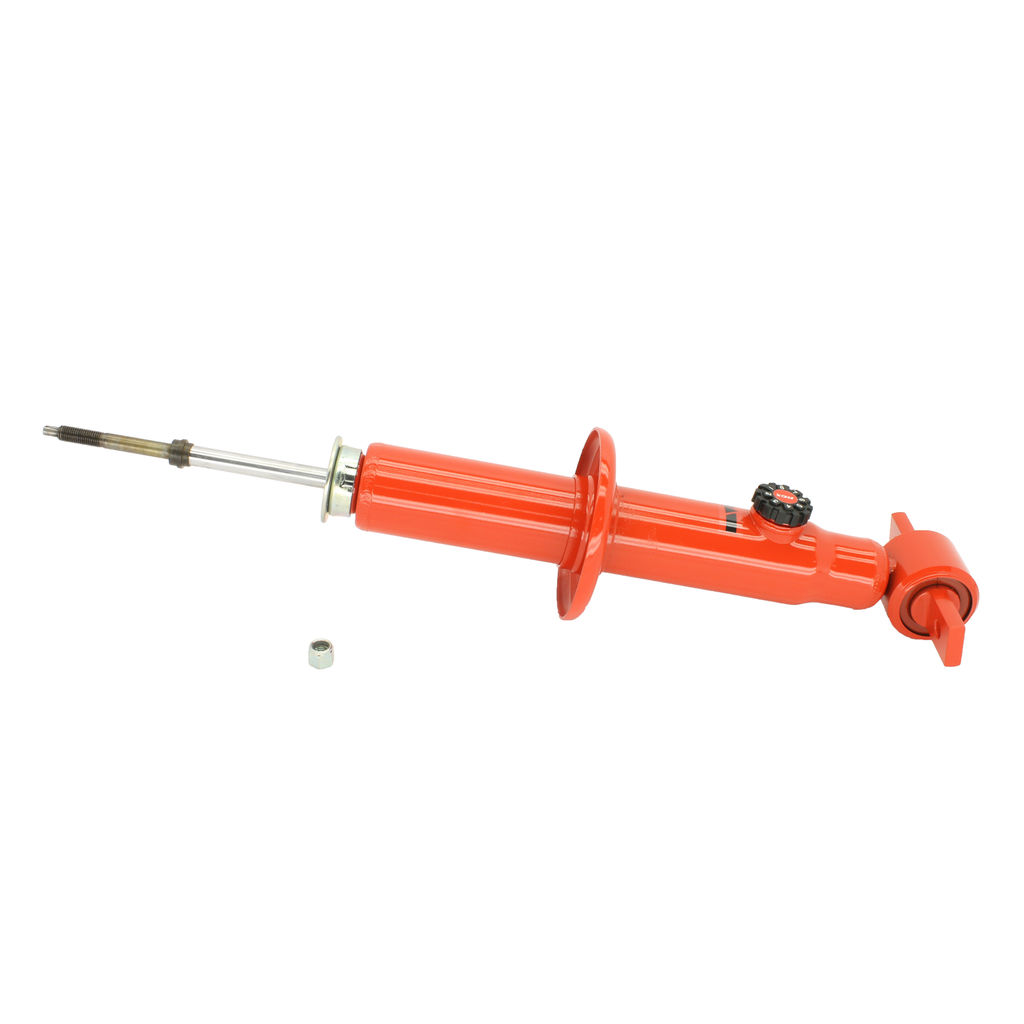

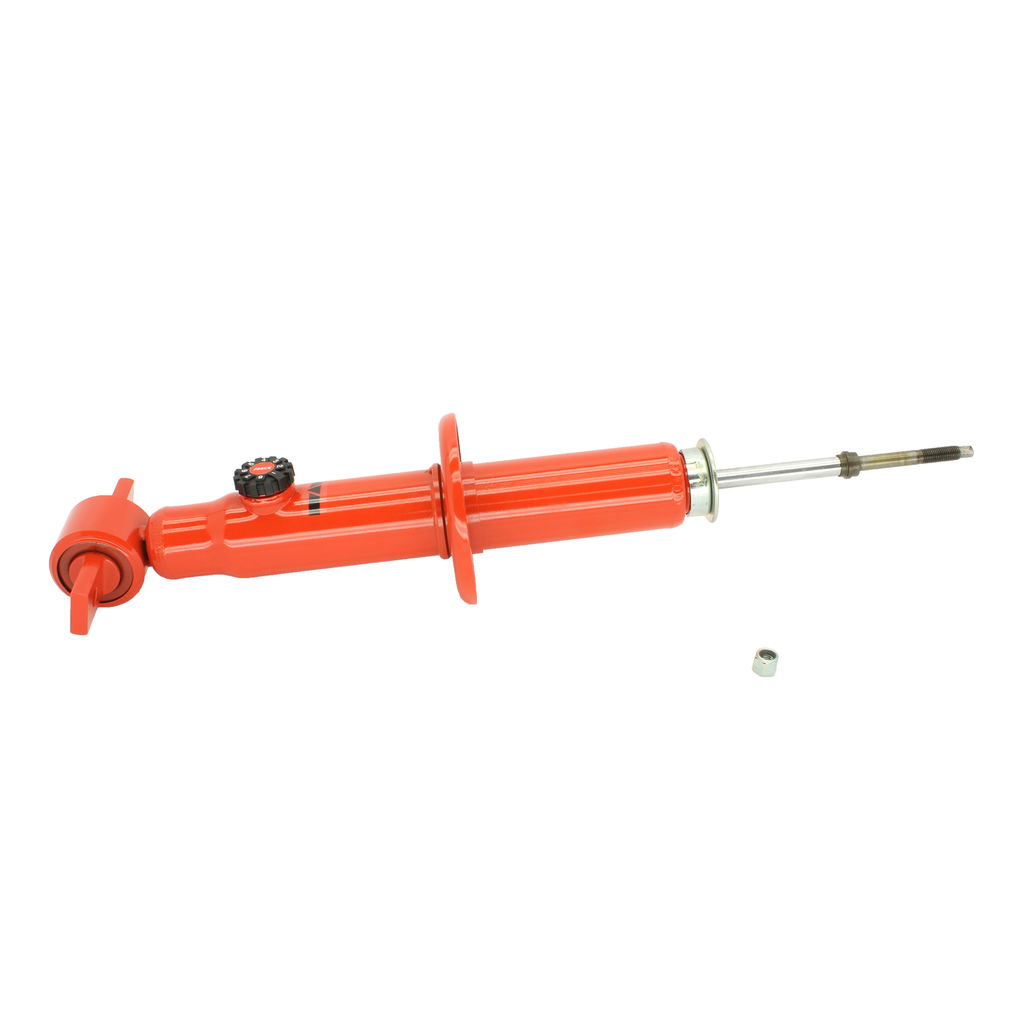

KYB 741034 - AGX Suspension Strut Assembly, Adjustable, 18.74 in. Extended Length, Sold Individually

Previous image
KYB 741034 - AGX Suspension Strut Assembly, Adjustable, 18.74 in. Extended Length, Sold Individually
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

KYB 741034 - AGX Suspension Strut Assembly, Adjustable, 18.74 in. Extended Length, Sold Individually

Part No: 741034
In Stock Arrives: Jun 5 - 11
  • $184.04 & FREE Shipping

Starting at $XX/mo with Affirm. Prequalify now

KYB 741034 - AGX Suspension Strut Assembly, Adjustable, 18.74 in. Extended Length, Sold Individually

BFJG-741034
In Stock Arrives: Jun 5 - 11
  • $184.04 & FREE Shipping

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific
  • Adjustable performance, designed for enthusiasts
  • Can be adjusted to add up to 125% more damping force on your GM F-Body
  • Externally adjustable without lifting the vehicle or removing the tires
  • Features precision multi-stage hydraulic valves for a broad performance range
  • Uses a seamless working cylinder matched with a Teflon coated piston band for a positive seal and longer life
  • Engineered to help vehicles with electronic safety systems (ESC, ABS, etc.)
  • To reduce the chance of noise and vibration KYB recommends installing new strut mounts, part number: SM5118 & SM5119
Check All Vehicles this Part Fits

Product details

 Description

Damping Rate Adjustable Strut
KYB AGX manually-adjustable shocks and struts allow you to design your own ride control performance without special tools, quickly and as often as you want. Enthusiasts can increase individual corner damping rates up to 125% more than the vehicles OEM design. For ease of access, depending on vehicle application, the KYB AGX either has an eight position knob or a four position screwdriver slot. However, both offer the same overall capability. One simple adjustment increases both rebound and compression damping. Whether on the street or on a race track, the AGXs velocity sensitive damping valves instantly react to driving conditions to maintain tire contact and vehicle control. The AGX is a great solution for more demanding conditions that OE replacement parts just cant handle.

 Specifications

Package
Attributes
  • Driving Qualifiers
    Performance Street
  • Budget
    Medium
  • Handling Characteristic
    Performance
  • Springs Included
    No
  • Ride Control/Adjustability
    Adjustable
  • Ride Height Adjustable?
    No
  • Design
    Twin Tube
Details
  • Compressed Length
    15.2 in
  • Dust Cover Included
    N
  • Extended Length
    18.74 in
  • Includes Bump Stop
    N
  • Internal Rebound Bumper
    Y
  • Internal Rebound Spring
    N
  • Lower Mount Type
    E3(94x131x10)
  • Stroke Length
    3.54 in
Manufacturer description
  • Manufacturer Label
    AGX

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2002, Chevrolet Camaro 3.8, 3800, 231, V, 6 Base Front, Qty - 2, Manually Adjustable Performance
2002, Chevrolet Camaro 5.7, 350, V, 8 Z28 Front, Qty - 2, Manually Adjustable Performance
2002, Chevrolet Camaro 5.7, 350, V, 8 Z28 SS Front, Qty - 2, Manually Adjustable Performance
2002, Pontiac Firebird 3.8, 3800, 231, V, 6 Base Front, Qty - 2, Manually Adjustable Performance
2002, Pontiac Firebird 5.7, 350, V, 8 Formula Front, Qty - 2, Manually Adjustable Performance
2002, Pontiac Firebird 5.7, 350, V, 8 Trans Am Front, Qty - 2, Manually Adjustable Performance
2001, Chevrolet Camaro 3.8, 3800, 231, V, 6 Base Front, Qty - 2, Manually Adjustable Performance
2001, Chevrolet Camaro 5.7, 350, V, 8 Z28 Front, Qty - 2, Manually Adjustable Performance
2001, Chevrolet Camaro 5.7, 350, V, 8 Z28 SS Front, Qty - 2, Manually Adjustable Performance
2001, Pontiac Firebird 3.8, 3800, 231, V, 6 Base Front, Qty - 2, Manually Adjustable Performance
2001, Pontiac Firebird 5.7, 350, V, 8 Formula Front, Qty - 2, Manually Adjustable Performance
2001, Pontiac Firebird 5.7, 350, V, 8 Trans Am Front, Qty - 2, Manually Adjustable Performance
2000, Chevrolet Camaro 3.8, 3800, 231, V, 6 Base Front, Qty - 2, Manually Adjustable Performance
2000, Chevrolet Camaro 5.7, 350, V, 8 Z28 Front, Qty - 2, Manually Adjustable Performance
2000, Chevrolet Camaro 5.7, 350, V, 8 Z28 SS Front, Qty - 2, Manually Adjustable Performance
2000, Pontiac Firebird 3.8, 3800, 231, V, 6 Base Front, Qty - 2, Manually Adjustable Performance
2000, Pontiac Firebird 5.7, 350, V, 8 Formula Front, Qty - 2, Manually Adjustable Performance
2000, Pontiac Firebird 5.7, 350, V, 8 Trans Am Front, Qty - 2, Manually Adjustable Performance
1999, Chevrolet Camaro 3.8, 3800, 231, V, 6 Base Front, Qty - 2, Manually Adjustable Performance
1999, Chevrolet Camaro 5.7, 350, V, 8 Z28 Front, Qty - 2, Manually Adjustable Performance
1999, Chevrolet Camaro 5.7, 350, V, 8 Z28 SS Front, Qty - 2, Manually Adjustable Performance
1999, Pontiac Firebird 3.8, 3800, 231, V, 6 Base Front, Qty - 2, Manually Adjustable Performance
1999, Pontiac Firebird 5.7, 350, V, 8 Formula Front, Qty - 2, Manually Adjustable Performance
1999, Pontiac Firebird 5.7, 350, V, 8 Trans Am Front, Qty - 2, Manually Adjustable Performance
1998, Chevrolet Camaro 3.8, 3800, 231, V, 6 Base Front, Qty - 2, Manually Adjustable Performance
1998, Chevrolet Camaro 5.7, 350, V, 8 Z28 Front, Qty - 2, Manually Adjustable Performance
1998, Chevrolet Camaro 5.7, 350, V, 8 Z28 SS Front, Qty - 2, Manually Adjustable Performance
1998, Pontiac Firebird 3.8, 3800, 231, V, 6 Base Front, Qty - 2, Manually Adjustable Performance
1998, Pontiac Firebird 5.7, 350, V, 8 Formula Front, Qty - 2, Manually Adjustable Performance
1998, Pontiac Firebird 5.7, 350, V, 8 Trans Am Front, Qty - 2, Manually Adjustable Performance
1997, Chevrolet Camaro 3.8, 3800, 231, V, 6 Base Front, Qty - 2, Manually Adjustable Performance
1997, Chevrolet Camaro 3.8, 3800, 231, V, 6 RS Front, Qty - 2, Manually Adjustable Performance
1997, Chevrolet Camaro 5.7, 350, V, 8 Z28 Front, Qty - 2, Manually Adjustable Performance
1997, Pontiac Firebird 3.8, 3800, 231, V, 6 Base Front, Qty - 2, Manually Adjustable Performance
1997, Pontiac Firebird 5.7, 350, V, 8 Formula Front, Qty - 2, Manually Adjustable Performance
1997, Pontiac Firebird 5.7, 350, V, 8 Trans Am Front, Qty - 2, Manually Adjustable Performance
1996, Chevrolet Camaro 3.8, 3800, 231, V, 6 Base Front, Qty - 2, Manually Adjustable Performance
1996, Chevrolet Camaro 3.8, 3800, 231, V, 6 RS Front, Qty - 2, Manually Adjustable Performance
1996, Chevrolet Camaro 5.7, 350, V, 8 Z28 Front, Qty - 2, Manually Adjustable Performance
1996, Pontiac Firebird 3.8, 3800, 231, V, 6 Base Front, Qty - 2, Manually Adjustable Performance
1996, Pontiac Firebird 5.7, 350, V, 8 Formula Front, Qty - 2, Manually Adjustable Performance
1996, Pontiac Firebird 5.7, 350, V, 8 Trans Am Front, Qty - 2, Manually Adjustable Performance
1995, Chevrolet Camaro 3.8, 3800, 231, V, 6 Base Front, Qty - 2, Manually Adjustable Performance
1995, Chevrolet Camaro 3.4, 207, V, 6 Base Front, Qty - 2, Manually Adjustable Performance
1995, Chevrolet Camaro 5.7, 350, V, 8 Z28 Front, Qty - 2, Manually Adjustable Performance
1995, Pontiac Firebird 3.8, 3800, 231, V, 6 Base Front, Qty - 2, Manually Adjustable Performance
1995, Pontiac Firebird 3.4, 207, V, 6 Base Front, Qty - 2, Manually Adjustable Performance
1995, Pontiac Firebird 5.7, 350, V, 8 Formula Front, Qty - 2, Manually Adjustable Performance
1995, Pontiac Firebird 5.7, 350, V, 8 Trans Am Front, Qty - 2, Manually Adjustable Performance
1994, Chevrolet Camaro 3.4, 207, V, 6 Base Front, Qty - 2, Manually Adjustable Performance
1994, Chevrolet Camaro 5.7, 350, V, 8 Z28 Front, Qty - 2, Manually Adjustable Performance
1994, Pontiac Firebird 3.4, 207, V, 6 Base Front, Qty - 2, Manually Adjustable Performance
1994, Pontiac Firebird 5.7, 350, V, 8 Formula Front, Qty - 2, Manually Adjustable Performance
1994, Pontiac Firebird 5.7, 350, V, 8 Trans Am Front, Qty - 2, Manually Adjustable Performance
1994, Pontiac Firebird 5.7, 350, V, 8 Trans Am GT Front, Qty - 2, Manually Adjustable Performance
1993, Chevrolet Camaro 3.4, 207, V, 6 Base Front, Qty - 2, Manually Adjustable Performance
1993, Chevrolet Camaro 5.7, 350, V, 8 Indianapolis 500 Pace Car Front, Qty - 2, Manually Adjustable Performance
1993, Chevrolet Camaro 5.7, 350, V, 8 Z28 Front, Qty - 2, Manually Adjustable Performance
1993, Pontiac Firebird 3.4, 207, V, 6 Base Front, Qty - 2, Manually Adjustable Performance
1993, Pontiac Firebird 5.7, 350, V, 8 Formula Front, Qty - 2, Manually Adjustable Performance
1993, Pontiac Firebird 5.7, 350, V, 8 Trans Am Front, Qty - 2, Manually Adjustable Performance
