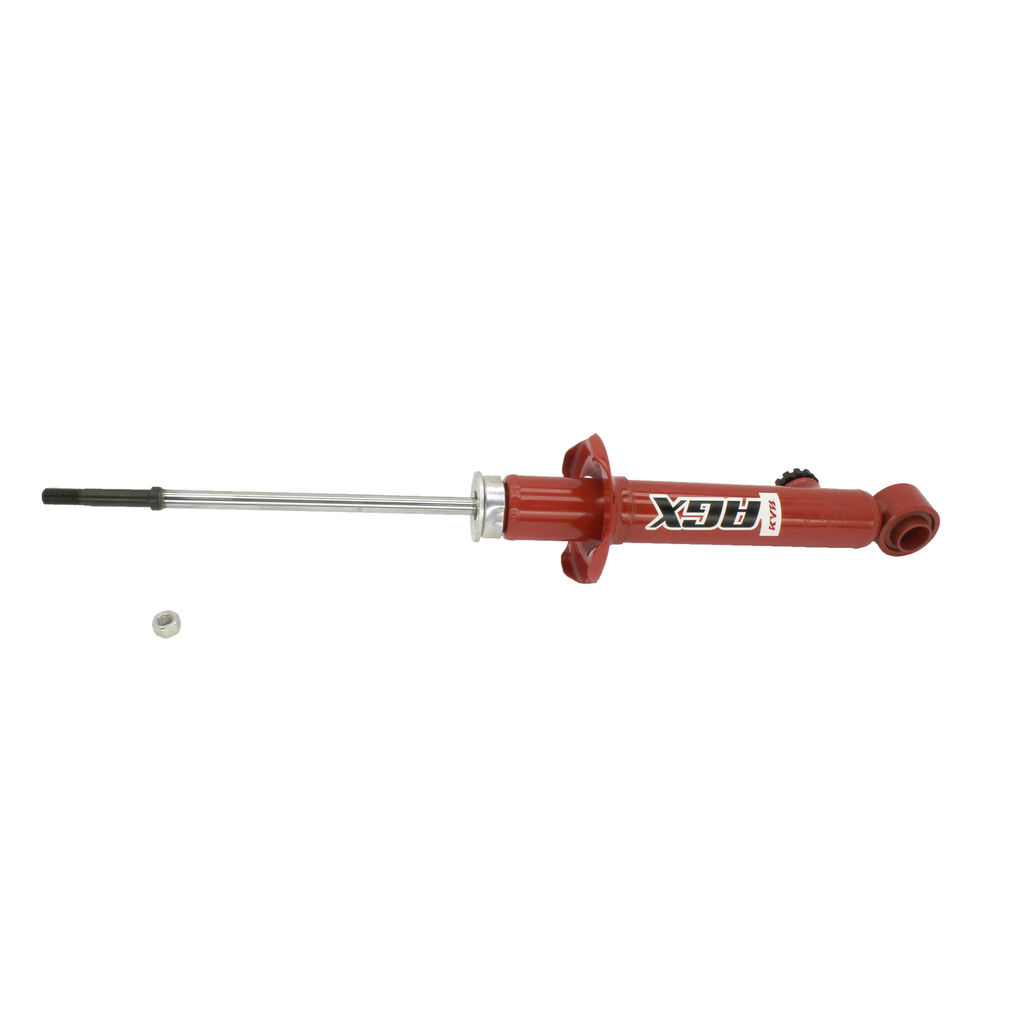

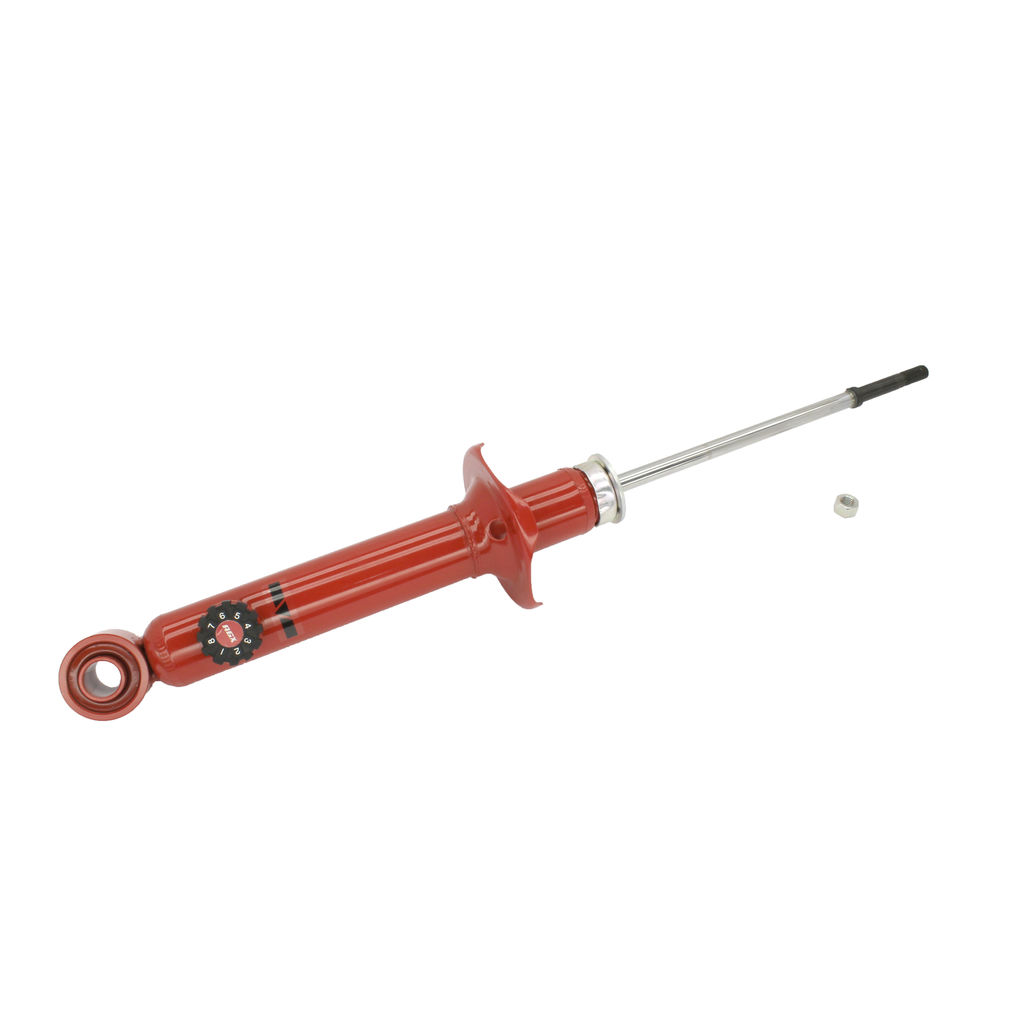

KYB 741025 - AGX Suspension Strut Assembly, Adjustable, 21.65 in. Extended Length, Sold Individually

Previous image
KYB 741025 - AGX Suspension Strut Assembly, Adjustable, 21.65 in. Extended Length, Sold Individually
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

KYB 741025 - AGX Suspension Strut Assembly, Adjustable, 21.65 in. Extended Length, Sold Individually

Part No: 741025
In Stock Arrives: Jun 5 - 11
  • $97.12

Starting at $XX/mo with Affirm. Prequalify now

KYB 741025 - AGX Suspension Strut Assembly, Adjustable, 21.65 in. Extended Length, Sold Individually

BFJG-741025
In Stock Arrives: Jun 5 - 11
  • $97.12

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific
  • Adjustable performance, designed for enthusiasts
  • Can be adjusted to add up to 125% more damping force on your Mazda RX-7
  • Externally adjustable without lifting the vehicle or removing the tires
  • Features precision multi-stage hydraulic valves for a broad performance range
  • Uses a seamless working cylinder matched with a Teflon coated piston band for a positive seal and longer life
  • Engineered to help vehicles with electronic safety systems (ESC, ABS, etc.)
  • Protect your new struts from dirt, debris and salt with a KYB Strut Boot, part number: SB107

Product details


 Description

Damping Rate Adjustable Strut

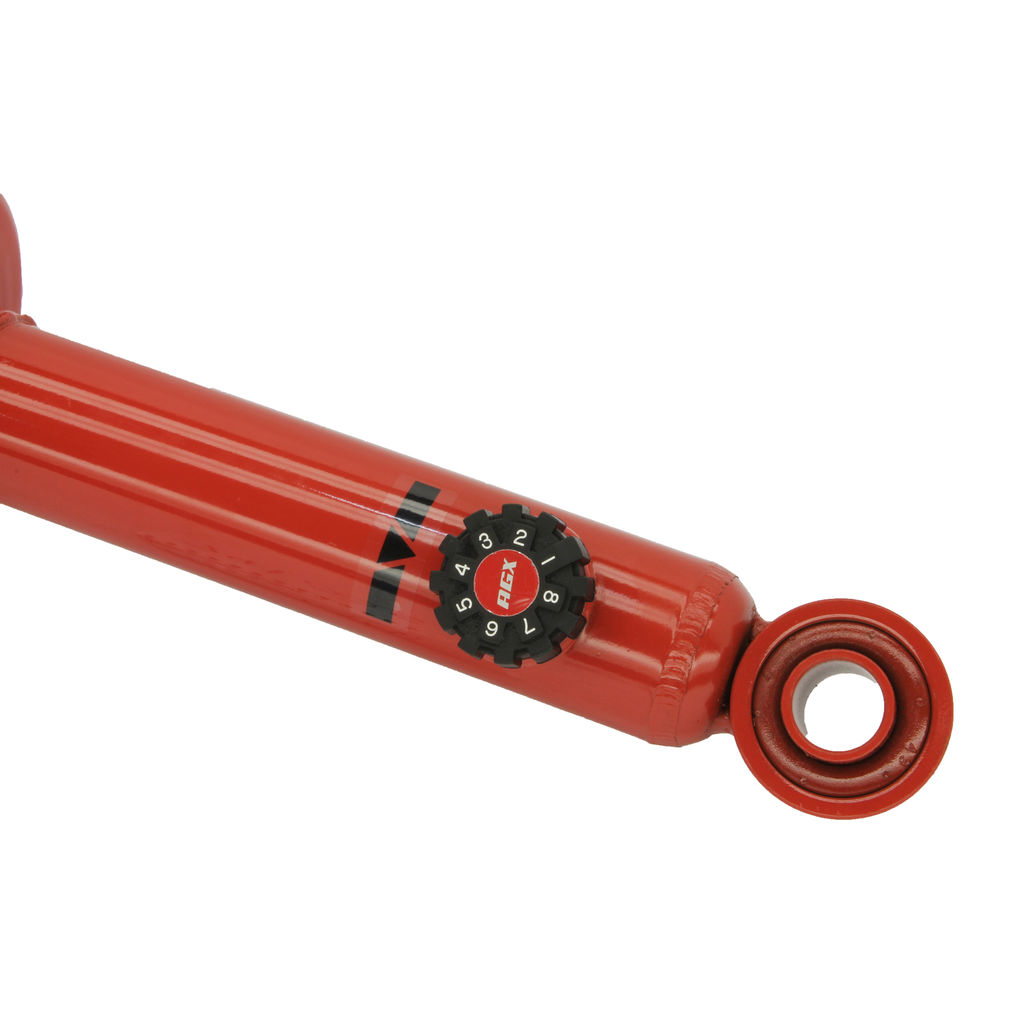

KYB AGX manually-adjustable shocks and struts allow you to design your own ride control performance without special tools, quickly and as often as you want. Enthusiasts can increase individual corner damping rates up to 125% more than the vehicles OEM design. For ease of access, depending on vehicle application, the KYB AGX either has an eight position knob or a four position screwdriver slot. However, both offer the same overall capability. One simple adjustment increases both rebound and compression damping. Whether on the street or on a race track, the AGXs velocity sensitive damping valves instantly react to driving conditions to maintain tire contact and vehicle control. The AGX is a great solution for more demanding conditions that OE replacement parts just cant handle.

 Specifications

Package
Attributes
  • Driving Qualifiers
    Performance Street
  • Budget
    Medium
  • Handling Characteristic
    Performance
  • Springs Included
    No
  • Ride Control/Adjustability
    Adjustable
  • Ride Height Adjustable?
    No
  • Design
    Twin Tube
Details
  • Compressed Length
    14.06 in
  • Dust Cover Included
    N
  • Extended Length
    21.65 in
  • Includes Bump Stop
    N
  • Internal Rebound Bumper
    Y
  • Internal Rebound Spring
    N
  • Lower Mount Type
    E2(20x45)
  • Stroke Length
    7.6 in
Manufacturer description
  • Manufacturer Label
    AGX

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles


Model Engine Trim Notes
1991, Mazda RX-7 Base Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1991, Mazda RX-7 Convertible Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1991, Mazda RX-7 Turbo Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1991, Mazda RX-7 Turbo Rear, Qty - 2, Manually Adjustable Performance;To Convert from Electronic Susp. - See Paper Catalog Appendix C;(For Adapting AAS to Non-AAS Suspension)
1990, Mazda RX-7 Convertible Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1990, Mazda RX-7 GTU Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1990, Mazda RX-7 GTUs Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1990, Mazda RX-7 GXL Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1990, Mazda RX-7 GXL 2+2 Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1990, Mazda RX-7 Turbo Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1990, Mazda RX-7 Turbo Rear, Qty - 2, Manually Adjustable Performance;To Convert from Electronic Susp. - See Paper Catalog Appendix C;(For Adapting AAS to Non-AAS Suspension)
1989, Mazda RX-7 Convertible Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1989, Mazda RX-7 GTU Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1989, Mazda RX-7 GTUs Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1989, Mazda RX-7 GXL Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1989, Mazda RX-7 GXL 2+2 Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1989, Mazda RX-7 Turbo Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1989, Mazda RX-7 Turbo Rear, Qty - 2, Manually Adjustable Performance;To Convert from Electronic Susp. - See Paper Catalog Appendix C;(For Adapting AAS to Non-AAS Suspension)
1988, Mazda RX-7 10th Anniversary Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1988, Mazda RX-7 Convertible Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1988, Mazda RX-7 GTU Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1988, Mazda RX-7 GXL Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1988, Mazda RX-7 GXL Rear, Qty - 2, Manually Adjustable Performance;To Convert from Electronic Susp. - See Paper Catalog Appendix C;(For Adapting AAS to Non-AAS Suspension)
1988, Mazda RX-7 GXL 2+2 Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1988, Mazda RX-7 SE Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1988, Mazda RX-7 SE 2+2 Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1988, Mazda RX-7 Turbo Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1987, Mazda RX-7 Base Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1987, Mazda RX-7 Base 2+2 Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1987, Mazda RX-7 GXL Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1987, Mazda RX-7 GXL Rear, Qty - 2, Manually Adjustable Performance;To Convert from Electronic Susp. - See Paper Catalog Appendix C;(For Adapting AAS to Non-AAS Suspension)
1987, Mazda RX-7 GXL 2+2 Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1987, Mazda RX-7 LX Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1987, Mazda RX-7 LX 2+2 Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1987, Mazda RX-7 Sport Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1987, Mazda RX-7 Turbo Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1986, Mazda RX-7 Base Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1986, Mazda RX-7 GXL Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
1986, Mazda RX-7 GXL Rear, Qty - 2, Manually Adjustable Performance;To Convert from Electronic Susp. - See Paper Catalog Appendix C;(For Adapting AAS to Non-AAS Suspension)
1986, Mazda RX-7 Turbo Rear, Qty - 2, Manually Adjustable Performance;Exc.Electronically-Adjustable Suspension
