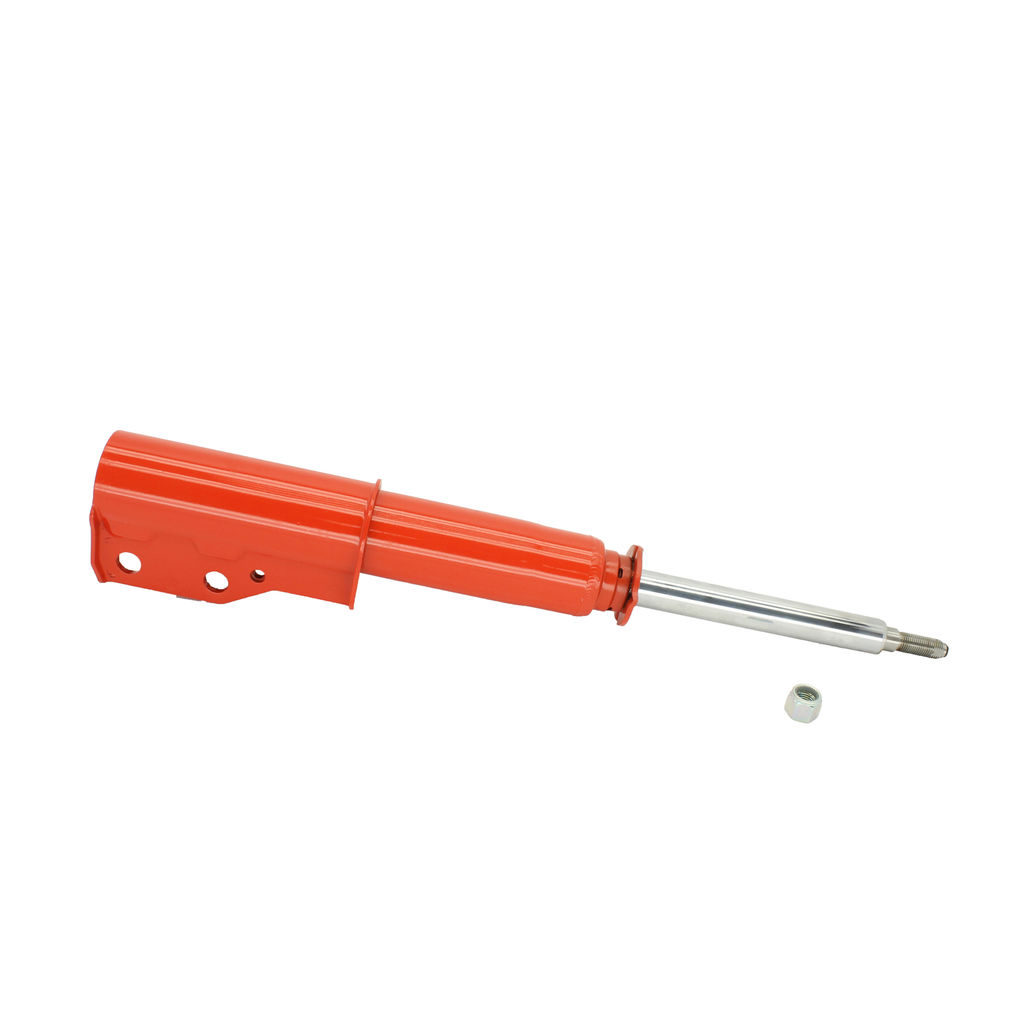

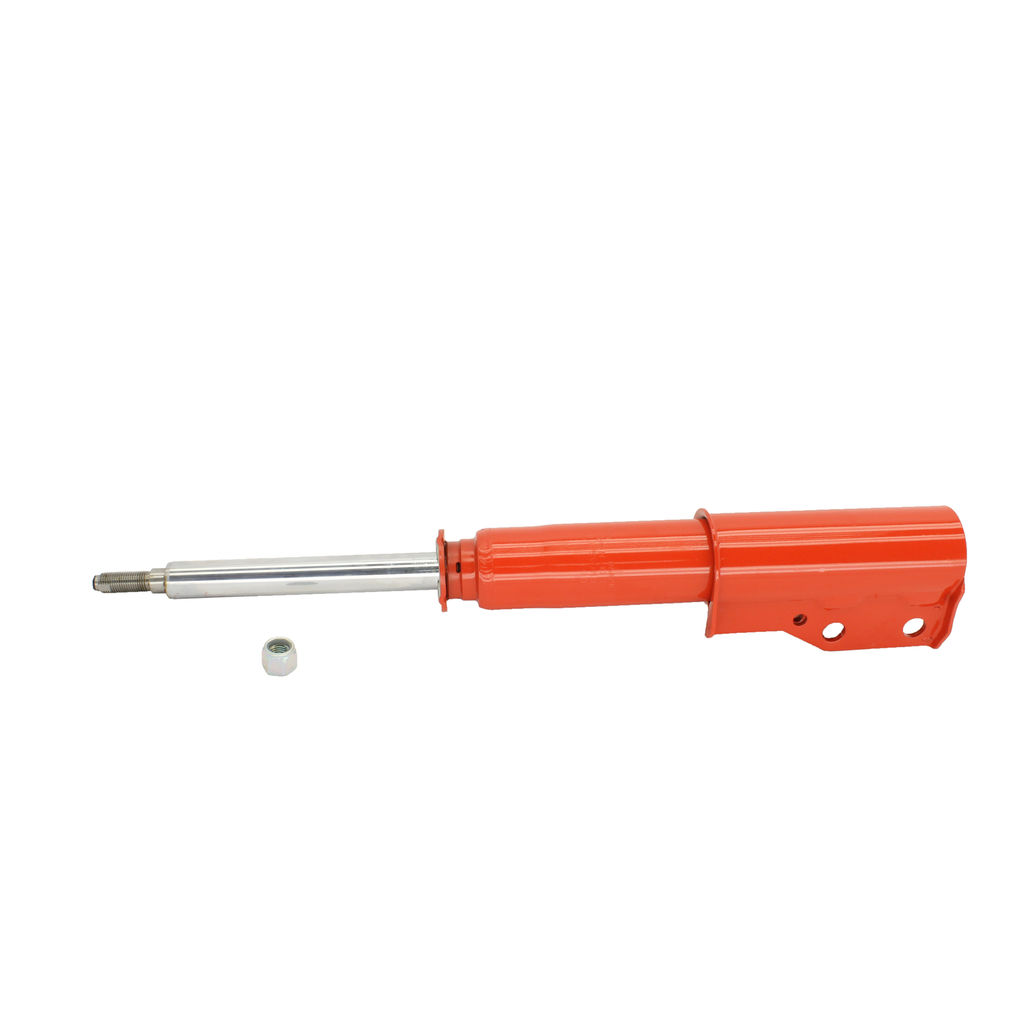

KYB 735001 - AGX Suspension Strut Assembly, Adjustable, 19.65 in. Extended Length, Sold Individually

Previous image
KYB 735001 - AGX Suspension Strut Assembly, Adjustable, 19.65 in. Extended Length, Sold Individually
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

KYB 735001 - AGX Suspension Strut Assembly, Adjustable, 19.65 in. Extended Length, Sold Individually

Part No: 735001
In Stock Arrives: Jun 5 - 11
  • $222.24 & FREE Shipping

Starting at $XX/mo with Affirm. Prequalify now

KYB 735001 - AGX Suspension Strut Assembly, Adjustable, 19.65 in. Extended Length, Sold Individually

BFJG-735001
In Stock Arrives: Jun 5 - 11
  • $222.24 & FREE Shipping

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific
  • Adjustable performance, designed for enthusiasts
  • Can be adjusted to add up to 125% more damping force on your GM F-Body
  • Externally adjustable without lifting the vehicle or removing the tires
  • Features precision multi-stage hydraulic valves for a broad performance range
  • Uses a seamless working cylinder matched with a Teflon coated piston band for a positive seal and longer life
  • Engineered to help vehicles with electronic safety systems (ESC, ABS, etc.)
  • To reduce the chance of noise and vibration KYB recommends installing new strut mounts, part numbers: SM5027 & SM5028

Product details


 Description

Damping Rate Adjustable Strut
KYB AGX manually-adjustable shocks and struts allow you to design your own ride control performance without special tools, quickly and as often as you want. Enthusiasts can increase individual corner damping rates up to 125% more than the vehicles OEM design. For ease of access, depending on vehicle application, the KYB AGX either has an eight position knob or a four position screwdriver slot. However, both offer the same overall capability. One simple adjustment increases both rebound and compression damping. Whether on the street or on a race track, the AGXs velocity sensitive damping valves instantly react to driving conditions to maintain tire contact and vehicle control. The AGX is a great solution for more demanding conditions that OE replacement parts just cant handle.

 Specifications

Package
Attributes
  • Driving Qualifiers
    Performance Street
  • Budget
    Medium
  • Handling Characteristic
    Performance
  • Springs Included
    No
  • Ride Control/Adjustability
    Adjustable
  • Ride Height Adjustable?
    No
  • Design
    Twin Tube
Details
  • Compressed Length
    12.91 in
  • Dust Cover Included
    N
  • Extended Length
    19.65 in
  • Includes Bump Stop
    N
  • Internal Rebound Bumper
    Y
  • Internal Rebound Spring
    N
  • Stroke Length
    6.73 in
Manufacturer description
  • Manufacturer Label
    AGX

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles


Model Engine Trim Notes
1992, Chevrolet Camaro RS Front, Qty - 2, Manually Adjustable Performance
1992, Chevrolet Camaro RS Heritage Edition Front, Qty - 2, Manually Adjustable Performance
1992, Chevrolet Camaro Z28 Front, Qty - 2, Manually Adjustable Performance
1992, Chevrolet Camaro Z28 Heritage Edition Front, Qty - 2, Manually Adjustable Performance
1992, Pontiac Firebird Base Front, Qty - 2, Manually Adjustable Performance
1992, Pontiac Firebird Formula Front, Qty - 2, Manually Adjustable Performance
1992, Pontiac Firebird Trans Am Front, Qty - 2, Manually Adjustable Performance
1992, Pontiac Firebird Trans Am GTA Front, Qty - 2, Manually Adjustable Performance
1991, Chevrolet Camaro RS Front, Qty - 2, Manually Adjustable Performance
1991, Chevrolet Camaro Z28 Front, Qty - 2, Manually Adjustable Performance
1991, Pontiac Firebird Base Front, Qty - 2, Manually Adjustable Performance
1991, Pontiac Firebird Formula Front, Qty - 2, Manually Adjustable Performance
1991, Pontiac Firebird Trans Am Front, Qty - 2, Manually Adjustable Performance
1991, Pontiac Firebird Trans Am GTA Front, Qty - 2, Manually Adjustable Performance
1990, Chevrolet Camaro Iroc-Z Front, Qty - 2, Manually Adjustable Performance
1990, Chevrolet Camaro RS Front, Qty - 2, Manually Adjustable Performance
1990, Pontiac Firebird Base Front, Qty - 2, Manually Adjustable Performance
1990, Pontiac Firebird Formula Front, Qty - 2, Manually Adjustable Performance
1990, Pontiac Firebird Trans Am Front, Qty - 2, Manually Adjustable Performance
1990, Pontiac Firebird Trans Am GTA Front, Qty - 2, Manually Adjustable Performance
1989, Chevrolet Camaro Iroc-Z Front, Qty - 2, Manually Adjustable Performance
1989, Chevrolet Camaro RS Front, Qty - 2, Manually Adjustable Performance
1989, Pontiac Firebird Base Front, Qty - 2, Manually Adjustable Performance
1989, Pontiac Firebird Formula Front, Qty - 2, Manually Adjustable Performance
1989, Pontiac Firebird Trans Am Front, Qty - 2, Manually Adjustable Performance
1989, Pontiac Firebird Trans Am GTA Front, Qty - 2, Manually Adjustable Performance
1989, Pontiac Firebird Trans Am GTA SE Front, Qty - 2, Manually Adjustable Performance
1988, Chevrolet Camaro Base Front, Qty - 2, Manually Adjustable Performance
1988, Chevrolet Camaro Iroc-Z Front, Qty - 2, Manually Adjustable Performance
1988, Pontiac Firebird Base Front, Qty - 2, Manually Adjustable Performance
1988, Pontiac Firebird Trans Am Front, Qty - 2, Manually Adjustable Performance
1987, Chevrolet Camaro Iroc-Z Front, Qty - 2, Manually Adjustable Performance
1987, Chevrolet Camaro LT Front, Qty - 2, Manually Adjustable Performance
1987, Chevrolet Camaro Sport Front, Qty - 2, Manually Adjustable Performance
1987, Chevrolet Camaro Z28 Front, Qty - 2, Manually Adjustable Performance
1987, Pontiac Firebird Base Front, Qty - 2, Manually Adjustable Performance
1987, Pontiac Firebird Trans Am Front, Qty - 2, Manually Adjustable Performance
1986, Chevrolet Camaro Berlinetta Front, Qty - 2, Manually Adjustable Performance
1986, Chevrolet Camaro Iroc-Z Front, Qty - 2, Manually Adjustable Performance
1986, Chevrolet Camaro Sport Front, Qty - 2, Manually Adjustable Performance
1986, Chevrolet Camaro Z28 Front, Qty - 2, Manually Adjustable Performance
1986, Pontiac Firebird Base Front, Qty - 2, Manually Adjustable Performance
1986, Pontiac Firebird S/E Front, Qty - 2, Manually Adjustable Performance
1986, Pontiac Firebird Trans Am Front, Qty - 2, Manually Adjustable Performance
1985, Chevrolet Camaro Berlinetta Front, Qty - 2, Manually Adjustable Performance
1985, Chevrolet Camaro Iroc-Z Front, Qty - 2, Manually Adjustable Performance
1985, Chevrolet Camaro Sport Front, Qty - 2, Manually Adjustable Performance
1985, Chevrolet Camaro Z28 Front, Qty - 2, Manually Adjustable Performance
1985, Pontiac Firebird Base Front, Qty - 2, Manually Adjustable Performance
1985, Pontiac Firebird S/E Front, Qty - 2, Manually Adjustable Performance
1985, Pontiac Firebird Trans Am Front, Qty - 2, Manually Adjustable Performance
1984, Chevrolet Camaro Berlinetta Front, Qty - 2, Manually Adjustable Performance
1984, Chevrolet Camaro Sport Front, Qty - 2, Manually Adjustable Performance
1984, Chevrolet Camaro Z28 Front, Qty - 2, Manually Adjustable Performance
1984, Pontiac Firebird Base Front, Qty - 2, Manually Adjustable Performance
1984, Pontiac Firebird S/E Front, Qty - 2, Manually Adjustable Performance
1984, Pontiac Firebird Trans Am Front, Qty - 2, Manually Adjustable Performance
1983, Chevrolet Camaro Berlinetta Front, Qty - 2, Manually Adjustable Performance
1983, Chevrolet Camaro Sport Front, Qty - 2, Manually Adjustable Performance
1983, Chevrolet Camaro Z28 Front, Qty - 2, Manually Adjustable Performance
1983, Pontiac Firebird Base Front, Qty - 2, Manually Adjustable Performance
1983, Pontiac Firebird S/E Front, Qty - 2, Manually Adjustable Performance
1983, Pontiac Firebird Trans Am Front, Qty - 2, Manually Adjustable Performance
1982, Chevrolet Camaro Berlinetta Front, Qty - 2, Manually Adjustable Performance
1982, Chevrolet Camaro Sport Front, Qty - 2, Manually Adjustable Performance
1982, Chevrolet Camaro Z28 Front, Qty - 2, Manually Adjustable Performance
1982, Chevrolet Camaro Z28 Indianapolis 500 Pace Car Front, Qty - 2, Manually Adjustable Performance
1982, Pontiac Firebird Base Front, Qty - 2, Manually Adjustable Performance
1982, Pontiac Firebird S/E Front, Qty - 2, Manually Adjustable Performance
1982, Pontiac Firebird Trans Am Front, Qty - 2, Manually Adjustable Performance
Items: 1100 of 139

Fitment Notice

You have not selected a vehicle to verify this product will fit. You may be subject to return and restocking fees if you order the wrong part without confirming your vehicle first.
