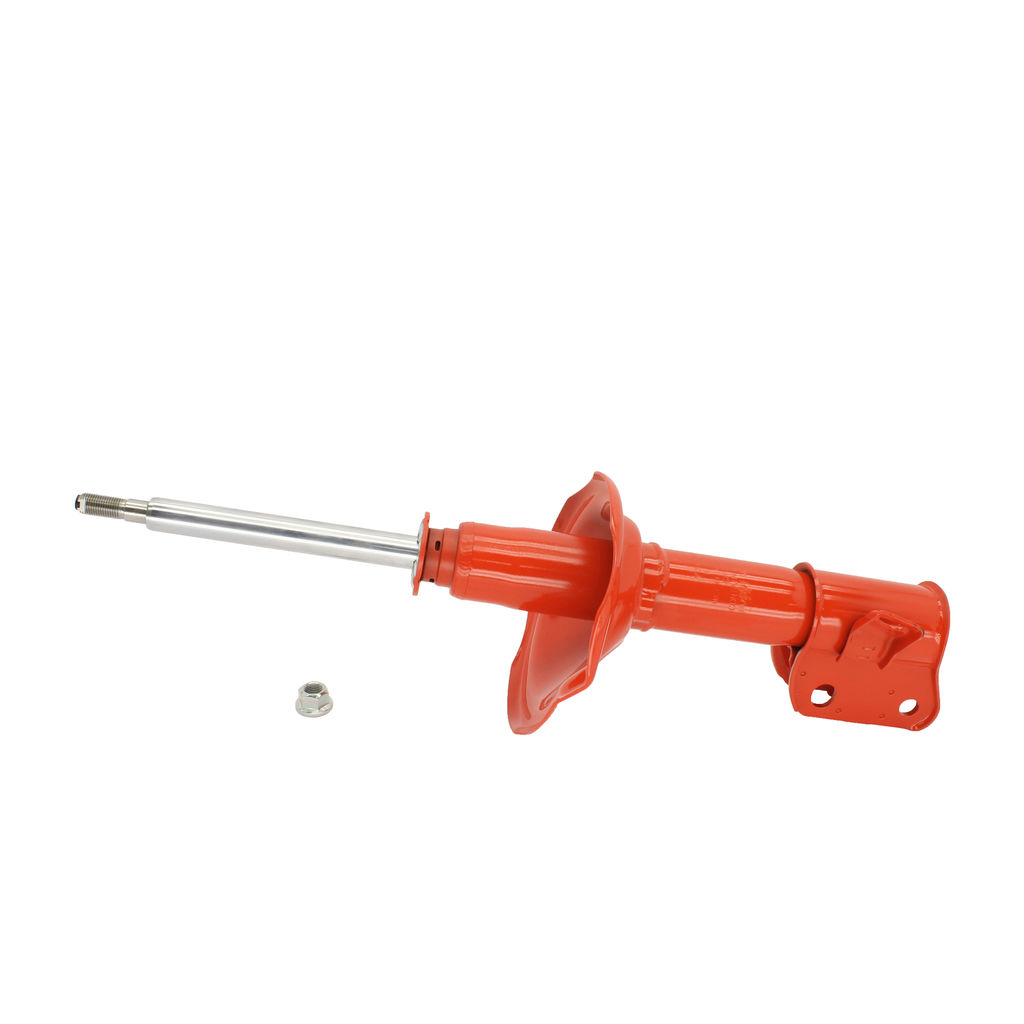

KYB 734007 - AGX Suspension Strut Assembly, Adjustable, 20.71 in. Extended Length, Sold Individually

Previous image
KYB 734007 - AGX Suspension Strut Assembly, Adjustable, 20.71 in. Extended Length, Sold Individually
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

KYB 734007 - AGX Suspension Strut Assembly, Adjustable, 20.71 in. Extended Length, Sold Individually

Part No: 734007
In Stock Arrives: Jun 5 - 11
  • $181.94 & FREE Shipping

Starting at $XX/mo with Affirm. Prequalify now

KYB 734007 - AGX Suspension Strut Assembly, Adjustable, 20.71 in. Extended Length, Sold Individually

BFJG-734007
In Stock Arrives: Jun 5 - 11
  • $181.94 & FREE Shipping

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific
  • Adjustable performance, designed for enthusiasts
  • Can be adjusted to add up to 125% more damping force on your Subaru
  • Externally adjustable without lifting the vehicle or removing the tires
  • Features precision multi-stage hydraulic valves for a broad performance range
  • Uses a seamless working cylinder matched with a Teflon coated piston band for a positive seal and longer life
  • Engineered to help vehicles with electronic safety systems (ESC, ABS, etc.)
  • To reduce the chance of noise and vibration KYB recommends installing new strut mounts, part number: SM5361

Product details


 Description

Damping Rate Adjustable Strut
KYB AGX manually-adjustable shocks and struts allow you to design your own ride control performance without special tools, quickly and as often as you want. Enthusiasts can increase individual corner damping rates up to 125% more than the vehicles OEM design. For ease of access, depending on vehicle application, the KYB AGX either has an eight position knob or a four position screwdriver slot. However, both offer the same overall capability. One simple adjustment increases both rebound and compression damping. Whether on the street or on a race track, the AGXs velocity sensitive damping valves instantly react to driving conditions to maintain tire contact and vehicle control. The AGX is a great solution for more demanding conditions that OE replacement parts just cant handle.

 Specifications

Package
Attributes
  • Driving Qualifiers
    Performance Street
  • Budget
    Medium
  • Handling Characteristic
    Performance
  • Springs Included
    No
  • Ride Control/Adjustability
    Adjustable
  • Ride Height Adjustable?
    No
  • Design
    Twin Tube
Details
  • Compressed Length
    14.13 in
  • Dust Cover Included
    N
  • Extended Length
    20.71 in
  • Includes Bump Stop
    N
  • Internal Rebound Bumper
    Y
  • Internal Rebound Spring
    N
  • Stroke Length
    6.57 in
Manufacturer description
  • Manufacturer Label
    AGX

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles


Model Engine Trim Notes
2001, Subaru Impreza L Front Left, Manually Adjustable Performance
2001, Subaru Impreza Outback Front Left, Manually Adjustable Performance
2001, Subaru Impreza RS Front Left, Manually Adjustable Performance
2000, Subaru Impreza L Front Left, Manually Adjustable Performance
2000, Subaru Impreza Outback Front Left, Manually Adjustable Performance
2000, Subaru Impreza RS Front Left, Manually Adjustable Performance
1999, Subaru Impreza L Front Left, Manually Adjustable Performance
1999, Subaru Impreza Outback Front Left, Manually Adjustable Performance
1999, Subaru Impreza RS Front Left, Manually Adjustable Performance
1998, Subaru Impreza L Front Left, Manually Adjustable Performance
1998, Subaru Impreza Outback Front Left, Manually Adjustable Performance
1998, Subaru Impreza RS Front Left, Manually Adjustable Performance
1998, Subaru Legacy Brighton, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1998, Subaru Legacy GT, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1998, Subaru Legacy GT Limited, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1998, Subaru Legacy L, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1998, Subaru Legacy Postal, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1997, Subaru Impreza Brighton Front Left, Manually Adjustable Performance
1997, Subaru Impreza L Front Left, Manually Adjustable Performance
1997, Subaru Impreza Outback Front Left, Manually Adjustable Performance
1997, Subaru Legacy Brighton, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1997, Subaru Legacy GT, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1997, Subaru Legacy L, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1997, Subaru Legacy LSi, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1997, Subaru Legacy Postal, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1996, Subaru Impreza Brighton Front Left, Manually Adjustable Performance
1996, Subaru Impreza L Front Left, Manually Adjustable Performance
1996, Subaru Impreza LX Front Left, Manually Adjustable Performance
1996, Subaru Impreza Outback Front Left, Manually Adjustable Performance
1996, Subaru Legacy Brighton, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1996, Subaru Legacy GT, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1996, Subaru Legacy L, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1996, Subaru Legacy L, FWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1996, Subaru Legacy LS, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1996, Subaru Legacy LSi, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1996, Subaru Legacy Postal, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1995, Subaru Impreza Base, FWD Front Left, Manually Adjustable Performance
1995, Subaru Impreza Base, AWD Front Left, Manually Adjustable Performance
1995, Subaru Impreza L, FWD Front Left, Manually Adjustable Performance
1995, Subaru Impreza L, AWD Front Left, Manually Adjustable Performance
1995, Subaru Impreza L 4x4, AWD Front Left, Manually Adjustable Performance
1995, Subaru Impreza LX, FWD Front Left, Manually Adjustable Performance
1995, Subaru Impreza LX, AWD Front Left, Manually Adjustable Performance
1995, Subaru Impreza Outback, AWD Front Left, Manually Adjustable Performance
1995, Subaru Legacy Base, FWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1995, Subaru Legacy Brighton, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1995, Subaru Legacy L, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1995, Subaru Legacy L, FWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1995, Subaru Legacy LS, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1995, Subaru Legacy LSi, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1995, Subaru Legacy Postal, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1994, Subaru Impreza Base, FWD Front Left, Manually Adjustable Performance
1994, Subaru Impreza L, FWD Front Left, Manually Adjustable Performance
1994, Subaru Impreza L, AWD Front Left, Manually Adjustable Performance
1994, Subaru Impreza LS, AWD Front Left, Manually Adjustable Performance
1994, Subaru Legacy 4x4, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1994, Subaru Legacy Alpine Sport, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1994, Subaru Legacy GT, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1994, Subaru Legacy L, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1994, Subaru Legacy L, FWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1994, Subaru Legacy LS, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1994, Subaru Legacy LS, FWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1994, Subaru Legacy LSi, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1994, Subaru Legacy Outdoor, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1994, Subaru Legacy Sport, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1994, Subaru Legacy Sun Sport, FWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1994, Subaru Legacy Touring, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1993, Subaru Impreza 4x4, AWD Front Left, Manually Adjustable Performance
1993, Subaru Impreza Base, FWD Front Left, Manually Adjustable Performance
1993, Subaru Impreza L, FWD Front Left, Manually Adjustable Performance
1993, Subaru Impreza L, AWD Front Left, Manually Adjustable Performance
1993, Subaru Impreza LS, FWD Front Left, Manually Adjustable Performance
1993, Subaru Impreza LS, AWD Front Left, Manually Adjustable Performance
1993, Subaru Legacy 4x4, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1993, Subaru Legacy L, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1993, Subaru Legacy L, FWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1993, Subaru Legacy L 4x4, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1993, Subaru Legacy LS, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1993, Subaru Legacy LS, FWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1993, Subaru Legacy LS 4x4, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1993, Subaru Legacy LSi, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1993, Subaru Legacy Sport, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1992, Subaru Legacy 4x4, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1992, Subaru Legacy L, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1992, Subaru Legacy L, FWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1992, Subaru Legacy L 4x4, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1992, Subaru Legacy LS, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1992, Subaru Legacy LS, FWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1992, Subaru Legacy LS 4x4, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1992, Subaru Legacy LSi, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1992, Subaru Legacy LSi, FWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
1992, Subaru Legacy Sport, AWD Front Left, Manually Adjustable Performance;(Exc. Air Suspension )
Items: 1100 of 175
