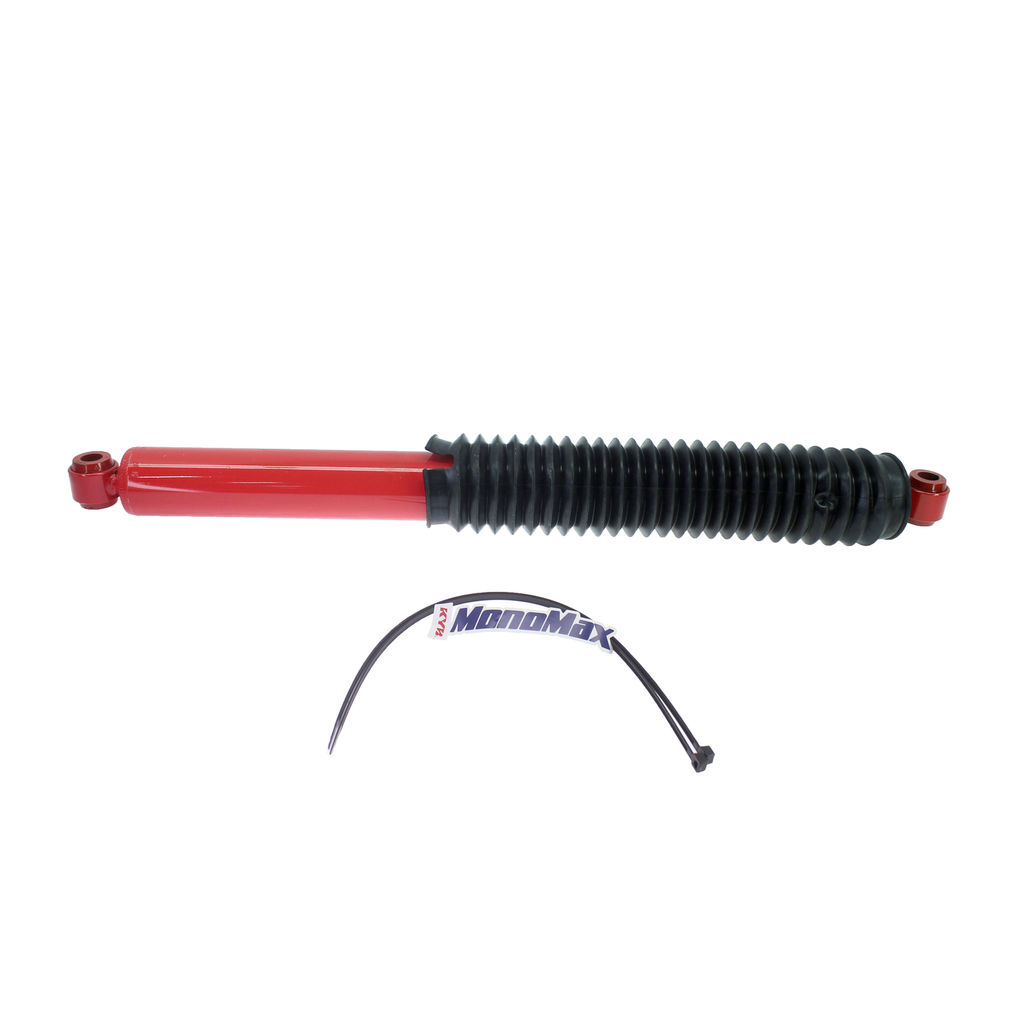

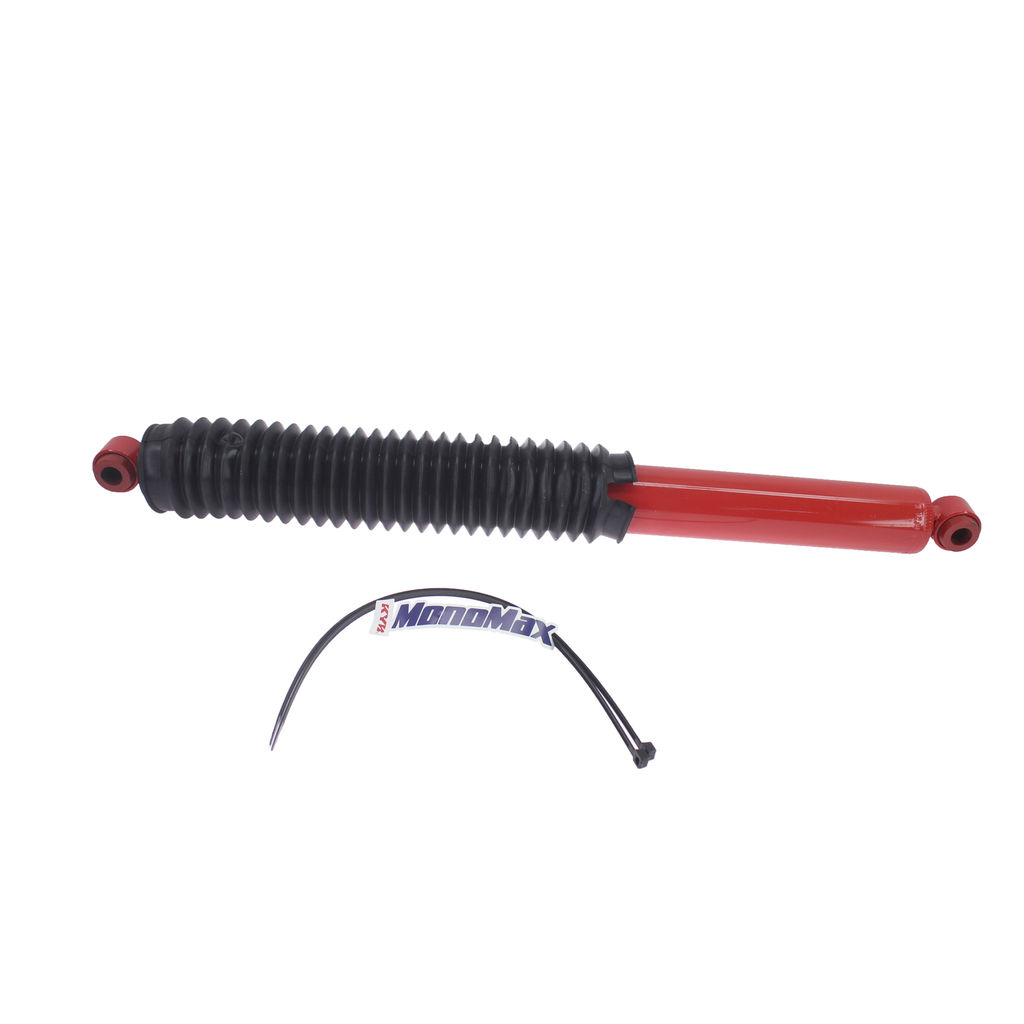

KYB 565035 - MonoMax Shock Absorber, High Pressure Monotube, 24.96 in. Extended Length, Sold Individually

Previous image
KYB 565035 - MonoMax Shock Absorber, High Pressure Monotube, 24.96 in. Extended Length, Sold Individually
Next image
Zoom image

KYB 565035 - MonoMax Shock Absorber, High Pressure Monotube, 24.96 in. Extended Length, Sold Individually

Part No: 565035
Not in Stock

Please call 888-257-7149 to check future availability

  • $63.00

Starting at $XX/mo with Affirm. Prequalify now

KYB 565035 - MonoMax Shock Absorber, High Pressure Monotube, 24.96 in. Extended Length, Sold Individually

BFJG-565035
Not in Stock

Please call 888-257-7149 to check future availability

  • $63.00

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific

Select your Vehicle

  • High performance monotube and large bore shocks and struts that help you achieve up to 40% more control of your truck or SUV
  • With a tough design that automatically adjusts to any driving condition with improved performance
  • Designed for hardworking vehicles that require a lot of towing, hauling, and off-roading
  • Zinc-coated, stainless steel piston rings that provide a positive seal in the most extreme conditions
  • With chrome-plated piston rods for reduced seal wear and a thick rubber dust boot to protect the shaft from debris
  • Use a multi-lip, synthetic oil seal to keep fluid in and a wiper to prevent oil contamination
  • Highly recommended for vehicles with electronic safety systems (ESC, ABS, etc.)

Product details


 Description

High Pressure Monotube Gas Shock
Enjoy up to 40% more control of your truck or SUV with the KYB MonoMax Truck Shock Absorbers and Struts. These large bore shocks and struts feature a tough design that automatically adjusts to even the most demanding condition with improved and fade-free performance. They are the ultimate suspension upgrade you’ll ever need for your hardworking vehicle, especially when hauling heavy loads, going off-road, or towing a trailer.
Tough conditions demand tough truck shocks. The large bore KYB MonoMax provides the additional stability that heavier, more powerful or high center of gravity vehicles demand. The KYB MonoMax is a heavy duty monotube shock absorber that provides the most handling, control and durability of any KYB shock; and its just for trucks. The MonoMaxs tough design automatically adjusts to driving conditions with fade-free performance. The KYB MonoMax has an outstanding reputation for vehicles that do real work, go off-road, tow a trailer or haul heavy loads. It uses a work-ready, zinc-coated steel piston ring and includes an off-road dust boot.
Designed to provide increased stability required by more powerful and heavier vehicles, the KYB MonoMax Truck Shock Absorbers and Struts are engineered based on the principles that have paved the way for KYB Gas-A-Just shock absorbers to gain worldwide recognition for quality engineering, maximum ride control, and superior durability. But what sets them apart from the Gas-A-Just is that they combined the monotube high pressure design with a 1/2" diameter hardened piston rod and a large diameter piston to meet the increasing demands of most popular pickup trucks, SUVs, and 4WDs. Their piston rings are made using premium stainless steel and coated with a zinc finish to provide a positive seal even in the most extreme conditions. Their ultra-smooth piston rods are also chrome plated to minimize seal wear, and they use only a multi-lip, synthetic oil seal that helps keep fluid in and a wiper that prevents oil contamination. Rubber boots play a critical role in these assemblies too as they offer excellent shaft and seal protection. With all these great components used in manufacturing the KYB MonoMax shocks and struts, what else would you need? Get the KYB MonoMax Truck Shock Absorbers and Struts for enhanced performance, durability, and high performance control for your hardworking vehicle today.

 Specifications

Package
Attributes
  • Driving Qualifiers
    Performance Street
  • Budget
    Medium
  • Handling Characteristic
    Performance
  • Springs Included
    No
  • Ride Control/Adjustability
    Non- Adjustable
  • Ride Height Adjustable?
    No
  • Design
    Mono Tube
Details
  • Part Name
    Shock Absorber
  • B-stop
    N
  • Compressed Length
    15.67
  • Dust Cover Included
    Y
  • Extended Length
    24.96
  • Feature and Benefit 1
    Maximum performance upgrade with up to 40% more damping performance than standard shock absorbers
  • Feature and Benefit 2
    Perfect solution when you need to upgrade suspension performance on your Toyota truck
  • Feature and Benefit 3
    Truck monotube design outperforms all other standard shock absorbers
  • Feature and Benefit 4
    Zinc-coated, stainless steel piston ring provides a positive seal in the most extreme conditions
  • Feature and Benefit 5
    Rubber boot to protect the shaft and keep dirt and debris away from the seals
  • Feature and Benefit 6
    Engineered to help vehicles with electronic safety systems (ESC, ABS, etc.)
  • Internal Rebound Spring
    N
  • Lower Mount Type
    E1
  • R-stop
    Y
  • Stroke Length
    9.29
  • Upper Mount Type
    E1
Manufacturer description
  • Manufacturer Label
    MonoMax

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles


Model Engine Trim Notes
1998, Toyota T100 Base, 4WD Rear, Qty - 2, Maximum Monotube Performance Upgrade
1998, Toyota T100 Base, 4WD Rear, Qty - 2, Maximum Monotube Performance Upgrade
1998, Toyota T100 SR5, 4WD Rear, Qty - 2, Maximum Monotube Performance Upgrade
1998, Toyota T100 SR5, 4WD Rear, Qty - 2, Maximum Monotube Performance Upgrade
1997, Toyota T100 DLX, 4WD Rear, Qty - 2, Maximum Monotube Performance Upgrade
1997, Toyota T100 DLX, 4WD Rear, Qty - 2, Maximum Monotube Performance Upgrade
1997, Toyota T100 SR5, 4WD Rear, Qty - 2, Maximum Monotube Performance Upgrade
1997, Toyota T100 SR5, 4WD Rear, Qty - 2, Maximum Monotube Performance Upgrade
1996, Toyota T100 DLX, 4WD Rear, Qty - 2, Maximum Monotube Performance Upgrade
1996, Toyota T100 DLX, 4WD Rear, Qty - 2, Maximum Monotube Performance Upgrade
1996, Toyota T100 SR5, 4WD Rear, Qty - 2, Maximum Monotube Performance Upgrade
1996, Toyota T100 SR5, 4WD Rear, Qty - 2, Maximum Monotube Performance Upgrade
1995, Toyota T100 DX, 4WD Rear, Qty - 2, Maximum Monotube Performance Upgrade
1995, Toyota T100 DX, 4WD Rear, Qty - 2, Maximum Monotube Performance Upgrade
1995, Toyota T100 SR5, 4WD Rear, Qty - 2, Maximum Monotube Performance Upgrade
1995, Toyota T100 SR5, 4WD Rear, Qty - 2, Maximum Monotube Performance Upgrade
1994, Toyota T100 Base, 4WD Rear, Qty - 2, Maximum Monotube Performance Upgrade
1994, Toyota T100 Base, 4WD Rear, Qty - 2, Maximum Monotube Performance Upgrade
1994, Toyota T100 DX, 4WD Rear, Qty - 2, Maximum Monotube Performance Upgrade
1994, Toyota T100 DX, 4WD Rear, Qty - 2, Maximum Monotube Performance Upgrade
1994, Toyota T100 SR5, 4WD Rear, Qty - 2, Maximum Monotube Performance Upgrade
1994, Toyota T100 SR5, 4WD Rear, Qty - 2, Maximum Monotube Performance Upgrade
1993, Toyota T100 Base, 4WD Rear, Qty - 2, Maximum Monotube Performance Upgrade
1993, Toyota T100 Base, 4WD Rear, Qty - 2, Maximum Monotube Performance Upgrade
1993, Toyota T100 SR5, 4WD Rear, Qty - 2, Maximum Monotube Performance Upgrade
1993, Toyota T100 SR5, 4WD Rear, Qty - 2, Maximum Monotube Performance Upgrade
