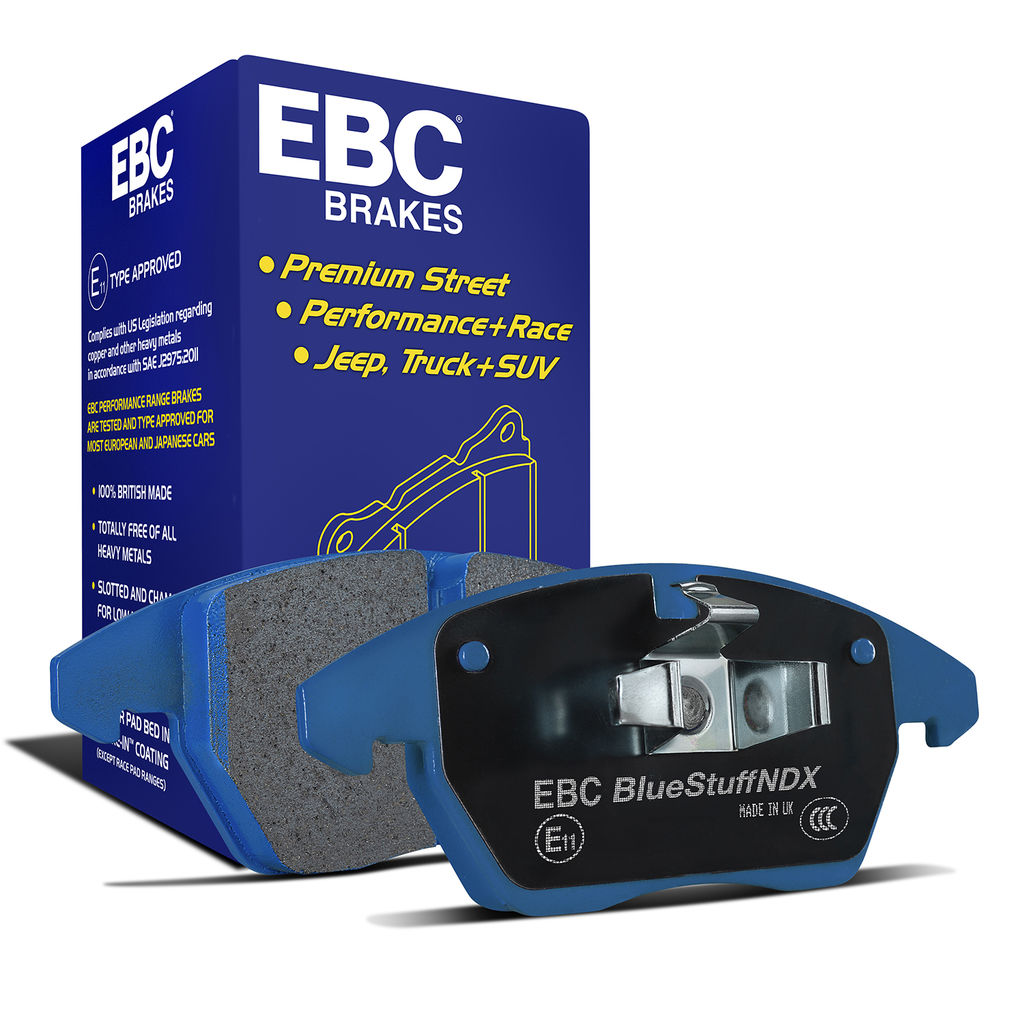

EBC Brakes DP5103NDX - Bluestuff NDX Full Race Disc Brake Pad Set, 2-Wheel Set

Previous image
EBC Brakes DP5103NDX - Bluestuff NDX Full Race Disc Brake Pad Set, 2-Wheel Set
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

EBC Brakes DP5103NDX - Bluestuff NDX Full Race Disc Brake Pad Set, 2-Wheel Set

Part No: DP5103NDX
Only 2 left in Stock, Order Soon Arrives: Jun 5 - 11
  • $93.07
List: $137.68

Starting at $XX/mo with Affirm. Prequalify now

EBC Brakes DP5103NDX - Bluestuff NDX Full Race Disc Brake Pad Set, 2-Wheel Set

BHWL-DP5103NDX
Only 2 left in Stock, Order Soon Arrives: Jun 5 - 11
  • $93.07
List: $137.68

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific

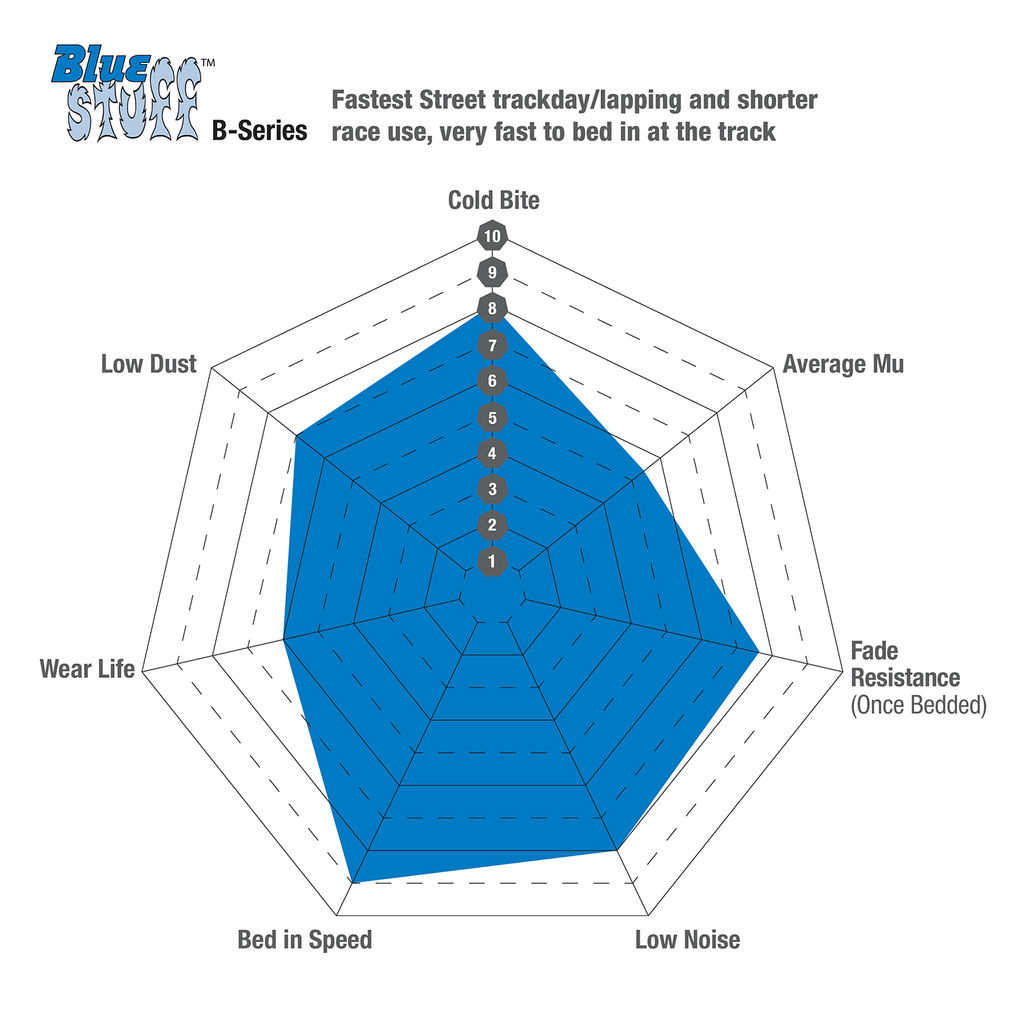

Specs and ratings

Dust Levels:




Stopping Power:




Noise Level:




Performance Over Stock:




  • Worlds First Street And True Track Pad
  • Chemical Interlayer Pad For Super Strong Pad Bond
  • Easy On Rotors
  • Surfaces Are Left Smooth And Not Scored
  • Low Heat Transfer
  • Great Release
  • Deep V Grooves Catches Dirt Dust/Improves Venting

 Other Products that also fit your Vehicle

Product details


 Description

Bluestuff NDX Full Race Brake Pads; FMSI Pad No. D045; Vented; 5 Bolt Holes; 282mm Dia.; 35.3mm Height; 24mm Thick; 106.9mm Center Hole Dia.;
Bluestuff NDX is a high friction sport and race material that can be used for aggressive street driving and certain types of track use. The material has had much success on the track with quality aftermarket calipers (Multi piston systems with better release and cooling and larger rotors) and limited success with street based calipers where pad size and caliper drag can challenge any brake material. The biggest advantage of EBC Bluestuff NDX is their bite from cold and progressive brake feel and the ability to bring a car to a complete stop. This has led to the ECE R90 brake safety regulation approval of R90 which is now completed and certificates are being obtained (during July 2011). There are certain older street based caliper systems where even the new Bluestuff will have trouble handling the caliper and slider drag inherent in the systems but this scenario is exactly the same for our competitors. There is NO material that will be PERFECT on the track in all older street based caliper systems.

 Technical Documents

 Specifications

Package
Attributes
  • Recommended Use
    Performance
  • Dust Levels
    High
  • Driving Qualifiers
    Street & Track Events, Track Only, Racing Only
  • Budget
    High
  • Pad Material
    Semi-Metallic
  • Stopping Power
    5 / 5
  • Noise Level
    4 / 5
  • Performance Over Stock
    5 - Racing
Details
  • Part Name
    Disc Brake Pad Set
  • Caliper Type
    OEM
Manufacturer description
  • Manufacturer Label
    EBC Front Bluestuff NDX Pads

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles


Model Engine Trim Notes
1988, Porsche 911 3.2, 3163, H, 6 Carrera, GAS Front, Vented;5 Bolt Holes;35mm Height;106.9mm Center Hole Dia.;FMSI Pad No. D045;24mm Thick;282mm Dia.
1987, Porsche 911 3.2, 3163, H, 6 Carrera, GAS Front, Vented;5 Bolt Holes;35mm Height;106.9mm Center Hole Dia.;FMSI Pad No. D045;24mm Thick;282mm Dia.
1986, Porsche 911 3.2, 3163, H, 6 Carrera, GAS Front, Vented;5 Bolt Holes;35mm Height;106.9mm Center Hole Dia.;FMSI Pad No. D045;24mm Thick;282mm Dia.
1985, Ferrari 308 GTB 3.0, 2927, V, 8 Quattrovalvole, GAS Front, FMSI Pad No. D045
1985, Porsche 911 3.2, 3163, H, 6 Base, GAS Front, Vented;5 Bolt Holes;35mm Height;106.9mm Center Hole Dia.;FMSI Pad No. D045;24mm Thick;282mm Dia.
1985, Porsche 911 3.2, 3163, H, 6 Carrera, GAS Front, Vented;5 Bolt Holes;35mm Height;106.9mm Center Hole Dia.;FMSI Pad No. D045;24mm Thick;282mm Dia.
1984, Ferrari 308 GTB 3.0, 2927, V, 8 Quattrovalvole, GAS Front, FMSI Pad No. D045
1984, Porsche 911 3.2, 3163, H, 6 Base, GAS Front, Vented;5 Bolt Holes;35mm Height;106.9mm Center Hole Dia.;FMSI Pad No. D045;24mm Thick;282mm Dia.
1984, Porsche 911 3.2, 3163, H, 6 Carrera, GAS Front, Vented;5 Bolt Holes;35mm Height;106.9mm Center Hole Dia.;FMSI Pad No. D045;24mm Thick;282mm Dia.
1983, Ferrari 308 GTB 3.0, 2927, V, 8 Quattrovalvole, GAS Front, FMSI Pad No. D045
1983, Porsche 911 3.0, 2999, H, 6 SC, GAS Front, Vented;5 Bolt Holes;107mm Center Hole Dia.;35mm Height;21mm Thick;FMSI Pad No. D045;282mm Dia.
1982, Ferrari 308 GTB 3.0, 2927, V, 8 Quattrovalvole, GAS Front, FMSI Pad No. D045
1982, Porsche 911 3.0, 2999, H, 6 SC, GAS Front, Vented;5 Bolt Holes;107mm Center Hole Dia.;35mm Height;21mm Thick;FMSI Pad No. D045;282mm Dia.
1981, Porsche 911 3.0, 2999, H, 6 SC, GAS Front, Vented;5 Bolt Holes;107mm Center Hole Dia.;35mm Height;21mm Thick;FMSI Pad No. D045;282mm Dia.
1980, Ferrari 308 GTB 3.0, 2927, V, 8 Base, GAS Front, FMSI Pad No. D045
1980, Porsche 911 3.0, 2999, H, 6 SC, GAS Front, Vented;5 Bolt Holes;107mm Center Hole Dia.;35mm Height;21mm Thick;FMSI Pad No. D045;282mm Dia.
1979, Ferrari 308 GTB 3.0, 2927, V, 8 Base, GAS Front, FMSI Pad No. D045
1979, Ferrari Dino 308 GT4 3.0, 2927, V, 8 Base, GAS Front, FMSI Pad No. D045
1979, Porsche 911 3.0, 2999, H, 6 SC, GAS Front, Vented;5 Bolt Holes;107mm Center Hole Dia.;35mm Height;21mm Thick;FMSI Pad No. D045;282mm Dia.
1978, Ferrari 308 GTB 3.0, 2927, V, 8 Base, GAS Front, FMSI Pad No. D045
1978, Ferrari Dino 308 GT4 3.0, 2927, V, 8 Base, GAS Front, FMSI Pad No. D045
1978, Porsche 911 3.0, 2999, H, 6 SC, GAS Front, Vented;5 Bolt Holes;107mm Center Hole Dia.;35mm Height;21mm Thick;FMSI Pad No. D045;282mm Dia.
1977, Ferrari 308 GTB 3.0, 2927, V, 8 Base, GAS Front, FMSI Pad No. D045
1977, Ferrari Dino 308 GT4 3.0, 2927, V, 8 Base, GAS Front, FMSI Pad No. D045
1977, Porsche 911 2.7, 2688, H, 6 S, GAS Front, Vented;5 Bolt Holes;107mm Center Hole Dia.;35mm Height;Front Alloy S Calipers;21mm Thick;FMSI Pad No. D045;282mm Dia.;Front Alloy A Calipers
1977, Porsche 911 3.0, 2999, H, 6 Turbo Carrera, GAS Front, Vented;5 Bolt Holes;107mm Center Hole Dia.;35mm Height;21mm Thick;FMSI Pad No. D045;282mm Dia.
1976, Ferrari 308 GTB 3.0, 2927, V, 8 Base, GAS Front, FMSI Pad No. D045
1976, Ferrari Dino 308 GT4 3.0, 2927, V, 8 Base, GAS Front, FMSI Pad No. D045
1976, Porsche 911 2.7, 2688, H, 6 S, GAS Front, Vented;5 Bolt Holes;107mm Center Hole Dia.;35mm Height;Front Alloy S Calipers;21mm Thick;FMSI Pad No. D045;282mm Dia.;Front Alloy A Calipers
1976, Porsche 911 3.0, 2999, H, 6 Turbo Carrera, GAS Front, Vented;5 Bolt Holes;107mm Center Hole Dia.;35mm Height;21mm Thick;FMSI Pad No. D045;282mm Dia.
1975, Ferrari 308 GTB 3.0, 2927, V, 8 Base, GAS Front, FMSI Pad No. D045
1975, Ferrari Dino 308 GT4 3.0, 2927, V, 8 Base, GAS Front, FMSI Pad No. D045
1975, Porsche 911 2.7, 2688, H, 6 S, GAS Front, Vented;5 Bolt Holes;107mm Center Hole Dia.;35mm Height;Front Alloy S Calipers;21mm Thick;FMSI Pad No. D045;282mm Dia.;Front Alloy A Calipers
1974, Ferrari Dino 308 GT4 3.0, 2927, V, 8 Base, GAS Front, FMSI Pad No. D045
1974, Porsche 911 2.7, 2688, H, 6 S, GAS Front, Vented;5 Bolt Holes;107mm Center Hole Dia.;35mm Height;Front Alloy S Calipers;21mm Thick;FMSI Pad No. D045;282mm Dia.;Front Alloy A Calipers
1973, Ferrari Dino 246 GT 2.4, 2418, V, 6 Base, GAS Front, FMSI Pad No. D045
1973, Ferrari Dino 246 GTS 2.4, 2418, V, 6 Base, GAS Front, FMSI Pad No. D045
1973, Ferrari Dino 308 GT4 3.0, 2927, V, 8 Base, GAS Front, FMSI Pad No. D045
1973, Porsche 911 2.4, 2341, H, 6 S, GAS Front, Vented;5 Bolt Holes;107mm Center Hole Dia.;35mm Height;Front Alloy S Calipers;21mm Thick;FMSI Pad No. D045;282mm Dia.;S Front Brake Caliper
1972, Ferrari Dino 246 GT 2.4, 2418, V, 6 Base, GAS Front, FMSI Pad No. D045
1972, Ferrari Dino 246 GTS 2.4, 2418, V, 6 Base, GAS Front, FMSI Pad No. D045
1972, Porsche 911 2.4, 2341, H, 6 S, GAS Front, Vented;5 Bolt Holes;107mm Center Hole Dia.;35mm Height;Front Alloy S Calipers;21mm Thick;FMSI Pad No. D045;282mm Dia.;S Front Brake Caliper
1971, Ferrari Dino 246 GT 2.4, 2418, V, 6 Base, GAS Front, FMSI Pad No. D045
1971, Porsche 911 2.2, 2195, H, 6 S, GAS Front, Vented;5 Bolt Holes;107mm Center Hole Dia.;35mm Height;Front Alloy S Calipers;21mm Thick;FMSI Pad No. D045;282mm Dia.;S Front Brake Caliper
1970, Ferrari Dino 246 GT 2.4, 2418, V, 6 Base, GAS Front, FMSI Pad No. D045
1970, Porsche 911 2.2, 2195, H, 6 S, GAS Front, Vented;5 Bolt Holes;107mm Center Hole Dia.;35mm Height;Front Alloy S Calipers;21mm Thick;FMSI Pad No. D045;282mm Dia.;S Front Brake Caliper
1969, Ferrari Dino 246 GT 2.4, 2418, V, 6 Base, GAS Front, FMSI Pad No. D045
