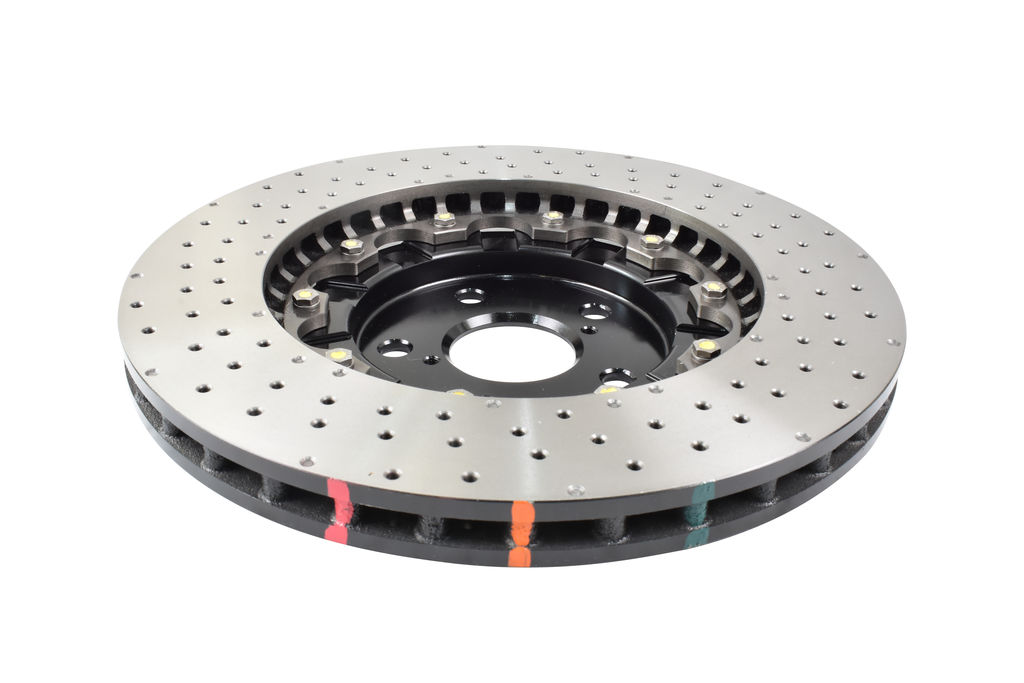

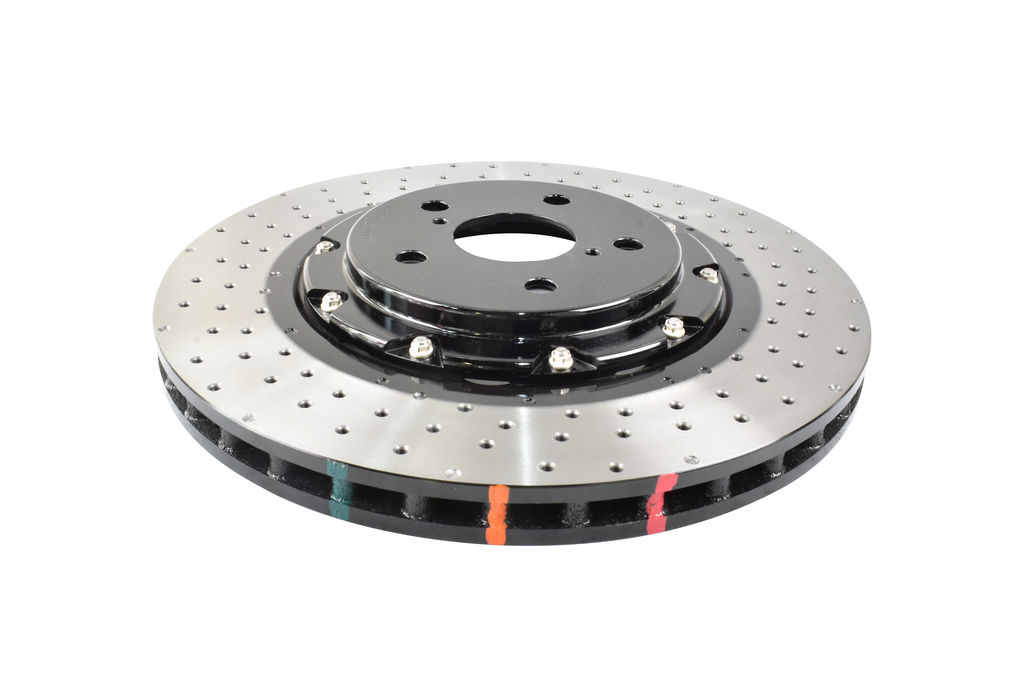

DBA DBA53922BLKXD - 5000 Series Cross Drilled Brake Rotor, Sold Individually

Previous image
DBA DBA53922BLKXD - 5000 Series Cross Drilled Brake Rotor, Sold Individually
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

DBA DBA53922BLKXD - 5000 Series Cross Drilled Brake Rotor, Sold Individually

Part No: DBA53922BLKXD
Special Order Arrives: Jun 29 - Jul 7

Please call 888-257-7149 for product availability

  • $768.37 & FREE Shipping
List: $1045.03

Starting at $XX/mo with Affirm. Prequalify now

DBA DBA53922BLKXD - 5000 Series Cross Drilled Brake Rotor, Sold Individually

DMWK-DBA53922BLKXD
Special Order Arrives: Jun 29 - Jul 7

Please call 888-257-7149 for product availability

  • $768.37 & FREE Shipping
List: $1045.03

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific
  • Engineered with a premium cast iron and aerospace grade aluminum
  • Thermal stability profiling to keep the brakes cooler for longer
  • Cross drilled and slotted design offers superior braking power
  • Heat paint markings show you when the brake is at a certain temperature level
  • Kangaroo paw ventilation discs increase airflow and cooling capacity
  • Unmatched durability and heat dissipation
  • 2-piece construction

Product details


 Description

5000 Series XD features non directional cross drilled and dimpled design to provide enhanced structural support. The XD finish provides cooling benefits above the HD finish along with enhanced sports aesthetics.
Sharing all the benefits of the 4000 SERIES, 5000 SERIES rotors are a composite 2 piece direct replacement brake rotor. We use only the highest quality materials to ensure optimal performance under the most strenuous circumstances, combining high carbon cast iron rings with aerospace grade aluminium hats (T6061-T6) held together with National Aerospace Standards (NAS) bolts and crimp nuts.

 Specifications

Package
  • Brand
    DBADBA 2 Piece Brake Rotors
  • Part Number
    DBA53922BLKXD
  • UPC
    316391470898
  • Height
    2. in
  • Width
    14. in
  • Length
    14. in
  • Weight
    18 lbs
Details
  • Part Name
    Disc Brake Rotor
  • Center Hole Diameter
    62 mm
  • Discard Thickness
    28 mm
  • Nominal Thickness
    28 mm
  • Outside Diameter
    356 mm
  • Overall Height
    49.5 mm
  • Solid Or Vented Type Rotor
    Vented
  • Stud/Lug Hole Quantity
    5
  • Surface Type
    Drilled Slotted
Manufacturer description
  • Manufacturer Label
    F DBA 5000 XD

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles


Model Engine Trim Notes
2023, Toyota GR Corolla Circuit Edition Front
2023, Toyota GR Corolla Core Front
2023, Toyota GR Corolla Morizo Edition Front
