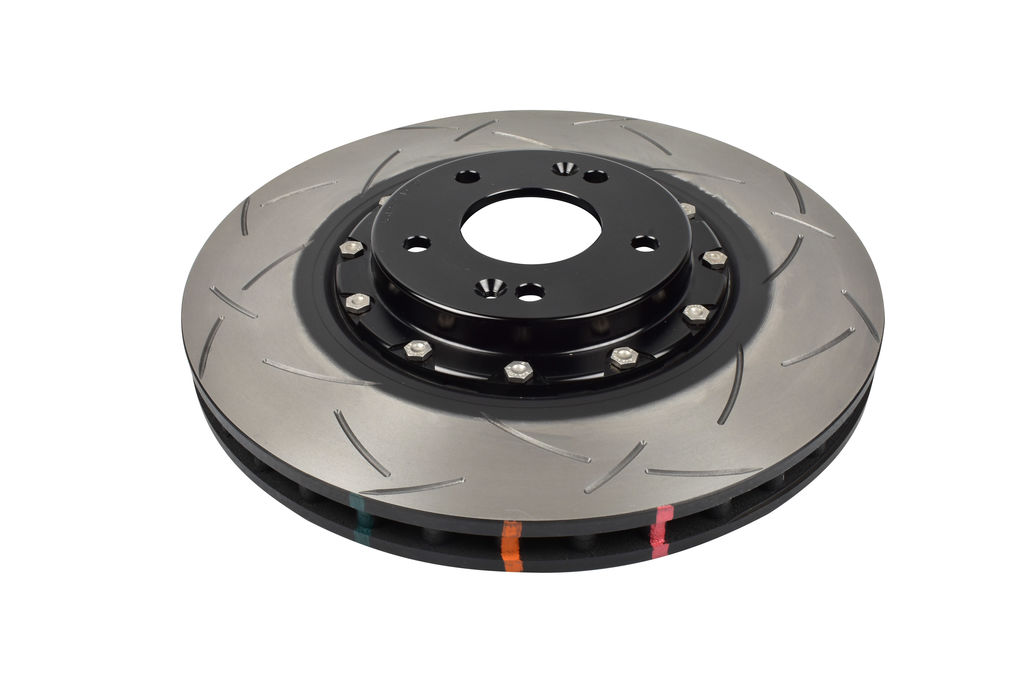

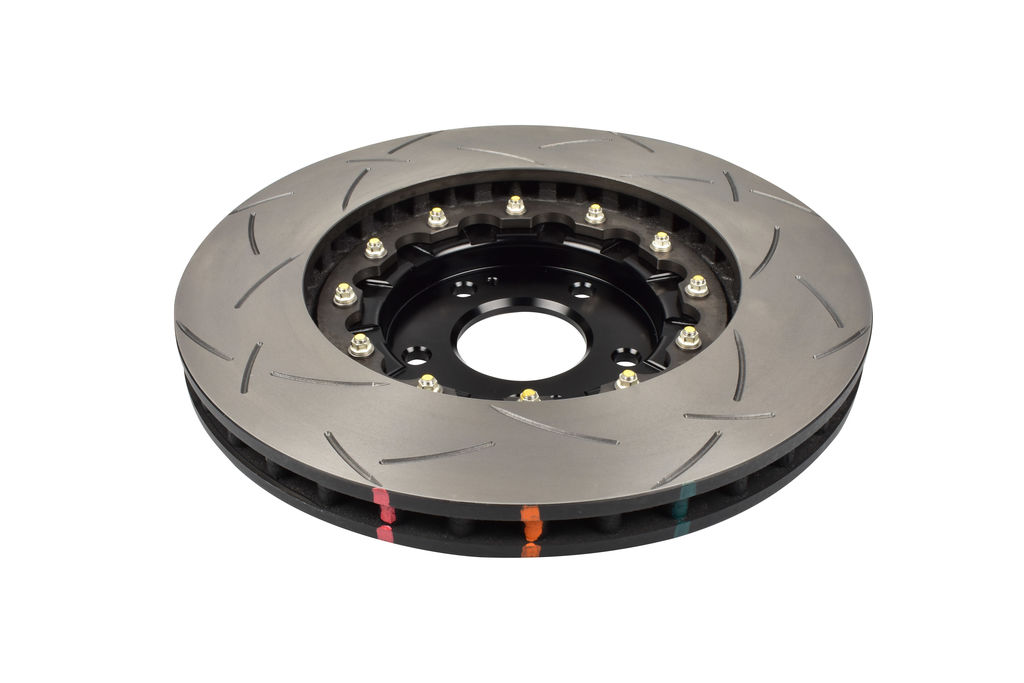

DBA DBA53146BLKS - 5000 Series T3 Slotted Brake Rotor, Sold Individually

Previous image
DBA DBA53146BLKS - 5000 Series T3 Slotted Brake Rotor, Sold Individually
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

DBA DBA53146BLKS - 5000 Series T3 Slotted Brake Rotor, Sold Individually

Part No: DBA53146BLKS
Special Order Arrives: Jun 25 - Jul 2

Please call 888-257-7149 for product availability

  • $761.00 & FREE Shipping
List: $899.37

Starting at $XX/mo with Affirm. Prequalify now

DBA DBA53146BLKS - 5000 Series T3 Slotted Brake Rotor, Sold Individually

DMWK-DBA53146BLKS
Special Order Arrives: Jun 25 - Jul 2

Please call 888-257-7149 for product availability

  • $761.00 & FREE Shipping
List: $899.37

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific

Specs and ratings

Stopping Power:




Noise Level:




Performance Over Stock:




  • The hat and its rings can be purchased together or separately for easy maintenance and repair.
  • Slots and/or chamfered drill holes remove dust and gasses to enhance the pedal feel.
  • Ultra-lightweight 6061 T6 aviation aluminum center hat/bell enhances vehicle control and minimizes hub heat.
  • The aluminum hat is anodized to withstand rust and look better.
  • The iron microstructure is realigned during the heat treatment cycles, making for a more stable and long-lasting rotor.
  • Kangaroo Paw vane design extends brake life by 20%.
  • Paint markings change color at varying temperature levels to indicate rotor fatigue.

Product details


 Description

5000 Series T3 is the ultimate in direct replacement 2 piece performance brake rotors. Featuring all the benefits of the 5000 Series along with DBA?s patented world renowned T3 bi directional slot design.
Sharing all the benefits of the 4000 SERIES, 5000 SERIES rotors are a composite 2 piece direct replacement brake rotor. We use only the highest quality materials to ensure optimal performance under the most strenuous circumstances, combining high carbon cast iron rings with aerospace grade aluminium hats (T6061-T6) held together with National Aerospace Standards (NAS) bolts and crimp nuts.

 Technical Documents

 Specifications

Package
  • Brand
    DBADBA 2 Piece Brake Rotors
  • Part Number
    DBA53146BLKS
  • UPC
    316391459886
  • Height
    2. in
  • Width
    16. in
  • Length
    16. in
  • Weight
    19 lbs
Attributes
  • Recommended Use
    Performance
  • Driving Qualifiers
    Performance Street, Street & Track Events, Towing-Oversized Tires, Extreme & Fleet Duty
  • Budget
    High
  • Rotor Style
    Slotted
  • Rotor Coating
    Coated
  • Rotor Treatment
    Non-Cryo Treated
  • Rotor Material
    High Carbon
  • Stopping Power
    5 / 5
  • Noise Level
    1 / 5
  • Performance Over Stock
    5 - Racing
Details
  • Part Name
    Disc Brake Rotor
  • Center Hole Diameter
    69 mm
  • Discard Thickness
    30 mm
  • Nominal Thickness
    30 mm
  • Outside Diameter
    345 mm
  • Overall Height
    52.3 mm
  • Solid Or Vented Type Rotor
    Vented
  • Stud/Lug Hole Quantity
    5
  • Surface Type
    Slotted
Manufacturer description
  • Manufacturer Label
    F DBA 5000 S

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles


Model Engine Trim Notes
2022, Hyundai Veloster N Base Front
2020, Hyundai Veloster N Base Front
2019, Hyundai Veloster N Base Front
