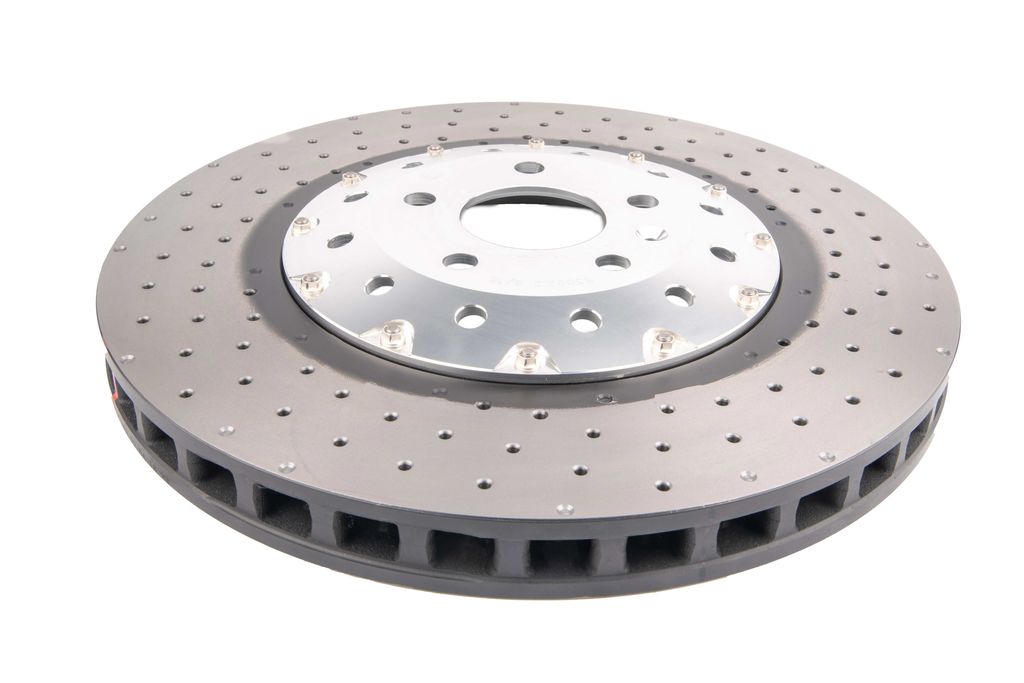

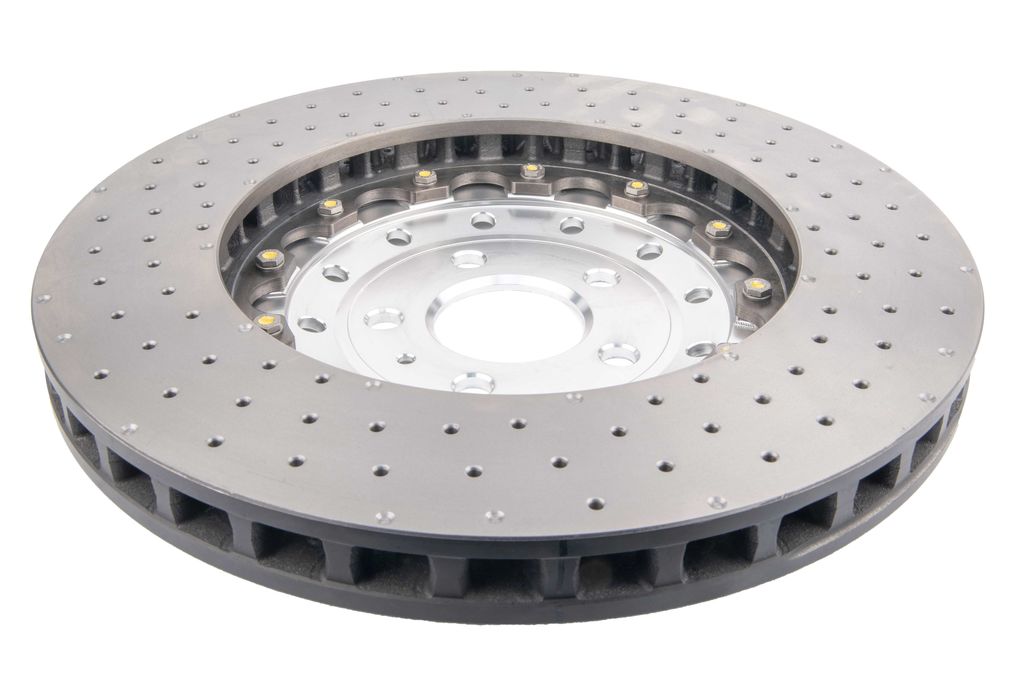

DBA DBA53002SLVXD - Disc Brake Rotor

Previous image
DBA DBA53002SLVXD - Disc Brake Rotor
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

DBA DBA53002SLVXD - Disc Brake Rotor

Part No: DBA53002SLVXD
Only 1 left in Stock, Order Soon Arrives: Jun 8 - 12
  • $755.58 & FREE Shipping
List: $1170.02

Starting at $XX/mo with Affirm. Prequalify now

DBA DBA53002SLVXD - Disc Brake Rotor

DMWK-DBA53002SLVXD
Only 1 left in Stock, Order Soon Arrives: Jun 8 - 12
  • $755.58 & FREE Shipping
List: $1170.02

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific

Specs and ratings

Stopping Power:




Noise Level:




Performance Over Stock:




  • This is a DBA 5000 2-piece rotor ring replacement, Order 2
  • High-carbon alloyed iron increases the rotor's heat capacity.
  • TSP heat treatment makes iron crack- and warp-resistant.
  • Slotted friction reduces glazing and improves pad bite.
  • Thermo-Graphic paint helps monitor heat.
  • Kangaroo Paw 144 diamond and teardrop pillar ventilation

Product details


 Description

5000 Series XD features non directional cross drilled and dimpled design to provide enhanced structural support. The XD finish provides cooling benefits above the HD finish along with enhanced sports aesthetics.
Sharing all the benefits of the 4000 SERIES, 5000 SERIES rotors are a composite 2 piece direct replacement brake rotor. We use only the highest quality materials to ensure optimal performance under the most strenuous circumstances, combining high carbon cast iron rings with aerospace grade aluminium hats (T6061-T6) held together with National Aerospace Standards (NAS) bolts and crimp nuts.

 Technical Documents

 Specifications

Package
  • Brand
    DBADBA Brake Rotors
  • Part Number
    DBA53002SLVXD
  • UPC
    316391428769
  • Height
    3. in
  • Width
    17. in
  • Length
    17. in
  • Weight
    32 lbs
Attributes
  • Recommended Use
    Performance
  • Driving Qualifiers
    Street & Track Events, Towing-Oversized Tires, Normal Commute, Performance Street, Commuter/OE Upgrade
  • Budget
    Medium
  • Rotor Style
    Slotted
  • Rotor Coating
    Coated
  • Rotor Treatment
    Non-Cryo Treated
  • Rotor Material
    High Carbon
  • Stopping Power
    5 / 5
  • Noise Level
    1 / 5
  • Performance Over Stock
    5 - Racing
Details
  • Part Name
    Disc Brake Rotor
  • Center Hole Diameter
    68 mm
  • Discard Thickness
    36 mm
  • Nominal Thickness
    36 mm
  • Outside Diameter
    356 mm
  • Overall Height
    52.2 mm
  • Solid Or Vented Type Rotor
    Vented
  • Stud/Lug Hole Quantity
    5
  • Surface Type
    Drilled Slotted
Manufacturer description
  • Manufacturer Label
    F DBA5000 XS

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles


Model Engine Trim Notes
2018, Audi RS7 Base Front
2018, Audi RS7 Performance Front
2017, Audi RS7 Base Front
2017, Audi RS7 Performance Front
2016, Audi RS7 Base Front
2016, Audi RS7 Performance Front
2016, Audi RS7 Progressiv Front
2015, Audi RS7 Base Front
2014, Audi RS7 Base Front
