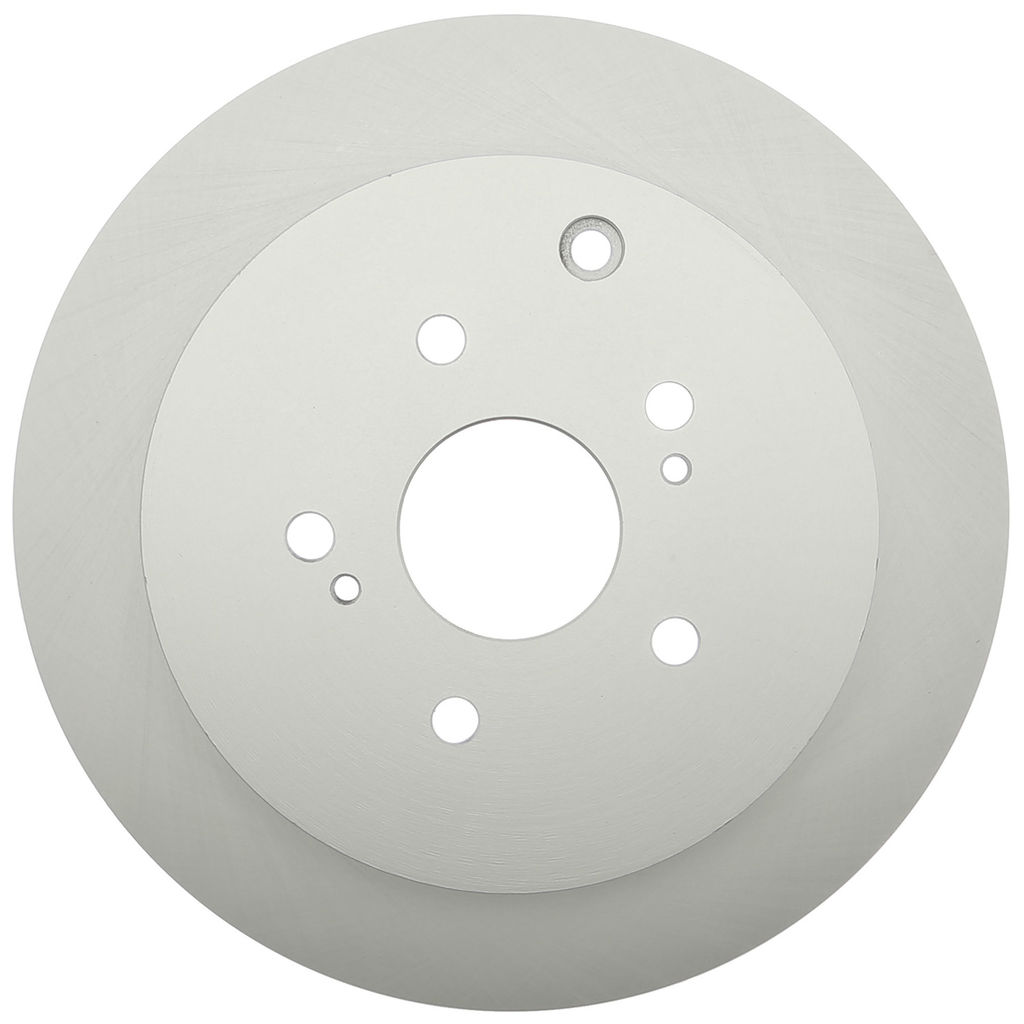

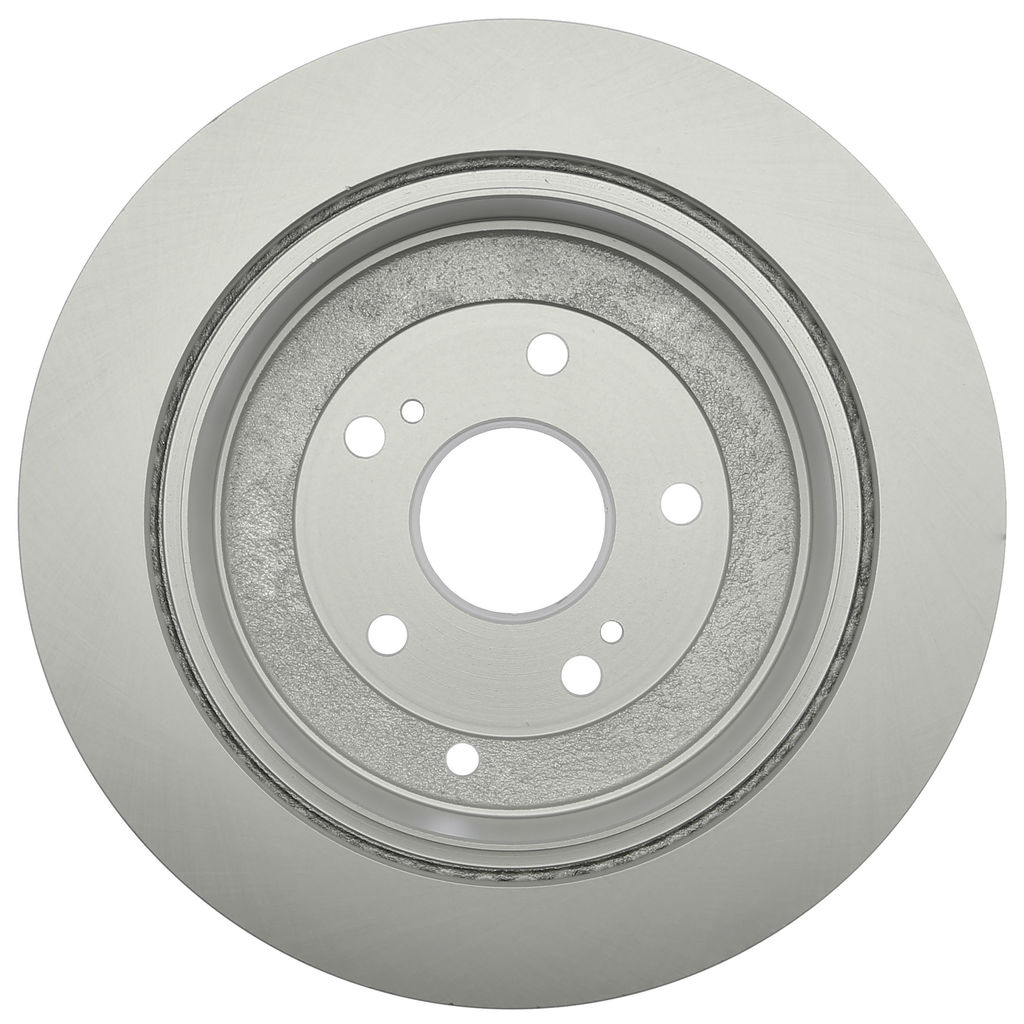

Centric 320.48014F - GCX Rotor with Full Coating, 308 mm

Previous image
Centric 320.48014F - GCX Rotor with Full Coating
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Centric 320.48014F - GCX Rotor with Full Coating, 308 mm

Part No: 320.48014F
Only 5 left in Stock, Order Soon Arrives: Jun 9 - 15
  • $63.10
List: $84.13

Starting at $XX/mo with Affirm. Prequalify now

Centric 320.48014F - GCX Rotor with Full Coating, 308 mm

HJCB-320.48014F
Only 5 left in Stock, Order Soon Arrives: Jun 9 - 15
  • $63.10
List: $84.13

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific
Check All Vehicles this Part Fits

 Other Products that also fit your Vehicle

GEOSPEC Coated Rotor
R1 Concepts - GEOSPEC Coated Rotor
RRE-01015
In Stock Arrives: Jun 11 - 17
  • $39.17
Geospec Coated Smooth Brake Rotor
Dynamic Friction - Geospec Coated Smooth Brake Rotor, 308 mm
604-01015
In Stock Arrives: Jun 11 - 17
  • $39.17

Product details

 Description

2 Coating Types Partially or Fully coated to match OE friction type; means the right rotor for your car; Road Ready From the box to your vehicle; no additional prep needed
2 Coating Types Partially or Fully coated to match OE friction type; means the right rotor for your car; Road Ready From the box to your vehicle; no additional prep needed

 Specifications

Package
  • Brand
    Centric,  Centric Brake Rotors
  • Part Number
    320.48014F
  • UPC
    889590731897
  • Height
    2.3 in
  • Width
    12.1 in
  • Length
    12.1 in
  • Weight
    13.6 lbs
Details
  • Part Name
    Disc Brake Rotor
  • ABS Tone Ring Included
    No
  • Bearings Included
    No
  • Center Hole Diameter
    62.000 mm
  • Disc Finish
    Fully Coated
  • Disc Mounting
    Floating / DIH
  • Discard Thickness
    14.000 mm
  • Hat Finish
    Coated
  • Max PB Drum Dia in
    7.874
  • Max PB Drum Dia mm
    200.000
  • Mounting Bolt Hole Circle Diameter
    114.300 mm
  • Nominal Drum Diameter
    201.000 mm
  • Nominal Thickness
    0.630 in
  • Outside Diameter
    308.000 mm
  • Overall Height
    57.200 mm
  • Product Grade
    Premium
  • Solid Or Vented Type Rotor
    Vented
  • Stud/Lug Hole Diameter
    12.600 mm
  • Stud/Lug Hole Quantity
    5
  • Surface Type
    Smooth
  • Vane Style
    Straight
Manufacturer description
  • Manufacturer Label
    Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2013, Suzuki Grand Vitara Base Rear, Qty - 2
2013, Suzuki Grand Vitara JLX Rear, Qty - 2
2013, Suzuki Grand Vitara JLX-L Rear, Qty - 2
2013, Suzuki Grand Vitara JX Rear, Qty - 2
2013, Suzuki Grand Vitara Limited Rear, Qty - 2
2013, Suzuki Grand Vitara Premium Rear, Qty - 2
2013, Suzuki Grand Vitara Urban Rear, Qty - 2
2012, Suzuki Grand Vitara Base Rear, Qty - 2
2012, Suzuki Grand Vitara JLX Rear, Qty - 2
2012, Suzuki Grand Vitara JLX-L Rear, Qty - 2
2012, Suzuki Grand Vitara JX Rear, Qty - 2
2012, Suzuki Grand Vitara Limited Rear, Qty - 2
2012, Suzuki Grand Vitara Premium Rear, Qty - 2
2012, Suzuki Grand Vitara Ultimate Adventure Edition Rear, Qty - 2
2012, Suzuki Grand Vitara Urban Rear, Qty - 2
2011, Suzuki Grand Vitara Base Rear, Qty - 2
2011, Suzuki Grand Vitara JLX Rear, Qty - 2
2011, Suzuki Grand Vitara JLX-L Rear, Qty - 2
2011, Suzuki Grand Vitara JX Rear, Qty - 2
2011, Suzuki Grand Vitara Limited Rear, Qty - 2
2011, Suzuki Grand Vitara Premium Rear, Qty - 2
2010, Suzuki Grand Vitara Base Rear, Qty - 2
2010, Suzuki Grand Vitara JLX Rear, Qty - 2
2010, Suzuki Grand Vitara JX Rear, Qty - 2
2010, Suzuki Grand Vitara Limited Rear, Qty - 2
2010, Suzuki Grand Vitara Premium Rear, Qty - 2
2010, Suzuki Grand Vitara XSport Rear, Qty - 2
2009, Suzuki Grand Vitara Base Rear, Qty - 2
2009, Suzuki Grand Vitara JA Rear, Qty - 2
2009, Suzuki Grand Vitara JLX Rear, Qty - 2
2009, Suzuki Grand Vitara JX Rear, Qty - 2
2009, Suzuki Grand Vitara Luxury Rear, Qty - 2
2009, Suzuki Grand Vitara Premium Rear, Qty - 2
2009, Suzuki Grand Vitara XSport Rear, Qty - 2
