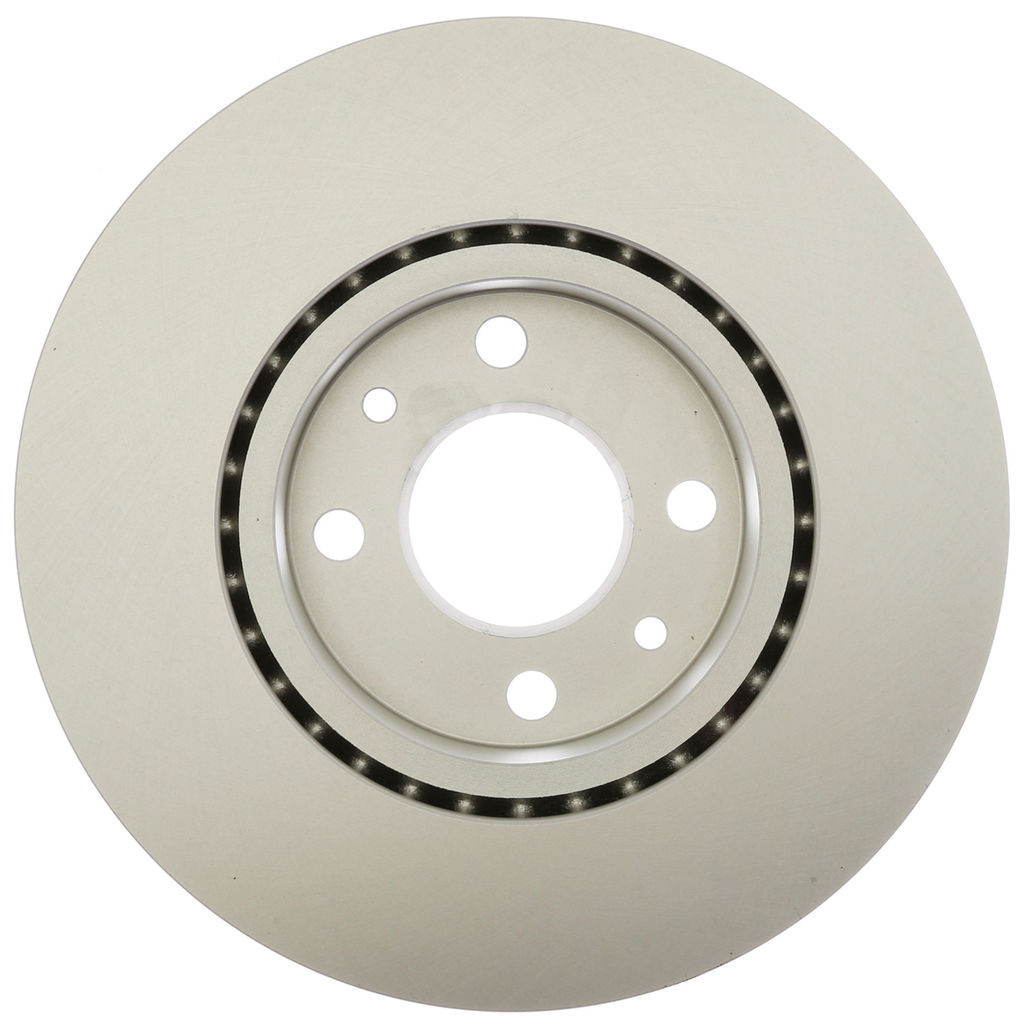

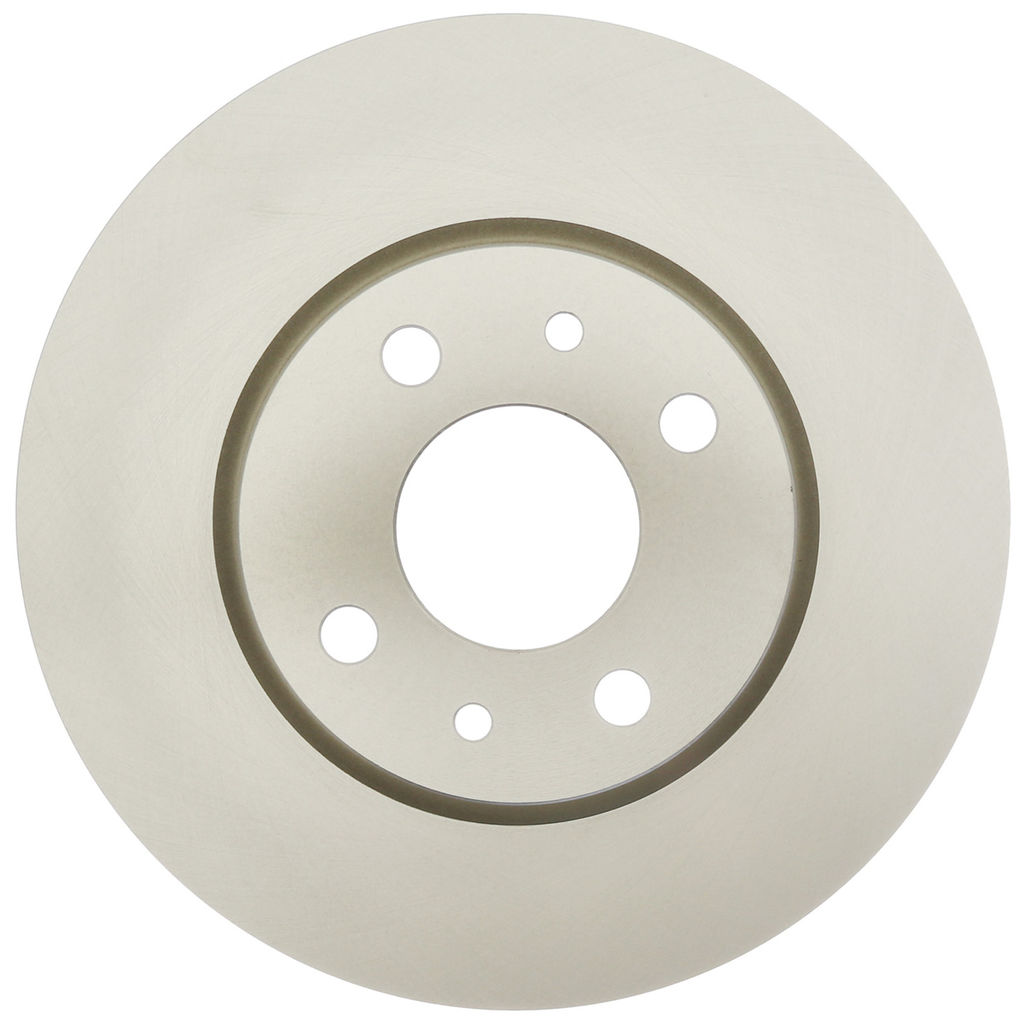

Centric 320.04002F - GCX Rotor with Full Coating, 257 mm

Previous image
Centric 320.04002F - GCX Rotor with Full Coating
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Centric 320.04002F - GCX Rotor with Full Coating, 257 mm

Part No: 320.04002F
Only 2 left in Stock, Order Soon Arrives: Jun 9 - 15
  • $56.48
List: $75.31

Starting at $XX/mo with Affirm. Prequalify now

Centric 320.04002F - GCX Rotor with Full Coating, 257 mm

HJCB-320.04002F
Only 2 left in Stock, Order Soon Arrives: Jun 9 - 15
  • $56.48
List: $75.31

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific
Check All Vehicles this Part Fits

 Other Products that also fit your Vehicle

GEOSPEC Coated Rotor
R1 Concepts - GEOSPEC Coated Rotor
RRE-07002
In Stock Arrives: Jun 11 - 17
  • $34.16
Geospec Coated Smooth Brake Rotor
Dynamic Friction - Geospec Coated Smooth Brake Rotor, 258 mm
604-07002
In Stock Arrives: Jun 11 - 17
  • $34.16

Product details

 Description

2 Coating Types Partially or Fully coated to match OE friction type; means the right rotor for your car; Road Ready From the box to your vehicle; no additional prep needed
2 Coating Types Partially or Fully coated to match OE friction type; means the right rotor for your car; Road Ready From the box to your vehicle; no additional prep needed

 Specifications

Package
  • Brand
    Centric,  Centric Brake Rotors
  • Part Number
    320.04002F
  • UPC
    889590728309
  • Height
    1.6 in
  • Width
    10.1 in
  • Length
    10.1 in
  • Weight
    11.6 lbs
Details
  • Part Name
    Disc Brake Rotor
  • ABS Tone Ring Included
    No
  • Bearings Included
    No
  • Center Hole Diameter
    59.000 mm
  • Disc Finish
    Fully Coated
  • Disc Mounting
    Floating
  • Discard Thickness
    0.795 in
  • Hat Finish
    Coated
  • Mounting Bolt Hole Circle Diameter
    3.858 in
  • Nominal Thickness
    22.000 mm
  • Outside Diameter
    10.130 in
  • Overall Height
    1.594 in
  • Product Grade
    Premium
  • Solid Or Vented Type Rotor
    Vented
  • Stud/Lug Hole Diameter
    13.300 mm
  • Stud/Lug Hole Quantity
    4
  • Surface Type
    Smooth
  • Vane Style
    Pillar
Manufacturer description
  • Manufacturer Label
    Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2017, Fiat 500 c Lounge Front, Qty - 2
2017, Fiat 500 c Pop Front, Qty - 2
2017, Fiat 500 Lounge Front, Qty - 2
2017, Fiat 500 Pop Front, Qty - 2
2016, Fiat 500 c Easy Front, Qty - 2
2016, Fiat 500 c Lounge Front, Qty - 2
2016, Fiat 500 c Pop Front, Qty - 2
2016, Fiat 500 Easy Front, Qty - 2
2016, Fiat 500 Lounge Front, Qty - 2
2016, Fiat 500 Pop Front, Qty - 2
2016, Fiat 500 Sport Front, Qty - 2
2015, Fiat 500 c Lounge Front, Qty - 2
2015, Fiat 500 c Pop Front, Qty - 2
2015, Fiat 500 Lounge Front, Qty - 2
2015, Fiat 500 Pop Front, Qty - 2
2015, Fiat 500 Sport Front, Qty - 2
2014, Fiat 500 c Lounge Front, Qty - 2
2014, Fiat 500 c Pop Front, Qty - 2
2014, Fiat 500 Lounge Front, Qty - 2
2014, Fiat 500 Pop Front, Qty - 2
2014, Fiat 500 Sport Front, Qty - 2
2013, Fiat 500 c Lounge Front, Qty - 2
2013, Fiat 500 c Pop Front, Qty - 2
2013, Fiat 500 Lounge Front, Qty - 2
2013, Fiat 500 Pop Front, Qty - 2
2013, Fiat 500 Sport Front, Qty - 2
2012, Fiat 500 c Lounge Front, Qty - 2
2012, Fiat 500 c Pop Front, Qty - 2
2012, Fiat 500 Gucci Front, Qty - 2
2012, Fiat 500 Lounge Front, Qty - 2
2012, Fiat 500 Pop Front, Qty - 2
2012, Fiat 500 Sport Front, Qty - 2

Fitment Notice

You have not selected a vehicle to verify this product will fit. You may be subject to return and restocking fees if you order the wrong part without confirming your vehicle first.
