Bilstein 48-248815 - Suspension Kit

Previous image
Bilstein 48-248815 - Suspension Kit
Next image
Zoom image

Bilstein 48-248815 - Suspension Kit

Part No: 48-248815

Bilstein 48-248815 - Suspension Kit

BBGL-48-248815
Vehicle Specific

Select your Vehicle

  • A fully street-legal, TUV-certified high-end suspension coilover package
  • 2-way adjustment system allows the separate configuration of rebound and bump
  • Two totally personalized aluminum dials offer 100 setting variations that can be selected and experienced
  • 100% easy to use and adjust after installation
  • Uses Bilstein’s monotube technology for greater damping power
  • Surface coating using Triple-C-Technology® for maximum corrosion resistance
Check All Vehicles this Part Fits

Product details

 Description

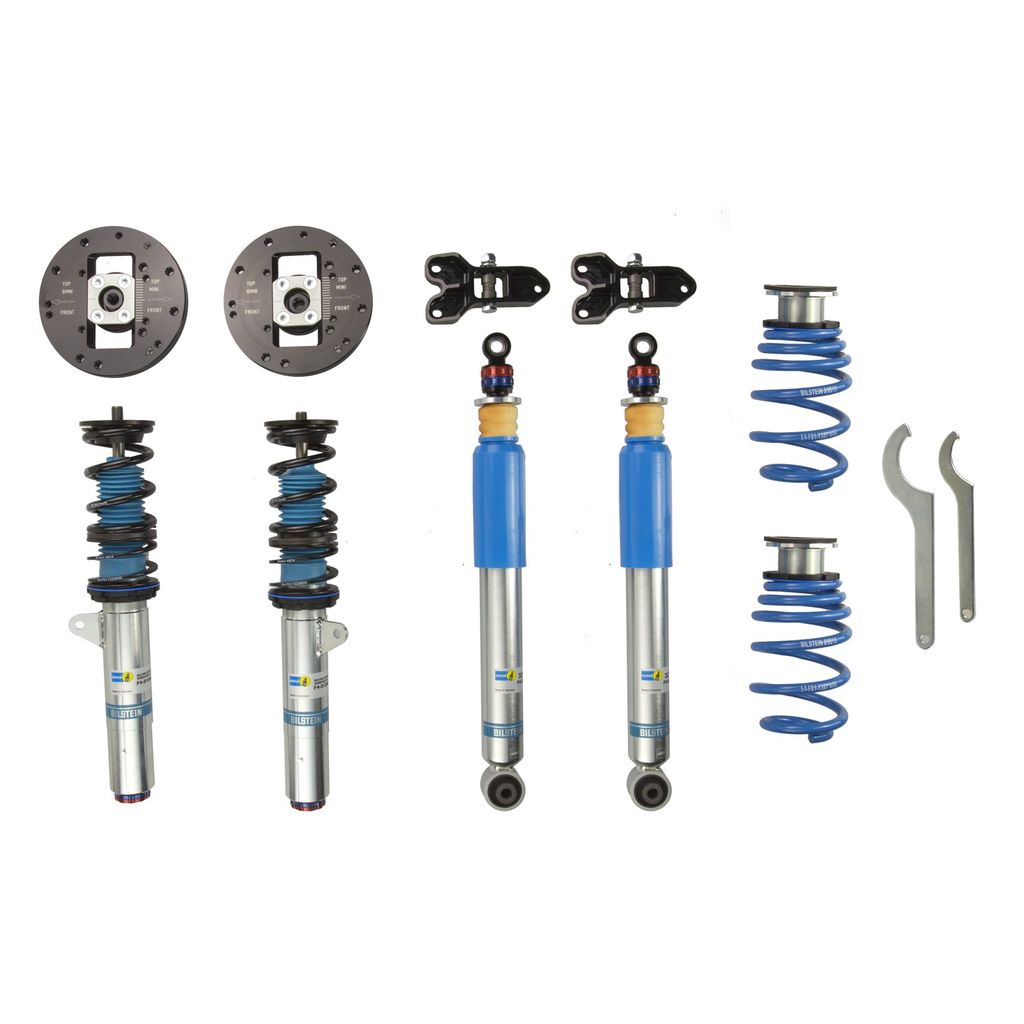

Performance Suspension System
The Bilstein Clubsport Suspension Kit is the ultimate motorsport suspension solution that delivers uncompromised performance in the fields of racing and clubsport. It features a 2-way adjustment system that allows for up to 100 variations—from 1 (soft) to 10 (hard)—with noticeable differences. It also comes with an integrated reservoir instead of an external reservoir, providing the necessary weight advantage to stay competitive on the track. With this in your ride, you can quickly and accurately fine-tune its suspension setup based on the race track, vehicle weight, and weather condition.

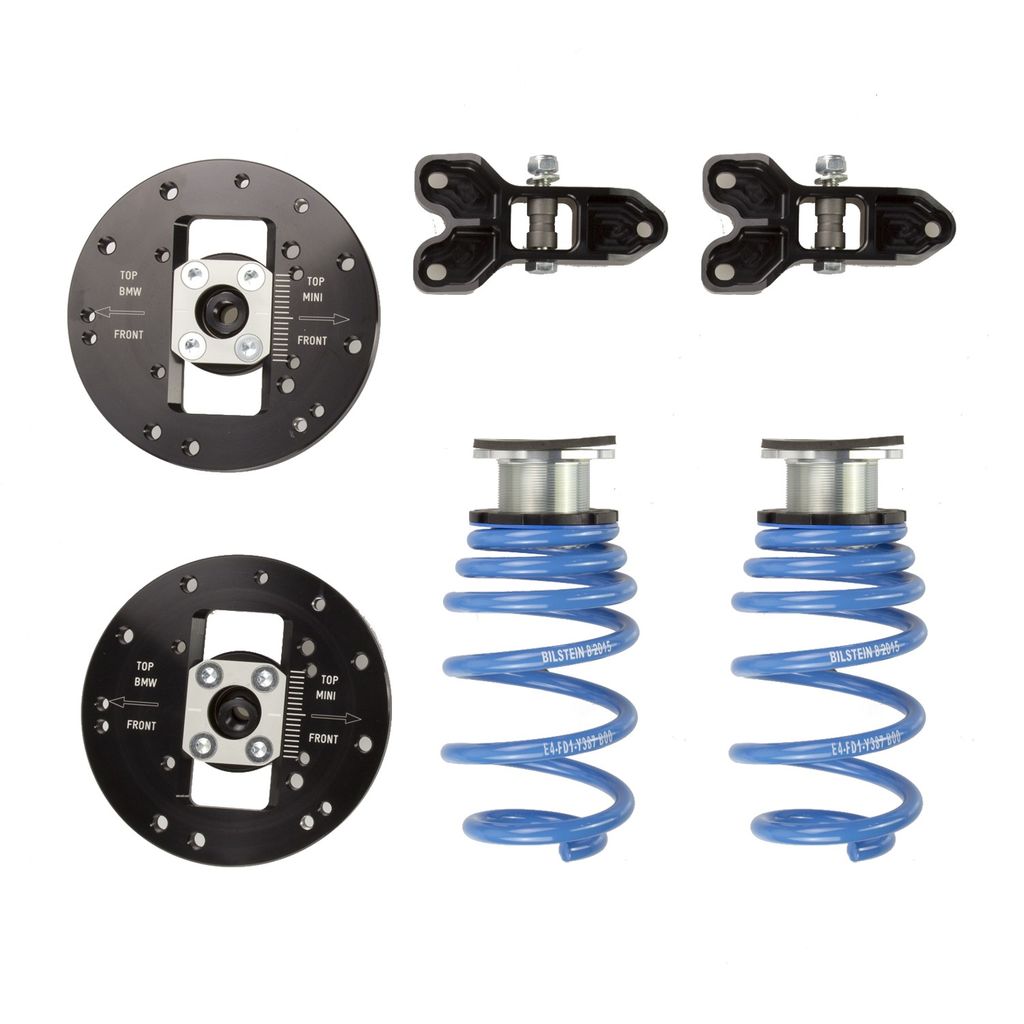

Bilstein Clubsport suspension kits feature ride height adjustability with 2-way manually adjustable dampers in an OE quality, direct fit package. The 2-way independent rebound and compression adjustment features 10-stages each, providing up to 100 different settings for the ultimate in handling performance under any condition. The adjustable monoball upper mounts allow the user to change camber settings to suit any road, condition or driver preference. These kits offer monotube performance dampers with matched springs that are tuned for each specific application. The zinc coated and threaded body design will give you the flexibility to find the perfect ride height setting for your intended use while providing unsurpassed protection against the harshest road elements. Bilstein Clubsport suspension kits are made in Germany and tested under motorsports conditions on the famed Nurburgring.
Not all tracks are the same. So if you want your suspension to deliver consistent, reliable performance no matter the track, then equip your ride with the Bilstein Clubsport Suspension Kit. This kit allows you to create your personalized setup with two aluminum dials offering 10 clicks each for compression and rebound. With up to 100 setting variations to experience and manually select, you get maximum grip and control when pushing the limits on the street and on the track. Bilstein’s Clubsport suspension uses the famous monotube gas pressure technology that provides greater damping power for improved handling and consistent performance. And since its surface is coated using Triple-C-Technology®, it’s well protected against corrosion and other harsh road elements.

 Specifications

Package
  • Brand
    Bilstein,  Bilstein Suspension
  • Part Number
    48-248815
  • UPC
    651860768618
  • Height
    8.25 in
  • Width
    11. in
  • Length
    30.3 in
  • Weight
    49.56 lbs
Details
  • Finish
    Dampers: Zinc Plated/Springs: Black
  • Internal Design
    Monotube
  • Series
    Bilstein Clubsport
  • Title
    Bilstein Shock Absorbers
Manufacturer description
  • Manufacturer Label
    Bilstein Clubsport

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2020, Mini Cooper Base Front and Rear, Without Electronic Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-40mm, up to 945kg Axle Load;Rear Lowered Height: 20-30mm, up to 855kg Axle Load
2020, Mini Cooper John Cooper Works Front and Rear, Without Electronic Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-40mm, up to 945kg Axle Load;Rear Lowered Height: 20-30mm, up to 855kg Axle Load
2020, Mini Cooper S Front and Rear, Without Electronic Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-40mm, up to 945kg Axle Load;Rear Lowered Height: 20-30mm, up to 855kg Axle Load
2019, Mini Cooper Base Front and Rear, Without Electronic Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-40mm, up to 945kg Axle Load;Rear Lowered Height: 20-30mm, up to 855kg Axle Load
2019, Mini Cooper John Cooper Works Front and Rear, Without Electronic Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-40mm, up to 945kg Axle Load;Rear Lowered Height: 20-30mm, up to 855kg Axle Load
2019, Mini Cooper S Front and Rear, Without Electronic Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-40mm, up to 945kg Axle Load;Rear Lowered Height: 20-30mm, up to 855kg Axle Load
2018, Mini Cooper Base Front and Rear, Without Electronic Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-40mm, up to 945kg Axle Load;Rear Lowered Height: 20-30mm, up to 855kg Axle Load
2018, Mini Cooper John Cooper Works Front and Rear, Without Electronic Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-40mm, up to 945kg Axle Load;Rear Lowered Height: 20-30mm, up to 855kg Axle Load
2017, Mini Cooper Base Front and Rear, Without Electronic Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-40mm, up to 945kg Axle Load;Rear Lowered Height: 20-30mm, up to 855kg Axle Load
2017, Mini Cooper John Cooper Works Front and Rear, Without Electronic Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-40mm, up to 945kg Axle Load;Rear Lowered Height: 20-30mm, up to 855kg Axle Load
2017, Mini Cooper S Front and Rear, Without Electronic Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-40mm, up to 945kg Axle Load;Rear Lowered Height: 20-30mm, up to 855kg Axle Load
2016, Mini Cooper Base Front and Rear, Without Electronic Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-40mm, up to 945kg Axle Load;Rear Lowered Height: 20-30mm, up to 855kg Axle Load
2016, Mini Cooper John Cooper Works Front and Rear, Without Electronic Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-40mm, up to 945kg Axle Load;Rear Lowered Height: 20-30mm, up to 855kg Axle Load
2016, Mini Cooper S Front and Rear, Without Electronic Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-40mm, up to 945kg Axle Load;Rear Lowered Height: 20-30mm, up to 855kg Axle Load
2015, Mini Cooper Base, Hatchback Front and Rear, Without Electronic Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-40mm, up to 945kg Axle Load;Rear Lowered Height: 20-30mm, up to 855kg Axle Load
2015, Mini Cooper S, Hatchback Front and Rear, Without Electronic Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-40mm, up to 945kg Axle Load;Rear Lowered Height: 20-30mm, up to 855kg Axle Load
2014, Mini Cooper Base, Hatchback Front and Rear, Without Electronic Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-40mm, up to 945kg Axle Load;Rear Lowered Height: 20-30mm, up to 855kg Axle Load
2014, Mini Cooper S, Hatchback Front and Rear, Without Electronic Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-40mm, up to 945kg Axle Load;Rear Lowered Height: 20-30mm, up to 855kg Axle Load
