Bilstein 48-230971 - Suspension Kit

Previous image
Bilstein 48-230971 - Suspension Kit
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Bilstein 48-230971 - Suspension Kit

Part No: 48-230971
Out of Stock

Please call 888-257-7149 to check future availability

  • $2006.42 & FREE Shipping
List: $2889.00

Starting at $XX/mo with Affirm. Prequalify now

Bilstein 48-230971 - Suspension Kit

BBGL-48-230971
Out of Stock

Please call 888-257-7149 to check future availability

  • $2006.42 & FREE Shipping
List: $2889.00

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific
  • Quick and easy damping level adjustment
  • Threaded body allows lowering of approximately 30mm to 50mm
  • Tested by our engineers under motorsport conditions

Product details


 Description

Performance Suspension System

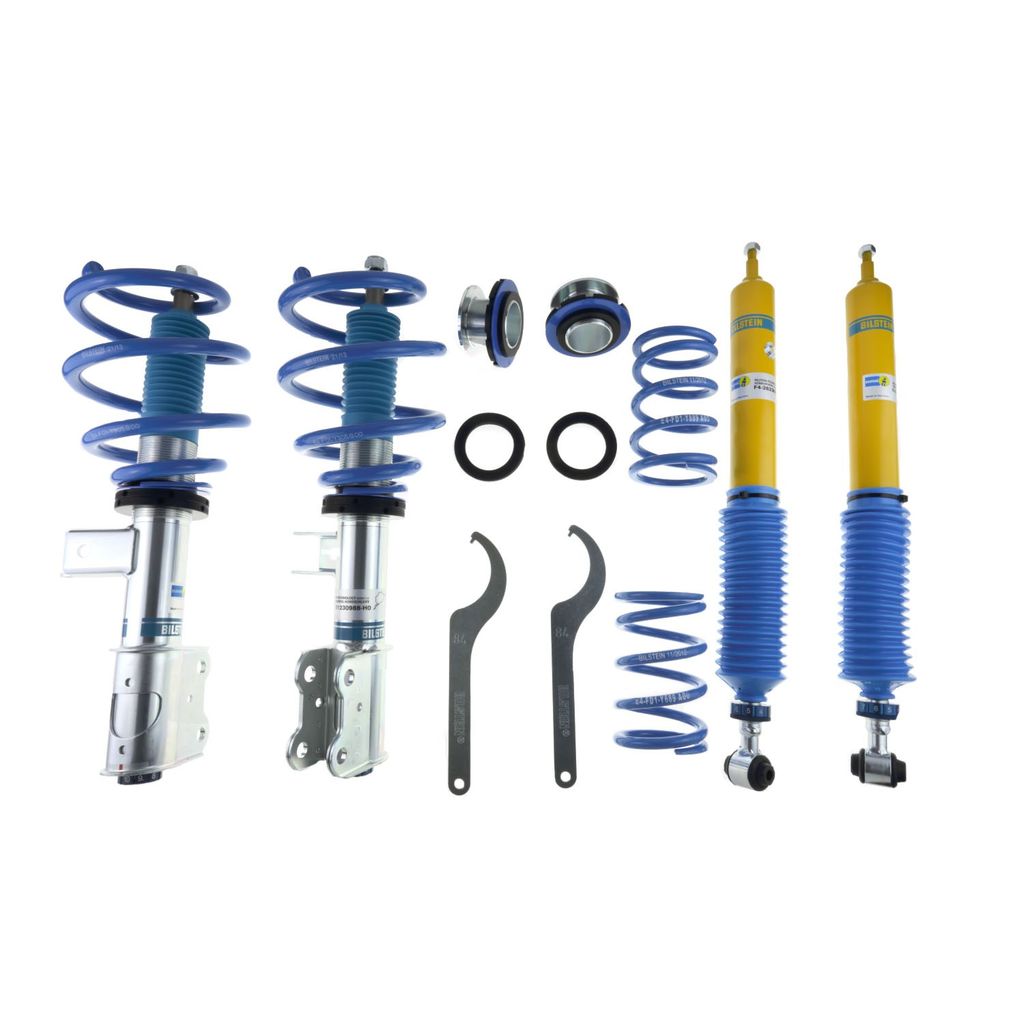

Bilstein B16 (PSS10) suspension kits feature ride height adjustability with 10-stage manually adjustable dampers in an OE quality, direct fit package. The 10-stage damping system adjusts both rebound and compression with each click to provide the best handling performance in any condition. These kits offer monotube performance dampers with matched springs that are tuned for each specific application. The zinc coated and threaded body design will give you the flexibility to find the perfect ride height setting for your intended use while providing unsurpassed protection against the harshest road elements. B16 (PSS10) suspension kits are made in Germany and feature technology tested on the famed Nurburgring.

 Specifications

Package
  • Brand
    BilsteinBilstein Suspension
  • Part Number
    48-230971
  • UPC
    651860723235
  • Height
    8.3 in
  • Width
    11. in
  • Length
    30.3 in
  • Weight
    50.86 lbs
Details
  • Finish
    Dampers: Zinc Front Yellow Rear/Springs: Blue
  • Internal Design
    Monotube
  • PartType
    Suspension Kit
  • Segment
    Tuning
  • Series
    B16 (PSS10)
  • Title
    Bilstein Shock Absorbers
Manufacturer description
  • Manufacturer Label
    B16 (PSS10)

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles


Model Engine Trim Notes
2019, Mercedes-Benz CLA250 4Matic Front and Rear, Without Electronic Suspension;Front Lowered Height: 30-50mm;Rear Lowered Height: 30-50mm
2019, Mercedes-Benz CLA250 Base Front and Rear, Without Electronic Suspension;Front Lowered Height: 30-50mm;Rear Lowered Height: 30-50mm
2019, Mercedes-Benz CLA45 AMG 4Matic Front and Rear, Without Electronic Suspension;Front Lowered Height: 30-50mm;Rear Lowered Height: 30-50mm
2018, Mercedes-Benz CLA250 4Matic Front and Rear, Without Electronic Suspension;Front Lowered Height: 30-50mm;Rear Lowered Height: 30-50mm
2018, Mercedes-Benz CLA250 Base Front and Rear, Without Electronic Suspension;Front Lowered Height: 30-50mm;Rear Lowered Height: 30-50mm
2018, Mercedes-Benz CLA45 AMG 4Matic Front and Rear, Without Electronic Suspension;Front Lowered Height: 30-50mm;Rear Lowered Height: 30-50mm
2017, Mercedes-Benz CLA250 4Matic Front and Rear, Without Electronic Suspension;Front Lowered Height: 30-50mm;Rear Lowered Height: 30-50mm
2017, Mercedes-Benz CLA250 Base Front and Rear, Without Electronic Suspension;Front Lowered Height: 30-50mm;Rear Lowered Height: 30-50mm
2017, Mercedes-Benz CLA45 AMG 4Matic Front and Rear, Without Electronic Suspension;Front Lowered Height: 30-50mm;Rear Lowered Height: 30-50mm
2016, Mercedes-Benz CLA250 4Matic Front and Rear, Without Electronic Suspension;Front Lowered Height: 30-50mm;Rear Lowered Height: 30-50mm
2016, Mercedes-Benz CLA250 Base Front and Rear, Without Electronic Suspension;Front Lowered Height: 30-50mm;Rear Lowered Height: 30-50mm
2016, Mercedes-Benz CLA45 AMG 4Matic Front and Rear, Without Electronic Suspension;Front Lowered Height: 30-50mm;Rear Lowered Height: 30-50mm
2015, Mercedes-Benz CLA250 4Matic Front and Rear, Front Lowered Height: 30-50mm;Rear Lowered Height: 30-50mm
2015, Mercedes-Benz CLA250 Base Front and Rear, Front Lowered Height: 30-50mm;Rear Lowered Height: 30-50mm
2015, Mercedes-Benz CLA45 AMG 4Matic Front and Rear, Without Electronic Suspension;Front Lowered Height: 30-50mm;Rear Lowered Height: 30-50mm
2014, Mercedes-Benz CLA250 4Matic Front and Rear, Front Lowered Height: 30-50mm;Rear Lowered Height: 30-50mm
2014, Mercedes-Benz CLA250 Base Front and Rear, Front Lowered Height: 30-50mm;Rear Lowered Height: 30-50mm
2014, Mercedes-Benz CLA45 AMG 4Matic Front and Rear, Without Electronic Suspension;Front Lowered Height: 30-50mm;Rear Lowered Height: 30-50mm

Fitment Notice

You have not selected a vehicle to verify this product will fit. You may be subject to return and restocking fees if you order the wrong part without confirming your vehicle first.
