Bilstein 48-223539 - Suspension Kit

Previous image
Bilstein 48-223539 - Suspension Kit
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Bilstein 48-223539 - Suspension Kit

Part No: 48-223539

Bilstein 48-223539 - Suspension Kit

BBGL-48-223539
Vehicle Specific
  • Separate configurations for rebound and compression: Red for rebound, blue for compression
  • 100 setting variations that can be manually selected and experienced with tangible differences
  • Aluminum adjusters are easy-to-read and scale from 1 (soft) to 10 (hard)
Check All Vehicles this Part Fits

Product details

 Description

Performance Suspension System

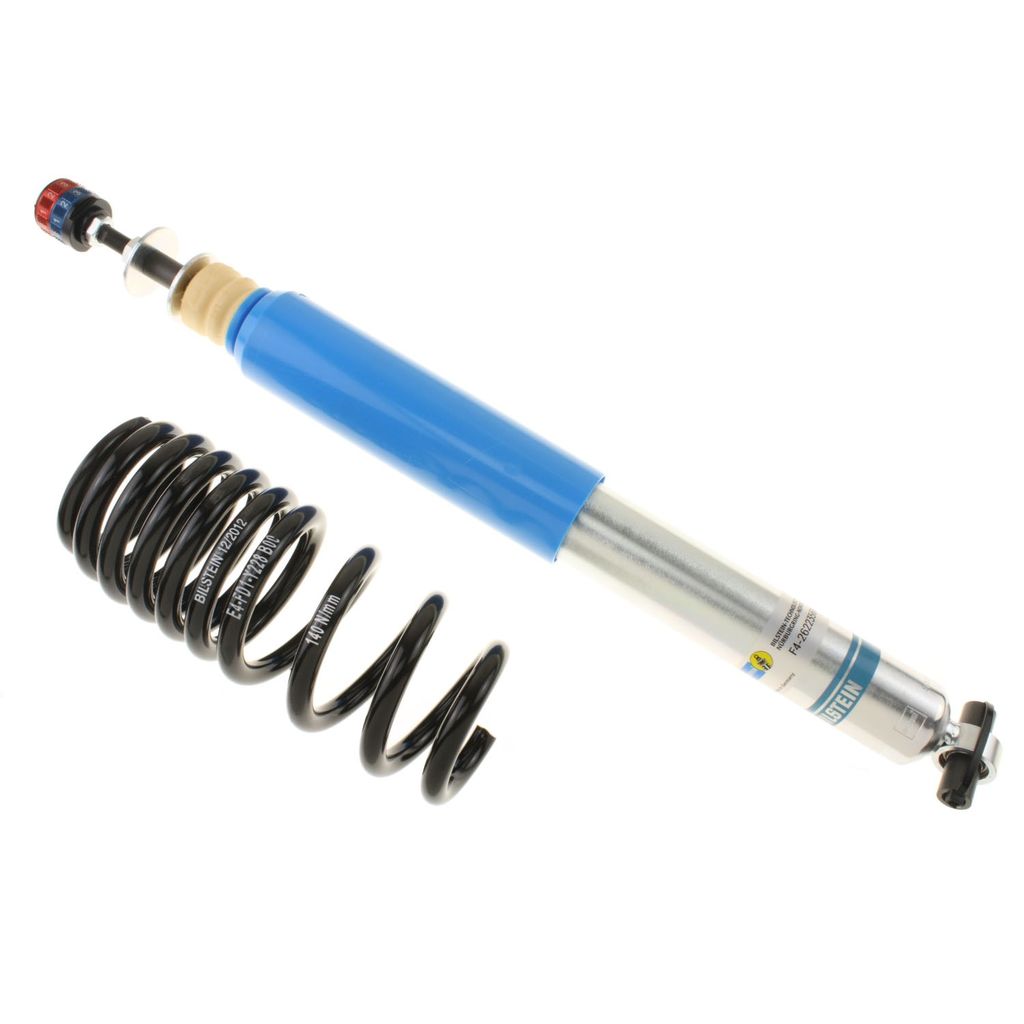

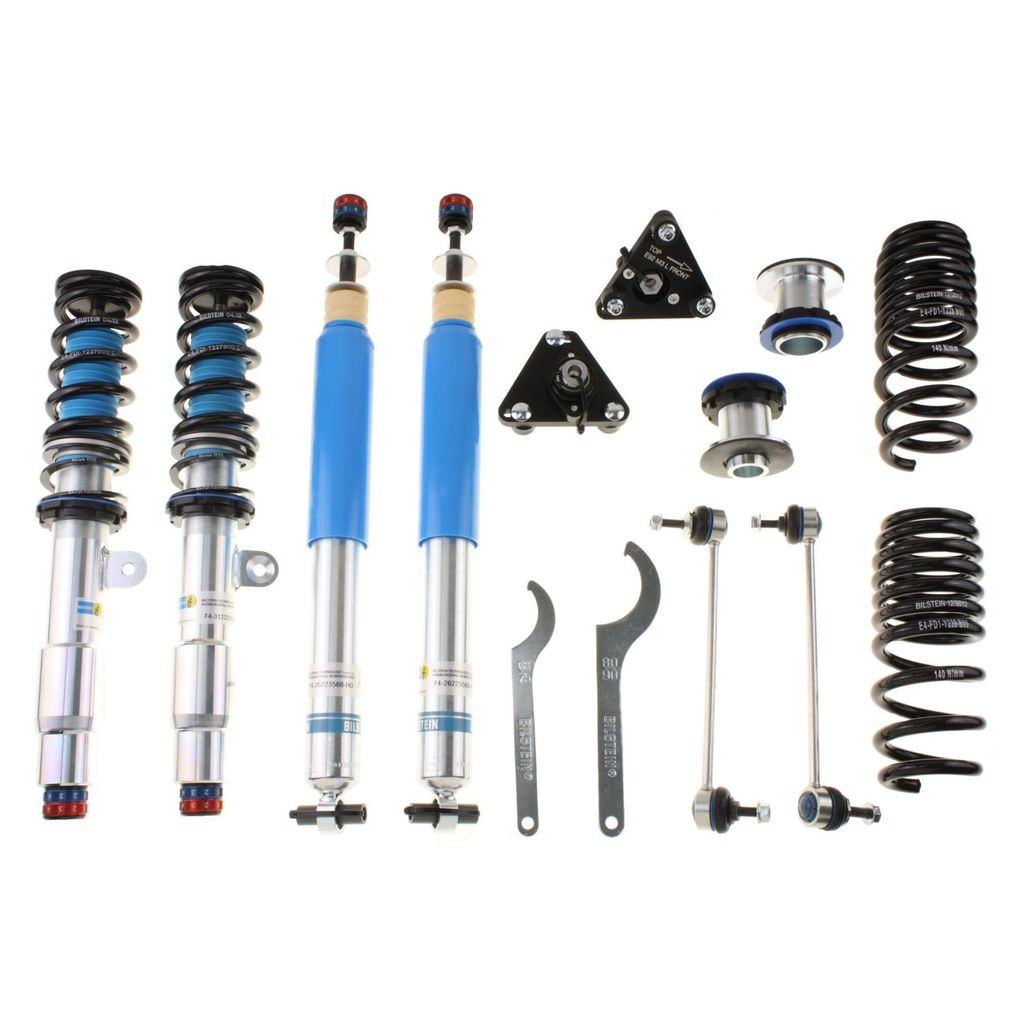

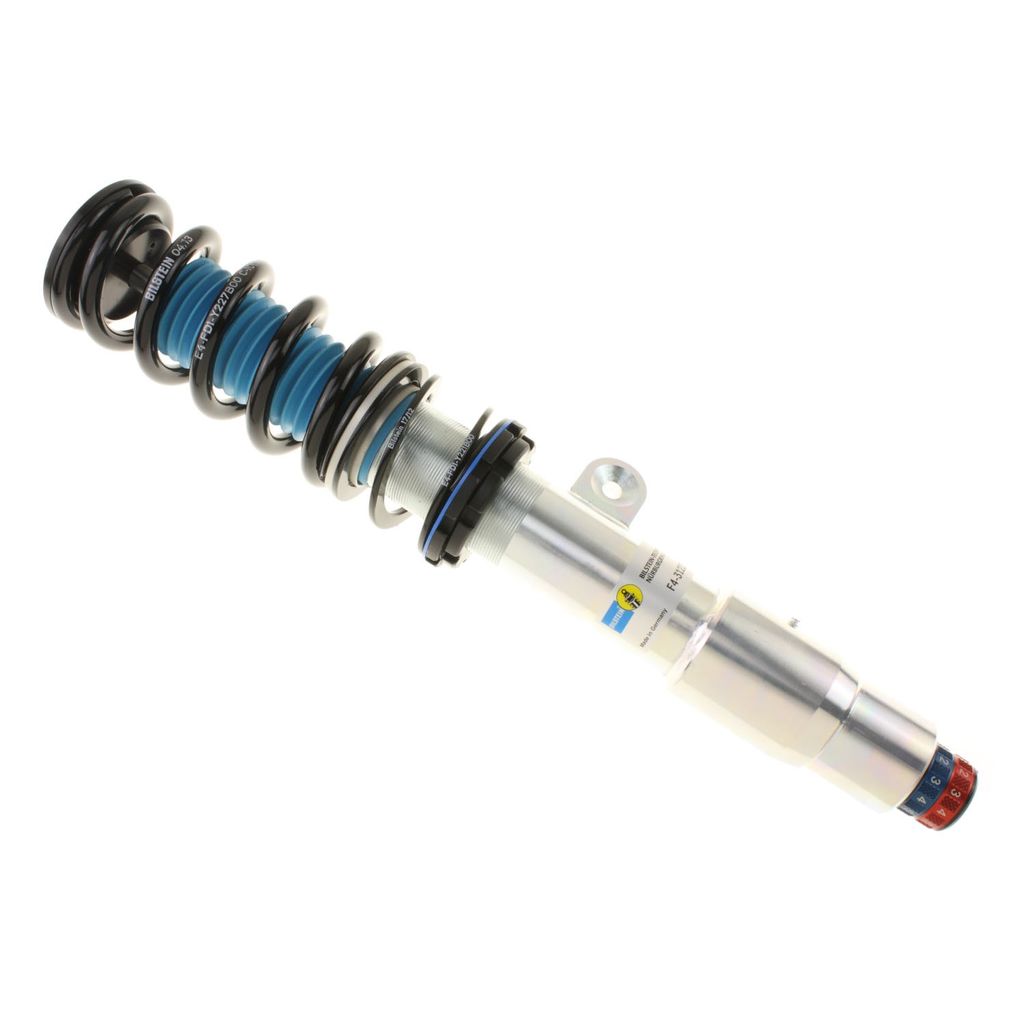

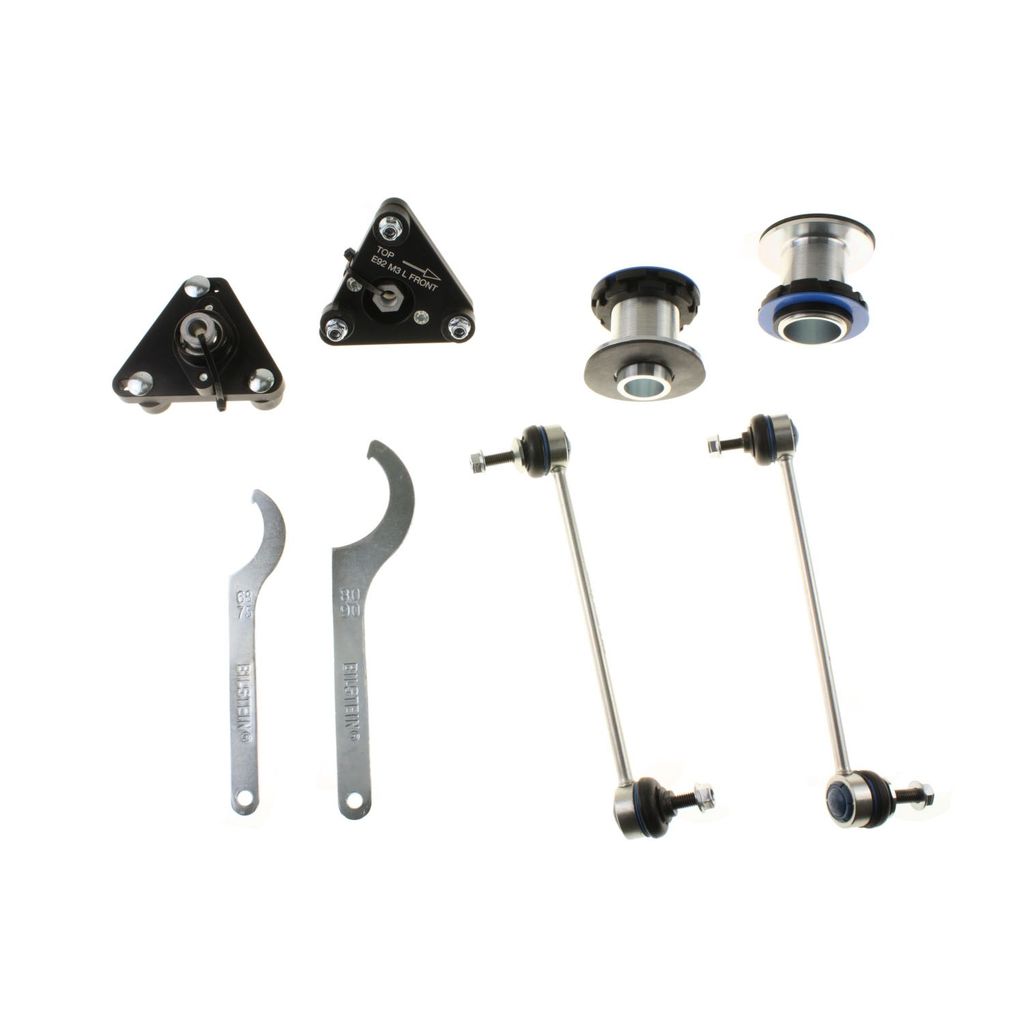

Bilstein Clubsport suspension kits feature ride height adjustability with 2-way manually adjustable dampers in an OE quality, direct fit package. The 2-way independent rebound and compression adjustment features 10-stages each, providing up to 100 different settings for the ultimate in handling performance under any condition. The adjustable monoball upper mounts allow the user to change camber settings to suit any road, condition or driver preference. These kits offer monotube performance dampers with matched springs that are tuned for each specific application. The zinc coated and threaded body design will give you the flexibility to find the perfect ride height setting for your intended use while providing unsurpassed protection against the harshest road elements. Bilstein Clubsport suspension kits are made in Germany and tested under motorsports conditions on the famed Nurburgring.

 Specifications

Package
  • Brand
    Bilstein,  Bilstein Suspension
  • Part Number
    48-223539
  • UPC
    651860706702
  • Height
    8.25 in
  • Width
    11. in
  • Length
    30.3 in
  • Weight
    59.26 lbs
Details
  • Finish
    Dampers: Zinc Plated/Springs: Black
  • Internal Design
    Monotube
  • PartType
    Suspension Kit
  • Segment
    Tuning
  • Series
    Bilstein Clubsport
  • Title
    Bilstein Shock Absorbers
Manufacturer description
  • Manufacturer Label
    Bilstein Clubsport

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2013, BMW M3 Base Front and Rear, Front Lowered Height: 15-30mm, up to 1020kg Axle Load;Rear Lowered Height: 15-30mm, up to 1190kg Axle Load;With or Without Electronic Damping Control, Vehicles Equipped With EDC Must Purchase 50-174546
2012, BMW M3 Base Front and Rear, Front Lowered Height: 15-30mm, up to 1020kg Axle Load;Rear Lowered Height: 15-30mm, up to 1190kg Axle Load;With or Without Electronic Damping Control, Vehicles Equipped With EDC Must Purchase 50-174546
2011, BMW 1 Series M Base Front and Rear, Front Lowered Height: 10-35mm, up to 1020kg Axle Load;Rear Lowered Height: 20-35mm, up to 1190kg Axle Load;With Uniball Joint Bearing
2011, BMW M3 Base Front and Rear, Front Lowered Height: 15-30mm, up to 1020kg Axle Load;Rear Lowered Height: 15-30mm, up to 1190kg Axle Load;With or Without Electronic Damping Control, Vehicles Equipped With EDC Must Purchase 50-174546
2010, BMW M3 Base Front and Rear, Front Lowered Height: 15-30mm, up to 1020kg Axle Load;Rear Lowered Height: 15-30mm, up to 1190kg Axle Load;With or Without Electronic Damping Control, Vehicles Equipped With EDC Must Purchase 50-174546
2009, BMW M3 Base Front and Rear, Front Lowered Height: 15-30mm, up to 1020kg Axle Load;Rear Lowered Height: 15-30mm, up to 1190kg Axle Load;With or Without Electronic Damping Control, Vehicles Equipped With EDC Must Purchase 50-174546
2008, BMW M3 Base Front and Rear, Front Lowered Height: 15-30mm, up to 1020kg Axle Load;Rear Lowered Height: 15-30mm, up to 1190kg Axle Load;With or Without Electronic Damping Control, Vehicles Equipped With EDC Must Purchase 50-174546
