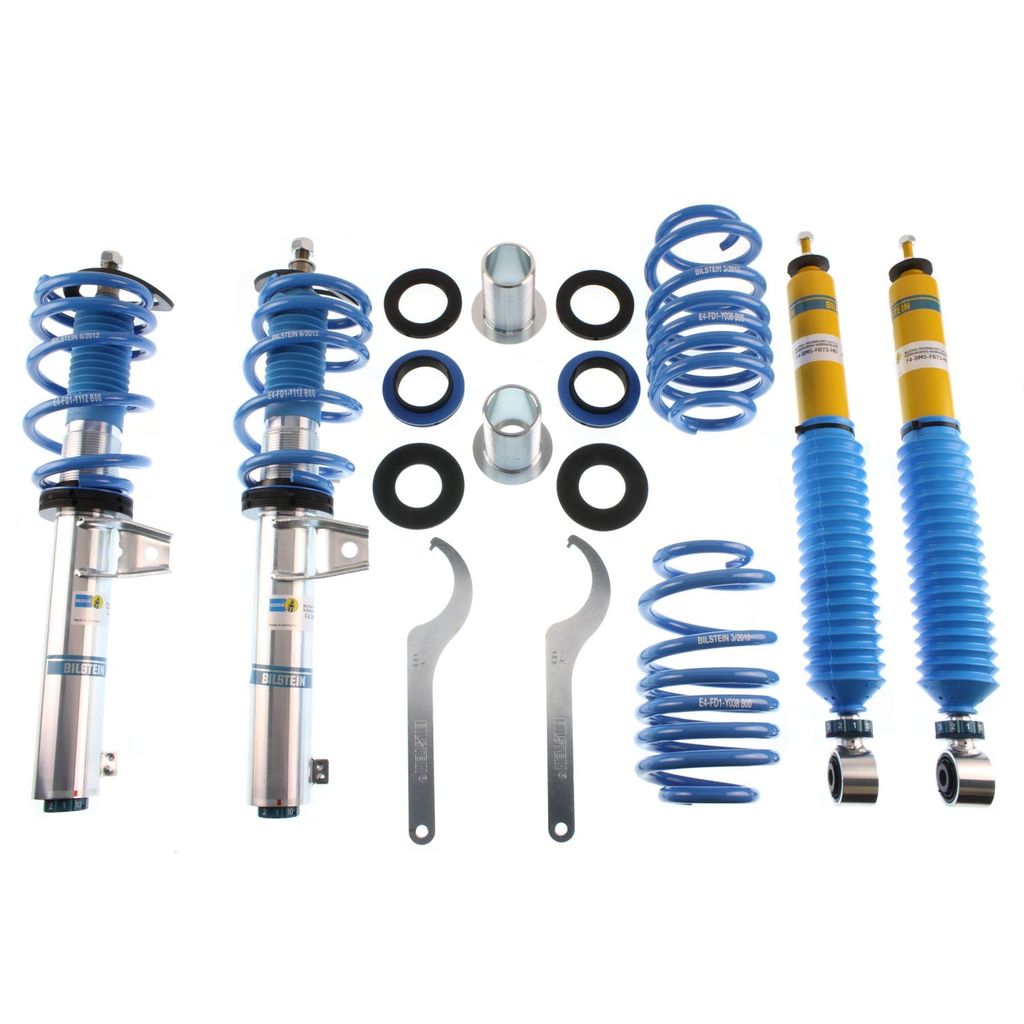

Bilstein 48-158176 - Suspension Kit

Previous image
Bilstein 48-158176 - Suspension Kit
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Bilstein 48-158176 - Suspension Kit

Part No: 48-158176
Only 1 left in Stock, Order Soon Arrives: Jun 5 - 11
  • $2382.49 & FREE Shipping
List: $3326.00

Starting at $XX/mo with Affirm. Prequalify now

Bilstein 48-158176 - Suspension Kit

BBGL-48-158176
Only 1 left in Stock, Order Soon Arrives: Jun 5 - 11
  • $2382.49 & FREE Shipping
List: $3326.00

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific
  • Quick and easy damping level adjustment
  • Threaded body allows lowering of approximately 30mm to 50mm
  • Tested by our engineers under motorsport conditions
Check All Vehicles this Part Fits

Product details

 Description

Performance Suspension System
Bilstein B16 (PSS10) suspension kits feature ride height adjustability with 10-stage manually adjustable dampers in an OE quality, direct fit package. The 10-stage damping system adjusts both rebound and compression with each click to provide the best handling performance in any condition. These kits offer monotube performance dampers with matched springs that are tuned for each specific application. The zinc coated and threaded body design will give you the flexibility to find the perfect ride height setting for your intended use while providing unsurpassed protection against the harshest road elements. B16 (PSS10) suspension kits are made in Germany and feature technology tested on the famed Nurburgring.

 Specifications

Package
  • Brand
    Bilstein,  Bilstein Suspension
  • Part Number
    48-158176
  • UPC
    651860646008
  • Height
    8.3 in
  • Width
    11. in
  • Length
    30.3 in
  • Weight
    54.74 lbs
Details
  • Finish
    Dampers: Zinc Plated Front Yellow Rear/Springs: Blue
  • Internal Design
    Monotube
  • PartType
    Suspension Kit
  • Segment
    Tuning
  • Series
    B16 (PSS10)
  • Title
    Bilstein Shock Absorbers
Manufacturer description
  • Manufacturer Label
    B16 (PSS10)

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2019, Volkswagen Beetle Final Edition SE Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2019, Volkswagen Beetle Final Edition SEL Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2019, Volkswagen Beetle S Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2019, Volkswagen Beetle SE Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2018, Volkswagen Beetle Coast Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2018, Volkswagen Beetle S Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2018, Volkswagen Beetle SE Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2017, Volkswagen Beetle #PinkBeetle Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2017, Volkswagen Beetle Classic Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2017, Volkswagen Beetle R-Line SEL Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2017, Volkswagen Beetle S Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2017, Volkswagen Beetle SE Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2017, Volkswagen Beetle SEL Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2016, Volkswagen Beetle Denim Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2016, Volkswagen Beetle Fleet Edition Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2016, Volkswagen Beetle R-Line S Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2016, Volkswagen Beetle R-Line SE Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2016, Volkswagen Beetle R-Line SEL Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2016, Volkswagen Beetle S Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2016, Volkswagen Beetle SE Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2016, Volkswagen Beetle SEL Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2016, Volkswagen Beetle Wolfsburg Edition Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2015, Volkswagen Beetle Base Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2015, Volkswagen Beetle Classic Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2015, Volkswagen Beetle Fleet Edition Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2015, Volkswagen Beetle R-Line Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2015, Volkswagen Beetle TDI Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2014, Volkswagen Beetle Base Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2014, Volkswagen Beetle GSR Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2014, Volkswagen Beetle R-Line Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2014, Volkswagen Beetle TDI Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2014, Volkswagen Golf Base Front and Rear, Without Electronic Suspension;With 55mm Outside Strut Diameter;Front Lowered Height: 20-40mm, up to 1140kg Axle Load;Rear Lowered Height: 20-40mm, up to 1040kg Axle Load
2014, Volkswagen Golf TDI Front and Rear, Without Electronic Suspension;With 55mm Outside Strut Diameter;Front Lowered Height: 20-40mm, up to 1140kg Axle Load;Rear Lowered Height: 20-40mm, up to 1040kg Axle Load
2014, Volkswagen GTI Driver's Edition Front and Rear, Without Electronic Suspension;With 55mm Outside Strut Diameter;Front Lowered Height: 20-40mm, up to 1140kg Axle Load;Rear Lowered Height: 20-40mm, up to 1040kg Axle Load
2014, Volkswagen GTI Wolfsburg Edition Front and Rear, Without Electronic Suspension;With 55mm Outside Strut Diameter;Front Lowered Height: 20-40mm, up to 1140kg Axle Load;Rear Lowered Height: 20-40mm, up to 1040kg Axle Load
2013, Volkswagen Beetle Base Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2013, Volkswagen Beetle R-Line Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2013, Volkswagen Beetle TDI Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2013, Volkswagen Beetle Turbo Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2013, Volkswagen Golf Base Front and Rear, Without Electronic Suspension;With 55mm Outside Strut Diameter;Front Lowered Height: 20-40mm, up to 1140kg Axle Load;Rear Lowered Height: 20-40mm, up to 1040kg Axle Load
2013, Volkswagen Golf TDI Front and Rear, Without Electronic Suspension;With 55mm Outside Strut Diameter;Front Lowered Height: 20-40mm, up to 1140kg Axle Load;Rear Lowered Height: 20-40mm, up to 1040kg Axle Load
2013, Volkswagen Golf R Base Front and Rear, Without Electronic Suspension;With 55mm Outside Strut Diameter;Front Lowered Height: 20-40mm, up to 1140kg Axle Load;Rear Lowered Height: 20-40mm, up to 1040kg Axle Load
2013, Volkswagen GTI Base Front and Rear, Without Electronic Suspension;With 55mm Outside Strut Diameter;Front Lowered Height: 20-40mm, up to 1140kg Axle Load;Rear Lowered Height: 20-40mm, up to 1040kg Axle Load
2012, Volkswagen Beetle Turbo Front and Rear, Front Lowered Height: 20-30mm, up to 1140kg Axle Load;Rear Lowered Height: 10-30mm, up to 880kg Axle Load
2012, Volkswagen Golf Base Front and Rear, Without Electronic Suspension;With 55mm Outside Strut Diameter;Front Lowered Height: 20-40mm, up to 1140kg Axle Load;Rear Lowered Height: 20-40mm, up to 1040kg Axle Load
2012, Volkswagen Golf TDI Front and Rear, Without Electronic Suspension;With 55mm Outside Strut Diameter;Front Lowered Height: 20-40mm, up to 1140kg Axle Load;Rear Lowered Height: 20-40mm, up to 1040kg Axle Load
2012, Volkswagen Golf R Base Front and Rear, Without Electronic Suspension;With 55mm Outside Strut Diameter;Rear Lowered Height: 10-30mm, up to 1040kg Axle Load;Front Lowered Height: 10-30mm, up to 1140kg Axle Load
2012, Volkswagen GTI Base Front and Rear, Without Electronic Suspension;With 55mm Outside Strut Diameter;Front Lowered Height: 20-40mm, up to 1140kg Axle Load;Rear Lowered Height: 20-40mm, up to 1040kg Axle Load
2011, Volkswagen Golf Base Front and Rear, Without Electronic Suspension;With 55mm Outside Strut Diameter;Front Lowered Height: 20-40mm, up to 1140kg Axle Load;Rear Lowered Height: 20-40mm, up to 1040kg Axle Load
2011, Volkswagen Golf TDI Front and Rear, Without Electronic Suspension;With 55mm Outside Strut Diameter;Front Lowered Height: 20-40mm, up to 1140kg Axle Load;Rear Lowered Height: 20-40mm, up to 1040kg Axle Load
2011, Volkswagen GTI Base Front and Rear, Without Electronic Suspension;With 55mm Outside Strut Diameter;Front Lowered Height: 20-40mm, up to 1140kg Axle Load;Rear Lowered Height: 20-40mm, up to 1040kg Axle Load
2010, Volkswagen Golf Base Front and Rear, Without Electronic Suspension;With 55mm Outside Strut Diameter;Front Lowered Height: 20-40mm, up to 1140kg Axle Load;Rear Lowered Height: 20-40mm, up to 1040kg Axle Load
2010, Volkswagen Golf TDI Front and Rear, Without Electronic Suspension;With 55mm Outside Strut Diameter;Front Lowered Height: 20-40mm, up to 1140kg Axle Load;Rear Lowered Height: 20-40mm, up to 1040kg Axle Load
2010, Volkswagen GTI Base Front and Rear, Without Electronic Suspension;With 55mm Outside Strut Diameter;Front Lowered Height: 20-40mm, up to 1140kg Axle Load;Rear Lowered Height: 20-40mm, up to 1040kg Axle Load
