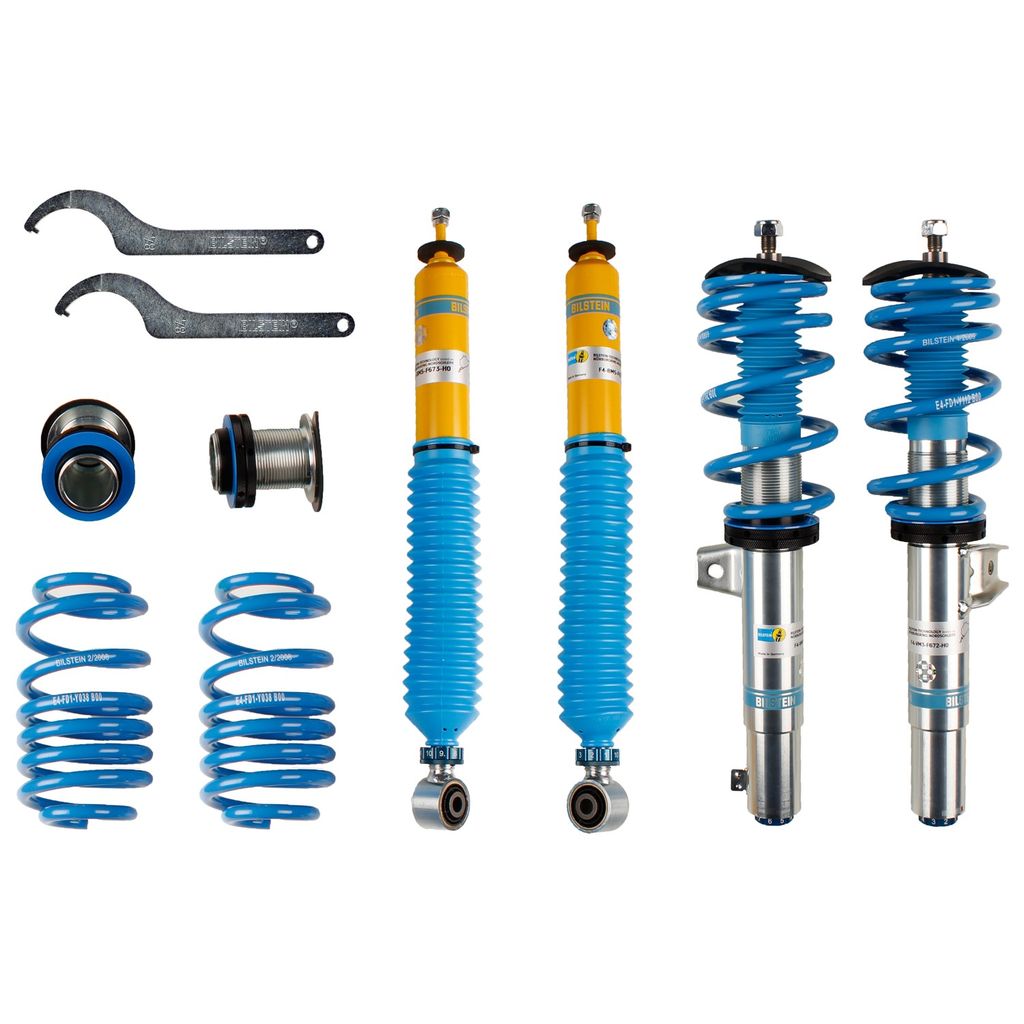

Bilstein 48-156745 - Suspension Kit

Previous image
Bilstein 48-156745 - Suspension Kit
Next image
Zoom image

Bilstein 48-156745 - Suspension Kit

Part No: 48-156745

Bilstein 48-156745 - Suspension Kit

BBGL-48-156745
Vehicle Specific

Select your Vehicle

  • Ideal both for street driving and weekend racing
  • With 10 precise compression and rebound settings, which are adjustable from street driving to racing
  • Provide perfect handling in various driving conditions
  • Manually adjustable front and rear progressive rate springs
  • Lowers ride height by 30 to 50 millimeters
  • Bilstein’s patented Triple-C-Technology® surface coating for maximum corrosion protection

Product details


 Description

Performance Suspension System
The Bilstein PSS10 sits just above the PSS9 with 10 manually adjustable compression/rebound settings. Each click delivers a perfectly matched rebound and bump setting, so you get to adjust your suspension’s performance to your desired ride experience. And just like the PSS9, the PSS10 also offers monotube performance dampers with matched springs specifically tuned for your application.
Bilstein B16 (PSS10) suspension kits feature ride height adjustability with 10-stage manually adjustable dampers in an OE quality, direct fit package. The 10-stage damping system adjusts both rebound and compression with each click to provide the best handling performance in any condition. These kits offer monotube performance dampers with matched springs that are tuned for each specific application. The zinc coated and threaded body design will give you the flexibility to find the perfect ride height setting for your intended use while providing unsurpassed protection against the harshest road elements. B16 (PSS10) suspension kits are made in Germany and feature technology tested on the famed Nurburgring.
Do you want to tune your ride to the track or to the street with a simple twist of a dial? Just add the Bilstein PSS10 Suspension Kit. This coilover kit is not just for racing anymore but also for daily street driving. Simply turn the dampening knob to your desired setting, and that’s it—no jacking or special tools required. If you’re looking to lower your ride height, then this has got you covered too. The Bilstein PSS10 allows you to lower your ride height by 30 to 50 millimeters for the front and rear axles, resulting in better aerodynamics, improved traction and handling, and greater comfort even at high speeds.

 Reviews

Customer reviews


 Specifications

Package
  • Brand
    BilsteinBilstein Suspension
  • Part Number
    48-156745
  • UPC
    651860645988
  • Height
    8.25 in
  • Width
    11. in
  • Length
    30.3 in
  • Weight
    55.09 lbs
Details
  • Finish
    Dampers: Zinc Plated Front Yellow Rear/Springs: Blue
  • Internal Design
    Monotube
  • Series
    B16 (PSS10)
  • Title
    Bilstein Shock Absorbers
Manufacturer description
  • Manufacturer Label
    B16 (PSS10)

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles


Model Engine Trim Notes
2012, Volkswagen Golf Base Front and Rear, With Independent Rear Suspension;Without Electronic Suspension;With 50mm Outside Strut Diameter;Front Lowered Height: 20-40mm, up to 1140kg Axle Load;Rear Lowered Height: 20-40mm, up to 1040kg Axle Load
2012, Volkswagen Golf TDI Front and Rear, With Independent Rear Suspension;Without Electronic Suspension;With 50mm Outside Strut Diameter;Front Lowered Height: 20-40mm, up to 1140kg Axle Load;Rear Lowered Height: 20-40mm, up to 1040kg Axle Load
2011, Volkswagen Golf Base Front and Rear, With Independent Rear Suspension;Without Electronic Suspension;With 50mm Outside Strut Diameter;Front Lowered Height: 20-40mm, up to 1140kg Axle Load;Rear Lowered Height: 20-40mm, up to 1040kg Axle Load
2011, Volkswagen Golf TDI Front and Rear, With Independent Rear Suspension;Without Electronic Suspension;With 50mm Outside Strut Diameter;Front Lowered Height: 20-40mm, up to 1140kg Axle Load;Rear Lowered Height: 20-40mm, up to 1040kg Axle Load
2010, Volkswagen Golf Base Front and Rear, With Independent Rear Suspension;Without Electronic Suspension;With 50mm Outside Strut Diameter;Front Lowered Height: 20-40mm, up to 1140kg Axle Load;Rear Lowered Height: 20-40mm, up to 1040kg Axle Load
2010, Volkswagen Golf TDI Front and Rear, With Independent Rear Suspension;Without Electronic Suspension;With 50mm Outside Strut Diameter;Front Lowered Height: 20-40mm, up to 1140kg Axle Load;Rear Lowered Height: 20-40mm, up to 1040kg Axle Load
