Bilstein 48-141147 - Suspension Kit

Previous image
Bilstein 48-141147 - Suspension Kit
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Bilstein 48-141147 - Suspension Kit

Part No: 48-141147
Out of Stock

Please call 888-257-7149 to check future availability

  • $2316.15 & FREE Shipping
List: $3221.00

Starting at $XX/mo with Affirm. Prequalify now

Bilstein 48-141147 - Suspension Kit

BBGL-48-141147
Out of Stock

Please call 888-257-7149 to check future availability

  • $2316.15 & FREE Shipping
List: $3221.00

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific
  • Quick and easy damping level adjustment
  • Threaded body allows lowering of approximately 30mm to 50mm
  • Tested by our engineers under motorsport conditions
Check All Vehicles this Part Fits

Product details

 Description

Performance Suspension System

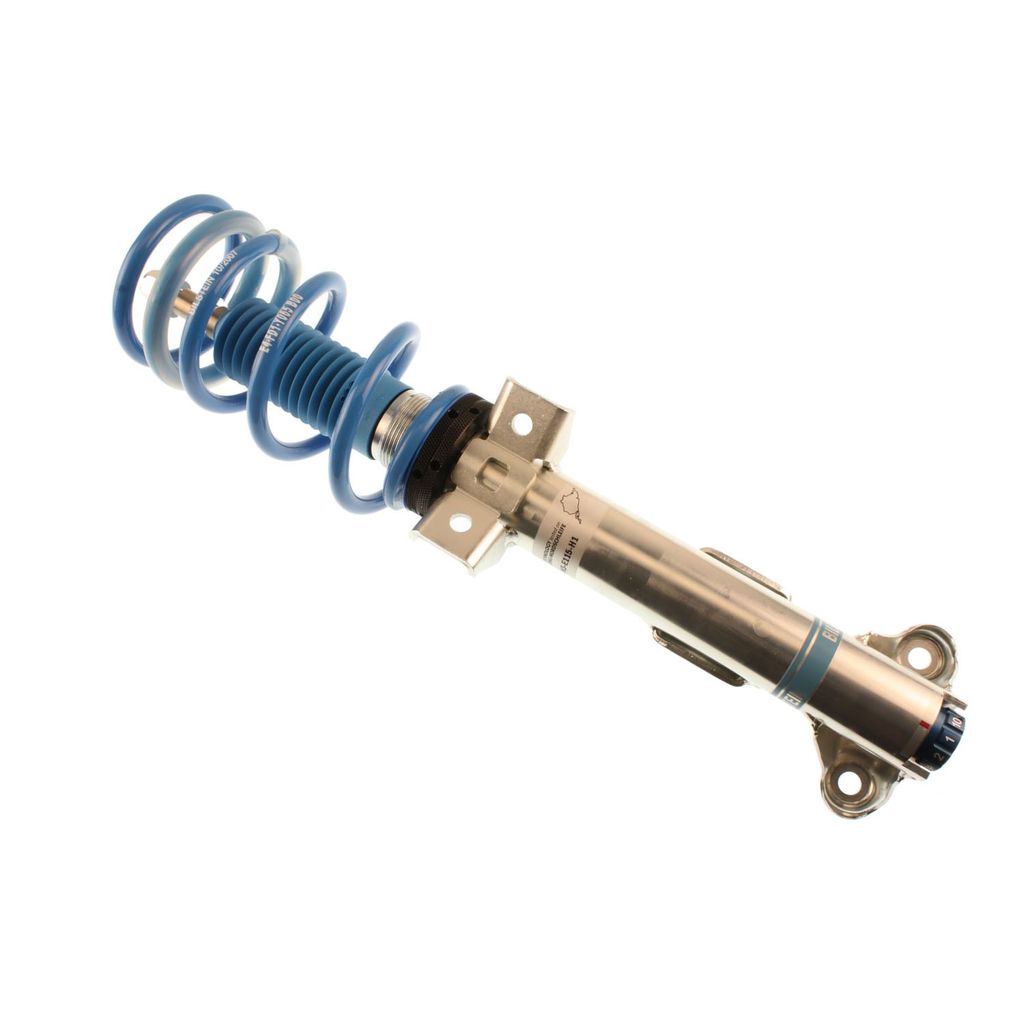

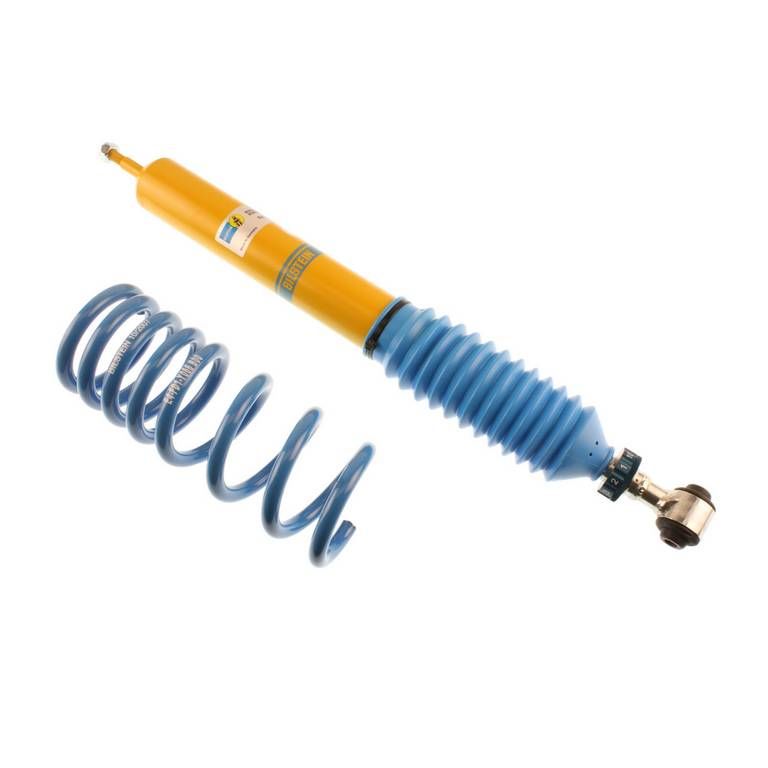

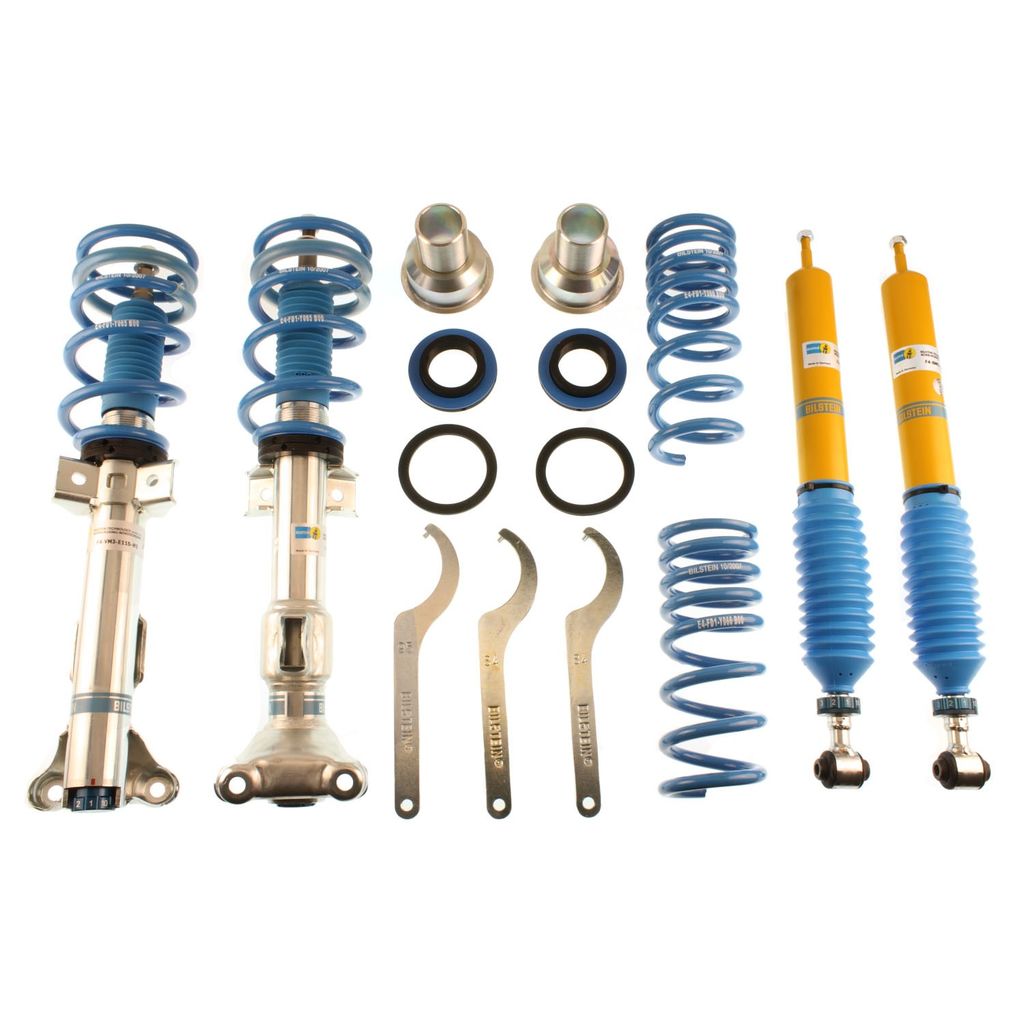

Bilstein B16 (PSS10) suspension kits feature ride height adjustability with 10-stage manually adjustable dampers in an OE quality, direct fit package. The 10-stage damping system adjusts both rebound and compression with each click to provide the best handling performance in any condition. These kits offer monotube performance dampers with matched springs that are tuned for each specific application. The zinc coated and threaded body design will give you the flexibility to find the perfect ride height setting for your intended use while providing unsurpassed protection against the harshest road elements. B16 (PSS10) suspension kits are made in Germany and feature technology tested on the famed Nurburgring.

 Specifications

Package
  • Brand
    Bilstein,  Bilstein Suspension
  • Part Number
    48-141147
  • UPC
    651860622705
  • Height
    8.3 in
  • Width
    11. in
  • Length
    30.3 in
  • Weight
    59.35 lbs
Details
  • Finish
    Dampers: Zinc Plated Front Yellow Rear/Springs: Blue
  • Internal Design
    Monotube
  • PartType
    Suspension Kit
  • Segment
    Tuning
  • Series
    B16 (PSS10)
  • Title
    Bilstein Shock Absorbers
Manufacturer description
  • Manufacturer Label
    B16 (PSS10)

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2017, Mercedes-Benz E550 Base Front and Rear, Without Electronic Suspension;Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2016, Mercedes-Benz E400 Base, Coupe Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2016, Mercedes-Benz E400 Base, Convertible Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2016, Mercedes-Benz E550 Base Front and Rear, Without Electronic Suspension;Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2015, Mercedes-Benz C250 Base Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2015, Mercedes-Benz C350 Base Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2015, Mercedes-Benz C63 AMG Base Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2015, Mercedes-Benz E400 Base, Coupe Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2015, Mercedes-Benz E400 Base, Convertible Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2015, Mercedes-Benz E550 Base Front and Rear, Without Electronic Suspension;Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2014, Mercedes-Benz C250 Base Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2014, Mercedes-Benz C250 Luxury Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2014, Mercedes-Benz C250 Sport Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2014, Mercedes-Benz C350 Base Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2014, Mercedes-Benz C350 Sport Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2014, Mercedes-Benz C63 AMG Base Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2014, Mercedes-Benz E550 Base Front and Rear, Without Electronic Suspension;Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2013, Mercedes-Benz C250 Base Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2013, Mercedes-Benz C250 Luxury Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2013, Mercedes-Benz C250 Sport Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2013, Mercedes-Benz C350 Base Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2013, Mercedes-Benz C350 Sport Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2013, Mercedes-Benz C63 AMG Base Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2013, Mercedes-Benz E550 Base Front and Rear, Without Electronic Suspension;Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2012, Mercedes-Benz C250 Base Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2012, Mercedes-Benz C250 Luxury Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2012, Mercedes-Benz C250 Sport Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2012, Mercedes-Benz C350 Base Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2012, Mercedes-Benz C350 Sport Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2012, Mercedes-Benz C63 AMG Base Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2012, Mercedes-Benz E550 Base Front and Rear, Without Electronic Suspension;Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2011, Mercedes-Benz C300 Luxury Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2011, Mercedes-Benz C300 Sport Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2011, Mercedes-Benz C350 Sport Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2011, Mercedes-Benz C63 AMG Base Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2011, Mercedes-Benz E550 Base, Coupe Front and Rear, Without Electronic Suspension;Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2011, Mercedes-Benz E550 Base, Convertible Front and Rear, Without Electronic Suspension;Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2010, Mercedes-Benz C300 Luxury Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2010, Mercedes-Benz C300 Sport Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2010, Mercedes-Benz C350 Sport Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2010, Mercedes-Benz C63 AMG Base Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2010, Mercedes-Benz E550 Base, Coupe Front and Rear, Without Electronic Suspension;Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2009, Mercedes-Benz C300 Luxury Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2009, Mercedes-Benz C300 Sport Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2009, Mercedes-Benz C350 Sport Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2009, Mercedes-Benz C63 AMG Base Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2008, Mercedes-Benz C300 Luxury Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2008, Mercedes-Benz C300 Sport Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2008, Mercedes-Benz C350 Sport Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
2008, Mercedes-Benz C63 AMG Base Front and Rear, Front Lowered Height: 30-50mm, up to 1110kg Axle Load;Rear Lowered Height: 30-50mm, up to 1225kg Axle Load
