Bilstein 48-088763 - Suspension Kit

Previous image
Bilstein 48-088763 - Suspension Kit
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

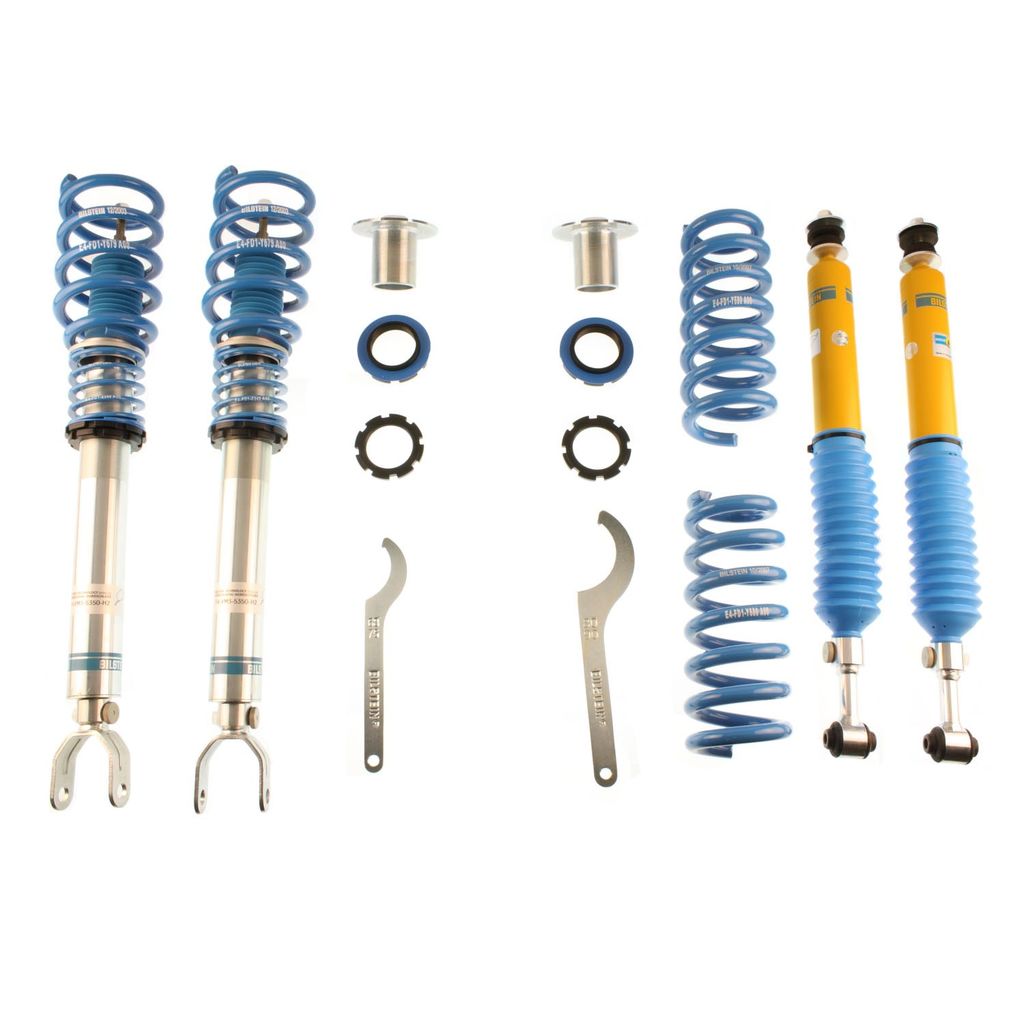

Bilstein 48-088763 - Suspension Kit

Part No: 48-088763

Bilstein 48-088763 - Suspension Kit

BBGL-48-088763
Vehicle Specific
  • Quick and easy damping level adjustment
  • Threaded body allows lowering of approximately 30mm to 50mm
  • Tested by our engineers under motorsport conditions
Check All Vehicles this Part Fits

Product details

 Description

Performance Suspension System
Bilstein B16 (PSS9) suspension kits feature ride height adjustability with 9-stage manually adjustable dampers in an OE quality, direct fit package. The 9-stage damping system adjusts both rebound and compression with each click to provide the best handling performance in any condition. These kits offer monotube performance dampers with matched springs that are tuned for each specific application. The zinc coated and threaded body design will give you the flexibility to find the perfect ride height setting for your intended use while providing unsurpassed protection against the harshest road elements. B16 (PSS9) suspension kits are made in Germany and feature technology tested on the famed Nurburgring.

 Specifications

Package
  • Brand
    Bilstein,  Bilstein Suspension
  • Part Number
    48-088763
  • UPC
    651860632902
  • Height
    8.3 in
  • Width
    11. in
  • Length
    30.3 in
  • Weight
    59.66 lbs
Details
  • Finish
    Dampers: Zinc Plated Front Yellow Rear/Springs: Blue
  • Internal Design
    Monotube
  • PartType
    Suspension Kit
  • Segment
    Tuning
  • Series
    B16 (PSS9)
  • Title
    Bilstein Shock Absorbers
Manufacturer description
  • Manufacturer Label
    B16 (PSS9)

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2011, Mercedes-Benz CLS550 Base Front and Rear, Without Air Suspension;Front Lowered Height: 30-50mm, up to 1175kg Axle Load;Rear Lowered Height: 30-50mm, up to 1255kg Axle Load
2011, Mercedes-Benz CLS63 AMG Base Front and Rear, Without Air Suspension;Front Lowered Height: 30-50mm, up to 1175kg Axle Load;Rear Lowered Height: 30-50mm, up to 1255kg Axle Load
2010, Mercedes-Benz CLS550 Base Front and Rear, Without Air Suspension;Front Lowered Height: 30-50mm, up to 1175kg Axle Load;Rear Lowered Height: 30-50mm, up to 1255kg Axle Load
2010, Mercedes-Benz CLS63 AMG Base Front and Rear, Without Air Suspension;Front Lowered Height: 30-50mm, up to 1175kg Axle Load;Rear Lowered Height: 30-50mm, up to 1255kg Axle Load
2009, Mercedes-Benz CLS550 Base Front and Rear, Without Air Suspension;Front Lowered Height: 30-50mm, up to 1175kg Axle Load;Rear Lowered Height: 30-50mm, up to 1255kg Axle Load
2009, Mercedes-Benz CLS63 AMG Base Front and Rear, Without Air Suspension;Front Lowered Height: 30-50mm, up to 1175kg Axle Load;Rear Lowered Height: 30-50mm, up to 1255kg Axle Load
2009, Mercedes-Benz E320 Bluetec Front and Rear, Without Air Suspension;Front Lowered Height: 30-50mm, up to 1175kg Axle Load;Rear Lowered Height: 30-50mm, up to 1255kg Axle Load
2009, Mercedes-Benz E350 Base Front and Rear, Without Air Suspension;Front Lowered Height: 30-50mm, up to 1175kg Axle Load;Rear Lowered Height: 30-50mm, up to 1255kg Axle Load
2008, Mercedes-Benz CLS550 Base Front and Rear, Without Air Suspension;Front Lowered Height: 30-50mm, up to 1175kg Axle Load;Rear Lowered Height: 30-50mm, up to 1255kg Axle Load
2008, Mercedes-Benz CLS63 AMG Base Front and Rear, Without Air Suspension;Front Lowered Height: 30-50mm, up to 1175kg Axle Load;Rear Lowered Height: 30-50mm, up to 1255kg Axle Load
2008, Mercedes-Benz E320 Bluetec Front and Rear, Without Air Suspension;Front Lowered Height: 30-50mm, up to 1175kg Axle Load;Rear Lowered Height: 30-50mm, up to 1255kg Axle Load
2008, Mercedes-Benz E350 Base Front and Rear, Without Air Suspension;Front Lowered Height: 30-50mm, up to 1175kg Axle Load;Rear Lowered Height: 30-50mm, up to 1255kg Axle Load
2007, Mercedes-Benz CLS550 Base Front and Rear, Without Air Suspension;Front Lowered Height: 30-50mm, up to 1175kg Axle Load;Rear Lowered Height: 30-50mm, up to 1255kg Axle Load
2007, Mercedes-Benz CLS63 AMG Base Front and Rear, Without Air Suspension;Front Lowered Height: 30-50mm, up to 1175kg Axle Load;Rear Lowered Height: 30-50mm, up to 1255kg Axle Load
2007, Mercedes-Benz E320 Bluetec Front and Rear, Without Air Suspension;Front Lowered Height: 30-50mm, up to 1175kg Axle Load;Rear Lowered Height: 30-50mm, up to 1255kg Axle Load
2007, Mercedes-Benz E350 Base Front and Rear, Without Air Suspension;Front Lowered Height: 30-50mm, up to 1175kg Axle Load;Rear Lowered Height: 30-50mm, up to 1255kg Axle Load
2006, Mercedes-Benz CLS500 Base Front and Rear, Without Air Suspension;Front Lowered Height: 30-50mm, up to 1175kg Axle Load;Rear Lowered Height: 30-50mm, up to 1255kg Axle Load
2006, Mercedes-Benz CLS55 AMG Base Front and Rear, Without Air Suspension;Front Lowered Height: 30-50mm, up to 1175kg Axle Load;Rear Lowered Height: 30-50mm, up to 1255kg Axle Load
2006, Mercedes-Benz E320 CDI Front and Rear, Without Air Suspension;Front Lowered Height: 30-50mm, up to 1175kg Axle Load;Rear Lowered Height: 30-50mm, up to 1255kg Axle Load
2006, Mercedes-Benz E350 Base Front and Rear, Without Air Suspension;Front Lowered Height: 30-50mm, up to 1175kg Axle Load;Rear Lowered Height: 30-50mm, up to 1255kg Axle Load
2005, Mercedes-Benz E320 Base, Sedan Front and Rear, Without Air Suspension;Front Lowered Height: 30-50mm, up to 1175kg Axle Load;Rear Lowered Height: 30-50mm, up to 1255kg Axle Load
2005, Mercedes-Benz E320 CDI Front and Rear, Without Air Suspension;Front Lowered Height: 30-50mm, up to 1175kg Axle Load;Rear Lowered Height: 30-50mm, up to 1255kg Axle Load
2004, Mercedes-Benz E320 Base, Sedan Front and Rear, Without Air Suspension;Front Lowered Height: 30-50mm, up to 1175kg Axle Load;Rear Lowered Height: 30-50mm, up to 1255kg Axle Load
2003, Mercedes-Benz E320 Base, Sedan Front and Rear, Front Lowered Height: 30-50mm, up to 1175kg Axle Load;Rear Lowered Height: 30-50mm, up to 1255kg Axle Load;Without Air Suspension Without Air Suspension
