Bilstein 48-088602 - Suspension Kit

Previous image
Bilstein 48-088602 - Suspension Kit
Next image
Zoom image

Bilstein 48-088602 - Suspension Kit

Part No: 48-088602
Only 1 left in Stock, Order Soon Arrives: Apr 25 - May 1
  • $1799.00 & FREE Shipping
List: $2600.00

Starting at $XX/mo with Affirm. Prequalify now

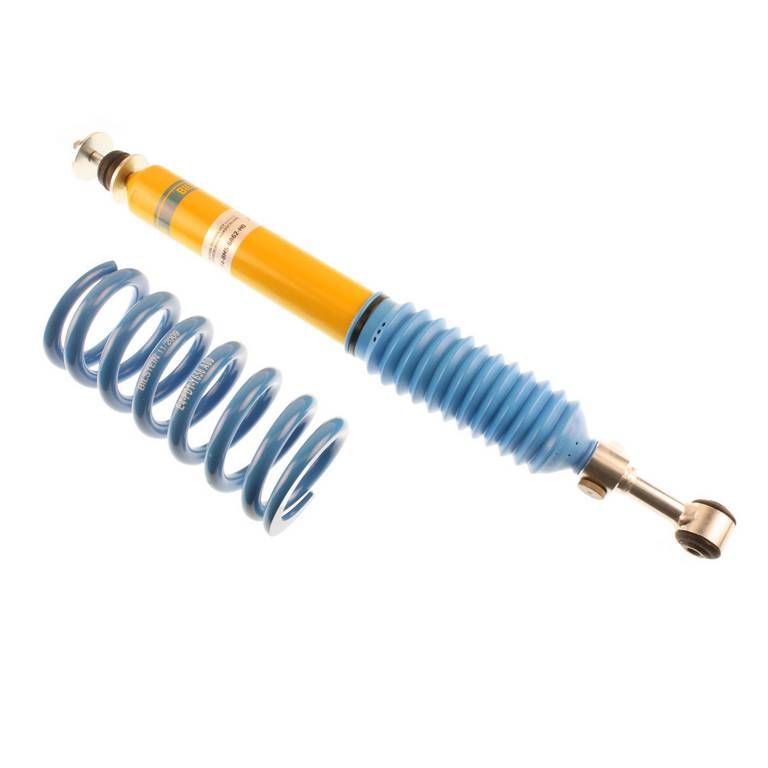

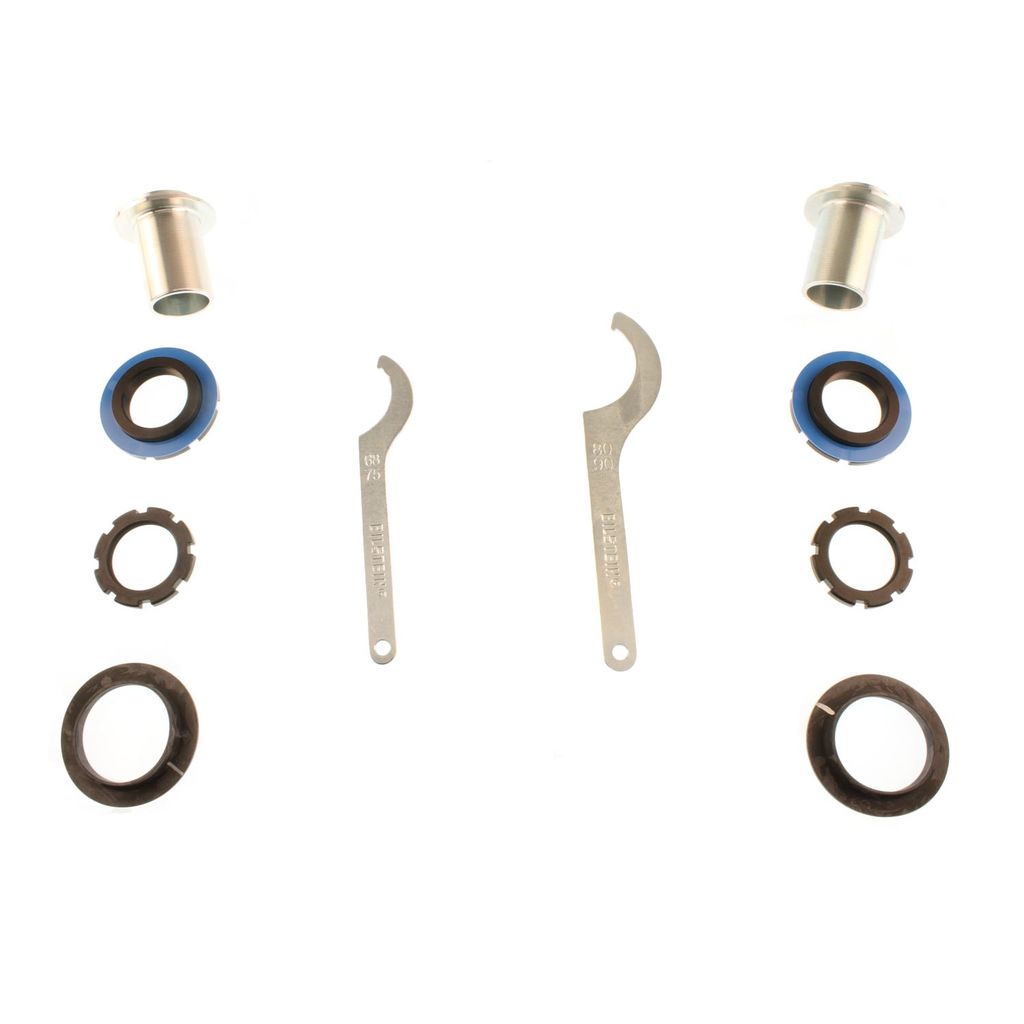

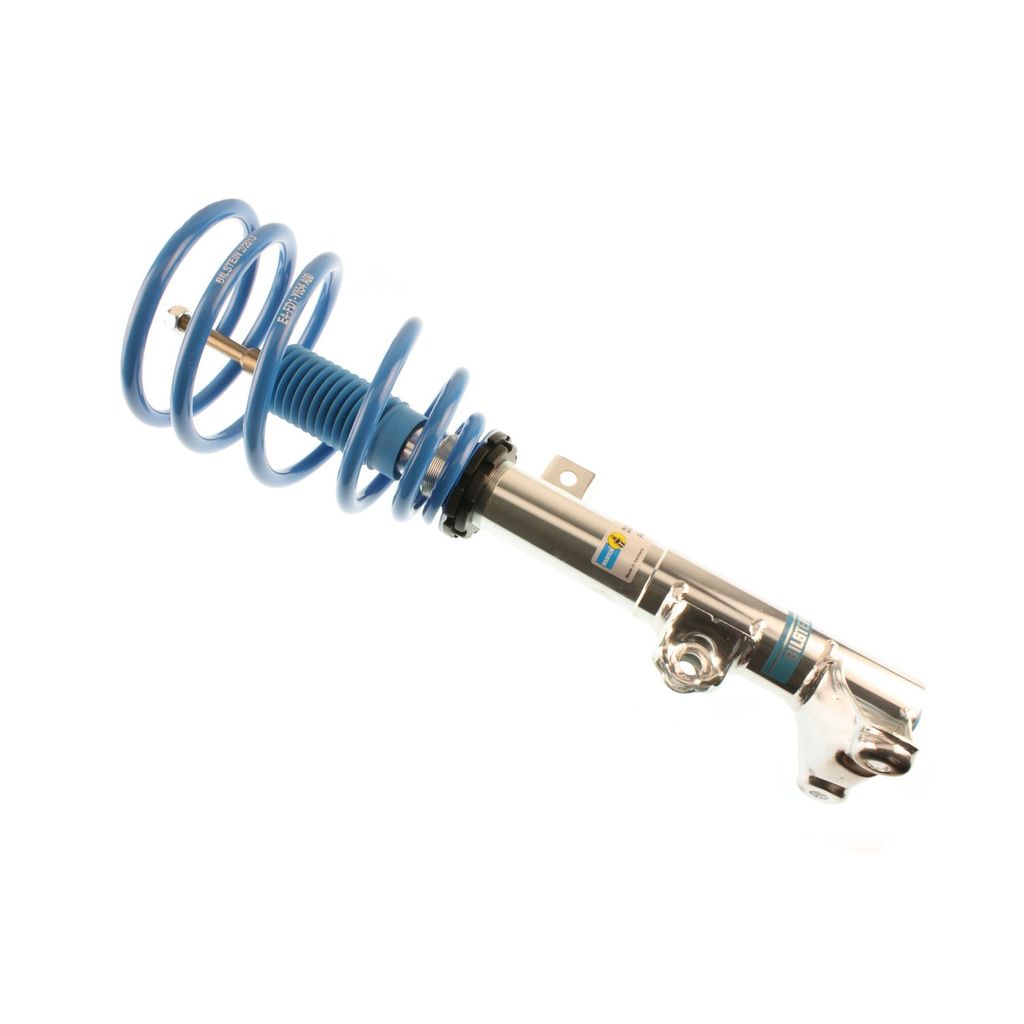

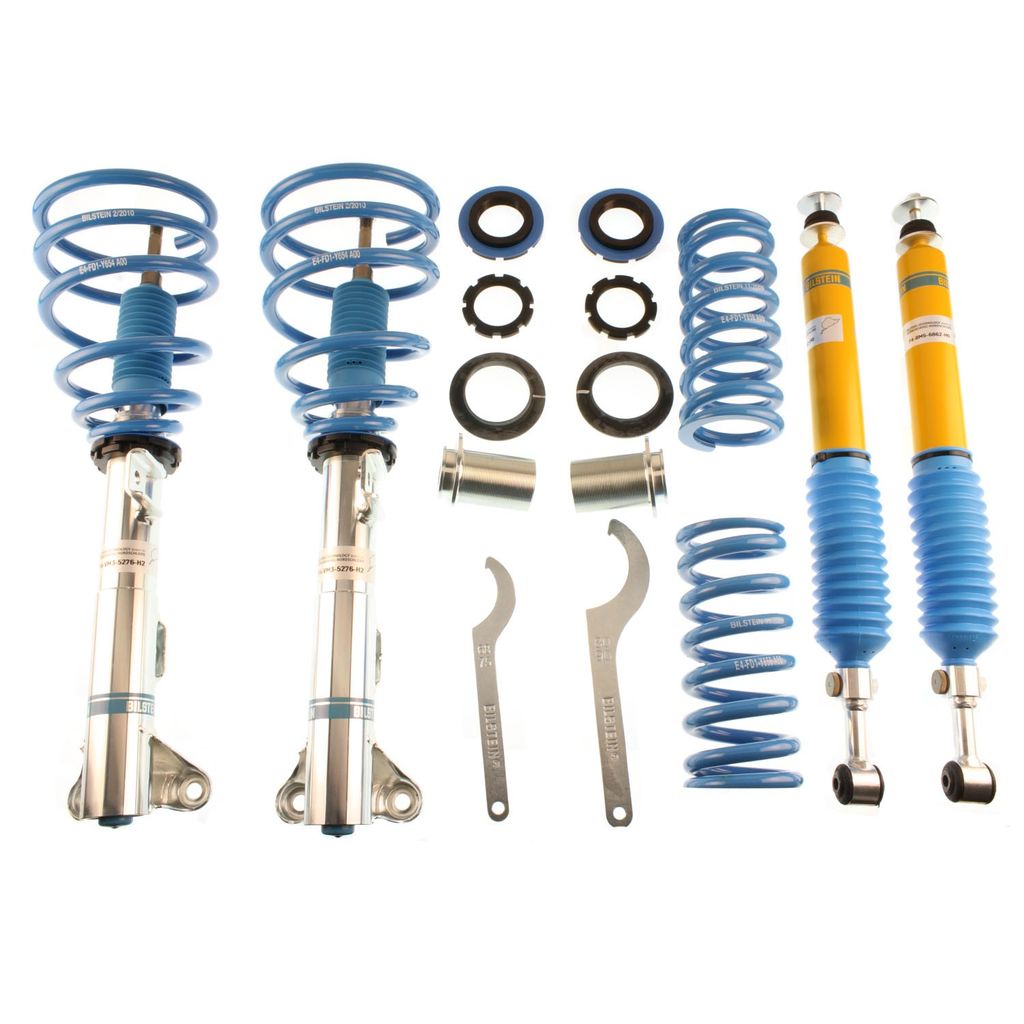

Bilstein 48-088602 - Suspension Kit

BBGL-48-088602
Only 1 left in Stock, Order Soon Arrives: Apr 25 - May 1
  • $1799.00 & FREE Shipping
List: $2600.00

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific

Select your Vehicle

  • With nine manually adjustable damper settings to set your desired ride experience
  • 100% easy to use and adjust
  • An OE-quality, direct-fit package that’s easy to install
  • Lowers ride height by up to 50 mm
  • Improves stability and performance
  • Zinc coating for superior corrosion protection
Check All Vehicles this Part Fits

Product details

 Description

Performance Suspension System
Set the exact ride experience you want with the Bilstein PSS9 Suspension Kit. Designed as a track performance threaded ride height adjustable kit with Dual-Click adjustment, this kit is easier to handle and twice as effective as the standard kit. Control is definitely in your hands as this 9-stage manually adjustable damper allows you to shift from an everyday drive to a rugged, sporty one with a turn of a knob. It is identical to the PSS version, only that this one allows for compression and rebound adjustability.
Bilstein B16 (PSS9) suspension kits feature ride height adjustability with 9-stage manually adjustable dampers in an OE quality, direct fit package. The 9-stage damping system adjusts both rebound and compression with each click to provide the best handling performance in any condition. These kits offer monotube performance dampers with matched springs that are tuned for each specific application. The zinc coated and threaded body design will give you the flexibility to find the perfect ride height setting for your intended use while providing unsurpassed protection against the harshest road elements. B16 (PSS9) suspension kits are made in Germany and feature technology tested on the famed Nurburgring.
Whether on the most demanding race track or on the city streets, the Bilstein PSS9 never fails to deliver. This suspension kit makes ride height adjustment a lot easier with its nine damper settings that are controlled by an aluminum knob with 10 distinct clicks. With each click, you get the ultimate handling experience without compromising comfort. Want to set your ride height to suit your personal taste? This kit allows you to do that too. The Bilstein PSS9 can lower your ride height by up to 50 mm—and that’s flexibility at its finest. It offers perfectly tuned lowering, so no need to worry about unsightly wheel gaps. All PSS9 Suspension Kits are zinc coated for superior corrosion protection, especially when used during extreme driving conditions.

 Specifications

Package
  • Brand
    Bilstein,  Bilstein Suspension
  • Part Number
    48-088602
  • UPC
    651860623870
  • Height
    8.3 in
  • Width
    11. in
  • Length
    30.3 in
  • Weight
    63.76 lbs
Details
  • Finish
    Dampers: Zinc Plated Front Yellow Rear/Springs: Blue
  • Internal Design
    Monotube
  • Series
    B16 (PSS9)
  • Title
    Bilstein Shock Absorbers
Manufacturer description
  • Manufacturer Label
    B16 (PSS9)

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2009, Mercedes-Benz CLK350 Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2009, Mercedes-Benz CLK550 Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2008, Mercedes-Benz CLK350 Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2008, Mercedes-Benz CLK550 Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2008, Mercedes-Benz CLK63 AMG Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2007, Mercedes-Benz C230 Sport Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2007, Mercedes-Benz C280 Luxury Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2007, Mercedes-Benz C350 Luxury Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2007, Mercedes-Benz C350 Sport Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2007, Mercedes-Benz CLK350 Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2007, Mercedes-Benz CLK550 Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2007, Mercedes-Benz CLK63 AMG Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2006, Mercedes-Benz C230 Sport Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2006, Mercedes-Benz C280 Luxury Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2006, Mercedes-Benz C350 Luxury Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2006, Mercedes-Benz C350 Sport Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2006, Mercedes-Benz C55 AMG Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2006, Mercedes-Benz CLK350 Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2006, Mercedes-Benz CLK500 Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2006, Mercedes-Benz CLK55 AMG Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2005, Mercedes-Benz C230 Kompressor Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2005, Mercedes-Benz C240 Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2005, Mercedes-Benz C320 Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2005, Mercedes-Benz C55 AMG Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2005, Mercedes-Benz CLK320 Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2005, Mercedes-Benz CLK500 Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2005, Mercedes-Benz CLK55 AMG Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2004, Mercedes-Benz C230 Kompressor Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2004, Mercedes-Benz C240 Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2004, Mercedes-Benz C32 AMG Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2004, Mercedes-Benz C320 Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2004, Mercedes-Benz CLK320 Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2004, Mercedes-Benz CLK500 Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2004, Mercedes-Benz CLK55 AMG Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2003, Mercedes-Benz C230 Kompressor Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2003, Mercedes-Benz C240 Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2003, Mercedes-Benz C32 AMG Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2003, Mercedes-Benz C320 Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2003, Mercedes-Benz CLK320 Base, 209.365 Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2003, Mercedes-Benz CLK500 Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2003, Mercedes-Benz CLK55 AMG Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2002, Mercedes-Benz C230 Kompressor Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2002, Mercedes-Benz C240 Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2002, Mercedes-Benz C32 AMG Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2002, Mercedes-Benz C320 Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2001, Mercedes-Benz C240 Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
2001, Mercedes-Benz C320 Base Front and Rear, Without Self-Leveling Suspension;Wheel spacers may be required for some wheel/tire combinations;Front Lowered Height: 30-50mm, up to 1130kg Axle Load;Rear Lowered Height: 30-50mm, up to 1155kg Axle Load
