Bilstein 47-284142 - Suspension Kit

Previous image
Bilstein 47-284142 - Suspension Kit
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Bilstein 47-284142 - Suspension Kit

Part No: 47-284142

Bilstein 47-284142 - Suspension Kit

BBGL-47-284142
Vehicle Specific
  • Large 60mm body for increased oil capacity, cooling, and long-term durability
  • 60mm digressive piston improves ride comfort and control over rough terrain
  • Vehicle specific tuning
  • Limited Lifetime Warranty
Check All Vehicles this Part Fits

Product details

 Description

Front Suspension Kit

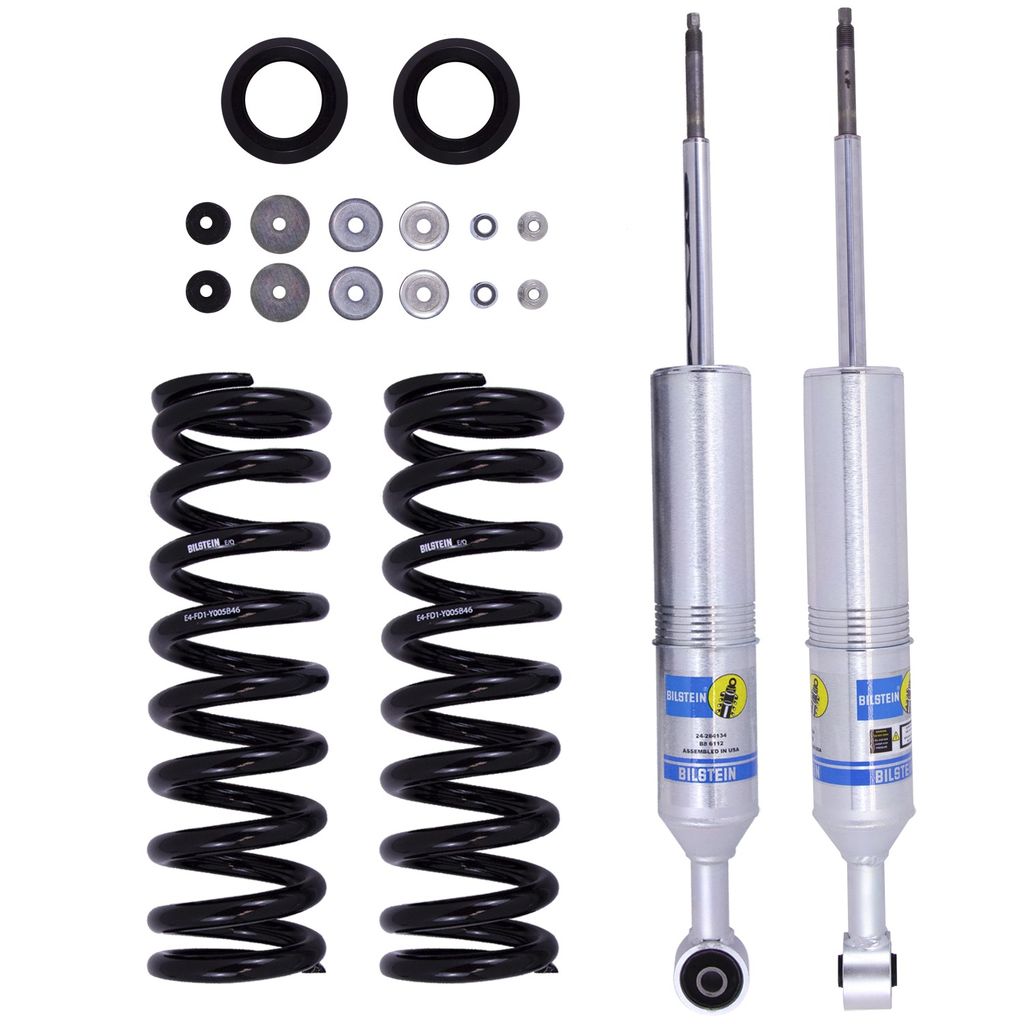

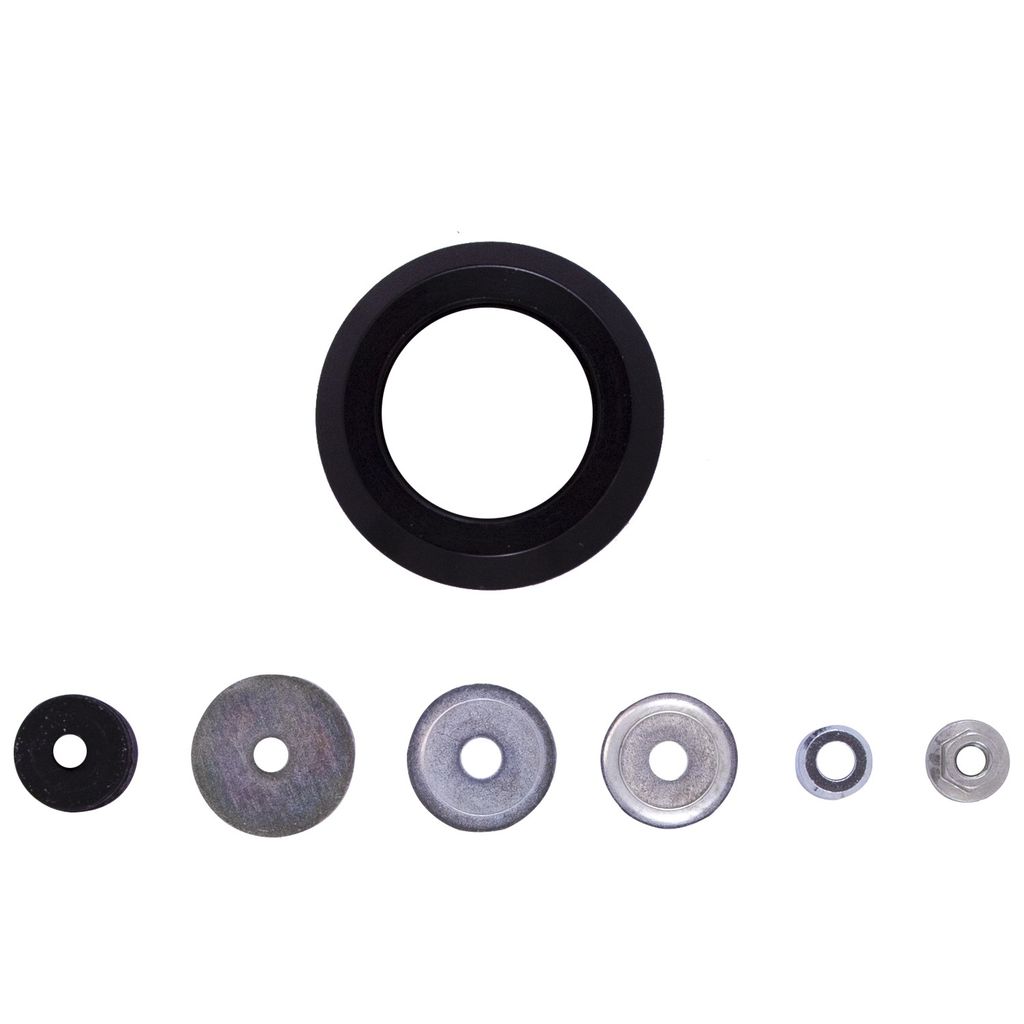

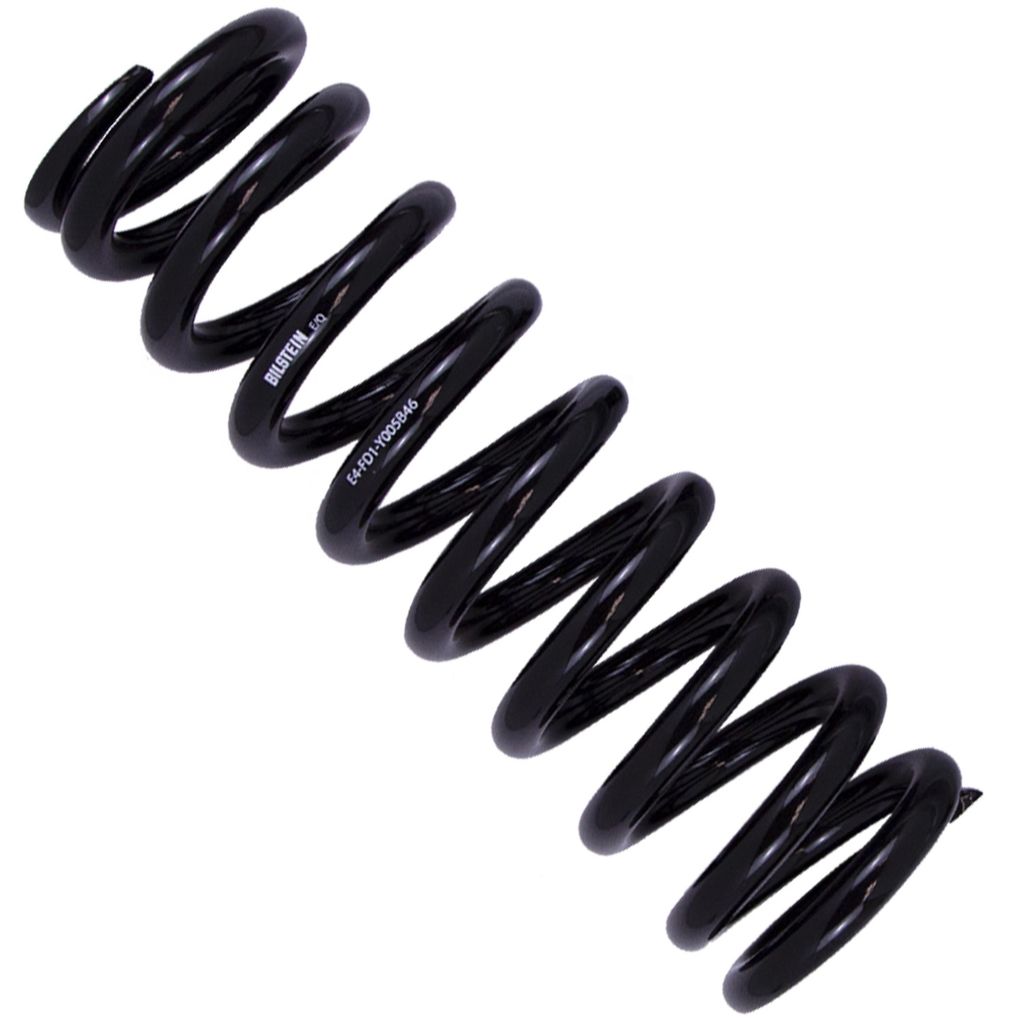

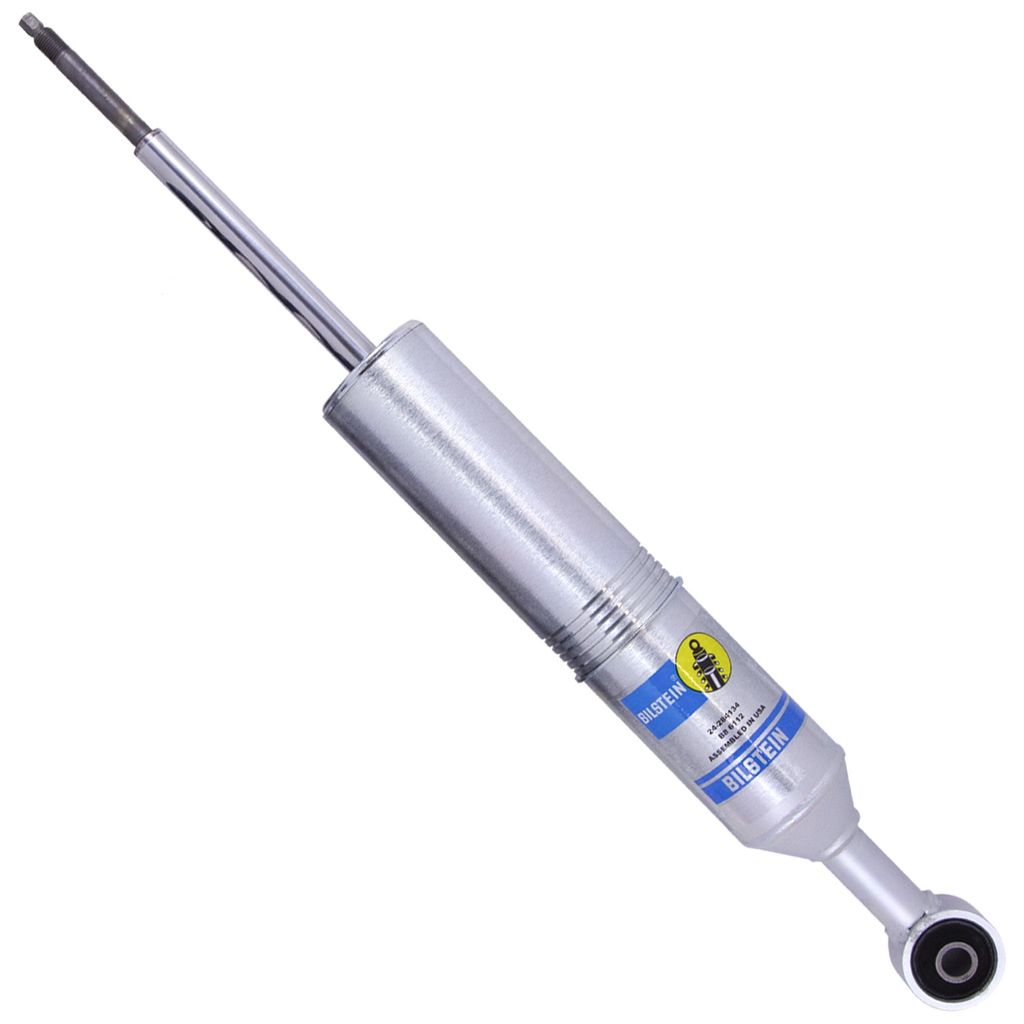

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

 Specifications

Package
  • Brand
    Bilstein,  Bilstein Suspension
  • Part Number
    47-284142
  • UPC
    651860821986
  • Height
    4.65 in
  • Width
    12.75 in
  • Length
    28. in
  • Weight
    43.5 lbs
Details
  • Body Design
    Snap Ring Grooved Body (Coilover)
  • Body Diameter (ID)
    60mm
  • Boot Included
    No
  • Finish
    Dampers: Zinc Plated/Springs: Black
  • Internal Design
    Monotube
  • PartType
    Suspension Kit
  • Reservoir
    No
  • Segment
    Light Truck
  • Series
    B8 6112
  • Spring Seat Included
    Yes
  • Title
    Bilstein Shock Absorbers
Manufacturer description
  • Manufacturer Label
    B8 6112

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2009, Lexus GX470 Base Front, For 150-200 lbs additional front weight;Front Lift Height: 1.7-3.2";Requires use of 2X Toyota Upper Shock Mount Assy 48609-60100
2009, Toyota FJ Cruiser Base, 4WD Front, For 150-200 lbs additional front weight;Front Lift Height: 2.1-3.1"
2008, Lexus GX470 Base Front, For 150-200 lbs additional front weight;Front Lift Height: 1.7-3.2";Requires use of 2X Toyota Upper Shock Mount Assy 48609-60100
2008, Toyota FJ Cruiser Base, 4WD Front, For 150-200 lbs additional front weight;Front Lift Height: 2.1-3.1"
2008, Toyota FJ Cruiser Trail Teams Special Edition Front, For 150-200 lbs additional front weight;Front Lift Height: 2.1-3.1"
2007, Lexus GX470 Base Front, For 150-200 lbs additional front weight;Front Lift Height: 1.7-3.2";Requires use of 2X Toyota Upper Shock Mount Assy 48609-60100
2007, Toyota FJ Cruiser Base, 4WD Front, For 150-200 lbs additional front weight;Front Lift Height: 2.1-3.1"
2007, Toyota FJ Cruiser TRD Special Edition Front, For 150-200 lbs additional front weight;Front Lift Height: 2.1-3.1"
2006, Lexus GX470 Base Front, For 150-200 lbs additional front weight;Front Lift Height: 1.7-3.2";Requires use of 2X Toyota Upper Shock Mount Assy 48609-60100
2005, Lexus GX470 Base Front, For 150-200 lbs additional front weight;Front Lift Height: 1.7-3.2";Requires use of 2X Toyota Upper Shock Mount Assy 48609-60100
2004, Lexus GX470 Base Front, For 150-200 lbs additional front weight;Front Lift Height: 1.7-3.2";Requires use of 2X Toyota Upper Shock Mount Assy 48609-60100
2003, Lexus GX470 Base Front, For 150-200 lbs additional front weight;Front Lift Height: 1.7-3.2";Requires use of 2X Toyota Upper Shock Mount Assy 48609-60100
