Bilstein 46-241641 - Suspension Leveling Kit

Previous image
Bilstein 46-241641 - Suspension Leveling Kit
Next image
Zoom image

Bilstein 46-241641 - Suspension Leveling Kit

Part No: 46-241641

Bilstein 46-241641 - Suspension Leveling Kit

BBGL-46-241641
Vehicle Specific

Select your Vehicle

  • A complete suspension upgrade for serious off-road action
  • 60mm Bilstein shock absorbers for increased damping control
  • Specially designed cold wound springs for improved handling
  • Adjustable spring seat for vehicle leveling
  • Designed to maximize wheel travel
  • OEM-grade hardware are included for trouble-free installation

Product details


 Description

Front Suspension Kit

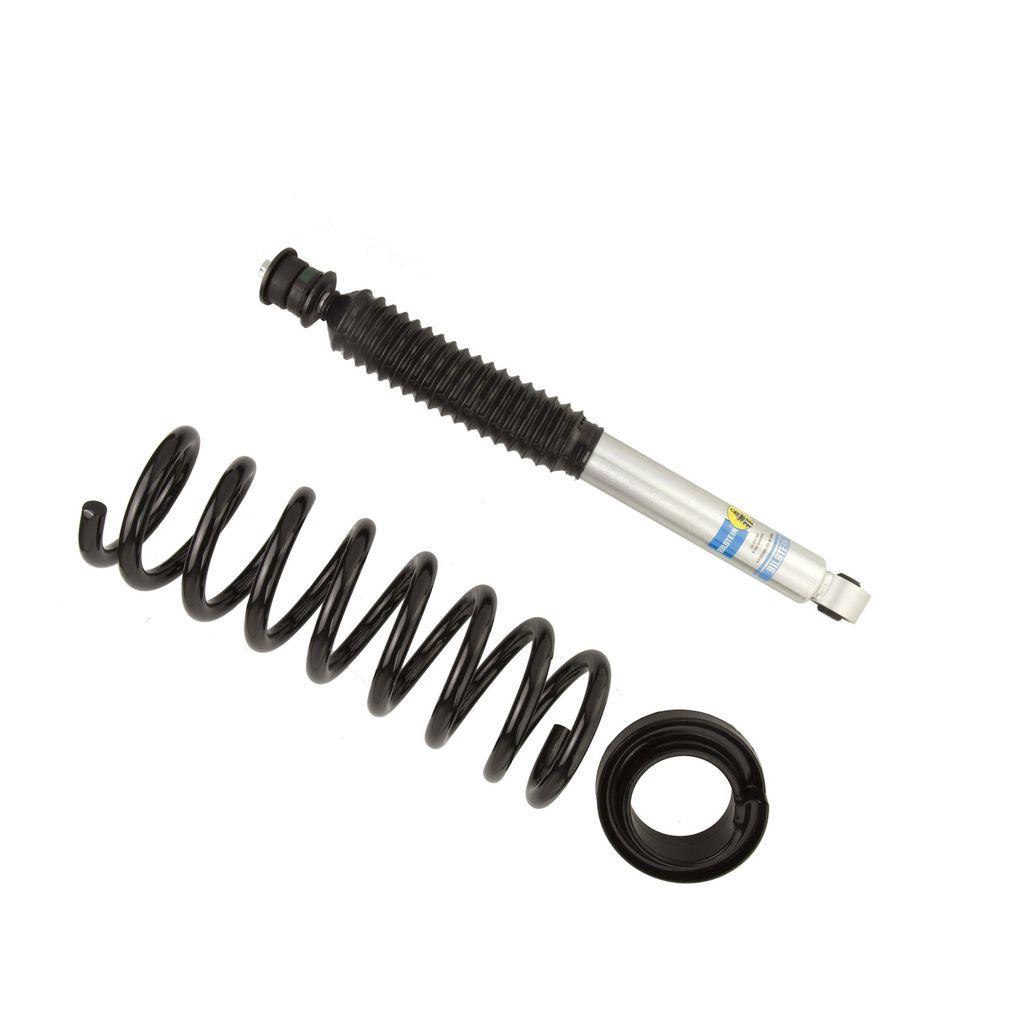

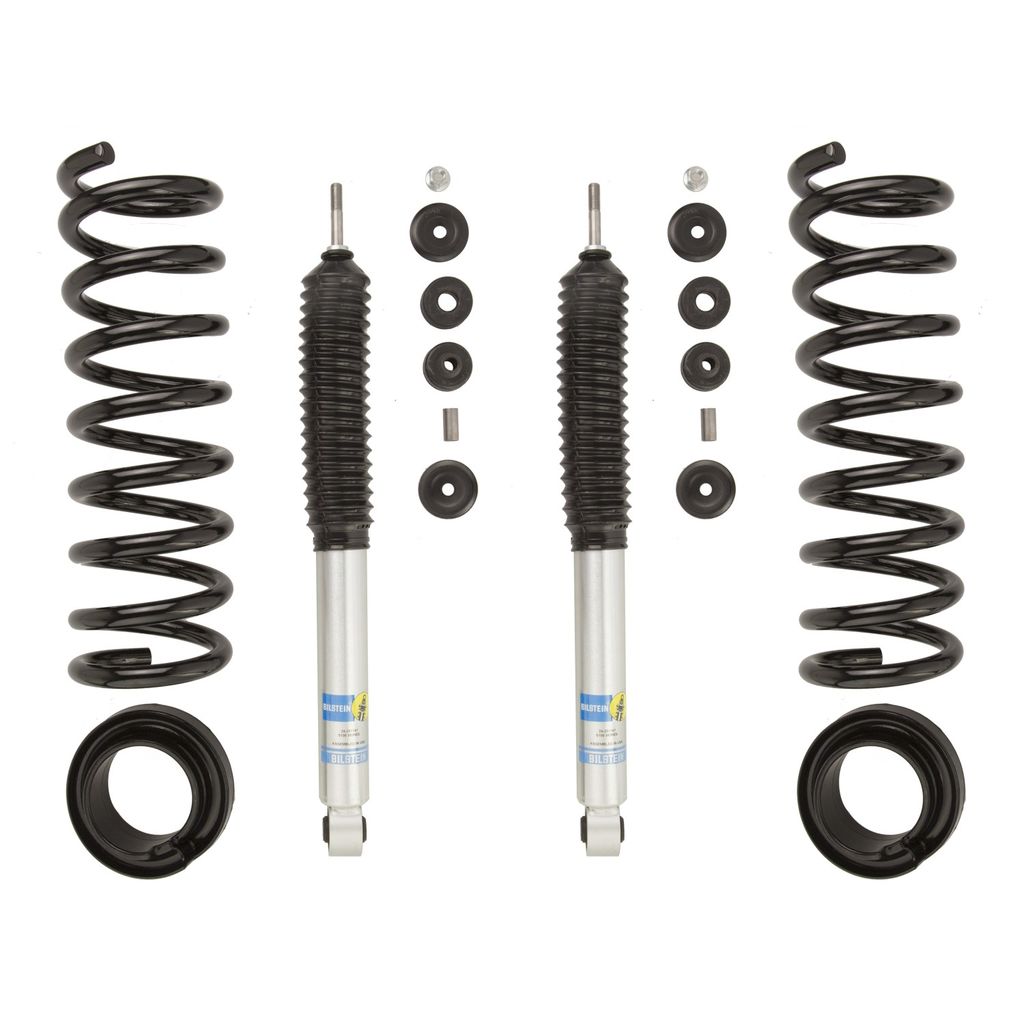

The Bilstein Suspension Leveling Kit is a complete package for those looking for serious off-road action without compromising comfort. It consists of two 60mm shock absorbers for increased damping control and two custom-matched cold wound coil springs for improved handling and control. Two billet aluminum spring seats are also included specifically designed for vehicle leveling, larger tires, and increased ground clearance.
Bilstein B8 5112 suspension kit is a high performance leveling kit which provides more ground clearance, allows for larger tires, and increases wheel travel. The Bilstein B8 5112 suspension kit is for front applications and consists of (2) B8 5100 shock absorbers combined with (2) matched coil springs. This simple yet effective kit will bolt into the factory locations with no modifications. The Bilstein B8 5112 suspension kit provides a smooth and stable ride both on and off-road.
The Bilstein Suspension Leveling Kit is a cost-effective way to level out the uneven stance and increase the ground clearance of your light truck or SUV. It allows you to fit larger-than-stock tires without buying a full lift kit. Unlike other typical leveling kit options that use either a spring preload spacer or strut extender, this one from Bilstein comes as a complete replacement shock. It maximizes wheel travel by adding one to two inches of overall travel without causing any driveline or ball-joint bind. It also provides improved rebound and dampening control to compensate for the added spring preload used in leveling the vehicle. All Bilstein Suspension Leveling Kits come with the necessary OEM-grade hardware for faster and easier installation.

 Reviews

Customer reviews


 Specifications

Package
  • Brand
    BilsteinBilstein Suspension
  • Part Number
    46-241641
  • UPC
    651860747071
  • Height
    7. in
  • Width
    27.38 in
  • Length
    22.25 in
  • Weight
    70 lbs
Details
  • Adjustable Damping
    Non-Adjustable
  • Body Design
    Smooth Body (Non-Coilover)
  • Body Diameter (ID)
    46mm
  • Boot Included
    Black Bellows
  • Finish
    Dampers: Zinc Plated/Springs: Black
  • Internal Design
    Monotube
  • Reservoir
    No
  • Series
    B8 5112
  • Spring Seat Included
    No
  • Title
    Bilstein Shock Absorbers
  • Upper Mount Type
    N/A
Manufacturer description
  • Manufacturer Label
    B8 5112

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles


Model Engine Trim Notes
2018, Ram 2500 6.7, 408, L, 6 Big Horn, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2018, Ram 2500 6.7, 408, L, 6 Laramie, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2018, Ram 2500 6.7, 408, L, 6 Laramie Longhorn, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2018, Ram 2500 6.7, 408, L, 6 Limited, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2018, Ram 2500 6.7, 408, L, 6 SLT, Extended Crew Cab Pickup, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2018, Ram 2500 6.7, 408, L, 6 SLT, Crew Cab Pickup, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2018, Ram 2500 6.7, 408, L, 6 Tradesman, Crew Cab Pickup, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2017, Ram 2500 6.7, 408, L, 6 Big Horn, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2017, Ram 2500 6.7, 408, L, 6 Laramie, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2017, Ram 2500 6.7, 408, L, 6 Laramie Longhorn, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2017, Ram 2500 6.7, 408, L, 6 Limited, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2017, Ram 2500 6.7, 408, L, 6 SLT, Extended Crew Cab Pickup, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2017, Ram 2500 6.7, 408, L, 6 SLT, Crew Cab Pickup, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2017, Ram 2500 6.7, 408, L, 6 Tradesman, Crew Cab Pickup, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2016, Ram 2500 6.7, 408, L, 6 Big Horn, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2016, Ram 2500 6.7, 408, L, 6 Laramie, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2016, Ram 2500 6.7, 408, L, 6 Laramie Longhorn, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2016, Ram 2500 6.7, 408, L, 6 Limited, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2016, Ram 2500 6.7, 408, L, 6 Outdoorsman Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2016, Ram 2500 6.7, 408, L, 6 SLT, Extended Crew Cab Pickup, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2016, Ram 2500 6.7, 408, L, 6 SLT, Crew Cab Pickup, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2016, Ram 2500 6.7, 408, L, 6 Tradesman, Crew Cab Pickup, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2015, Ram 2500 6.7, 408, L, 6 Big Horn, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2015, Ram 2500 6.7, 408, L, 6 Laramie, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2015, Ram 2500 6.7, 408, L, 6 Laramie Limited, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2015, Ram 2500 6.7, 408, L, 6 Laramie Longhorn, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2015, Ram 2500 6.7, 408, L, 6 Lone Star, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2015, Ram 2500 6.7, 408, L, 6 Outdoorsman Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2015, Ram 2500 6.7, 408, L, 6 SLT, Extended Crew Cab Pickup, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2015, Ram 2500 6.7, 408, L, 6 SLT, Crew Cab Pickup, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2015, Ram 2500 6.7, 408, L, 6 Tradesman, Crew Cab Pickup, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2014, Ram 2500 6.7, 408, L, 6 Big Horn, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2014, Ram 2500 6.7, 408, L, 6 Laramie, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2014, Ram 2500 6.7, 408, L, 6 Laramie Limited, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2014, Ram 2500 6.7, 408, L, 6 Laramie Longhorn, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2014, Ram 2500 6.7, 408, L, 6 Lone Star, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2014, Ram 2500 6.7, 408, L, 6 Outdoorsman Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2014, Ram 2500 6.7, 408, L, 6 SLT, Extended Crew Cab Pickup, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2014, Ram 2500 6.7, 408, L, 6 SLT, Crew Cab Pickup, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
2014, Ram 2500 6.7, 408, L, 6 Tradesman, Crew Cab Pickup, 4WD Front, Adjustable track bar recommended;Front Lift Height: 2.3"
