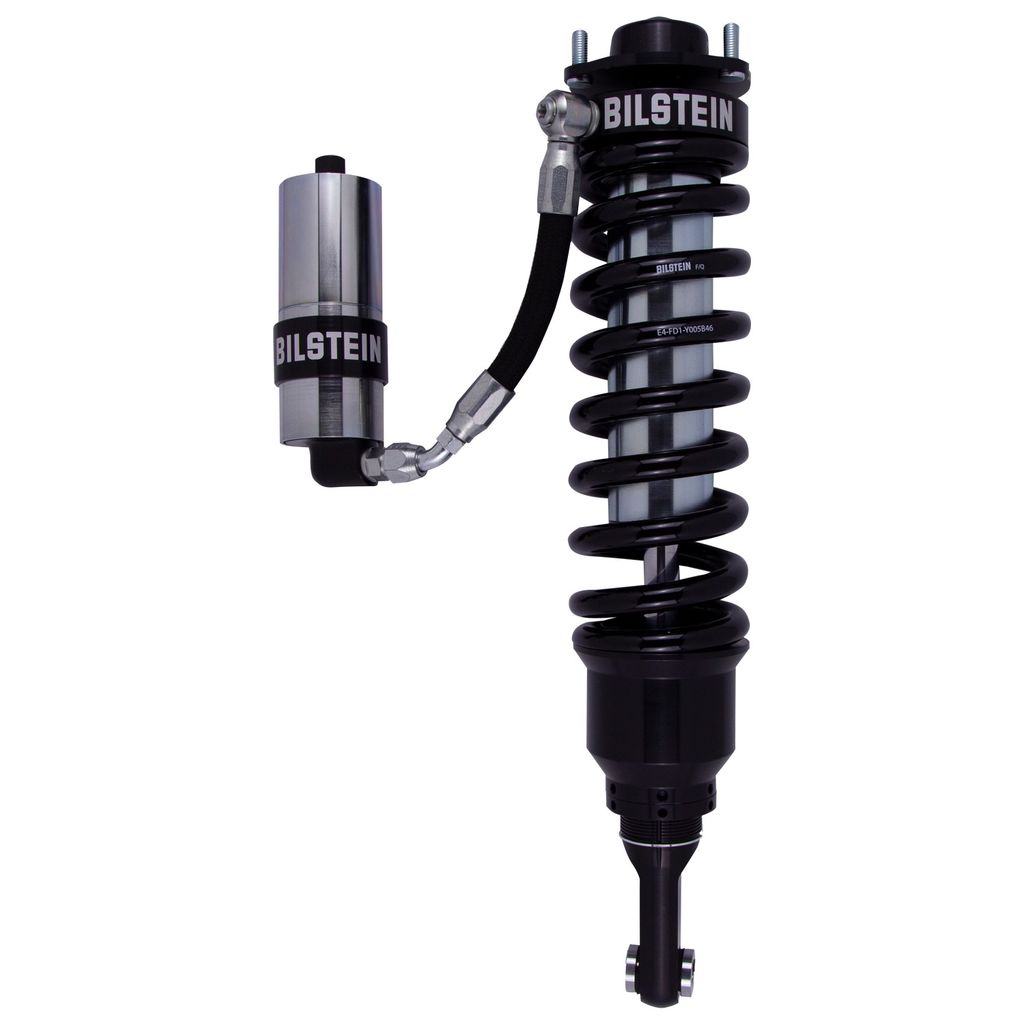

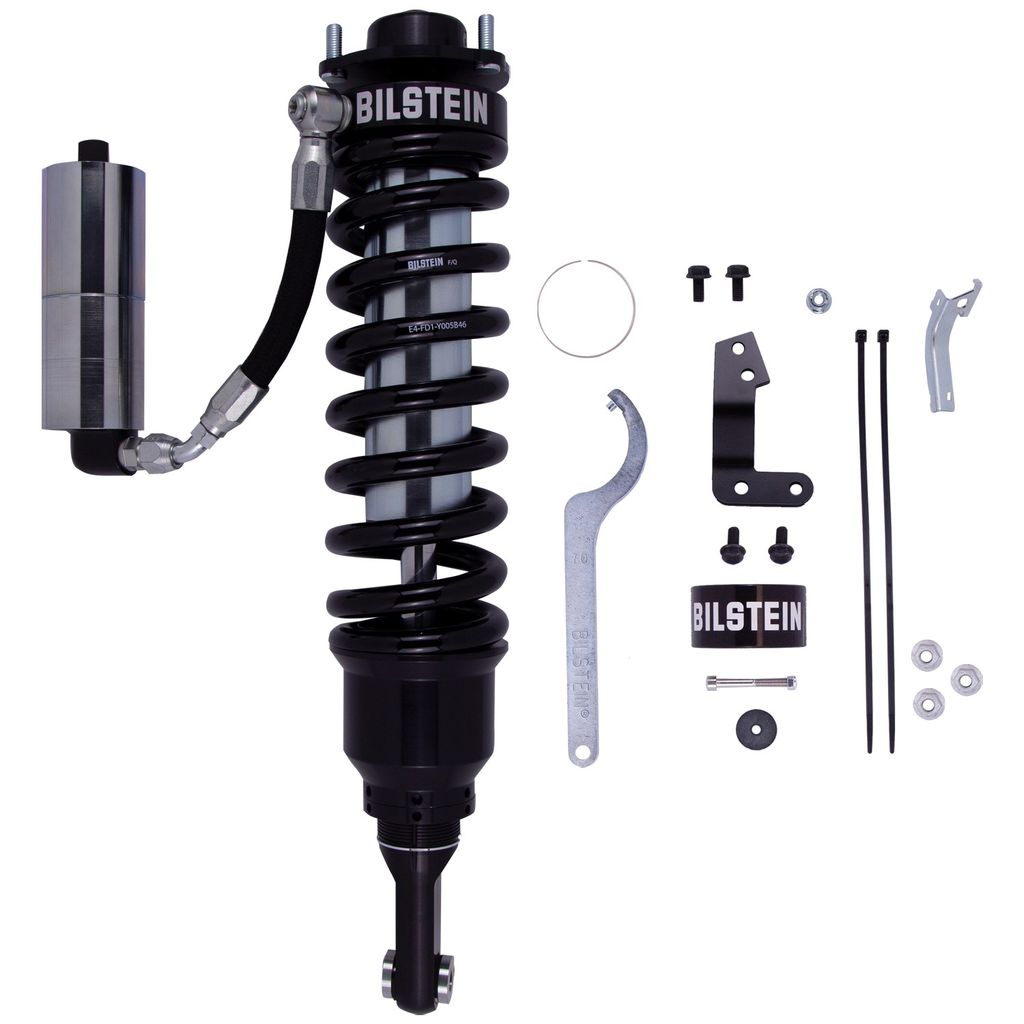

Bilstein 41-298381 - Shock Absorber and Coil Spring Assembly

Previous image
Bilstein 41-298381 - Shock Absorber and Coil Spring Assembly
Next image
Zoom image

Bilstein 41-298381 - Shock Absorber and Coil Spring Assembly

Part No: 41-298381
Only 1 left in Stock, Order Soon Arrives: Apr 19 - 25
  • $1091.00 & FREE Shipping
List: $1189.90

Starting at $XX/mo with Affirm. Prequalify now

Bilstein 41-298381 - Shock Absorber and Coil Spring Assembly

BBGL-41-298381
Only 1 left in Stock, Order Soon Arrives: Apr 19 - 25
  • $1091.00 & FREE Shipping
List: $1189.90

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific

Select your Vehicle

  • Ideal replacement shocks and coil spring for light trucks and SUVs
  • Uses ZoneControl CR technology for unparalleled ride comfort during everyday driving and maximum control during large suspension inputs
  • Triple piston design for high-performance damping while driving off-road
  • Remote reservoir for increased oil capacity and maximum heat dissipation
  • Adjustable threaded spring seat to set the vehicle ride height
  • Aluminum components with zinc plated shock bodies to resist harsh off-road elements better
Check All Vehicles this Part Fits

Product details

 Description

60mm Front Left Corner Module
The Bilstein ZoneControl Shock Absorber and Coil Spring Assembly is the ultimate suspension upgrade you’ll ever need for your light truck or SUV. It is made using revolutionary ZoneControl® CR technology for position-sensitive damping. So whether for everyday driving or during large suspension inputs, this assembly is guaranteed to provide unparalleled ride comfort and maximum control.
Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
The Bilstein ZoneControl shock and coil springs are designed with off-roaders in mind. Bilstein knows that going from a standard shock to a coilover assembly is the next step most off-roaders will take if they want maximum comfort on the rugged road. So, it rolled out the ZoneControl shocks with coil spring that’s dressed to impress. This assembly features a triple piston design with three compression zones for superior bottom-out control and two rebound zones for maximum stability. Plus, it uses an external reservoir designed to hold additional oil for improved heat dissipation and better performance over time. The Bilstein ZoneControl comes with an adjustable threaded spring seat that allows for easy spring preload adjustment and fine-tuning ride height. And it resists harsh off-road elements better than stocks since it’s made using aluminum components with zinc-plated shock bodies.

 Specifications

Package
Attributes
  • Driving Qualifiers
    Performance Street, Towing-Oversized Tires, Off Road
  • Budget
    High
  • Handling Characteristic
    Performance
  • Springs Included
    Yes
  • Ride Control/Adjustability
    Non- Adjustable
  • Ride Height Adjustable?
    Yes
  • Design
    Mono Tube
Details
  • Adjustable Damping
    Non-Adjustable
  • Body Design
    Smooth Body (Coilover)
  • Body Diameter (ID)
    60mm
  • Body Material
    Steel
  • Boot Included
    No
  • Collapsed Length (IN)
    17.99
  • Collapsed Length (MM)
    456.9
  • Extended Length (IN)
    22.80
  • Extended Length (MM)
    579.1
  • Finish
    Dampers: Zinc Plated/Springs: Black
  • Internal Design
    Monotube
  • Lower Mount Type
    Eye 14.1mm
  • Reservoir
    Yes
  • Series
    B8 8112 (ZoneControl CR)
  • Spring Seat Included
    Yes
  • Title
    Bilstein Shock Absorbers
  • Upper Mount Type
    Special
Manufacturer description
  • Manufacturer Label
    B8 8112 (ZoneControl CR)

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2022, Lexus GX460 Base Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.2"
2022, Lexus GX460 Premium Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.2"
2022, Toyota 4Runner TRD Off-Road Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.5";With Kinetic Dynamic Suspension System (KDSS)
2022, Toyota 4Runner TRD Off-Road Premium Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.5";With Kinetic Dynamic Suspension System (KDSS)
2022, Toyota 4Runner Venture Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.5";With Kinetic Dynamic Suspension System (KDSS)
2021, Lexus GX460 Base Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.2"
2021, Lexus GX460 Premium Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.2"
2021, Toyota 4Runner TRD Off-Road Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.5";With Kinetic Dynamic Suspension System (KDSS)
2021, Toyota 4Runner TRD Off-Road Premium Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.5";With Kinetic Dynamic Suspension System (KDSS)
2021, Toyota 4Runner Venture Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.5";With Kinetic Dynamic Suspension System (KDSS)
2020, Lexus GX460 Base Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.2"
2020, Lexus GX460 Premium Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.2"
2020, Toyota 4Runner TRD Off-Road Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.5";With Kinetic Dynamic Suspension System (KDSS)
2020, Toyota 4Runner TRD Off-Road Premium Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.5";With Kinetic Dynamic Suspension System (KDSS)
2020, Toyota 4Runner Venture Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.5";With Kinetic Dynamic Suspension System (KDSS)
2019, Lexus GX460 Base Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.2"
2019, Lexus GX460 Premium Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.2"
2019, Toyota 4Runner TRD Off-Road Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.5";With Kinetic Dynamic Suspension System (KDSS)
2019, Toyota 4Runner TRD Off-Road Premium Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.5";With Kinetic Dynamic Suspension System (KDSS)
2018, Lexus GX460 Base Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.2"
2018, Lexus GX460 Premium Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.2"
2018, Toyota 4Runner TRD Off-Road Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.5";With Kinetic Dynamic Suspension System (KDSS)
2018, Toyota 4Runner TRD Off-Road Premium Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.5";With Kinetic Dynamic Suspension System (KDSS)
2017, Lexus GX460 Base Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.2"
2017, Lexus GX460 Premium Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.2"
2017, Toyota 4Runner TRD Off-Road Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.5";With Kinetic Dynamic Suspension System (KDSS)
2016, Lexus GX460 Base Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.2"
2016, Lexus GX460 Premium Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.2"
2016, Toyota 4Runner Trail Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.5";With Kinetic Dynamic Suspension System (KDSS)
2015, Lexus GX460 Base Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.2"
2015, Lexus GX460 Premium Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.2"
2015, Toyota 4Runner Trail Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.5";With Kinetic Dynamic Suspension System (KDSS)
2014, Lexus GX460 Base Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.2"
2014, Lexus GX460 Premium Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.2"
2014, Toyota 4Runner Trail Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.5";With Kinetic Dynamic Suspension System (KDSS)
2013, Lexus GX460 Base Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.2"
2013, Toyota 4Runner Trail Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.5";With Kinetic Dynamic Suspension System (KDSS)
2012, Lexus GX460 Base Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.2"
2012, Toyota 4Runner Trail Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.5";With Kinetic Dynamic Suspension System (KDSS)
2011, Lexus GX460 Base Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.2"
2011, Toyota 4Runner Trail Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.5";With Kinetic Dynamic Suspension System (KDSS)
2010, Lexus GX460 Base Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.2"
2010, Toyota 4Runner Trail Front Left, For 150-200 lbs additional front weight;Front Lift Height: 1.2-3.5";With Kinetic Dynamic Suspension System (KDSS)
