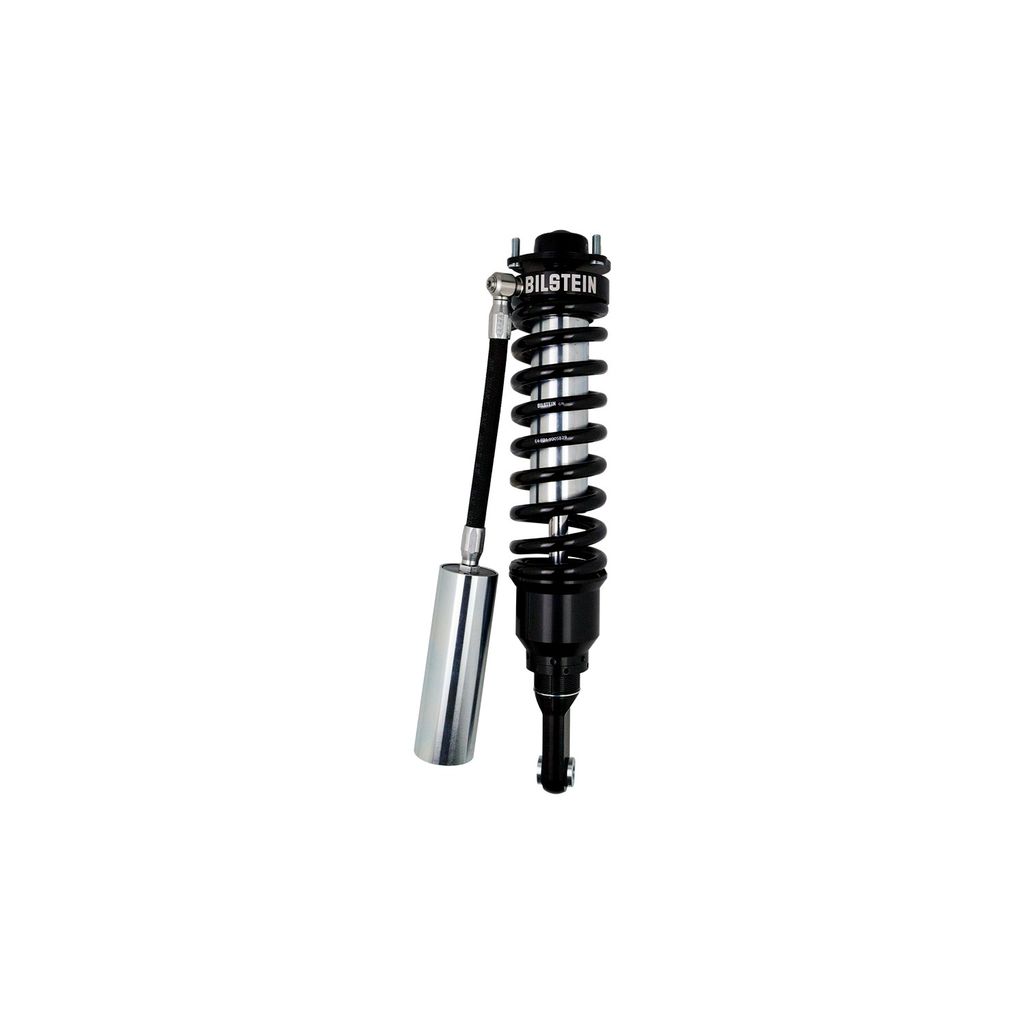

Bilstein 41-269282 - Shock Absorber and Coil Spring Assembly

Previous image
Bilstein 41-269282 - Shock Absorber and Coil Spring Assembly
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Bilstein 41-269282 - Shock Absorber and Coil Spring Assembly

Part No: 41-269282

Bilstein 41-269282 - Shock Absorber and Coil Spring Assembly

BBGL-41-269282
Vehicle Specific
  • ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
  • Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
  • 60mm remote reservoir for increased oil capacity and cooling
Check All Vehicles this Part Fits

Product details

 Description

60mm Front Left Corner Module

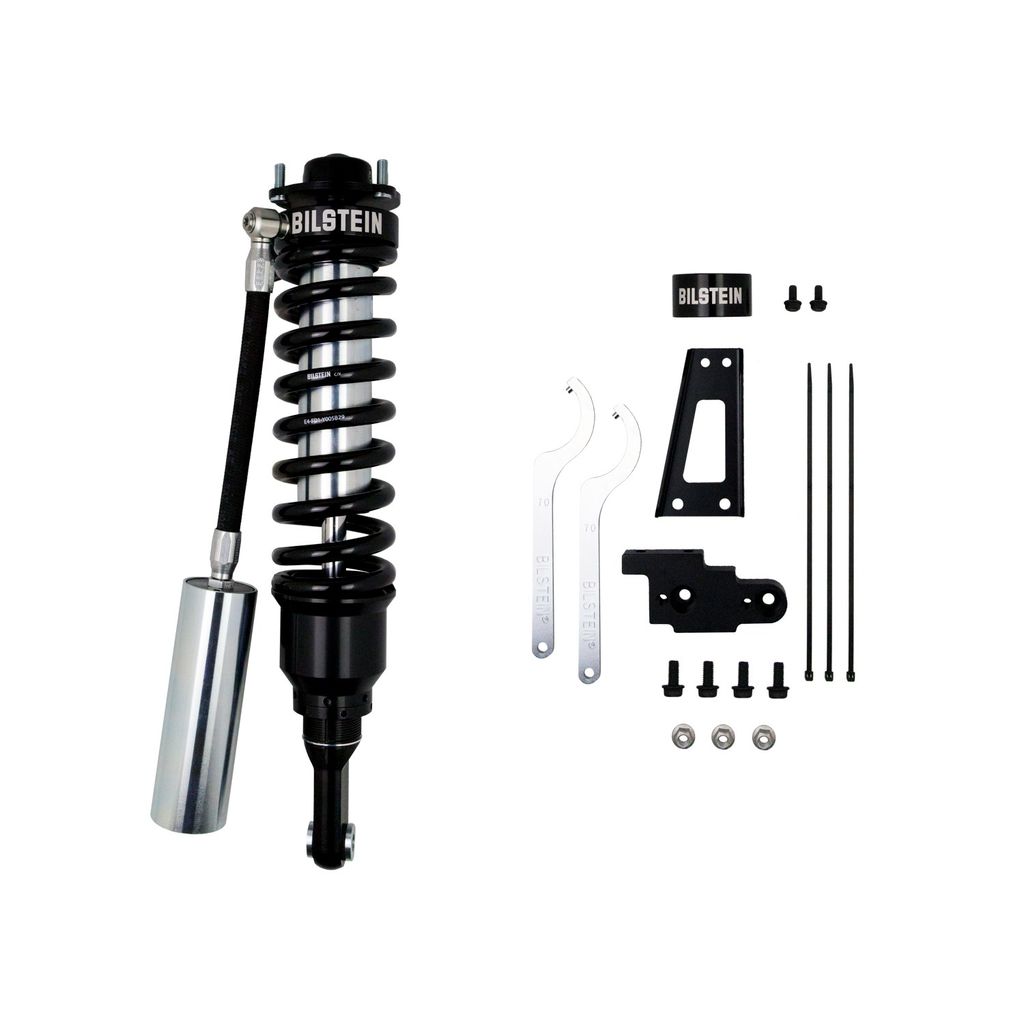

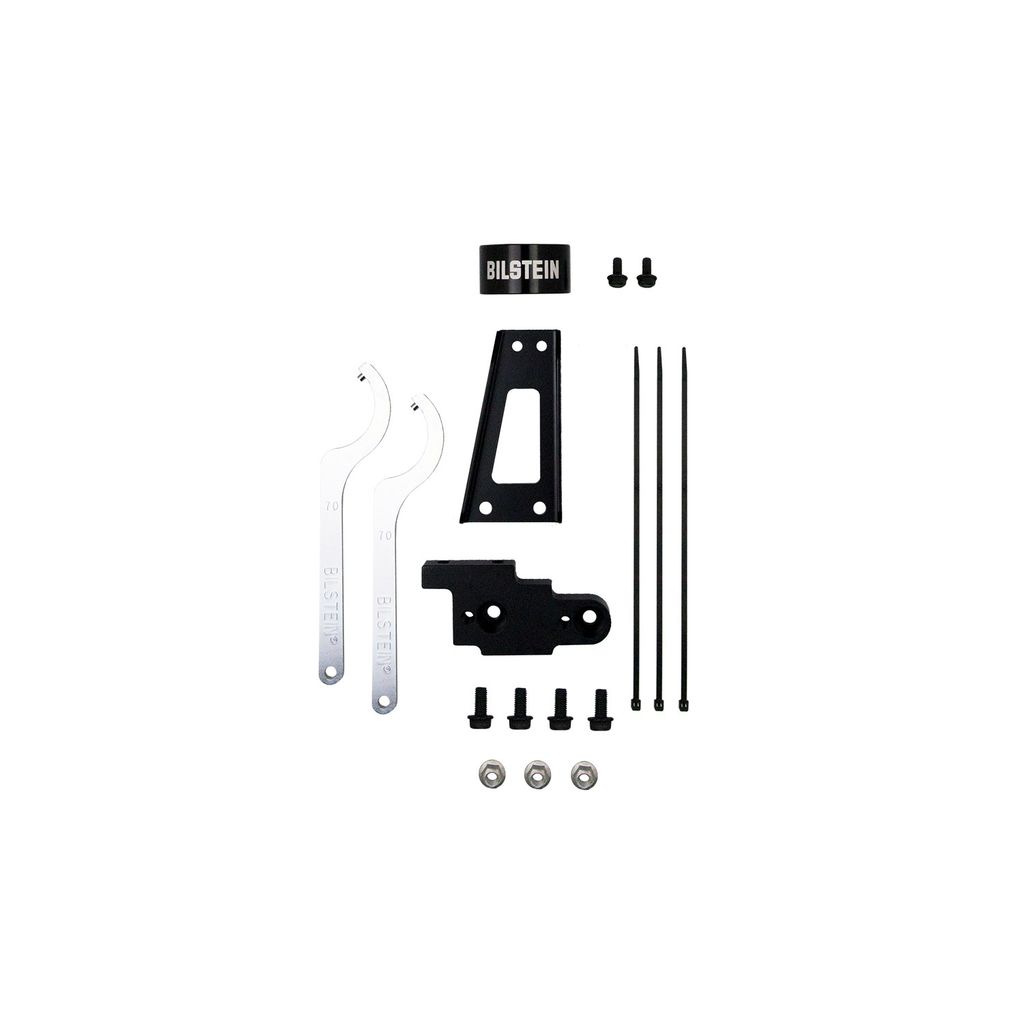

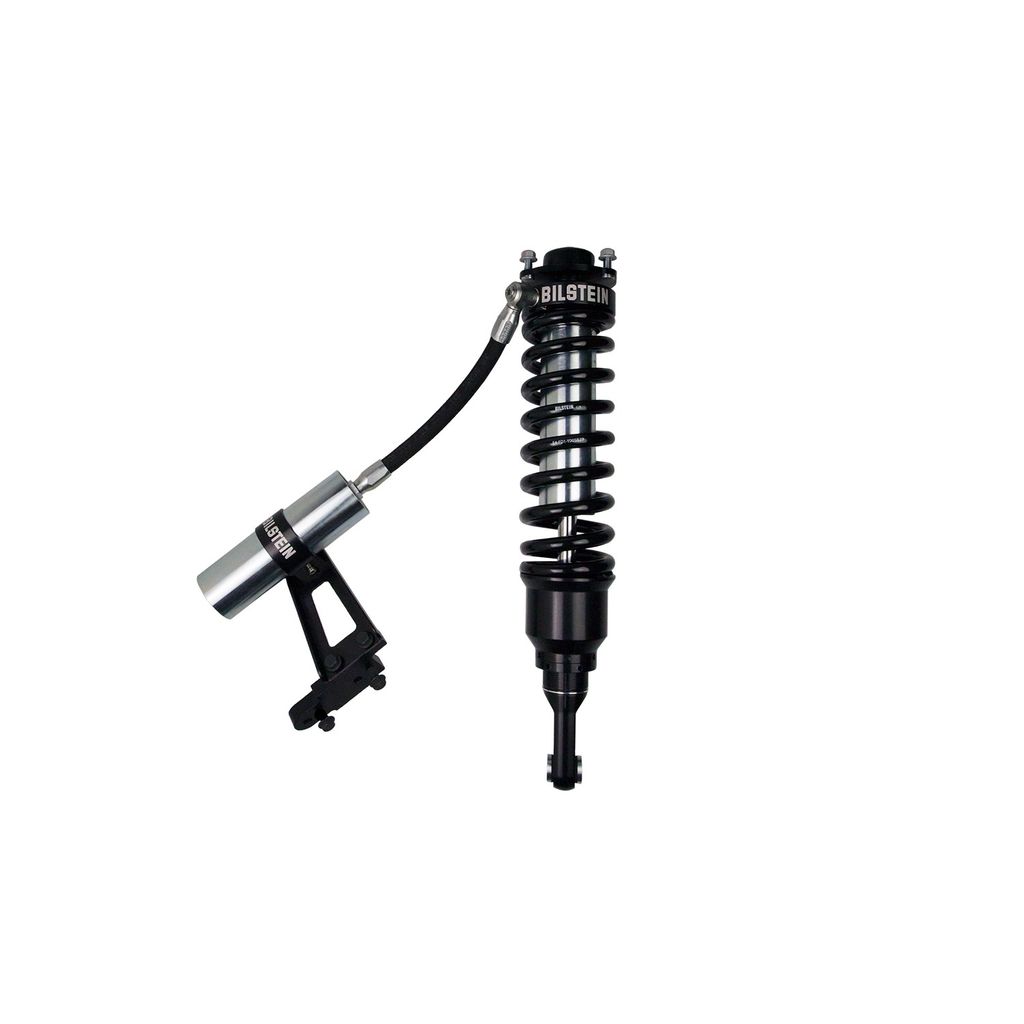

Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0.5-3.25” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

 Specifications

Package
Attributes
  • Driving Qualifiers
    Performance Street, Towing-Oversized Tires, Off Road
  • Budget
    High
  • Handling Characteristic
    Performance
  • Springs Included
    Yes
  • Ride Control/Adjustability
    Non- Adjustable
  • Ride Height Adjustable?
    Yes
  • Design
    Mono Tube
Details
  • Adjustable Damping
    Non-Adjustable
  • Body Design
    Smooth Body (Coilover)
  • Body Diameter (ID)
    60mm
  • Body Material
    Steel
  • Boot Included
    No
  • Collapsed Length (IN)
    17.99
  • Collapsed Length (MM)
    456.9
  • Extended Length (IN)
    22.96
  • Extended Length (MM)
    583.1
  • Finish
    Dampers: Zinc Plated/Springs: Black
  • Internal Design
    Monotube
  • Lower Mount Type
    Eye 14.1mm
  • Optional Heavy Load Springs
    53-291394, 53-291387
  • PartType
    Shocks / Struts
  • Reservoir
    Yes
  • Segment
    Light Truck
  • Series
    B8 8112 (ZoneControl CR)
  • Spring Seat Included
    Yes
  • Title
    Bilstein Shock Absorbers
  • Upper Mount Type
    Special
Manufacturer description
  • Manufacturer Label
    B8 8112 (ZoneControl CR)

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2022, Toyota Tacoma Limited Front Left, Front Lift Height: 0.4-2.2"
2022, Toyota Tacoma Nightshade Front Left, Front Lift Height: 0.4-2.2"
2022, Toyota Tacoma SR Front Left, Front Lift Height: 0.4-2.2"
2022, Toyota Tacoma SR5 Front Left, Front Lift Height: 0.4-2.2"
2022, Toyota Tacoma TRD Off-Road Front Left, Front Lift Height: 0.4-2.2"
2022, Toyota Tacoma TRD Pro Front Left, Front Lift Height: 0.4-2.2"
2022, Toyota Tacoma TRD Sport Front Left, Front Lift Height: 0.4-2.2"
2021, Toyota Tacoma Limited Front Left, Front Lift Height: 0.4-2.2"
2021, Toyota Tacoma Nightshade Front Left, Front Lift Height: 0.4-2.2"
2021, Toyota Tacoma SR Front Left, Front Lift Height: 0.4-2.2"
2021, Toyota Tacoma SR5 Front Left, Front Lift Height: 0.4-2.2"
2021, Toyota Tacoma Trail Front Left, Front Lift Height: 0.4-2.2"
2021, Toyota Tacoma TRD Off-Road Front Left, Front Lift Height: 0.4-2.2"
2021, Toyota Tacoma TRD Pro Front Left, Front Lift Height: 0.4-2.2"
2021, Toyota Tacoma TRD Sport Front Left, Front Lift Height: 0.4-2.2"
2020, Toyota Tacoma Limited Front Left, Front Lift Height: 0.4-2.2"
2020, Toyota Tacoma SR Front Left, Front Lift Height: 0.4-2.2"
2020, Toyota Tacoma SR5 Front Left, Front Lift Height: 0.4-2.2"
2020, Toyota Tacoma TRD Off-Road Front Left, Front Lift Height: 0.4-2.2"
2020, Toyota Tacoma TRD Pro Front Left, Front Lift Height: 0.4-2.2"
2020, Toyota Tacoma TRD Sport Front Left, Front Lift Height: 0.4-2.2"
2019, Toyota Tacoma Limited Front Left, Front Lift Height: 0.4-2.2"
2019, Toyota Tacoma SR Front Left, Front Lift Height: 0.4-2.2"
2019, Toyota Tacoma SR5 Front Left, Front Lift Height: 0.4-2.2"
2019, Toyota Tacoma TRD Off-Road Front Left, Front Lift Height: 0.4-2.2"
2019, Toyota Tacoma TRD Pro Front Left, Front Lift Height: 0.4-2.2"
2019, Toyota Tacoma TRD Sport Front Left, Front Lift Height: 0.4-2.2"
2018, Toyota Tacoma Limited Front Left, Front Lift Height: 0.4-2.2"
2018, Toyota Tacoma SR Front Left, Front Lift Height: 0.4-2.2"
2018, Toyota Tacoma SR5 Front Left, Front Lift Height: 0.4-2.2"
2018, Toyota Tacoma TRD Off-Road Front Left, Front Lift Height: 0.4-2.2"
2018, Toyota Tacoma TRD Pro Front Left, Front Lift Height: 0.4-2.2"
2018, Toyota Tacoma TRD Sport Front Left, Front Lift Height: 0.4-2.2"
2017, Toyota Tacoma Limited Front Left, Front Lift Height: 0.4-2.2"
2017, Toyota Tacoma SR Front Left, Front Lift Height: 0.4-2.2"
2017, Toyota Tacoma SR5 Front Left, Front Lift Height: 0.4-2.2"
2017, Toyota Tacoma TRD Off-Road Front Left, Front Lift Height: 0.4-2.2"
2017, Toyota Tacoma TRD Pro Front Left, Front Lift Height: 0.4-2.2"
2017, Toyota Tacoma TRD Sport Front Left, Front Lift Height: 0.4-2.2"
2016, Toyota Tacoma Limited Front Left, Front Lift Height: 0.4-2.2"
2016, Toyota Tacoma SR Front Left, Front Lift Height: 0.4-2.2"
2016, Toyota Tacoma SR5 Front Left, Front Lift Height: 0.4-2.2"
2016, Toyota Tacoma TRD Off-Road Front Left, Front Lift Height: 0.4-2.2"
2016, Toyota Tacoma TRD Sport Front Left, Front Lift Height: 0.4-2.2"
2015, Toyota Tacoma Base, 4WD Front Left, Front Lift Height: 0.6-2.6"
2015, Toyota Tacoma Pre Runner Front Left, Front Lift Height: 1-2.5"
2015, Toyota Tacoma TRD Pro Front Left, Front Lift Height: 0-1"
2014, Toyota Tacoma Base, 4WD Front Left, Front Lift Height: 0.6-2.6"
2014, Toyota Tacoma Pre Runner Front Left, Front Lift Height: 1-2.5"
2013, Toyota Tacoma Base, 4WD Front Left, Front Lift Height: 0.6-2.6"
2013, Toyota Tacoma Pre Runner Front Left, Front Lift Height: 1-2.5"
2012, Toyota Tacoma Base, 4WD Front Left, Front Lift Height: 0.6-2.6"
2012, Toyota Tacoma Pre Runner Front Left, Front Lift Height: 1-2.5"
2011, Toyota Tacoma Base, 4WD Front Left, Front Lift Height: 0.6-2.6"
2011, Toyota Tacoma Pre Runner Front Left, Front Lift Height: 1-2.5"
2010, Toyota Tacoma Base, 4WD Front Left, Front Lift Height: 0.6-2.6"
2010, Toyota Tacoma Pre Runner Front Left, Front Lift Height: 1-2.5"
2009, Toyota Tacoma Base, 4WD Front Left, Front Lift Height: 0.6-2.6"
2009, Toyota Tacoma Pre Runner Front Left, Front Lift Height: 1-2.5"
2008, Toyota Tacoma Base, 4WD Front Left, Front Lift Height: 0.6-2.6"
2008, Toyota Tacoma Pre Runner Front Left, Front Lift Height: 1-2.5"
2007, Toyota Tacoma Base, 4WD Front Left, Front Lift Height: 0.6-2.6"
2007, Toyota Tacoma Pre Runner Front Left, Front Lift Height: 1-2.5"
2006, Toyota Tacoma Base, 4WD Front Left, Front Lift Height: 0.6-2.6"
2006, Toyota Tacoma Pre Runner Front Left, Front Lift Height: 1-2.5"
2005, Toyota Tacoma Base, 4WD Front Left, Front Lift Height: 0.6-2.6"
2005, Toyota Tacoma Pre Runner Front Left, Front Lift Height: 1-2.5"
Items: 1–100 of 116

Fitment Notice

You have not selected a vehicle to verify this product will fit. You may be subject to return and restocking fees if you order the wrong part without confirming your vehicle first.
