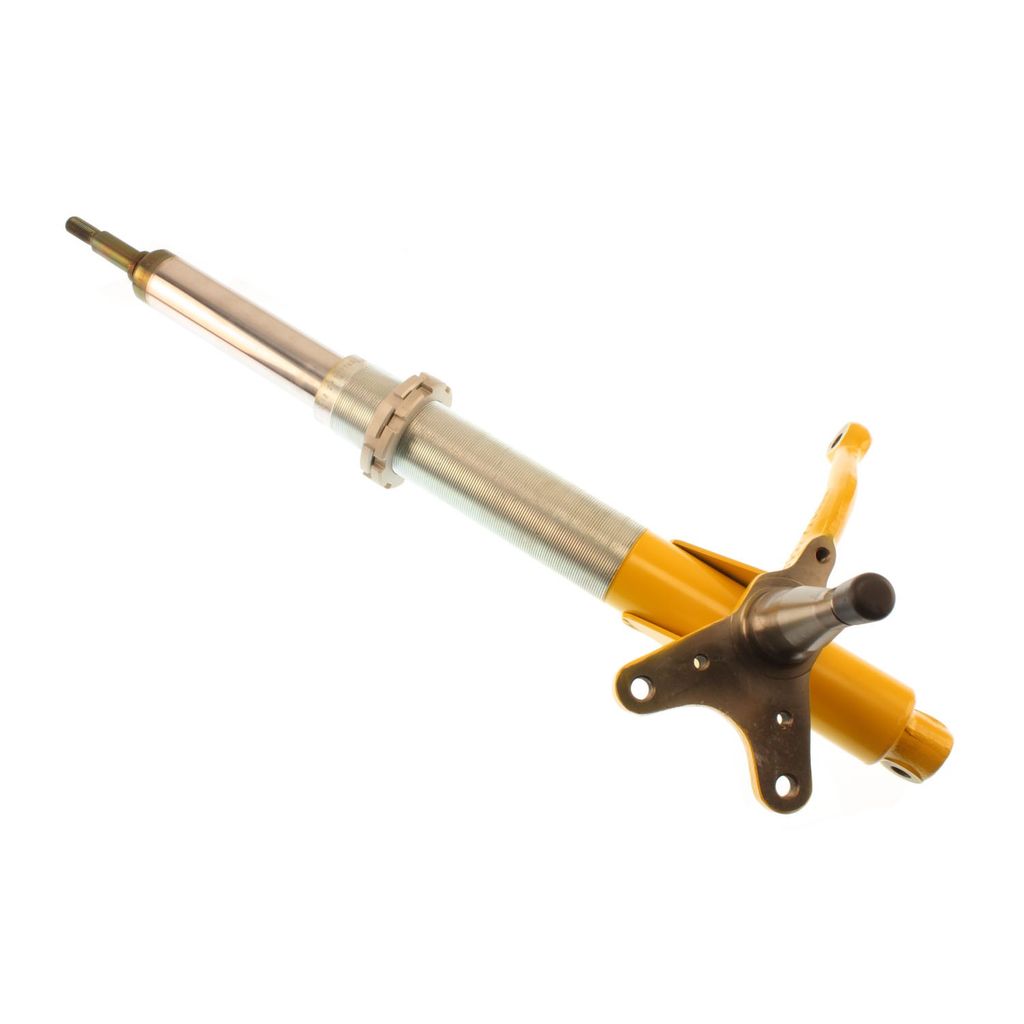

Bilstein 35-587743 - Suspension Strut Assembly

Bilstein 35-587743 - Suspension Strut Assembly
Actual Product may vary from pictures due to Vehicle Fitment.
Zoom image

Bilstein 35-587743 - Suspension Strut Assembly

Part No: 35-587743
Out of Stock

Please call 888-257-7149 to check future availability

  • $1344.00 & FREE Shipping

Starting at $XX/mo with Affirm. Prequalify now

Bilstein 35-587743 - Suspension Strut Assembly

BBGL-35-587743
Out of Stock

Please call 888-257-7149 to check future availability

  • $1344.00 & FREE Shipping

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific
  • Monotube design ensures consistent, fade-free performance in all conditions
  • Larger working piston with deflective disc valving
  • Available in steel and aluminum bodies
Check All Vehicles this Part Fits

Product details

 Description

36mm Monotube Strut Assembly
Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.

 Specifications

Package
Attributes
  • Driving Qualifiers
    Racing Only
  • Budget
    High
  • Handling Characteristic
    Firm
  • Springs Included
    No
  • Ride Control/Adjustability
    Non- Adjustable
  • Ride Height Adjustable?
    Yes
  • Design
    Mono Tube
Details
  • Adjustable Damping
    Non-Adjustable
  • Body Design
    Threaded Body (Coilover)
  • Body Diameter (ID)
    36mm
  • Body Material
    Steel
  • Boot Included
    No
  • Collapsed Length (IN)
    18.23
  • Collapsed Length (MM)
    463
  • Compression @0.52m/s
    1600
  • Extended Length (IN)
    22.95
  • Extended Length (MM)
    583.0
  • Finish
    Yellow Paint
  • Internal Design
    Monotube
  • Lower Mount Type
    Special
  • PartType
    Shocks / Struts
  • Piston Type
    Linear
  • Position
    Front Left
  • Rebound @0.52m/s
    1610
  • Segment
    Motorsports
  • Series
    Motorsports
  • Spring Hardware
    N/A
  • Spring Max Travel (IN)
    4.72
  • Spring Seat Included
    Yes
  • Title
    Bilstein Shock Absorbers
  • Upper Mount Type
    Stem
Manufacturer description
  • Manufacturer Label
    Motorsports

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
1989, Porsche 911 Carrera Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1989, Porsche 911 Speedster Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1989, Porsche 911 Turbo Carrera Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1988, Porsche 911 Carrera Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1988, Porsche 911 Turbo Carrera Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1987, Porsche 911 Carrera Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1987, Porsche 911 Turbo Carrera Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1986, Porsche 911 Carrera Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1986, Porsche 911 Turbo Carrera Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1985, Porsche 911 Carrera Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1984, Porsche 911 Carrera Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1983, Porsche 911 SC Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1982, Porsche 911 SC Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1981, Porsche 911 SC Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1980, Porsche 911 SC Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1979, Porsche 911 SC Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1979, Porsche 930 Turbo Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1978, Porsche 911 SC Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1978, Porsche 930 Turbo Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1977, Porsche 911 S Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1977, Porsche 911 Turbo Carrera Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1976, Porsche 911 S Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1976, Porsche 911 Turbo Carrera Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1976, Porsche 912 E Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1975, Porsche 911 Carrera Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1975, Porsche 911 S Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1974, Porsche 911 Base Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1974, Porsche 911 Carrera Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1974, Porsche 911 S Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1973, Porsche 911 E Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1973, Porsche 911 S Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1973, Porsche 911 T Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1972, Porsche 911 E Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1972, Porsche 911 S Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1972, Porsche 911 T Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1971, Porsche 911 E Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1971, Porsche 911 S Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1971, Porsche 911 T Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1970, Porsche 911 E Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1970, Porsche 911 S Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1970, Porsche 911 T Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1969, Porsche 911 E Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1969, Porsche 911 S Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1969, Porsche 911 T Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1969, Porsche 912 Base Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1968, Porsche 911 Base Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1968, Porsche 911 L Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1968, Porsche 911 S Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1968, Porsche 912 Base Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1967, Porsche 911 Base Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1967, Porsche 911 S Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1967, Porsche 912 Base Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1966, Porsche 911 Base Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1966, Porsche 912 Base Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1965, Porsche 911 Base Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
1965, Porsche 912 Base Front Left, Requires additional components and racing springs;RSR Version 1;Setting: 1600/1600;With Reinforced Spindle, -10mm ride height
