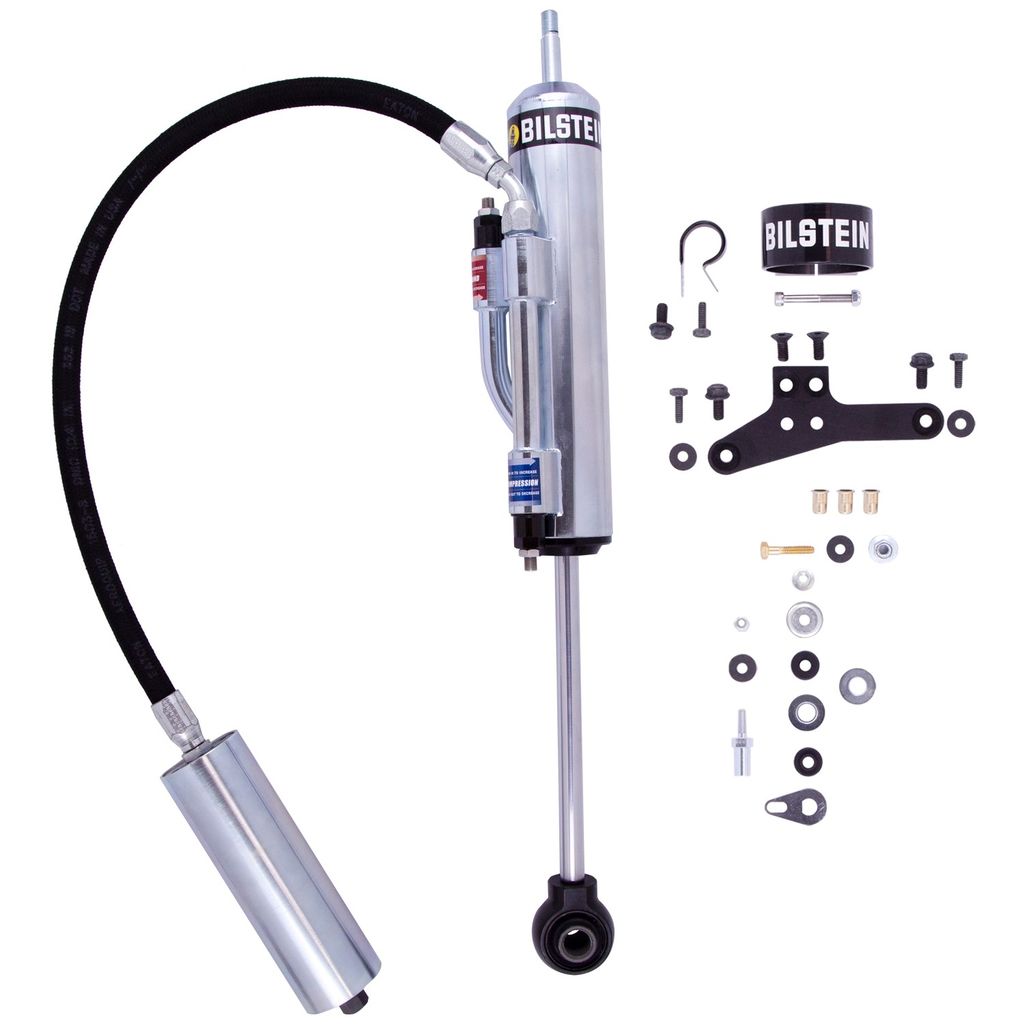

Bilstein 25-284591 - Shock Absorber

Previous image
Bilstein 25-284591 - Shock Absorber
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Bilstein 25-284591 - Shock Absorber

Part No: 25-284591
Only 3 left in Stock, Order Soon Arrives: Jun 5 - 11
  • $1091.00 & FREE Shipping
List: $1189.90

Starting at $XX/mo with Affirm. Prequalify now

Bilstein 25-284591 - Shock Absorber

BBGL-25-284591
Only 3 left in Stock, Order Soon Arrives: Jun 5 - 11
  • $1091.00 & FREE Shipping
List: $1189.90

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific
  • Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
  • 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
  • Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
  • Backed by Bilstein’s Limited Lifetime Warranty
Check All Vehicles this Part Fits

Product details

 Description

60mm Shock Absorber
Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

 Specifications

Package
Attributes
  • Driving Qualifiers
    Performance Street, Towing-Oversized Tires, Off Road
  • Budget
    High
  • Handling Characteristic
    Performance
  • Springs Included
    No
  • Ride Control/Adjustability
    Adjustable
  • Ride Height Adjustable?
    No
  • Design
    Mono Tube
Details
  • Part Name
    Shock Absorber
  • Adjustable Damping
    Double Adjustable – Compression and Rebound
  • Body Design
    Bypass Body (Non-Coilover)
  • Body Diameter (ID)
    60mm
  • Boot Included
    No
  • Collapsed Length (IN)
    14.72
  • Collapsed Length (MM)
    374
  • Extended Length (IN)
    24.09
  • Extended Length (MM)
    612.0
  • Finish
    Zinc Plated
  • Internal Design
    Monotube
  • Lower Mount Type
    Eye 19.3mm
  • PartType
    Shocks / Struts
  • Reservoir
    Yes
  • Segment
    Light Truck
  • Series
    B8 8100 (Bypass)
  • Spring Seat Included
    No
  • Title
    Bilstein Shock Absorbers
  • Upper Mount Type
    Stem
Manufacturer description
  • Manufacturer Label
    B8 8100 (Bypass)

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2022, Lexus GX460 Base Rear Right, For Rear Lifted Height: 0.5-1.5"
2022, Lexus GX460 Premium Rear Right, For Rear Lifted Height: 0.5-1.5"
2022, Toyota 4Runner SR5, RWD Rear Right, For Rear Lifted Height: 0.9-2"
2022, Toyota 4Runner SR5, 4WD Rear Right, For Rear Lifted Height: 0-1.5"
2022, Toyota 4Runner SR5 Premium, RWD Rear Right, For Rear Lifted Height: 0.9-2"
2022, Toyota 4Runner SR5 Premium, 4WD Rear Right, For Rear Lifted Height: 0-1.5"
2022, Toyota 4Runner Trail, RWD Rear Right, For Rear Lifted Height: 0.9-2"
2022, Toyota 4Runner Trail, 4WD Rear Right, For Rear Lifted Height: 0-1.5"
2022, Toyota 4Runner TRD Off-Road Rear Right, For Rear Lifted Height: 0-1.5"
2022, Toyota 4Runner TRD Off-Road Premium Rear Right, For Rear Lifted Height: 0-1.5"
2022, Toyota 4Runner TRD Pro Rear Right, For Rear Lifted Height: 0-1.5"
2022, Toyota 4Runner Venture Rear Right, For Rear Lifted Height: 0-1.5"
2021, Lexus GX460 Base Rear Right, For Rear Lifted Height: 0.5-1.5"
2021, Lexus GX460 Premium Rear Right, For Rear Lifted Height: 0.5-1.5"
2021, Toyota 4Runner SR5, RWD Rear Right, For Rear Lifted Height: 0.9-2"
2021, Toyota 4Runner SR5, 4WD Rear Right, For Rear Lifted Height: 0-1.5"
2021, Toyota 4Runner SR5 Premium, RWD Rear Right, For Rear Lifted Height: 0.9-2"
2021, Toyota 4Runner SR5 Premium, 4WD Rear Right, For Rear Lifted Height: 0-1.5"
2021, Toyota 4Runner Trail, RWD Rear Right, For Rear Lifted Height: 0.9-2"
2021, Toyota 4Runner Trail, 4WD Rear Right, For Rear Lifted Height: 0-1.5"
2021, Toyota 4Runner TRD Off-Road Rear Right, For Rear Lifted Height: 0-1.5"
2021, Toyota 4Runner TRD Off-Road Premium Rear Right, For Rear Lifted Height: 0-1.5"
2021, Toyota 4Runner TRD Pro Rear Right, For Rear Lifted Height: 0-1.5"
2021, Toyota 4Runner Venture Rear Right, For Rear Lifted Height: 0-1.5"
2020, Lexus GX460 Base Rear Right, For Rear Lifted Height: 0.5-1.5"
2020, Lexus GX460 Premium Rear Right, For Rear Lifted Height: 0.5-1.5"
2020, Toyota 4Runner SR5, RWD Rear Right, For Rear Lifted Height: 0.9-2"
2020, Toyota 4Runner SR5, 4WD Rear Right, For Rear Lifted Height: 0-1.5"
2020, Toyota 4Runner SR5 Premium, RWD Rear Right, For Rear Lifted Height: 0.9-2"
2020, Toyota 4Runner SR5 Premium, 4WD Rear Right, For Rear Lifted Height: 0-1.5"
2020, Toyota 4Runner TRD Off-Road Rear Right, For Rear Lifted Height: 0-1.5"
2020, Toyota 4Runner TRD Off-Road Premium Rear Right, For Rear Lifted Height: 0-1.5"
2020, Toyota 4Runner TRD Pro Rear Right, For Rear Lifted Height: 0-1.5"
2020, Toyota 4Runner Venture Rear Right, For Rear Lifted Height: 0-1.5"
2019, Lexus GX460 Base Rear Right, For Rear Lifted Height: 0.5-1.5"
2019, Lexus GX460 Premium Rear Right, For Rear Lifted Height: 0.5-1.5"
2019, Toyota 4Runner SR5, RWD Rear Right, For Rear Lifted Height: 0.9-2"
2019, Toyota 4Runner SR5, 4WD Rear Right, For Rear Lifted Height: 0-1.5"
2019, Toyota 4Runner SR5 Premium, RWD Rear Right, For Rear Lifted Height: 0.9-2"
2019, Toyota 4Runner SR5 Premium, 4WD Rear Right, For Rear Lifted Height: 0-1.5"
2019, Toyota 4Runner TRD Off-Road Rear Right, For Rear Lifted Height: 0-1.5"
2019, Toyota 4Runner TRD Off-Road Premium Rear Right, For Rear Lifted Height: 0-1.5"
2019, Toyota 4Runner TRD Pro Rear Right, For Rear Lifted Height: 0-1.5"
2018, Lexus GX460 Base Rear Right, For Rear Lifted Height: 0.5-1.5"
2018, Lexus GX460 Premium Rear Right, For Rear Lifted Height: 0.5-1.5"
2018, Toyota 4Runner SR5, RWD Rear Right, For Rear Lifted Height: 0.9-2"
2018, Toyota 4Runner SR5, 4WD Rear Right, For Rear Lifted Height: 0-1.5"
2018, Toyota 4Runner SR5 Premium, RWD Rear Right, For Rear Lifted Height: 0.9-2"
2018, Toyota 4Runner SR5 Premium, 4WD Rear Right, For Rear Lifted Height: 0-1.5"
2018, Toyota 4Runner TRD Off-Road Rear Right, For Rear Lifted Height: 0-1.5"
2018, Toyota 4Runner TRD Off-Road Premium Rear Right, For Rear Lifted Height: 0-1.5"
2018, Toyota 4Runner TRD Pro Rear Right, For Rear Lifted Height: 0-1.5"
2017, Lexus GX460 Base Rear Right, For Rear Lifted Height: 0.5-1.5"
2017, Lexus GX460 Premium Rear Right, For Rear Lifted Height: 0.5-1.5"
2017, Toyota 4Runner SR5, RWD Rear Right, For Rear Lifted Height: 0.9-2"
2017, Toyota 4Runner SR5, 4WD Rear Right, For Rear Lifted Height: 0-1.5"
2017, Toyota 4Runner TRD Off-Road Rear Right, For Rear Lifted Height: 0-1.5"
2017, Toyota 4Runner TRD Pro Rear Right, For Rear Lifted Height: 0-1.5"
2016, Lexus GX460 Base Rear Right, For Rear Lifted Height: 0.5-1.5"
2016, Lexus GX460 Premium Rear Right, For Rear Lifted Height: 0.5-1.5"
2016, Toyota 4Runner SR5, RWD Rear Right, For Rear Lifted Height: 0.9-2"
2016, Toyota 4Runner SR5, 4WD Rear Right, For Rear Lifted Height: 0-1.5"
2016, Toyota 4Runner Trail Rear Right, For Rear Lifted Height: 0-1.5"
2016, Toyota 4Runner TRD Pro Rear Right, For Rear Lifted Height: 0-1.5"
2015, Lexus GX460 Base Rear Right, For Rear Lifted Height: 0.5-1.5"
2015, Lexus GX460 Premium Rear Right, For Rear Lifted Height: 0.5-1.5"
2015, Toyota 4Runner SR5, RWD Rear Right, For Rear Lifted Height: 0.9-2"
2015, Toyota 4Runner SR5, 4WD Rear Right, For Rear Lifted Height: 0-1.5"
2015, Toyota 4Runner Trail Rear Right, For Rear Lifted Height: 0-1.5"
2015, Toyota 4Runner TRD Pro Rear Right, For Rear Lifted Height: 0-1.5"
2014, Lexus GX460 Base Rear Right, For Rear Lifted Height: 0.5-1.5"
2014, Lexus GX460 Premium Rear Right, For Rear Lifted Height: 0.5-1.5"
2014, Toyota 4Runner SR5, RWD Rear Right, For Rear Lifted Height: 0.9-2"
2014, Toyota 4Runner SR5, 4WD Rear Right, For Rear Lifted Height: 0-1.5"
2014, Toyota 4Runner Trail Rear Right, For Rear Lifted Height: 0-1.5"
2013, Lexus GX460 Base Rear Right, For Rear Lifted Height: 0.5-1.5"
2013, Toyota 4Runner SR5, RWD Rear Right, For Rear Lifted Height: 0.9-2"
2013, Toyota 4Runner SR5, 4WD Rear Right, For Rear Lifted Height: 0-1.5"
2013, Toyota 4Runner Trail Rear Right, For Rear Lifted Height: 0-1.5"
2012, Lexus GX460 Base Rear Right, For Rear Lifted Height: 0.5-1.5"
2012, Toyota 4Runner SR5, RWD Rear Right, For Rear Lifted Height: 0.9-2"
2012, Toyota 4Runner SR5, 4WD Rear Right, For Rear Lifted Height: 0-1.5"
2012, Toyota 4Runner Trail Rear Right, For Rear Lifted Height: 0-1.5"
2011, Lexus GX460 Base Rear Right, For Rear Lifted Height: 0.5-1.5"
2011, Toyota 4Runner SR5, RWD Rear Right, For Rear Lifted Height: 0.9-2"
2011, Toyota 4Runner SR5, 4WD Rear Right, For Rear Lifted Height: 0-1.5"
2011, Toyota 4Runner Trail Rear Right, For Rear Lifted Height: 0-1.5"
2010, Lexus GX460 Base Rear Right, For Rear Lifted Height: 0.5-1.5"
2010, Toyota 4Runner SR5, RWD Rear Right, For Rear Lifted Height: 0.9-2"
2010, Toyota 4Runner SR5, 4WD Rear Right, For Rear Lifted Height: 0-1.5"
2010, Toyota 4Runner Trail Rear Right, For Rear Lifted Height: 0-1.5"
2009, Lexus GX470 Base Rear Right, For Rear Lifted Height: 0-1.5";Without Kinetic Dynamic Suspension System (KDSS);Requires Rear Coil Spring Conversion
2009, Toyota 4Runner Limited, RWD Rear Right, Without X-REAS Suspension;For Rear Lifted Height: 1.7-2.5"
2009, Toyota 4Runner Limited, 4WD Rear Right, Without X-REAS Suspension;For Rear Lifted Height: 0.9-2.3"
2009, Toyota 4Runner SR5, RWD Rear Right, For Rear Lifted Height: 1.7-2.5"
2009, Toyota 4Runner SR5, 4WD Rear Right, For Rear Lifted Height: 0.9-2.3"
2008, Lexus GX470 Base Rear Right, For Rear Lifted Height: 0-1.5";Without Kinetic Dynamic Suspension System (KDSS);Requires Rear Coil Spring Conversion
2008, Toyota 4Runner Limited, RWD Rear Right, Without X-REAS Suspension;For Rear Lifted Height: 1.7-2.5"
2008, Toyota 4Runner Limited, 4WD Rear Right, Without X-REAS Suspension;For Rear Lifted Height: 0.9-2.3"
2008, Toyota 4Runner SR5, RWD Rear Right, For Rear Lifted Height: 1.7-2.5"
2008, Toyota 4Runner SR5, 4WD Rear Right, For Rear Lifted Height: 0.9-2.3"
2007, Lexus GX470 Base Rear Right, For Rear Lifted Height: 0-1.5";Without Kinetic Dynamic Suspension System (KDSS);Requires Rear Coil Spring Conversion
2007, Toyota 4Runner Limited, RWD Rear Right, Without X-REAS Suspension;For Rear Lifted Height: 1.7-2.5"
2007, Toyota 4Runner Limited, 4WD Rear Right, Without X-REAS Suspension;For Rear Lifted Height: 0.9-2.3"
2007, Toyota 4Runner SR5, RWD Rear Right, For Rear Lifted Height: 1.7-2.5"
2007, Toyota 4Runner SR5, 4WD Rear Right, For Rear Lifted Height: 0.9-2.3"
2006, Lexus GX470 Base Rear Right, For Rear Lifted Height: 0-1.5";Without Kinetic Dynamic Suspension System (KDSS);Requires Rear Coil Spring Conversion
2006, Toyota 4Runner Limited, RWD Rear Right, Without X-REAS Suspension;For Rear Lifted Height: 1.7-2.5"
2006, Toyota 4Runner Limited, 4WD Rear Right, Without X-REAS Suspension;For Rear Lifted Height: 0.9-2.3"
2006, Toyota 4Runner SR5, RWD Rear Right, For Rear Lifted Height: 1.7-2.5"
2006, Toyota 4Runner SR5, 4WD Rear Right, For Rear Lifted Height: 0.9-2.3"
2005, Lexus GX470 Base Rear Right, For Rear Lifted Height: 0-1.5";Without Kinetic Dynamic Suspension System (KDSS);Requires Rear Coil Spring Conversion
2005, Toyota 4Runner Limited, RWD Rear Right, Without X-REAS Suspension;For Rear Lifted Height: 1.7-2.5"
2005, Toyota 4Runner Limited, 4WD Rear Right, Without X-REAS Suspension;For Rear Lifted Height: 0.9-2.3"
2005, Toyota 4Runner SR5, RWD Rear Right, For Rear Lifted Height: 1.7-2.5"
2005, Toyota 4Runner SR5, 4WD Rear Right, For Rear Lifted Height: 0.9-2.3"
2004, Lexus GX470 Base Rear Right, For Rear Lifted Height: 0-1.5";Without Kinetic Dynamic Suspension System (KDSS);Requires Rear Coil Spring Conversion
2004, Toyota 4Runner Limited, RWD Rear Right, Without X-REAS Suspension;For Rear Lifted Height: 1.7-2.5"
2004, Toyota 4Runner Limited, 4WD Rear Right, Without X-REAS Suspension;For Rear Lifted Height: 0.9-2.3"
2004, Toyota 4Runner SR5, RWD Rear Right, For Rear Lifted Height: 1.7-2.5"
2004, Toyota 4Runner SR5, 4WD Rear Right, For Rear Lifted Height: 0.9-2.3"
2003, Lexus GX470 Base Rear Right, For Rear Lifted Height: 0-1.5";Without Kinetic Dynamic Suspension System (KDSS);Requires Rear Coil Spring Conversion
2003, Toyota 4Runner Limited, RWD Rear Right, Without X-REAS Suspension;For Rear Lifted Height: 1.7-2.5"
2003, Toyota 4Runner Limited, 4WD Rear Right, Without X-REAS Suspension;For Rear Lifted Height: 0.9-2.3"
2003, Toyota 4Runner SR5, RWD Rear Right, For Rear Lifted Height: 1.7-2.5"
2003, Toyota 4Runner SR5, 4WD Rear Right, For Rear Lifted Height: 0.9-2.3"
Items: 1–100 of 440
