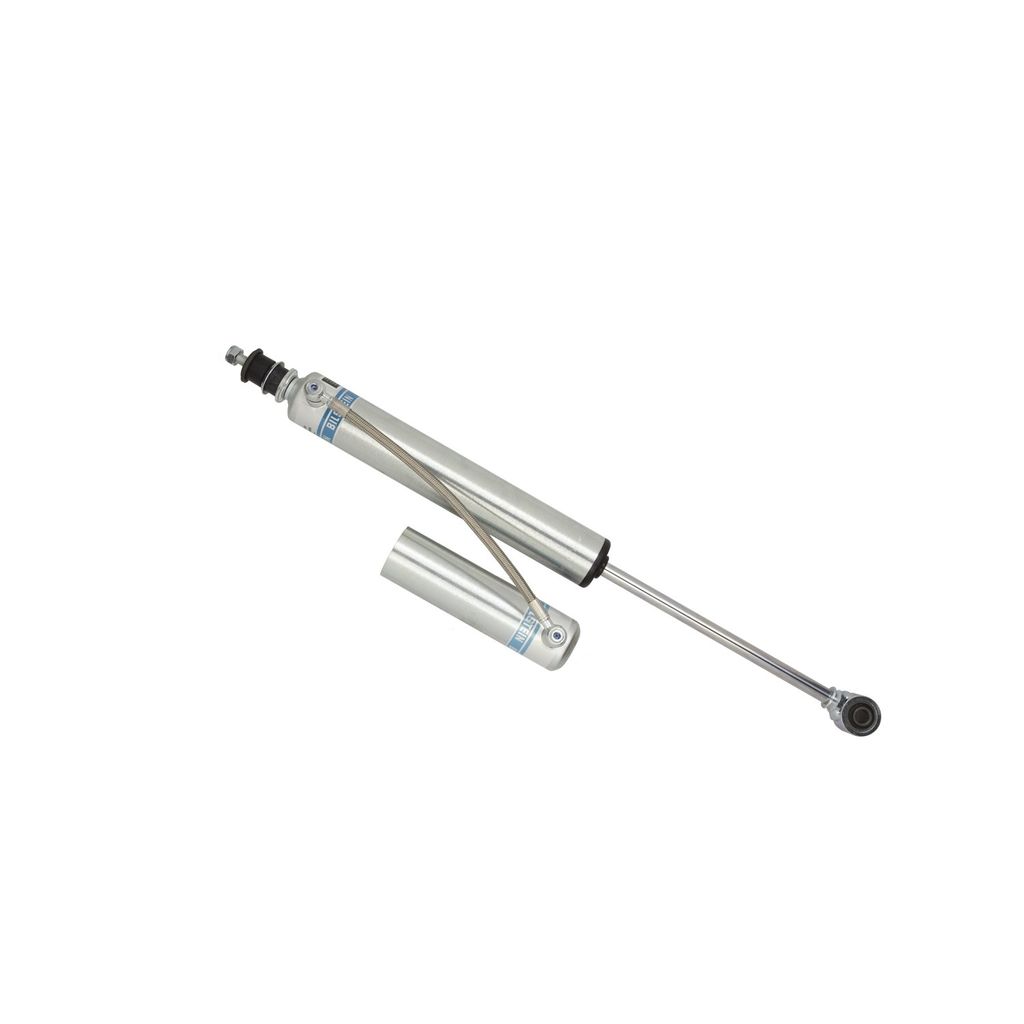

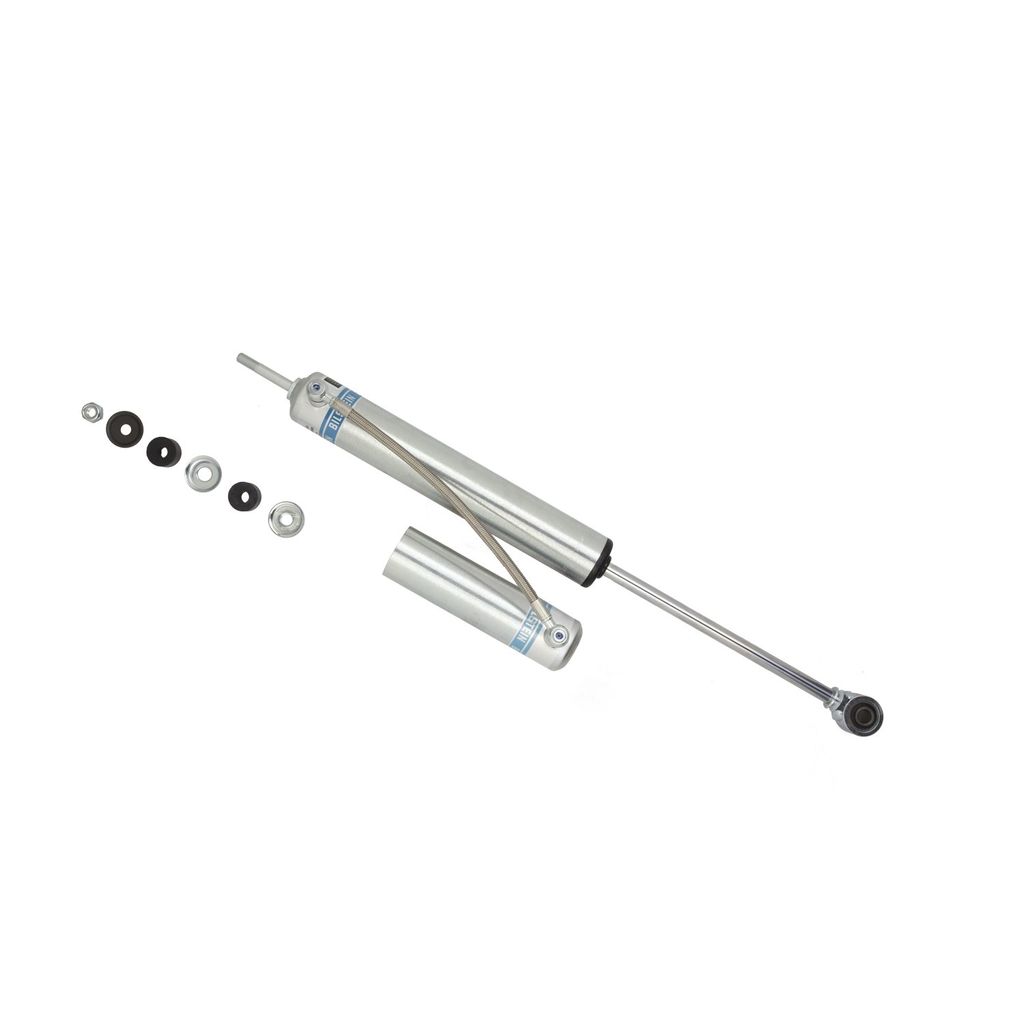

Bilstein 25-261332 - Shock Absorber

Previous image
Bilstein 25-261332 - Shock Absorber
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Bilstein 25-261332 - Shock Absorber

Part No: 25-261332

Bilstein 25-261332 - Shock Absorber

BBGL-25-261332
Vehicle Specific
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • Remote reservoir increases shock oil capacity for greater heat dissipation
  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Bilstein’s Limited Lifetime Warranty
Check All Vehicles this Part Fits

Product details

 Description

46mm Monotube Shock Absorber
Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

 Specifications

Package
Attributes
  • Driving Qualifiers
    Performance Street, Off Road, Towing-Oversized Tires
  • Budget
    Low, Medium
  • Handling Characteristic
    Performance
  • Springs Included
    No
  • Ride Control/Adjustability
    Non- Adjustable
  • Ride Height Adjustable?
    No
  • Design
    Mono Tube
Details
  • Part Name
    Shock Absorber
  • Adjustable Damping
    Non-Adjustable
  • Billet Reservoir Clamp Included
    No
  • Body Design
    Smooth Body (Non-Coilover)
  • Body Diameter (ID)
    46mm
  • Boot Included
    No
  • Collapsed Length (IN)
    13.84
  • Collapsed Length (MM)
    351.5
  • Extended Length (IN)
    23.23
  • Extended Length (MM)
    590.0
  • Finish
    Zinc Plated
  • Internal Design
    Monotube
  • Lower Mount Type
    Eye 12mm
  • Optional Reservoir Clamp
    11-176015
  • PartType
    Shocks / Struts
  • Reservoir
    Yes
  • Segment
    Light Truck
  • Series
    B8 5160
  • Spring Max Travel (IN)
    9.39
  • Spring Seat Included
    No
  • Title
    Bilstein Shock Absorbers
  • Upper Mount Type
    Stem
Manufacturer description
  • Manufacturer Label
    B8 5160

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2006, Toyota Tundra Base, 4WD Rear, Qty - 2, For Rear Lifted Height: 0-2"
2006, Toyota Tundra Limited, 4WD Rear, Qty - 2, For Rear Lifted Height: 0-2"
2006, Toyota Tundra SR5, 4WD Rear, Qty - 2, For Rear Lifted Height: 0-2"
2005, Toyota Tundra Base, 4WD Rear, Qty - 2, For Rear Lifted Height: 0-2"
2005, Toyota Tundra Limited, 4WD Rear, Qty - 2, For Rear Lifted Height: 0-2"
2005, Toyota Tundra SR5, 4WD Rear, Qty - 2, For Rear Lifted Height: 0-2"
2004, Toyota Tundra Limited, 4WD Rear, Qty - 2, For Rear Lifted Height: 0-2"
2004, Toyota Tundra SR5, 4WD Rear, Qty - 2, For Rear Lifted Height: 0-2"
2003, Toyota Tundra Limited, 4WD Rear, Qty - 2, For Rear Lifted Height: 0-2"
2003, Toyota Tundra SR5, 4WD Rear, Qty - 2, For Rear Lifted Height: 0-2"
2002, Toyota Tundra Limited, 4WD Rear, Qty - 2, For Rear Lifted Height: 0-2"
2002, Toyota Tundra SR5, 4WD Rear, Qty - 2, For Rear Lifted Height: 0-2"
2001, Toyota Tundra Limited, 4WD Rear, Qty - 2, For Rear Lifted Height: 0-2"
2001, Toyota Tundra SR5, 4WD Rear, Qty - 2, For Rear Lifted Height: 0-2"
2000, Toyota Tundra Limited, 4WD Rear, Qty - 2, For Rear Lifted Height: 0-2"
2000, Toyota Tundra SR5, 4WD Rear, Qty - 2, For Rear Lifted Height: 0-2"
