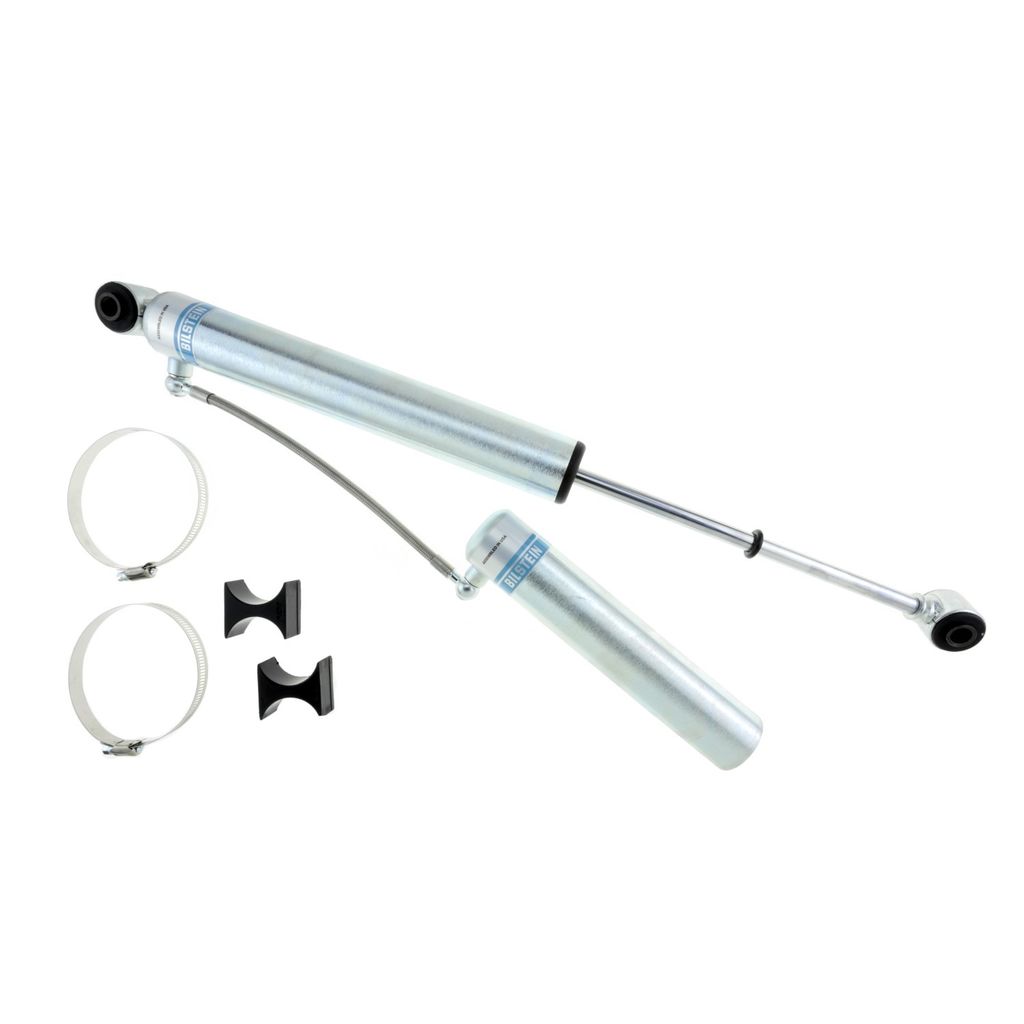

Bilstein 25-176414 - Shock Absorber

Previous image
Bilstein 25-176414 - Shock Absorber
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Bilstein 25-176414 - Shock Absorber

Part No: 25-176414

Bilstein 25-176414 - Shock Absorber

BBGL-25-176414
Vehicle Specific
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • Remote reservoir increases shock oil capacity for greater heat dissipation
  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Bilstein’s Limited Lifetime Warranty
Check All Vehicles this Part Fits

Product details

 Description

46mm Monotube Shock Absorber
Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

 Specifications

Package
Attributes
  • Driving Qualifiers
    Performance Street, Off Road, Towing-Oversized Tires
  • Budget
    Low, Medium
  • Handling Characteristic
    Performance
  • Springs Included
    No
  • Ride Control/Adjustability
    Non- Adjustable
  • Ride Height Adjustable?
    No
  • Design
    Mono Tube
Details
  • Part Name
    Shock Absorber
  • Adjustable Damping
    Non-Adjustable

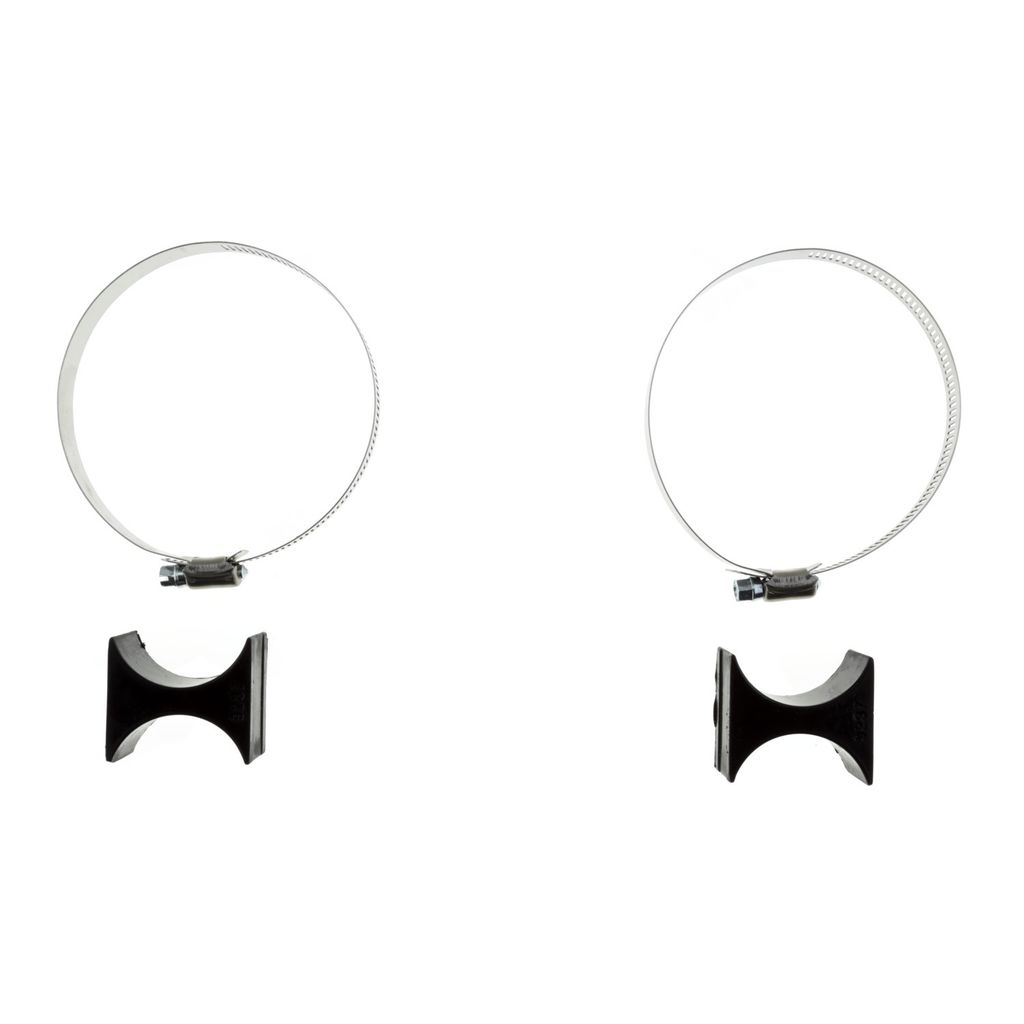

  • Billet Reservoir Clamp Included
    No
  • Body Design
    Smooth Body (Non-Coilover)
  • Body Diameter (ID)
    46mm
  • Boot Included
    No
  • Collapsed Length (IN)
    16.14
  • Collapsed Length (MM)
    410
  • Extended Length (IN)
    27.17
  • Extended Length (MM)
    690.0
  • Finish
    Zinc Plated
  • Internal Design
    Monotube
  • Lower Mount Type
    Eye 14.4mm
  • Optional Reservoir Clamp
    11-176015
  • PartType
    Shocks / Struts
  • Reservoir
    Yes
  • Segment
    Light Truck
  • Series
    B8 5160 Classic
  • Spring Max Travel (IN)
    11.03
  • Spring Seat Included
    No
  • Title
    Bilstein Shock Absorbers
  • Upper Mount Type
    Eye 14.4mm
Manufacturer description
  • Manufacturer Label
    B8 5160 Classic

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2007, Chevrolet Silverado 1500 Classic Hybrid, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2007, Chevrolet Silverado 1500 Classic LS, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2007, Chevrolet Silverado 1500 Classic LT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2007, Chevrolet Silverado 1500 Classic WT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2007, GMC Sierra 1500 Classic Hybrid, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2007, GMC Sierra 1500 Classic SL, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2007, GMC Sierra 1500 Classic SLE, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2007, GMC Sierra 1500 Classic SLT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2007, GMC Sierra 1500 Classic WT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2006, Chevrolet Silverado 1500 Hybrid, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2006, Chevrolet Silverado 1500 LS, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2006, Chevrolet Silverado 1500 LT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2006, Chevrolet Silverado 1500 WT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2006, GMC Sierra 1500 Hybrid, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2006, GMC Sierra 1500 SL, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2006, GMC Sierra 1500 SLE, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2006, GMC Sierra 1500 SLT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2006, GMC Sierra 1500 WT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2005, Chevrolet Silverado 1500 Base, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2005, Chevrolet Silverado 1500 Hybrid, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2005, Chevrolet Silverado 1500 LS, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2005, Chevrolet Silverado 1500 LT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2005, GMC Sierra 1500 Base, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2005, GMC Sierra 1500 Hybrid, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2005, GMC Sierra 1500 SLE, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2005, GMC Sierra 1500 SLT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2005, GMC Sierra 1500 WT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2004, Chevrolet Silverado 1500 Base, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2004, Chevrolet Silverado 1500 Hybrid, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2004, Chevrolet Silverado 1500 LS, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2004, Chevrolet Silverado 1500 LT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2004, Chevrolet Silverado 1500 WT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2004, GMC Sierra 1500 Base, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2004, GMC Sierra 1500 SLE, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2004, GMC Sierra 1500 SLT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2004, GMC Sierra 1500 WT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2003, Chevrolet Silverado 1500 Base, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2003, Chevrolet Silverado 1500 LS, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2003, Chevrolet Silverado 1500 LT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2003, Chevrolet Silverado 1500 WT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2003, GMC Sierra 1500 Base, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2003, GMC Sierra 1500 SL, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2003, GMC Sierra 1500 SLE, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2003, GMC Sierra 1500 SLT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2003, GMC Sierra 1500 WT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2002, Chevrolet Silverado 1500 Base, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2002, Chevrolet Silverado 1500 LS, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2002, Chevrolet Silverado 1500 LT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2002, Chevrolet Silverado 1500 WT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2002, GMC Sierra 1500 Base, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2002, GMC Sierra 1500 HT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2002, GMC Sierra 1500 SL, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2002, GMC Sierra 1500 SLE, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2002, GMC Sierra 1500 SLT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2002, GMC Sierra 1500 WT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package;Without Quadrasteer
2001, Chevrolet Silverado 1500 Base, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2001, Chevrolet Silverado 1500 LS, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2001, Chevrolet Silverado 1500 LT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2001, GMC Sierra 1500 SL, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2001, GMC Sierra 1500 SLE, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2001, GMC Sierra 1500 SLT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2000, Chevrolet Silverado 1500 Base, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2000, Chevrolet Silverado 1500 LS, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2000, Chevrolet Silverado 1500 LT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2000, GMC Sierra 1500 SL, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2000, GMC Sierra 1500 SLE, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
2000, GMC Sierra 1500 SLT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
1999, Chevrolet Silverado 1500 Base, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
1999, Chevrolet Silverado 1500 LS, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
1999, Chevrolet Silverado 1500 LT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
1999, GMC Sierra 1500 SL, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
1999, GMC Sierra 1500 SLE, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
1999, GMC Sierra 1500 SLT, 4WD, Torsion Bar Rear, Qty - 2, For Rear Lifted Height: 0-2";Without ZX3 Electronic Suspension Package
Items: 1–100 of 282
