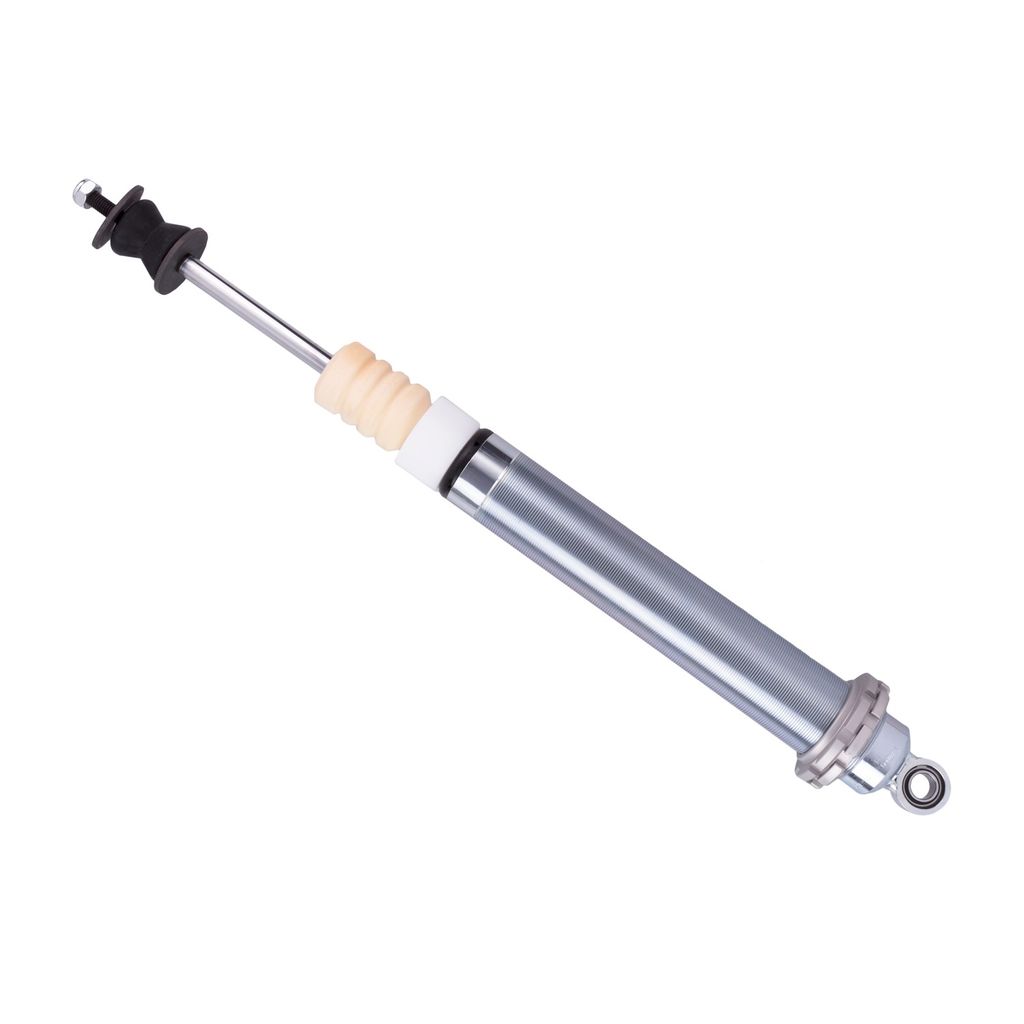

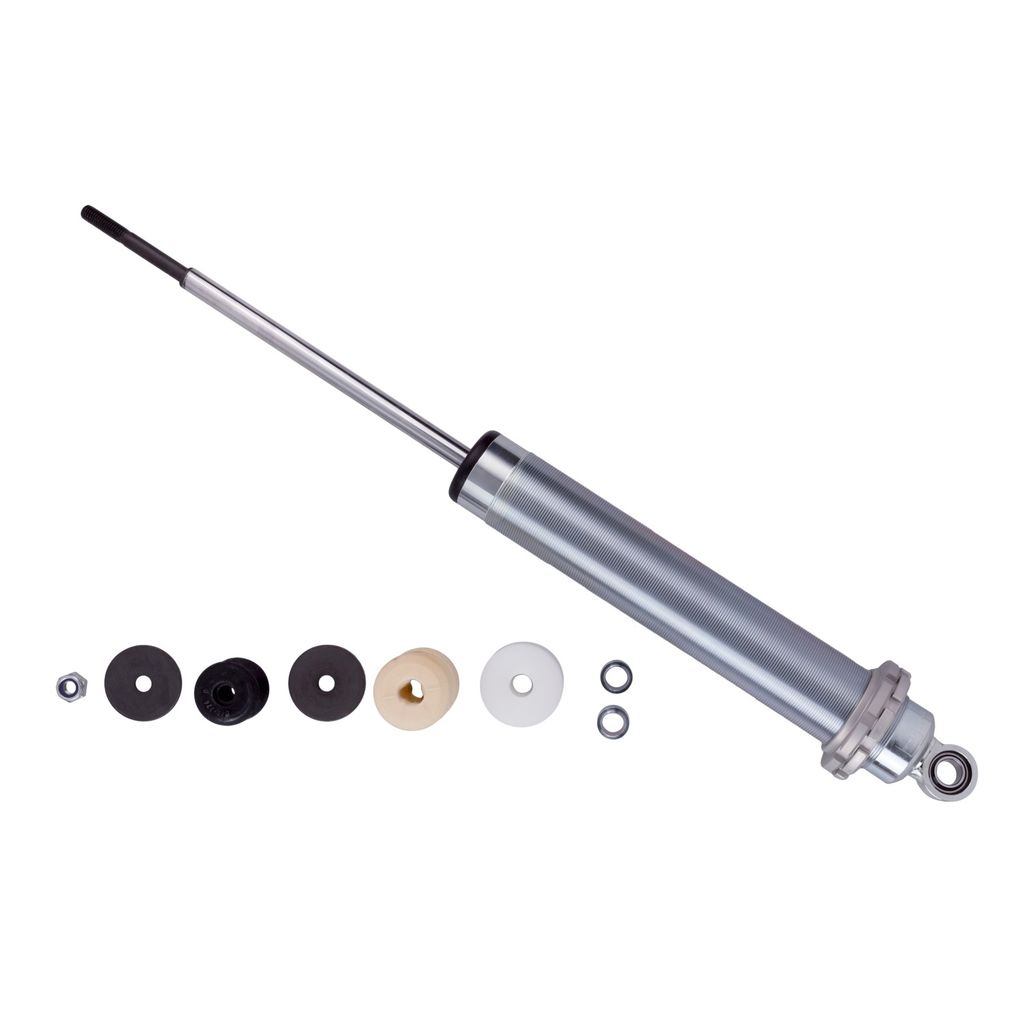

Bilstein 24-617321 - Shock Absorber

Previous image
Bilstein 24-617321 - Shock Absorber
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Bilstein 24-617321 - Shock Absorber

Part No: 24-617321

Bilstein 24-617321 - Shock Absorber

BBGL-24-617321
Vehicle Specific
  • Larger working piston with deflective disc valving
  • Available in steel and aluminum bodies
  • Monotube design ensures consistent, fade-free performance in all conditions
Check All Vehicles this Part Fits

Product details

 Description

46mm Monotube Shock Absorber
Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.

 Specifications

Package
Attributes
  • Driving Qualifiers
    Racing Only
  • Budget
    High
  • Handling Characteristic
    Firm
  • Springs Included
    No
  • Ride Control/Adjustability
    Non- Adjustable
  • Ride Height Adjustable?
    Yes
  • Design
    Mono Tube
Details
  • Part Name
    Shock Absorber
  • Adjustable Damping
    Non-Adjustable
  • Body Design
    Threaded Body (Coilover)
  • Body Diameter (ID)
    46mm
  • Body Material
    Steel
  • Boot Included
    No
  • Collapsed Length (IN)
    17.19
  • Collapsed Length (MM)
    436.5
  • Compression @0.52m/s
    1875
  • Extended Length (IN)
    21.57
  • Extended Length (MM)
    548.0
  • Finish
    Zinc Plated
  • Internal Design
    Monotube
  • Lower Mount Type
    15mm Heim
  • PartType
    Shocks / Struts
  • Piston Type
    Linear
  • Position
    Rear
  • Rebound @0.52m/s
    2040
  • Segment
    Motorsports
  • Series
    Motorsports
  • Spring Hardware
    N/A
  • Spring Max Travel (IN)
    4.38
  • Spring Seat Included
    Yes
  • Title
    Bilstein Shock Absorbers
  • Upper Mount Type
    Stem
Manufacturer description
  • Manufacturer Label
    Motorsports

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
1989, Porsche 911 Carrera Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1989, Porsche 911 Speedster Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1989, Porsche 911 Turbo Carrera Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1988, Porsche 911 Carrera Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1988, Porsche 911 Turbo Carrera Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1987, Porsche 911 Carrera Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1987, Porsche 911 Turbo Carrera Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1986, Porsche 911 Carrera Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1986, Porsche 911 Turbo Carrera Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1985, Porsche 911 Carrera Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1984, Porsche 911 Carrera Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1983, Porsche 911 SC Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1982, Porsche 911 SC Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1981, Porsche 911 SC Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1980, Porsche 911 SC Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1979, Porsche 911 SC Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1979, Porsche 930 Turbo Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1978, Porsche 911 SC Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1978, Porsche 930 Turbo Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1977, Porsche 911 S Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1977, Porsche 911 Turbo Carrera Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1976, Porsche 911 S Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1976, Porsche 911 Turbo Carrera Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1976, Porsche 912 E Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1975, Porsche 911 Carrera Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1975, Porsche 911 S Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1974, Porsche 911 Base Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1974, Porsche 911 Carrera Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1974, Porsche 911 S Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1973, Porsche 911 E Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1973, Porsche 911 S Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1973, Porsche 911 T Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1972, Porsche 911 E Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1972, Porsche 911 S Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1972, Porsche 911 T Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1971, Porsche 911 E Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1971, Porsche 911 S Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1971, Porsche 911 T Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1970, Porsche 911 E Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1970, Porsche 911 S Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1970, Porsche 911 T Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1969, Porsche 911 E Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1969, Porsche 911 S Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1969, Porsche 911 T Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1969, Porsche 912 Base Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1968, Porsche 911 Base Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1968, Porsche 911 L Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1968, Porsche 911 S Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1968, Porsche 912 Base Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1967, Porsche 911 Base Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1967, Porsche 911 S Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1967, Porsche 912 Base Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1966, Porsche 911 Base Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1966, Porsche 912 Base Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1965, Porsche 911 Base Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
1965, Porsche 912 Base Rear, Qty - 2, For use with M14 lower mounting bolt;RSR Version 2;Setting: 2400/1800;Requires additional components and racing springs
