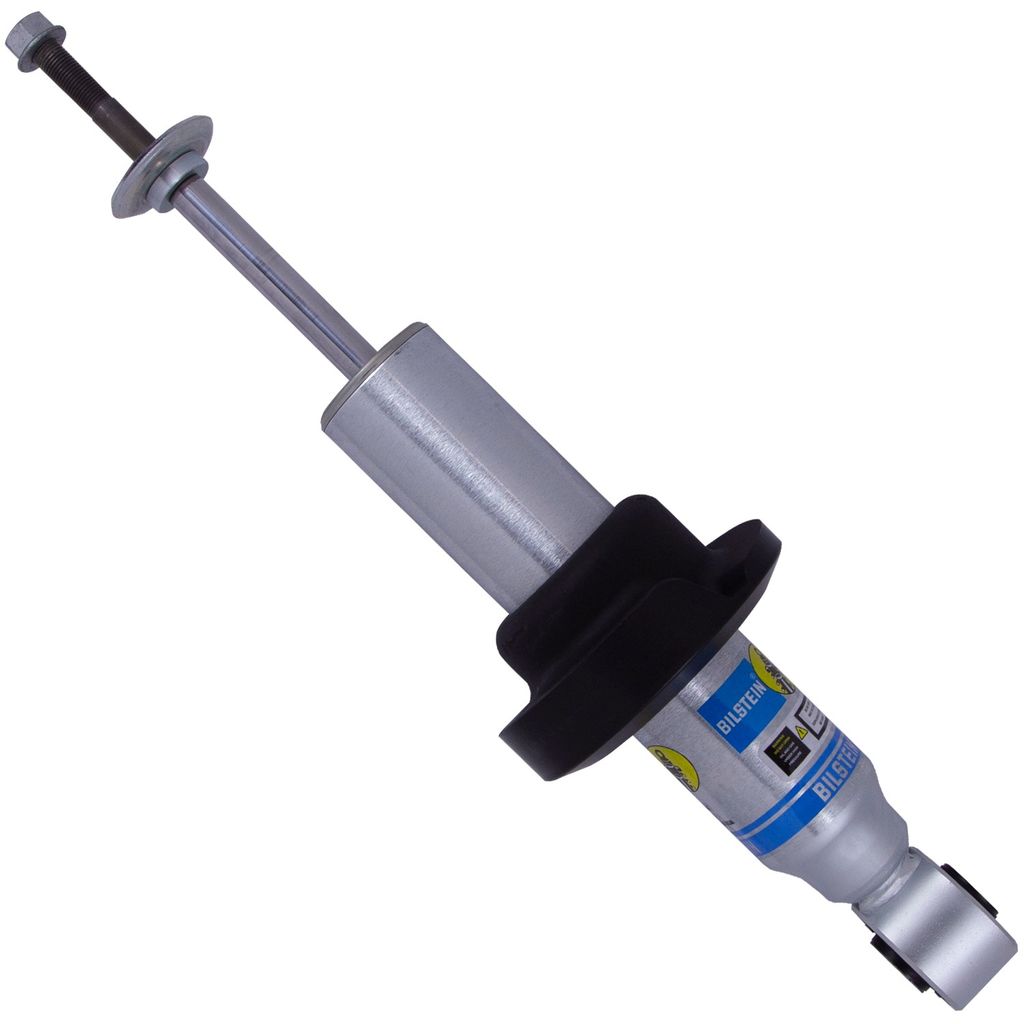

Bilstein 24-322669 - Shock Absorber

Previous image
Bilstein 24-322669 - Shock Absorber
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Bilstein 24-322669 - Shock Absorber

Part No: 24-322669
Out of Stock

Please call 888-257-7149 to check future availability

  • $314.22 & FREE Shipping
List: $325.00

Starting at $XX/mo with Affirm. Prequalify now

1 other people are subscribed to back-in-stock for this product

Bilstein 24-322669 - Shock Absorber

BBGL-24-322669
Out of Stock

Please call 888-257-7149 to check future availability

  • $314.22 & FREE Shipping
List: $325.00

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific

1 other people are subscribed to back-in-stock for this product

  • 60mm digressive piston improves ride comfort and control over rough terrain
  • Vehicle specific tuning
  • Large 60mm body for increased oil capacity, cooling, and long-term durability
Check All Vehicles this Part Fits

Product details

 Description

60mm Monotube Shock Absorber
Bilstein B8 6100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV's with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing an adjustable ride height range of 0-3 inches (depending on application). The B8 6100 (Ride Height Adjustable) utilizes a large 60mm digressive piston. This will provide a smoother ride while offering more control over rough terrain. The B8 6100 (Ride Height Adjustable) will provide increased durability and heat dissipation, making them perfect for vehicles subjected to rugged roads and harsh conditions.

 Specifications

Package
Attributes
  • Driving Qualifiers
    Performance Street, Off Road
  • Budget
    Low, Medium
  • Handling Characteristic
    Performance
  • Springs Included
    No
  • Ride Control/Adjustability
    Non- Adjustable
  • Ride Height Adjustable?
    No
  • Design
    Mono Tube
Details
  • Part Name
    Shock Absorber
  • Adjustable Damping
    Non-Adjustable
  • Body Design
    Snap Ring Grooved Body (Coilover)
  • Body Diameter (ID)
    60mm
  • Boot Included
    No Boot Supplied or Needed
  • Collapsed Length (IN)
    14.42
  • Collapsed Length (MM)
    366.2
  • Extended Length (IN)
    18.43
  • Extended Length (MM)
    468.0
  • Finish
    Zinc Plated
  • Internal Design
    Monotube
  • Lower Mount Type
    Eye 16mm
  • PartType
    Shocks / Struts
  • Reservoir
    No
  • Segment
    Light Truck
  • Series
    B8 6100 (Ride Height Adjustable)
  • Spring Max Travel (IN)
    4.01
  • Spring Seat Included
    Yes
  • Title
    Bilstein Shock Absorbers
  • Upper Mount Type
    Stem
Manufacturer description
  • Manufacturer Label
    B8 6100 (Ride Height Adjustable)

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2024, Nissan Titan XD Platinum Reserve Front, Qty - 2, Provides 0-2" Front Lift
2024, Nissan Titan XD PRO-4X Front, Qty - 2, Provides 0-2" Front Lift
2024, Nissan Titan XD SV Front, Qty - 2, Provides 0-2" Front Lift
2023, Nissan Titan XD Platinum Reserve Front, Qty - 2, Provides 0-2" Front Lift
2023, Nissan Titan XD PRO-4X Front, Qty - 2, Provides 0-2" Front Lift
2023, Nissan Titan XD S Front, Qty - 2, Provides 0-2" Front Lift
2023, Nissan Titan XD SV Front, Qty - 2, Provides 0-2" Front Lift
2022, Nissan Titan XD Platinum Reserve Front, Qty - 2, Provides 0-2" Front Lift
2022, Nissan Titan XD PRO-4X Front, Qty - 2, Provides 0-2" Front Lift
2022, Nissan Titan XD S Front, Qty - 2, Provides 0-2" Front Lift
2022, Nissan Titan XD SV Front, Qty - 2, Provides 0-2" Front Lift
2021, Nissan Titan XD Platinum Reserve Front, Qty - 2, Provides 0-2" Front Lift
2021, Nissan Titan XD PRO-4X Front, Qty - 2, Provides 0-2" Front Lift
2021, Nissan Titan XD S Front, Qty - 2, Provides 0-2" Front Lift
2021, Nissan Titan XD SL Front, Qty - 2, Provides 0-2" Front Lift
2021, Nissan Titan XD SV Front, Qty - 2, Provides 0-2" Front Lift
2020, Nissan Titan XD Platinum Reserve Front, Qty - 2, Provides 0-2" Front Lift
2020, Nissan Titan XD PRO-4X Front, Qty - 2, Provides 0-2" Front Lift
2020, Nissan Titan XD S Front, Qty - 2, Provides 0-2" Front Lift
2020, Nissan Titan XD SL Front, Qty - 2, Provides 0-2" Front Lift
2020, Nissan Titan XD SV Front, Qty - 2, Provides 0-2" Front Lift
2019, Nissan Titan XD Platinum Reserve, 4WD Front, Qty - 2, Provides 0-2" Front Lift
2019, Nissan Titan XD Platinum Reserve, RWD Front, Qty - 2, Provides 0-2" Front Lift
2019, Nissan Titan XD PRO-4X Front, Qty - 2, Provides 0-2" Front Lift
2019, Nissan Titan XD S, 4WD Front, Qty - 2, Provides 0-2" Front Lift
2019, Nissan Titan XD S, RWD Front, Qty - 2, Provides 0-2" Front Lift
2019, Nissan Titan XD SL, 4WD Front, Qty - 2, Provides 0-2" Front Lift
2019, Nissan Titan XD SL, RWD Front, Qty - 2, Provides 0-2" Front Lift
2019, Nissan Titan XD SV, 4WD Front, Qty - 2, Provides 0-2" Front Lift
2019, Nissan Titan XD SV, RWD Front, Qty - 2, Provides 0-2" Front Lift
2018, Nissan Titan XD Platinum Reserve, 4WD Front, Qty - 2, Provides 0-2" Front Lift
2018, Nissan Titan XD Platinum Reserve, RWD Front, Qty - 2, Provides 0-2" Front Lift
2018, Nissan Titan XD PRO-4X Front, Qty - 2, Provides 0-2" Front Lift
2018, Nissan Titan XD S, 4WD Front, Qty - 2, Provides 0-2" Front Lift
2018, Nissan Titan XD S, RWD Front, Qty - 2, Provides 0-2" Front Lift
2018, Nissan Titan XD SL, 4WD Front, Qty - 2, Provides 0-2" Front Lift
2018, Nissan Titan XD SL, RWD Front, Qty - 2, Provides 0-2" Front Lift
2018, Nissan Titan XD SV, 4WD Front, Qty - 2, Provides 0-2" Front Lift
2018, Nissan Titan XD SV, RWD Front, Qty - 2, Provides 0-2" Front Lift
2017, Nissan Titan XD Platinum Reserve, 4WD Front, Qty - 2, Provides 0-2" Front Lift
2017, Nissan Titan XD Platinum Reserve, RWD Front, Qty - 2, Provides 0-2" Front Lift
2017, Nissan Titan XD PRO-4X Front, Qty - 2, Provides 0-2" Front Lift
2017, Nissan Titan XD S, 4WD Front, Qty - 2, Provides 0-2" Front Lift
2017, Nissan Titan XD S, RWD Front, Qty - 2, Provides 0-2" Front Lift
2017, Nissan Titan XD SL, 4WD Front, Qty - 2, Provides 0-2" Front Lift
2017, Nissan Titan XD SL, RWD Front, Qty - 2, Provides 0-2" Front Lift
2017, Nissan Titan XD SV, 4WD Front, Qty - 2, Provides 0-2" Front Lift
2017, Nissan Titan XD SV, RWD Front, Qty - 2, Provides 0-2" Front Lift
2016, Nissan Titan XD Platinum Reserve, 4WD Front, Qty - 2, Provides 0-2" Front Lift
2016, Nissan Titan XD Platinum Reserve, RWD Front, Qty - 2, Provides 0-2" Front Lift
2016, Nissan Titan XD PRO-4X Front, Qty - 2, Provides 0-2" Front Lift
2016, Nissan Titan XD S, 4WD Front, Qty - 2, Provides 0-2" Front Lift
2016, Nissan Titan XD S, RWD Front, Qty - 2, Provides 0-2" Front Lift
2016, Nissan Titan XD SL, 4WD Front, Qty - 2, Provides 0-2" Front Lift
2016, Nissan Titan XD SL, RWD Front, Qty - 2, Provides 0-2" Front Lift
2016, Nissan Titan XD SV, 4WD Front, Qty - 2, Provides 0-2" Front Lift
2016, Nissan Titan XD SV, RWD Front, Qty - 2, Provides 0-2" Front Lift
Items: 1–100 of 194
