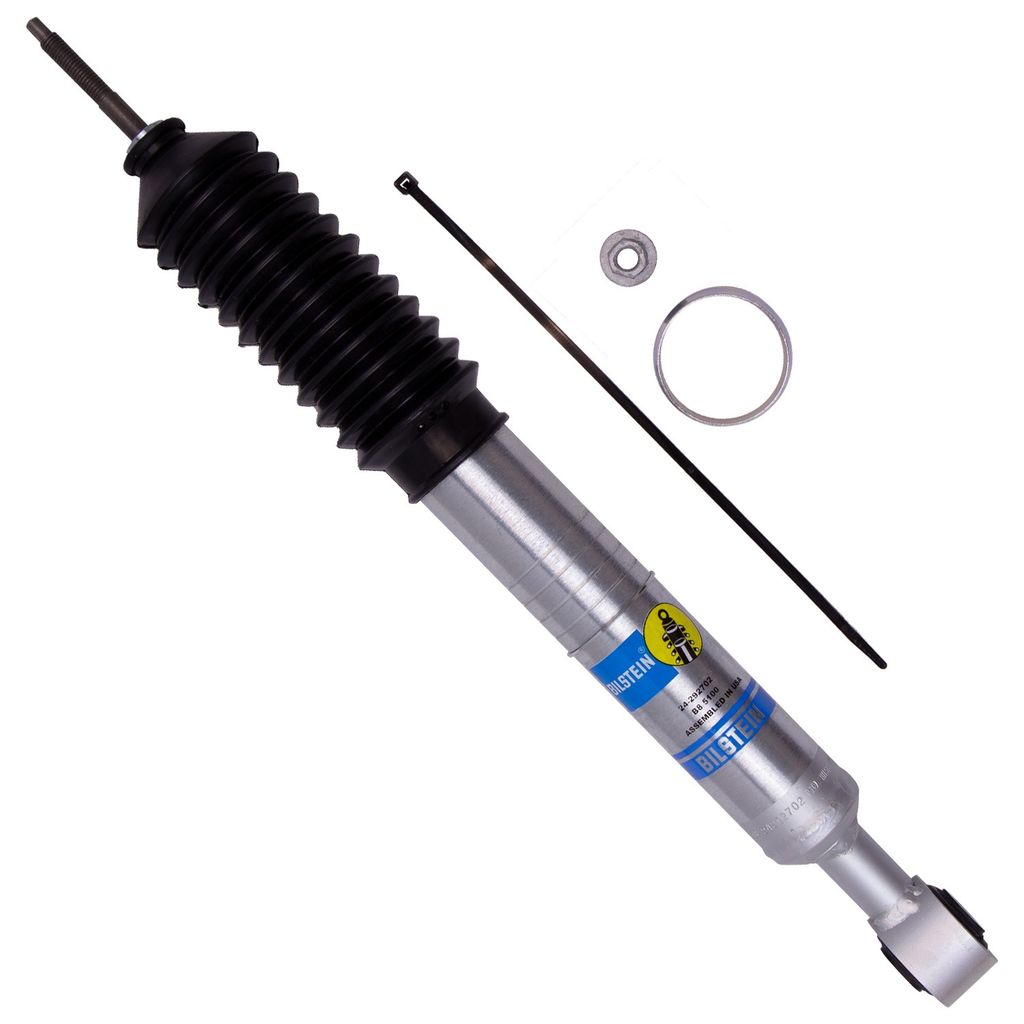

Bilstein 24-292702 - Shock Absorber

Previous image
Bilstein 24-292702 - Shock Absorber
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Bilstein 24-292702 - Shock Absorber

Part No: 24-292702
Only 3 left in Stock, Order Soon Arrives: Jun 5 - 11
  • $176.00 & FREE Shipping
List: $235.00

Starting at $XX/mo with Affirm. Prequalify now

Bilstein 24-292702 - Shock Absorber

BBGL-24-292702
Only 3 left in Stock, Order Soon Arrives: Jun 5 - 11
  • $176.00 & FREE Shipping
List: $235.00

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific
  • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
  • Adjustable spring seat offers 0-2.75in of lift, depending on the application
  • 46mm monotube design ensures consistent, fade-free performance in all conditions
Check All Vehicles this Part Fits

Product details

 Description

46mm Monotube Shock Absorber
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

 Specifications

Package
Attributes
  • Driving Qualifiers
    Performance Street, Off Road
  • Budget
    Low, Medium
  • Handling Characteristic
    Performance
  • Springs Included
    No
  • Ride Control/Adjustability
    Non- Adjustable
  • Ride Height Adjustable?
    No
  • Design
    Mono Tube
Details
  • Part Name
    Shock Absorber
  • Adjustable Damping
    Non-Adjustable
  • Body Design
    Snap Ring Grooved Body (Coilover)
  • Body Diameter (ID)
    46mm
  • Boot Included
    Black Bellows
  • Collapsed Length (IN)
    14.76
  • Collapsed Length (MM)
    375
  • Extended Length (IN)
    19.45
  • Extended Length (MM)
    494.0
  • Finish
    Zinc Plated
  • Internal Design
    Monotube
  • Lower Mount Type
    Eye 14.1mm
  • PartType
    Shocks / Struts
  • Reservoir
    No
  • Segment
    Light Truck
  • Series
    B8 5100 (Ride Height Adjustable)
  • Spring Max Travel (IN)
    4.69
  • Spring Seat Included
    No - Reuse OEM
  • Title
    Bilstein Shock Absorbers
  • Upper Mount Type
    Stem
Manufacturer description
  • Manufacturer Label
    B8 5100 (Ride Height Adjustable)

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2022, Chevrolet Colorado LT, RWD Front, Qty - 2, Provides 0-2.6" Front Lift
2022, Chevrolet Colorado LT, 4WD Front, Qty - 2, Provides 0-2.0" Front Lift
2022, Chevrolet Colorado LT Front, Qty - 2, Provides 0-1.9" Front Lift
2022, Chevrolet Colorado LT, 4WD Front, Qty - 2, Provides 0-1.9" Front Lift
2022, Chevrolet Colorado WT, RWD Front, Qty - 2, Provides 0-2.6" Front Lift
2022, Chevrolet Colorado WT, 4WD Front, Qty - 2, Provides 0-1.9" Front Lift
2022, Chevrolet Colorado WT Front, Qty - 2, Provides 0-2.0" Front Lift
2022, Chevrolet Colorado Z71, RWD Front, Qty - 2, Provides 0-2.6" Front Lift
2022, Chevrolet Colorado Z71, 4WD Front, Qty - 2, Provides 0-1.9" Front Lift
2022, Chevrolet Colorado Z71 Front, Qty - 2, Provides 0-2.0" Front Lift
2022, GMC Canyon AT4, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2022, GMC Canyon AT4 Front, Qty - 2, Provides 0-2.0" Front Lift
2022, GMC Canyon Denali, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2022, GMC Canyon Denali, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2022, GMC Canyon Denali Front, Qty - 2, Provides 0-2.0" Front Lift
2022, GMC Canyon Elevation, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2022, GMC Canyon Elevation, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2022, GMC Canyon Elevation Front, Qty - 2, Provides 0-2.0" Front Lift
2022, GMC Canyon Elevation Standard, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2022, GMC Canyon Elevation Standard, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2021, Chevrolet Colorado LT, RWD Front, Qty - 2, Provides 0-2.6" Front Lift
2021, Chevrolet Colorado LT, 4WD Front, Qty - 2, Provides 0-2.0" Front Lift
2021, Chevrolet Colorado LT Front, Qty - 2, Provides 0-1.9" Front Lift
2021, Chevrolet Colorado LT, 4WD Front, Qty - 2, Provides 0-1.9" Front Lift
2021, Chevrolet Colorado WT, RWD Front, Qty - 2, Provides 0-2.6" Front Lift
2021, Chevrolet Colorado WT, 4WD Front, Qty - 2, Provides 0-1.9" Front Lift
2021, Chevrolet Colorado WT Front, Qty - 2, Provides 0-2.0" Front Lift
2021, Chevrolet Colorado Z71, RWD Front, Qty - 2, Provides 0-2.6" Front Lift
2021, Chevrolet Colorado Z71, 4WD Front, Qty - 2, Provides 0-1.9" Front Lift
2021, Chevrolet Colorado Z71 Front, Qty - 2, Provides 0-2.0" Front Lift
2021, GMC Canyon AT4, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2021, GMC Canyon AT4 Front, Qty - 2, Provides 0-2.0" Front Lift
2021, GMC Canyon Denali, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2021, GMC Canyon Denali, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2021, GMC Canyon Denali Front, Qty - 2, Provides 0-2.0" Front Lift
2021, GMC Canyon Elevation, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2021, GMC Canyon Elevation, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2021, GMC Canyon Elevation Front, Qty - 2, Provides 0-2.0" Front Lift
2021, GMC Canyon Elevation Standard, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2021, GMC Canyon Elevation Standard, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2020, Chevrolet Colorado Base, RWD Front, Qty - 2, Provides 0-2.0" Front Lift
2020, Chevrolet Colorado LT, RWD Front, Qty - 2, Provides 0-2.6" Front Lift
2020, Chevrolet Colorado LT, 4WD Front, Qty - 2, Provides 0-2.0" Front Lift
2020, Chevrolet Colorado LT Front, Qty - 2, Provides 0-1.9" Front Lift
2020, Chevrolet Colorado LT, 4WD Front, Qty - 2, Provides 0-1.9" Front Lift
2020, Chevrolet Colorado WT, RWD Front, Qty - 2, Provides 0-2.6" Front Lift
2020, Chevrolet Colorado WT, 4WD Front, Qty - 2, Provides 0-1.9" Front Lift
2020, Chevrolet Colorado WT Front, Qty - 2, Provides 0-2.0" Front Lift
2020, Chevrolet Colorado Z71, RWD Front, Qty - 2, Provides 0-2.6" Front Lift
2020, Chevrolet Colorado Z71, 4WD Front, Qty - 2, Provides 0-1.9" Front Lift
2020, Chevrolet Colorado Z71 Front, Qty - 2, Provides 0-2.0" Front Lift
2020, GMC Canyon All Terrain, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2020, GMC Canyon Base, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2020, GMC Canyon Base, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2020, GMC Canyon Denali, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2020, GMC Canyon Denali, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2020, GMC Canyon Denali Front, Qty - 2, Provides 0-2.0" Front Lift
2020, GMC Canyon SL, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2020, GMC Canyon SLE, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2020, GMC Canyon SLE, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2020, GMC Canyon SLE Front, Qty - 2, Provides 0-2.0" Front Lift
2020, GMC Canyon SLT, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2020, GMC Canyon SLT, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2020, GMC Canyon SLT Front, Qty - 2, Provides 0-2.0" Front Lift
2019, Chevrolet Colorado Base, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2019, Chevrolet Colorado LT, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2019, Chevrolet Colorado LT, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2019, Chevrolet Colorado LT Front, Qty - 2, Provides 0-2.0" Front Lift
2019, Chevrolet Colorado WT, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2019, Chevrolet Colorado WT, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2019, Chevrolet Colorado WT Front, Qty - 2, Provides 0-2.0" Front Lift
2019, Chevrolet Colorado Z71, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2019, Chevrolet Colorado Z71, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2019, Chevrolet Colorado Z71 Front, Qty - 2, Provides 0-2.0" Front Lift
2019, GMC Canyon All Terrain, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2019, GMC Canyon All Terrain Front, Qty - 2, Provides 0-2.0" Front Lift
2019, GMC Canyon Base, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2019, GMC Canyon Base, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2019, GMC Canyon Denali, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2019, GMC Canyon Denali, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2019, GMC Canyon Denali Front, Qty - 2, Provides 0-2.0" Front Lift
2019, GMC Canyon SL, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2019, GMC Canyon SLE, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2019, GMC Canyon SLE, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2019, GMC Canyon SLE Front, Qty - 2, Provides 0-2.0" Front Lift
2019, GMC Canyon SLT, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2019, GMC Canyon SLT, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2019, GMC Canyon SLT Front, Qty - 2, Provides 0-2.0" Front Lift
2018, Chevrolet Colorado Base, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2018, Chevrolet Colorado LT, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2018, Chevrolet Colorado LT, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2018, Chevrolet Colorado LT Front, Qty - 2, Provides 0-2.0" Front Lift
2018, Chevrolet Colorado WT, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2018, Chevrolet Colorado WT, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2018, Chevrolet Colorado WT Front, Qty - 2, Provides 0-2.0" Front Lift
2018, Chevrolet Colorado Z71, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2018, Chevrolet Colorado Z71, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2018, Chevrolet Colorado Z71 Front, Qty - 2, Provides 0-2.0" Front Lift
2018, GMC Canyon All Terrain, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2018, GMC Canyon All Terrain Front, Qty - 2, Provides 0-2.0" Front Lift
2018, GMC Canyon Base, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2018, GMC Canyon Base, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2018, GMC Canyon Denali, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2018, GMC Canyon Denali, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2018, GMC Canyon Denali Front, Qty - 2, Provides 0-2.0" Front Lift
2018, GMC Canyon SL, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2018, GMC Canyon SLE, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2018, GMC Canyon SLE, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2018, GMC Canyon SLE Front, Qty - 2, Provides 0-2.0" Front Lift
2018, GMC Canyon SLT, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2018, GMC Canyon SLT, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2018, GMC Canyon SLT Front, Qty - 2, Provides 0-2.0" Front Lift
2017, Chevrolet Colorado Base, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2017, Chevrolet Colorado LT, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2017, Chevrolet Colorado LT, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2017, Chevrolet Colorado LT Front, Qty - 2, Provides 0-2.0" Front Lift
2017, Chevrolet Colorado WT, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2017, Chevrolet Colorado WT, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2017, Chevrolet Colorado WT Front, Qty - 2, Provides 0-2.0" Front Lift
2017, Chevrolet Colorado Z71, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2017, Chevrolet Colorado Z71, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2017, Chevrolet Colorado Z71 Front, Qty - 2, Provides 0-2.0" Front Lift
2017, GMC Canyon Base, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2017, GMC Canyon Base, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2017, GMC Canyon Denali, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2017, GMC Canyon Denali, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2017, GMC Canyon Denali Front, Qty - 2, Provides 0-2.0" Front Lift
2017, GMC Canyon SL, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2017, GMC Canyon SLE, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2017, GMC Canyon SLE, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2017, GMC Canyon SLE Front, Qty - 2, Provides 0-2.0" Front Lift
2017, GMC Canyon SLT, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2017, GMC Canyon SLT, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2017, GMC Canyon SLT Front, Qty - 2, Provides 0-2.0" Front Lift
2016, Chevrolet Colorado Base, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2016, Chevrolet Colorado LT, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2016, Chevrolet Colorado LT, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2016, Chevrolet Colorado LT Front, Qty - 2, Provides 0-2.0" Front Lift
2016, Chevrolet Colorado WT, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2016, Chevrolet Colorado WT, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2016, Chevrolet Colorado WT Front, Qty - 2, Provides 0-2.0" Front Lift
2016, Chevrolet Colorado Z71, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2016, Chevrolet Colorado Z71, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2016, Chevrolet Colorado Z71 Front, Qty - 2, Provides 0-2.0" Front Lift
2016, GMC Canyon Base, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2016, GMC Canyon Base, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2016, GMC Canyon SL, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2016, GMC Canyon SLE, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2016, GMC Canyon SLE, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2016, GMC Canyon SLE Front, Qty - 2, Provides 0-2.0" Front Lift
2016, GMC Canyon SLT, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2016, GMC Canyon SLT, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2016, GMC Canyon SLT Front, Qty - 2, Provides 0-2.0" Front Lift
2015, Chevrolet Colorado Base, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2015, Chevrolet Colorado LT, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2015, Chevrolet Colorado LT, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2015, Chevrolet Colorado WT, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2015, Chevrolet Colorado WT, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2015, Chevrolet Colorado Z71, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2015, Chevrolet Colorado Z71, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2015, GMC Canyon Base, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2015, GMC Canyon Base, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2015, GMC Canyon SL, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2015, GMC Canyon SLE, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2015, GMC Canyon SLE, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
2015, GMC Canyon SLT, RWD Front, Qty - 2, Provides 0-1.9" Front Lift
2015, GMC Canyon SLT, 4WD Front, Qty - 2, Provides 0-2.6" Front Lift
Items: 1–100 of 668

Fitment Notice

You have not selected a vehicle to verify this product will fit. You may be subject to return and restocking fees if you order the wrong part without confirming your vehicle first.
