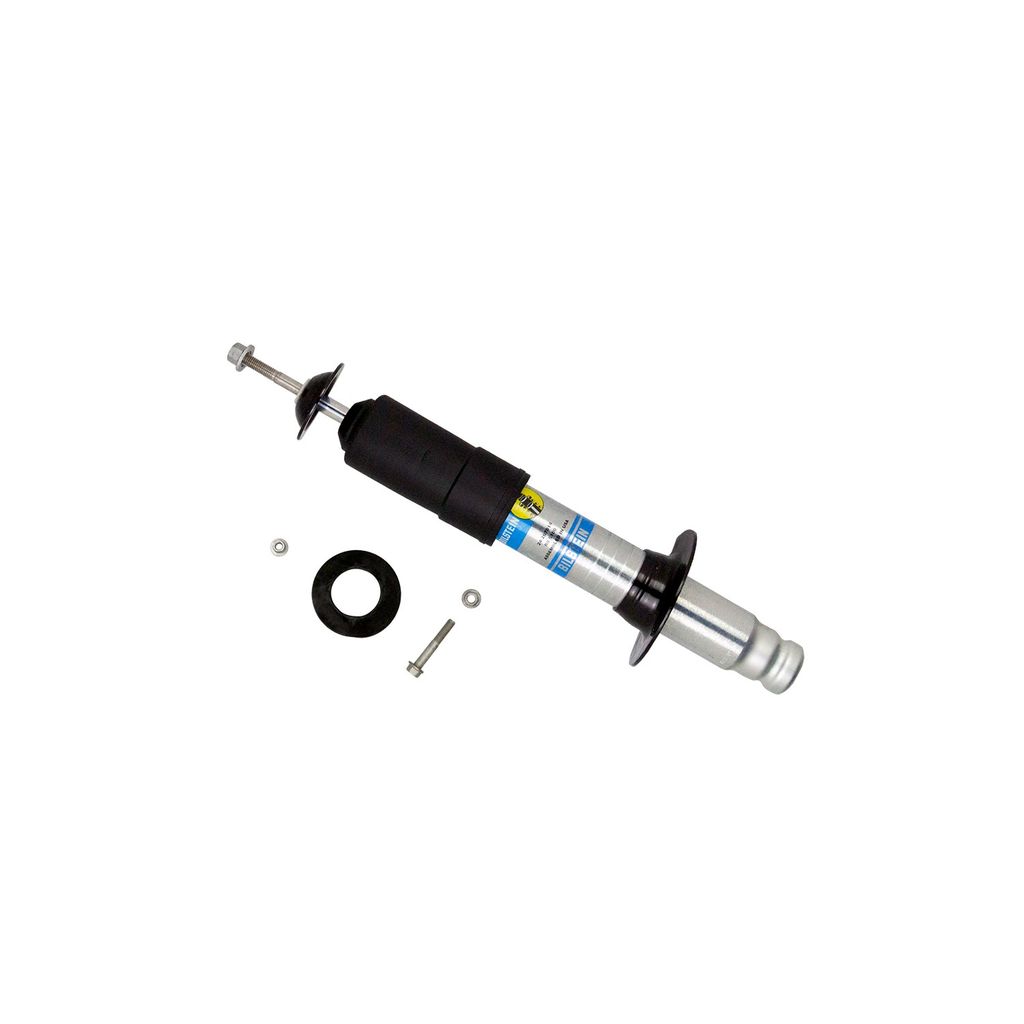

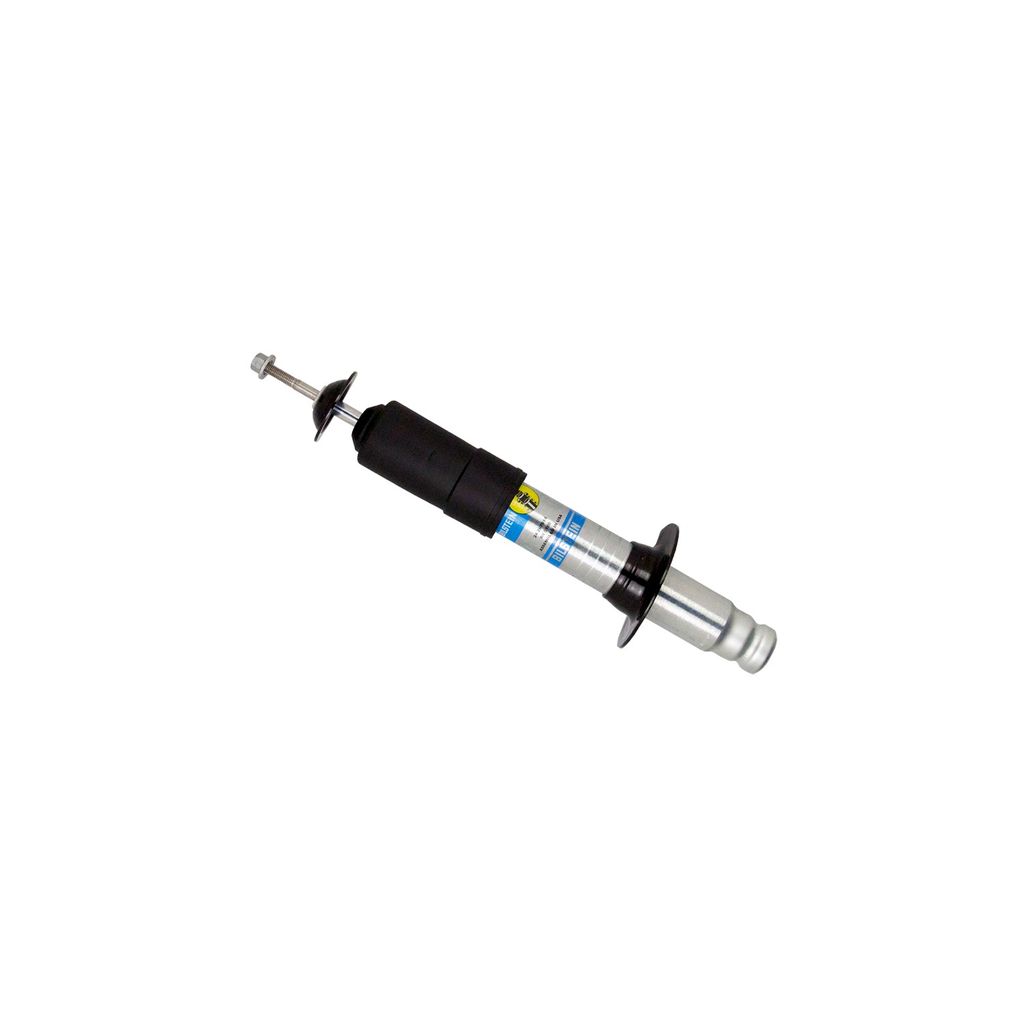

Bilstein 24-267014 - Shock Absorber

Previous image
Bilstein 24-267014 - Shock Absorber
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Bilstein 24-267014 - Shock Absorber

Part No: 24-267014
Only 2 left in Stock, Order Soon Arrives: Jun 5 - 11
  • $176.00 & FREE Shipping
List: $235.00

Starting at $XX/mo with Affirm. Prequalify now

Bilstein 24-267014 - Shock Absorber

BBGL-24-267014
Only 2 left in Stock, Order Soon Arrives: Jun 5 - 11
  • $176.00 & FREE Shipping
List: $235.00

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific
  • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
  • Adjustable spring seat offers 0-2.75in of lift, depending on the application
  • 46mm monotube design ensures consistent, fade-free performance in all conditions
Check All Vehicles this Part Fits

Product details

 Description

46mm Monotube Shock Absorber
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

 Specifications

Package
Attributes
  • Driving Qualifiers
    Performance Street, Off Road
  • Budget
    Low, Medium
  • Handling Characteristic
    Performance
  • Springs Included
    No
  • Ride Control/Adjustability
    Non- Adjustable
  • Ride Height Adjustable?
    No
  • Design
    Mono Tube
Details
  • Part Name
    Shock Absorber
  • Adjustable Damping
    Non-Adjustable
  • Body Design
    Snap Ring Grooved Body (Coilover)
  • Body Diameter (ID)
    46mm
  • Boot Included
    Black Straight
  • Collapsed Length (IN)
    11.26
  • Collapsed Length (MM)
    286.1
  • Extended Length (IN)
    16.41
  • Extended Length (MM)
    416.9
  • Finish
    Zinc Plated
  • Internal Design
    Monotube
  • Lower Mount Type
    Base Cup
  • PartType
    Shocks / Struts
  • Reservoir
    No
  • Segment
    Light Truck
  • Series
    B8 5100 (Ride Height Adjustable)
  • Spring Max Travel (IN)
    5.15
  • Spring Seat Included
    Yes
  • Title
    Bilstein Shock Absorbers
  • Upper Mount Type
    Stem
Manufacturer description
  • Manufacturer Label
    B8 5100 (Ride Height Adjustable)

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2009, Chevrolet Trailblazer LT, Coil Front, Qty - 2, Provides 0-2.25" Front Lift
2009, GMC Envoy Denali Front, Qty - 2, Provides 0-2.25" Front Lift
2009, GMC Envoy SLE Front, Qty - 2, Provides 0-2.25" Front Lift
2009, GMC Envoy SLT Front, Qty - 2, Provides 0-2.25" Front Lift
2009, Saab 9-7x 4.2i Front, Qty - 2, Provides 0-2.25" Front Lift
2009, Saab 9-7x 5.3i Front, Qty - 2, Provides 0-2.25" Front Lift
2008, Chevrolet Trailblazer Base, Coil Front, Qty - 2, Provides 0-2.25" Front Lift
2008, Chevrolet Trailblazer LT, Coil Front, Qty - 2, Provides 0-2.25" Front Lift
2008, GMC Envoy Denali Front, Qty - 2, Provides 0-2.25" Front Lift
2008, GMC Envoy SLE Front, Qty - 2, Provides 0-2.25" Front Lift
2008, GMC Envoy SLT Front, Qty - 2, Provides 0-2.25" Front Lift
2008, Isuzu Ascender S Front, Qty - 2, Provides 0-2.25" Front Lift
2008, Saab 9-7x 4.2i Front, Qty - 2, Provides 0-2.25" Front Lift
2008, Saab 9-7x 5.3i Front, Qty - 2, Provides 0-2.25" Front Lift
2007, Buick Rainier CXL Front, Qty - 2, Provides 0-2.25" Front Lift
2007, Chevrolet Trailblazer LS, Coil Front, Qty - 2, Provides 0-2.25" Front Lift
2007, Chevrolet Trailblazer LT, Coil Front, Qty - 2, Provides 0-2.25" Front Lift
2007, GMC Envoy Denali Front, Qty - 2, Provides 0-2.25" Front Lift
2007, GMC Envoy SLE Front, Qty - 2, Provides 0-2.25" Front Lift
2007, GMC Envoy SLT Front, Qty - 2, Provides 0-2.25" Front Lift
2007, Isuzu Ascender S Front, Qty - 2, Provides 0-2.25" Front Lift
2007, Saab 9-7x 4.2i Front, Qty - 2, Provides 0-2.25" Front Lift
2007, Saab 9-7x 5.3i Front, Qty - 2, Provides 0-2.25" Front Lift
2006, Buick Rainier CXL Front, Qty - 2, Provides 0-2.25" Front Lift
2006, Chevrolet Trailblazer LS, Coil Front, Qty - 2, Provides 0-2.25" Front Lift
2006, Chevrolet Trailblazer LT, Coil Front, Qty - 2, Provides 0-2.25" Front Lift
2006, Chevrolet Trailblazer EXT LS Front, Qty - 2, Provides 0-2.25" Front Lift
2006, Chevrolet Trailblazer EXT LT Front, Qty - 2, Provides 0-2.25" Front Lift
2006, GMC Envoy Denali Front, Qty - 2, Provides 0-2.25" Front Lift
2006, GMC Envoy SLE Front, Qty - 2, Provides 0-2.25" Front Lift
2006, GMC Envoy SLT Front, Qty - 2, Provides 0-2.25" Front Lift
2006, GMC Envoy XL Denali Front, Qty - 2, Provides 0-2.25" Front Lift
2006, GMC Envoy XL SLE Front, Qty - 2, Provides 0-2.25" Front Lift
2006, GMC Envoy XL SLT Front, Qty - 2, Provides 0-2.25" Front Lift
2006, Isuzu Ascender Base Front, Qty - 2, Provides 0-2.25" Front Lift
2006, Isuzu Ascender LS Front, Qty - 2, Provides 0-2.25" Front Lift
2006, Saab 9-7x 4.2i Front, Qty - 2, Provides 0-2.25" Front Lift
2006, Saab 9-7x 5.3i Front, Qty - 2, Provides 0-2.25" Front Lift
2005, Buick Rainier CXL Front, Qty - 2, Provides 0-2.25" Front Lift
2005, Buick Rainier CXL Plus Front, Qty - 2, Provides 0-2.25" Front Lift
2005, Chevrolet Trailblazer LS, Coil Front, Qty - 2, Provides 0-2.25" Front Lift
2005, Chevrolet Trailblazer LT, Coil Front, Qty - 2, Provides 0-2.25" Front Lift
2005, Chevrolet Trailblazer EXT LS Front, Qty - 2, Provides 0-2.25" Front Lift
2005, Chevrolet Trailblazer EXT LT Front, Qty - 2, Provides 0-2.25" Front Lift
2005, GMC Envoy Denali Front, Qty - 2, Provides 0-2.25" Front Lift
2005, GMC Envoy SLE Front, Qty - 2, Provides 0-2.25" Front Lift
2005, GMC Envoy SLT Front, Qty - 2, Provides 0-2.25" Front Lift
2005, GMC Envoy XL Denali Front, Qty - 2, Provides 0-2.25" Front Lift
2005, GMC Envoy XL SLE Front, Qty - 2, Provides 0-2.25" Front Lift
2005, GMC Envoy XL SLT Front, Qty - 2, Provides 0-2.25" Front Lift
2005, Isuzu Ascender Limited Front, Qty - 2, Provides 0-2.25" Front Lift
2005, Isuzu Ascender LS Front, Qty - 2, Provides 0-2.25" Front Lift
2005, Isuzu Ascender S Front, Qty - 2, Provides 0-2.25" Front Lift
2005, Saab 9-7x Arc Front, Qty - 2, Provides 0-2.25" Front Lift
2005, Saab 9-7x Linear Front, Qty - 2, Provides 0-2.25" Front Lift
2004, Buick Rainier CXL Front, Qty - 2, Provides 0-2.25" Front Lift
2004, Buick Rainier CXL Plus Front, Qty - 2, Provides 0-2.25" Front Lift
2004, Chevrolet Trailblazer LS, Coil Front, Qty - 2, Provides 0-2.25" Front Lift
2004, Chevrolet Trailblazer LT, Coil Front, Qty - 2, Provides 0-2.25" Front Lift
2004, Chevrolet Trailblazer North Face, Coil Front, Qty - 2, Provides 0-2.25" Front Lift
2004, Chevrolet Trailblazer EXT LS Front, Qty - 2, Provides 0-2.25" Front Lift
2004, Chevrolet Trailblazer EXT LT Front, Qty - 2, Provides 0-2.25" Front Lift
2004, Chevrolet Trailblazer EXT North Face Front, Qty - 2, Provides 0-2.25" Front Lift
2004, GMC Envoy SLE Front, Qty - 2, Provides 0-2.25" Front Lift
2004, GMC Envoy SLT Front, Qty - 2, Provides 0-2.25" Front Lift
2004, GMC Envoy XL SLE Front, Qty - 2, Provides 0-2.25" Front Lift
2004, GMC Envoy XL SLT Front, Qty - 2, Provides 0-2.25" Front Lift
2004, Isuzu Ascender Limited Front, Qty - 2, Provides 0-2.25" Front Lift
2004, Isuzu Ascender LS Front, Qty - 2, Provides 0-2.25" Front Lift
2004, Isuzu Ascender S Front, Qty - 2, Provides 0-2.25" Front Lift
2004, Oldsmobile Bravada Base Front, Qty - 2, Provides 0-2.25" Front Lift
2003, Chevrolet Trailblazer LS, Coil Front, Qty - 2, Provides 0-2.25" Front Lift
2003, Chevrolet Trailblazer LT, Coil Front, Qty - 2, Provides 0-2.25" Front Lift
2003, Chevrolet Trailblazer LTZ, Coil Front, Qty - 2, Provides 0-2.25" Front Lift
2003, Chevrolet Trailblazer North Face, Coil Front, Qty - 2, Provides 0-2.25" Front Lift
2003, Chevrolet Trailblazer EXT LS Front, Qty - 2, Provides 0-2.25" Front Lift
2003, Chevrolet Trailblazer EXT LT Front, Qty - 2, Provides 0-2.25" Front Lift
2003, Chevrolet Trailblazer EXT North Face Front, Qty - 2, Provides 0-2.25" Front Lift
2003, GMC Envoy SLE Front, Qty - 2, Provides 0-2.25" Front Lift
2003, GMC Envoy SLT Front, Qty - 2, Provides 0-2.25" Front Lift
2003, GMC Envoy XL SLE Front, Qty - 2, Provides 0-2.25" Front Lift
2003, GMC Envoy XL SLT Front, Qty - 2, Provides 0-2.25" Front Lift
2003, Isuzu Ascender Base Front, Qty - 2, Provides 0-2.25" Front Lift
2003, Isuzu Ascender Limited Front, Qty - 2, Provides 0-2.25" Front Lift
2003, Isuzu Ascender LS Front, Qty - 2, Provides 0-2.25" Front Lift
2003, Oldsmobile Bravada Base Front, Qty - 2, Provides 0-2.25" Front Lift
2002, Chevrolet Trailblazer LS, Coil Front, Qty - 2, Provides 0-2.25" Front Lift
2002, Chevrolet Trailblazer LT, Coil Front, Qty - 2, Provides 0-2.25" Front Lift
2002, Chevrolet Trailblazer LTZ, Coil Front, Qty - 2, Provides 0-2.25" Front Lift
2002, Chevrolet Trailblazer North Face, Coil Front, Qty - 2, Provides 0-2.25" Front Lift
2002, Chevrolet Trailblazer EXT LT Front, Qty - 2, Provides 0-2.25" Front Lift
2002, Chevrolet Trailblazer EXT North Face Front, Qty - 2, Provides 0-2.25" Front Lift
2002, GMC Envoy SLE Front, Qty - 2, Provides 0-2.25" Front Lift
2002, GMC Envoy SLT Front, Qty - 2, Provides 0-2.25" Front Lift
2002, GMC Envoy XL SLE Front, Qty - 2, Provides 0-2.25" Front Lift
2002, GMC Envoy XL SLT Front, Qty - 2, Provides 0-2.25" Front Lift
2002, Oldsmobile Bravada Base Front, Qty - 2, Provides 0-2.25" Front Lift
