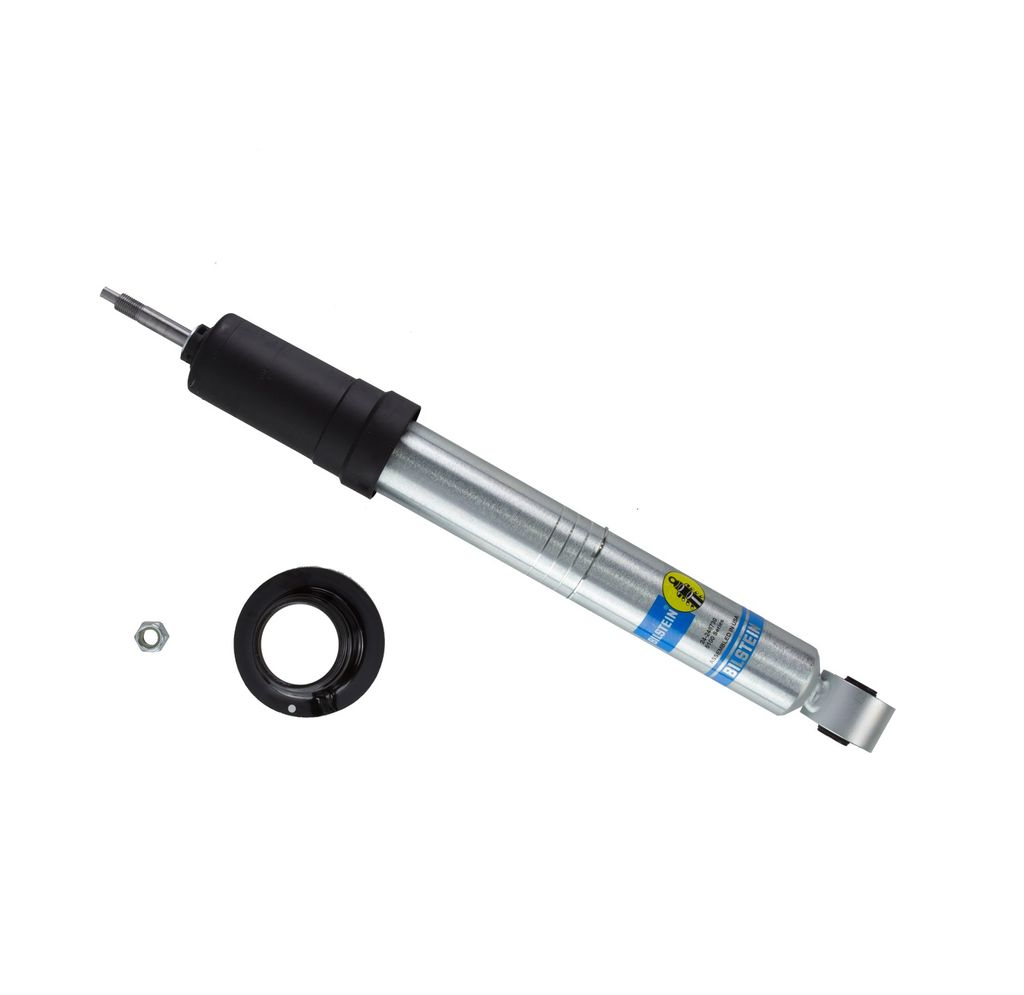

Bilstein 24-248730 - Shock Absorber

Previous image
Bilstein 24-248730 - Shock Absorber
Actual Product may vary from pictures due to Vehicle Fitment.
Next image
Zoom image

Bilstein 24-248730 - Shock Absorber

Part No: 24-248730
In Stock Arrives: Jun 5 - 11
  • $176.00 & FREE Shipping
List: $235.00

Starting at $XX/mo with Affirm. Prequalify now

Bilstein 24-248730 - Shock Absorber

BBGL-24-248730
In Stock Arrives: Jun 5 - 11
  • $176.00 & FREE Shipping
List: $235.00

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific
  • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
  • Adjustable spring seat offers 0-2.75in of lift, depending on the application
  • 46mm monotube design ensures consistent, fade-free performance in all conditions
Check All Vehicles this Part Fits

Product details

 Description

46mm Monotube Shock Absorber
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

 Specifications

Package
Attributes
  • Driving Qualifiers
    Performance Street, Off Road
  • Budget
    Low, Medium
  • Handling Characteristic
    Performance
  • Springs Included
    No
  • Ride Control/Adjustability
    Non- Adjustable
  • Ride Height Adjustable?
    No
  • Design
    Mono Tube
Details
  • Part Name
    Shock Absorber
  • Adjustable Damping
    Non-Adjustable
  • Body Design
    Snap Ring Grooved Body (Coilover)
  • Body Diameter (ID)
    46mm
  • Boot Included
    Black Straight
  • Collapsed Length (IN)
    13.66
  • Collapsed Length (MM)
    347
  • Extended Length (IN)
    18.30
  • Extended Length (MM)
    464.7
  • Finish
    Zinc Plated
  • Internal Design
    Monotube
  • Lower Mount Type
    Eye 14.2mm
  • PartType
    Shocks / Struts
  • Reservoir
    No
  • Segment
    Light Truck
  • Series
    B8 5100 (Ride Height Adjustable)
  • Spring Max Travel (IN)
    4.61

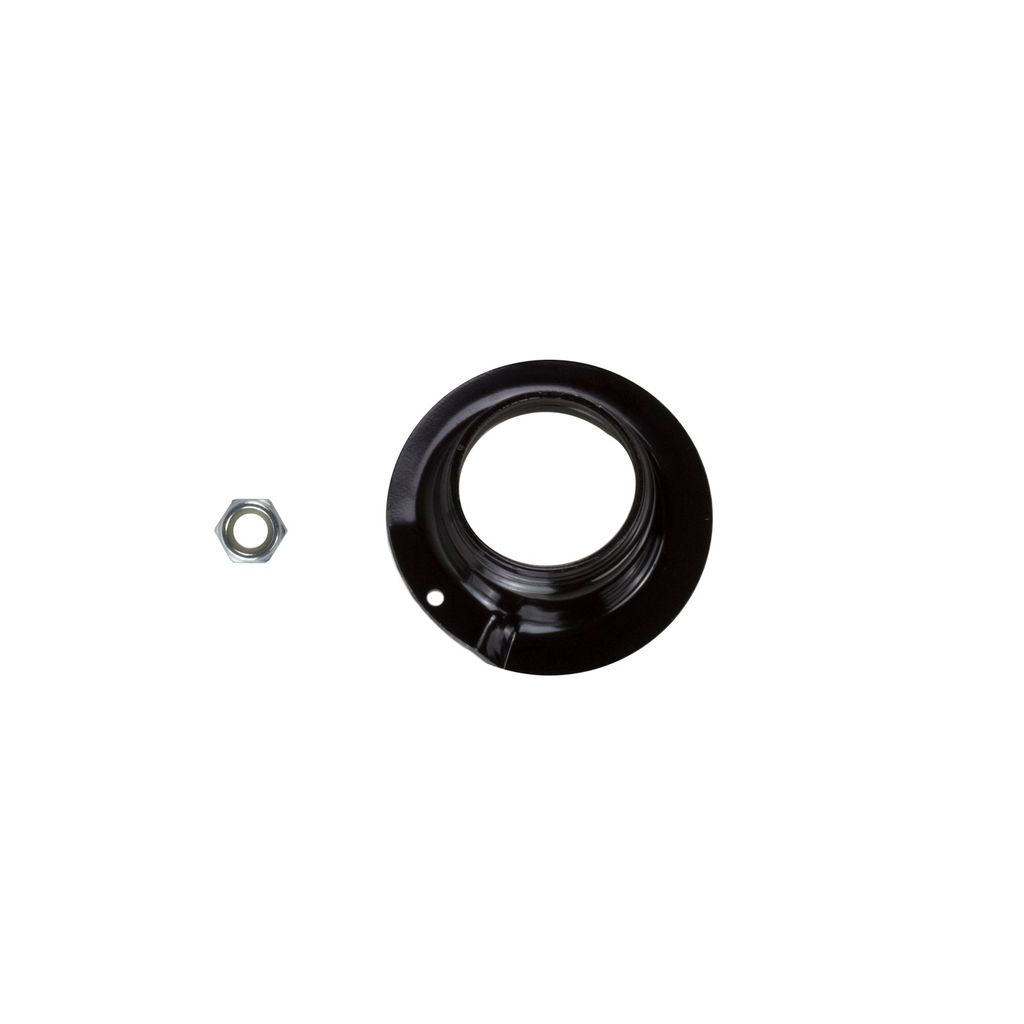

  • Spring Seat Included
    Yes
  • Title
    Bilstein Shock Absorbers
  • Upper Mount Type
    Stem
Manufacturer description
  • Manufacturer Label
    B8 5100 (Ride Height Adjustable)

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles

Model Engine Trim Notes
2002, Toyota 4Runner Limited, RWD Front, Qty - 2, Provides 0.8-2.3" Front Lift
2002, Toyota 4Runner Limited, 4WD Front, Qty - 2, Provides 0-2.3" Front Lift
2002, Toyota 4Runner SR5, RWD Front, Qty - 2, Provides 0.8-2.3" Front Lift
2002, Toyota 4Runner SR5, 4WD Front, Qty - 2, Provides 0-2.3" Front Lift
2001, Toyota 4Runner Base, RWD Front, Qty - 2, Provides 0.8-2.3" Front Lift
2001, Toyota 4Runner Base, 4WD Front, Qty - 2, Provides 0-2.3" Front Lift
2001, Toyota 4Runner Limited, RWD Front, Qty - 2, Provides 0.8-2.3" Front Lift
2001, Toyota 4Runner Limited, 4WD Front, Qty - 2, Provides 0-2.3" Front Lift
2001, Toyota 4Runner SR5, RWD Front, Qty - 2, Provides 0.8-2.3" Front Lift
2001, Toyota 4Runner SR5, 4WD Front, Qty - 2, Provides 0-2.3" Front Lift
2000, Toyota 4Runner Base, RWD Front, Qty - 2, Provides 0.8-2.3" Front Lift
2000, Toyota 4Runner Base, 4WD Front, Qty - 2, Provides 0-2.3" Front Lift
2000, Toyota 4Runner Limited, RWD Front, Qty - 2, Provides 0.8-2.3" Front Lift
2000, Toyota 4Runner Limited, 4WD Front, Qty - 2, Provides 0-2.3" Front Lift
2000, Toyota 4Runner SR5, RWD Front, Qty - 2, Provides 0.8-2.3" Front Lift
2000, Toyota 4Runner SR5, 4WD Front, Qty - 2, Provides 0-2.3" Front Lift
1999, Toyota 4Runner Base, RWD Front, Qty - 2, Provides 0.8-2.3" Front Lift
1999, Toyota 4Runner Base, 4WD Front, Qty - 2, Provides 0-2.3" Front Lift
1999, Toyota 4Runner Limited, RWD Front, Qty - 2, Provides 0.8-2.3" Front Lift
1999, Toyota 4Runner Limited, 4WD Front, Qty - 2, Provides 0-2.3" Front Lift
1999, Toyota 4Runner SR5, RWD Front, Qty - 2, Provides 0.8-2.3" Front Lift
1999, Toyota 4Runner SR5, 4WD Front, Qty - 2, Provides 0-2.3" Front Lift
1998, Toyota 4Runner Base, RWD Front, Qty - 2, Provides 0.8-2.3" Front Lift
1998, Toyota 4Runner Base, 4WD Front, Qty - 2, Provides 0-2.3" Front Lift
1998, Toyota 4Runner Limited, RWD Front, Qty - 2, Provides 0.8-2.3" Front Lift
1998, Toyota 4Runner Limited, 4WD Front, Qty - 2, Provides 0-2.3" Front Lift
1998, Toyota 4Runner SR5, RWD Front, Qty - 2, Provides 0.8-2.3" Front Lift
1998, Toyota 4Runner SR5, 4WD Front, Qty - 2, Provides 0-2.3" Front Lift
1997, Toyota 4Runner Base, RWD Front, Qty - 2, Provides 0.8-2.3" Front Lift
1997, Toyota 4Runner Base, 4WD Front, Qty - 2, Provides 0-2.3" Front Lift
1997, Toyota 4Runner Limited, RWD Front, Qty - 2, Provides 0.8-2.3" Front Lift
1997, Toyota 4Runner Limited, 4WD Front, Qty - 2, Provides 0-2.3" Front Lift
1997, Toyota 4Runner SR5, RWD Front, Qty - 2, Provides 0.8-2.3" Front Lift
1997, Toyota 4Runner SR5, 4WD Front, Qty - 2, Provides 0-2.3" Front Lift
1996, Toyota 4Runner Base, RWD Front, Qty - 2, Provides 0.8-2.3" Front Lift
1996, Toyota 4Runner Base, 4WD Front, Qty - 2, Provides 0-2.3" Front Lift
1996, Toyota 4Runner Limited Front, Qty - 2, Provides 0-2.3" Front Lift
1996, Toyota 4Runner SR5, RWD Front, Qty - 2, Provides 0.8-2.3" Front Lift
1996, Toyota 4Runner SR5, 4WD Front, Qty - 2, Provides 0-2.3" Front Lift
Items: 1–100 of 148
