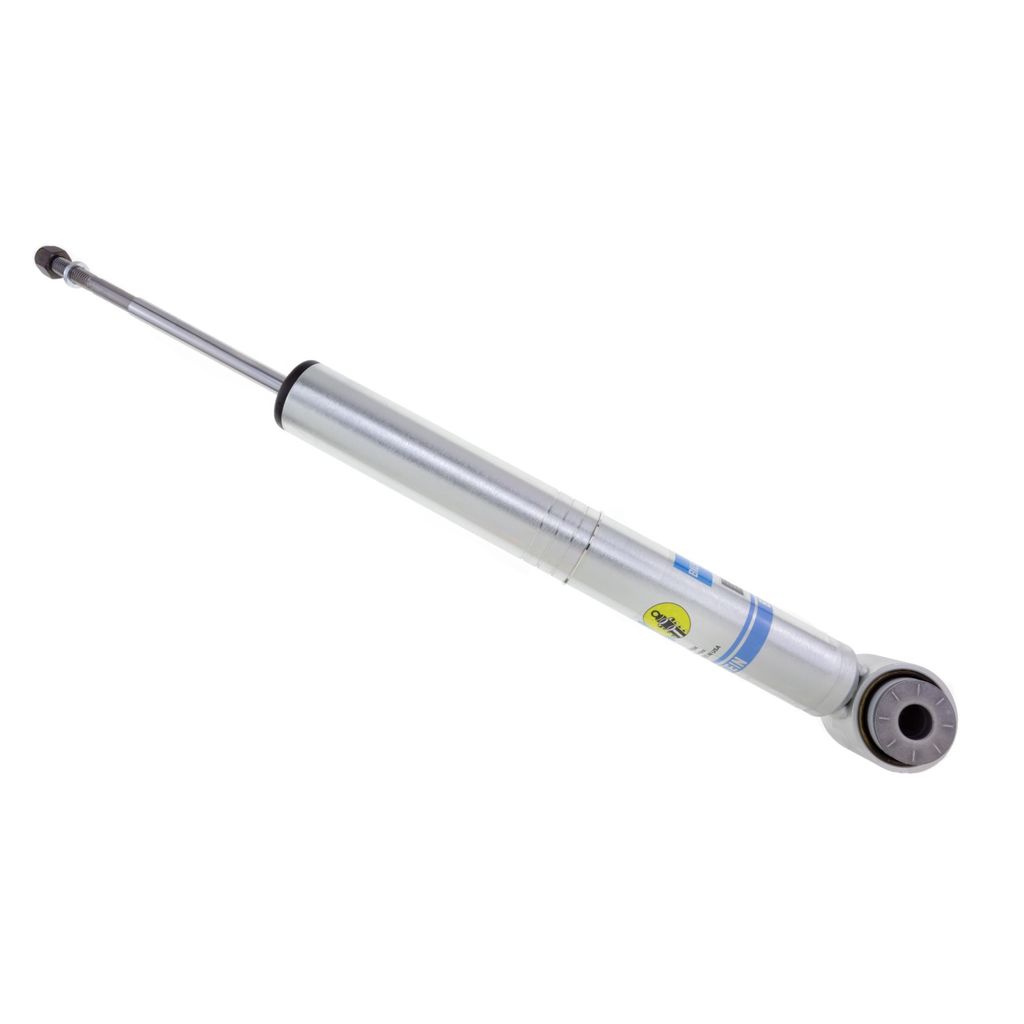

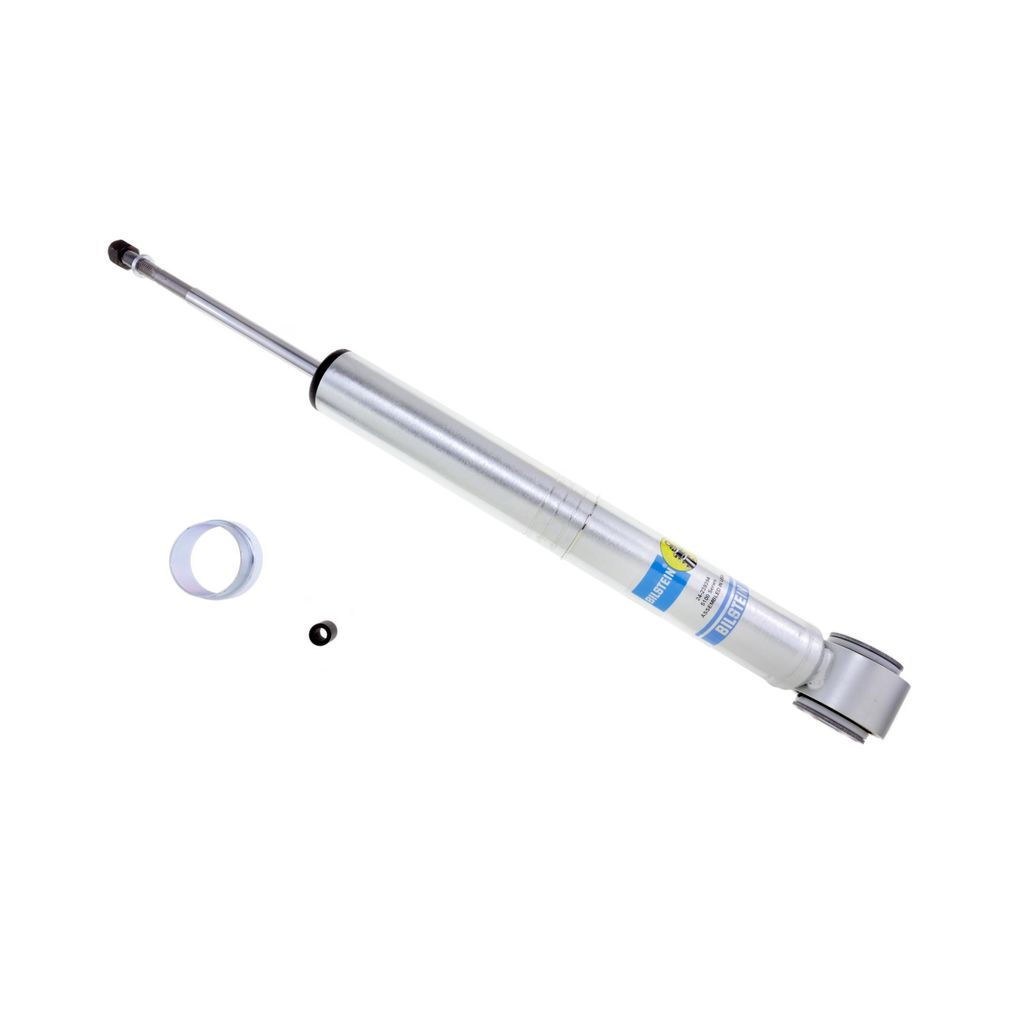

Bilstein 24-239394 - Shock Absorber

Previous image
Bilstein 24-239394 - Shock Absorber
Next image
Zoom image

Bilstein 24-239394 - Shock Absorber

Part No: 24-239394
In Stock Arrives: Apr 1 - 5
  • $157.00 & FREE Shipping
List: $218.90

Starting at $XX/mo with Affirm. Prequalify now

Bilstein 24-239394 - Shock Absorber

BBGL-24-239394
In Stock Arrives: Apr 1 - 5
  • $157.00 & FREE Shipping
List: $218.90

Starting at $XX/mo with Affirm. Prequalify now

Vehicle Specific

Select your Vehicle

  • Ideal suspension upgrades for lifted trucks and SUVs
  • Monotube design and patented digressive valving provide maximum stability, control, and comfort
  • Digressive valving allows the vehicle to react to changing terrain in an instant
  • With OEM-certified mounting hardware for ease of installation
  • Zinc coating and clear coat sealant for extra protection
  • Made in the USA or Germany

Product details


 Description

46mm Monotube Shock Absorber
Want the best offroad performance possible from your ride? Just add the Bilstein 5100/6100 Series Off Road Shock Absorbers and Struts. These shocks will get the job done and provide you with an excellent ride all throughout. Thanks to their monotube design and patented digressive valving, the 5100/6100 Series instantly reacts to changing road inputs to maintain a stable, controlled, and comfortable ride on or off-road.
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
If your vehicle’s equipped with a lift kit, it puts extra demand on your shock absorbers’ damping ability and can affect the vehicle’s overall performance. So, replace your old, worn-down factory shocks and upgrade to Bilstein’s 5100/6100 Series Off Road Shock Absorbers and Struts. With this complete package, you can achieve a superior ride for your off-road adventures with the look and fitment you want. The 5100/6100 Series is a high-quality OE replacement that offers a direct fit and functionality. Zinc or nickel-plated coating ensures it’s well-protected against harsh elements, and a clear coat sealant is added for a lasting shine.

 Reviews

Customer reviews


 Specifications

Package
Attributes
  • Driving Qualifiers
    Performance Street, Off Road
  • Budget
    Low, Medium
  • Handling Characteristic
    Performance
  • Springs Included
    No
  • Ride Control/Adjustability
    Non- Adjustable
  • Ride Height Adjustable?
    No
  • Design
    Mono Tube
Details
  • Part Name
    Shock Absorber
  • Adjustable Damping
    Non-Adjustable
  • Body Design
    Snap Ring Grooved Body (Coilover)
  • Body Diameter (ID)
    46mm
  • Boot Included
    No
  • Collapsed Length (IN)
    16.93
  • Collapsed Length (MM)
    430.0
  • Extended Length (IN)
    21.83
  • Extended Length (MM)
    554.5
  • Finish
    Zinc Plated
  • Internal Design
    Monotube
  • Lower Mount Type
    Eye 20.3mm
  • Reservoir
    No
  • Series
    B8 5100 (Ride Height Adjustable)
  • Spring Seat Included
    No - Reuse OEM
  • Title
    Bilstein Shock Absorbers
  • Upper Mount Type
    Stem
Manufacturer description
  • Manufacturer Label
    B8 5100 (Ride Height Adjustable)

 Fast Shipping and Easy Returns


Customer satisfaction is our top priority. We want to ensure your experience with BuyBrakes.com is the best it can possibly be. If you're unsatisfied with your order and wish to return it, please follow our guidelines below.

Compatible with the following vehicles


Model Engine Trim Notes
2013, Ford F-150 FX4 Front, Qty - 2, Front Lift Height: 0-2.25"
2013, Ford F-150 FX4 Front, Qty - 2, Front Lift Height: 0-2.25"
2013, Ford F-150 King Ranch, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2013, Ford F-150 King Ranch, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2013, Ford F-150 Lariat, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2013, Ford F-150 Lariat, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2013, Ford F-150 Limited, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2013, Ford F-150 Limited, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2013, Ford F-150 Platinum, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2013, Ford F-150 Platinum, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2013, Ford F-150 STX, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2013, Ford F-150 STX, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2013, Ford F-150 XL, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2013, Ford F-150 XL, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2013, Ford F-150 XLT, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2013, Ford F-150 XLT, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2012, Ford F-150 FX4 Front, Qty - 2, Front Lift Height: 0-2.25"
2012, Ford F-150 FX4 Front, Qty - 2, Front Lift Height: 0-2.25"
2012, Ford F-150 King Ranch, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2012, Ford F-150 King Ranch, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2012, Ford F-150 Lariat, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2012, Ford F-150 Lariat, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2012, Ford F-150 Platinum, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2012, Ford F-150 Platinum, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2012, Ford F-150 STX, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2012, Ford F-150 STX, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2012, Ford F-150 XL, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2012, Ford F-150 XL, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2012, Ford F-150 XLT, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2012, Ford F-150 XLT, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2011, Ford F-150 FX4 Front, Qty - 2, Front Lift Height: 0-2.25"
2011, Ford F-150 FX4 Front, Qty - 2, Front Lift Height: 0-2.25"
2011, Ford F-150 King Ranch, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2011, Ford F-150 King Ranch, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2011, Ford F-150 Lariat, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2011, Ford F-150 Lariat, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2011, Ford F-150 Lariat Limited, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2011, Ford F-150 Lariat Limited, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2011, Ford F-150 Platinum, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2011, Ford F-150 Platinum, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2011, Ford F-150 STX, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2011, Ford F-150 STX, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2011, Ford F-150 XL, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2011, Ford F-150 XL, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2011, Ford F-150 XLT, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2011, Ford F-150 XLT, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2010, Ford F-150 FX4 Front, Qty - 2, Front Lift Height: 0-2.25"
2010, Ford F-150 FX4 Front, Qty - 2, Front Lift Height: 0-2.25"
2010, Ford F-150 King Ranch, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2010, Ford F-150 King Ranch, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2010, Ford F-150 Lariat, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2010, Ford F-150 Lariat, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2010, Ford F-150 Platinum, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2010, Ford F-150 Platinum, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2010, Ford F-150 STX, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2010, Ford F-150 STX, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2010, Ford F-150 XL, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2010, Ford F-150 XL, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2010, Ford F-150 XLT, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2010, Ford F-150 XLT, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2009, Ford F-150 FX4 Front, Qty - 2, Front Lift Height: 0-2.25"
2009, Ford F-150 FX4 Front, Qty - 2, Front Lift Height: 0-2.25"
2009, Ford F-150 King Ranch, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2009, Ford F-150 King Ranch, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2009, Ford F-150 Lariat, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2009, Ford F-150 Lariat, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2009, Ford F-150 Platinum, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2009, Ford F-150 Platinum, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2009, Ford F-150 STX, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2009, Ford F-150 STX, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2009, Ford F-150 XL, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2009, Ford F-150 XL, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2009, Ford F-150 XLT, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
2009, Ford F-150 XLT, 4WD Front, Qty - 2, Front Lift Height: 0-2.25"
